TAO_Notify_CosEC_ProxyPushSupplier Class Reference

#include <CosEC_ProxyPushSupplier.h>

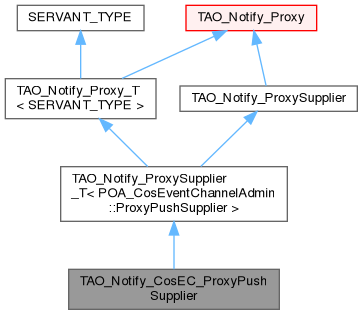

Inheritance diagram for TAO_Notify_CosEC_ProxyPushSupplier:

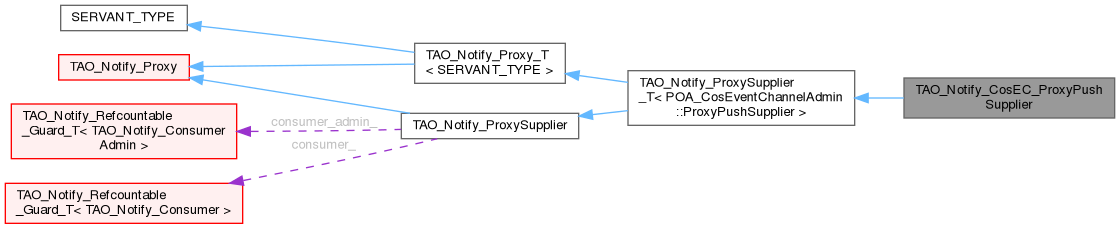

Collaboration diagram for TAO_Notify_CosEC_ProxyPushSupplier:

Public Member Functions
	TAO_Notify_CosEC_ProxyPushSupplier ()
	Constructor.
virtual	~TAO_Notify_CosEC_ProxyPushSupplier ()
	Destructor.
virtual const char *	get_proxy_type_name () const
virtual void	connect_push_consumer (CosEventComm::PushConsumer_ptr push_consumer)
virtual void	disconnect_push_supplier ()
virtual void	validate ()
virtual void	configure (TAO_Notify_ConsumerAdmin &admin, CosNotifyChannelAdmin::ProxyID_out proxy_id)
Public Member Functions inherited from TAO_Notify_ProxySupplier_T< POA_CosEventChannelAdmin::ProxyPushSupplier >
	TAO_Notify_ProxySupplier_T ()
	Constructor.
	~TAO_Notify_ProxySupplier_T ()
	Destructor.
virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
	Notification of subscriptions set at the admin.
virtual void	forward_structured (const CosNotification::StructuredEvent &event)
virtual void	forward_structured_no_filtering (const CosNotification::StructuredEvent &event)
	POA_Notify_Internal::Event_Forwarder method.
virtual void	forward_any (const CORBA::Any &event)
	POA_Notify_Internal::Event_Forwarder method.
virtual void	forward_any_no_filtering (const CORBA::Any &event)
	POA_Notify_Internal::Event_Forwarder method.
Public Member Functions inherited from TAO_Notify_Proxy_T< SERVANT_TYPE >
	TAO_Notify_Proxy_T ()
	Constructor.
	~TAO_Notify_Proxy_T ()
	Destructor.
virtual PortableServer::Servant	servant ()
	Implements TAO_Notify_Object::servant method.
virtual void	_add_ref ()
	ServantBase refcount methods.
virtual void	_remove_ref ()
virtual void	validate_event_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)
virtual CosNotification::QoSProperties *	get_qos ()
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.
virtual void	validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)
virtual CosNotifyFilter::FilterID	add_filter (CosNotifyFilter::Filter_ptr new_filter)
virtual void	remove_filter (CosNotifyFilter::FilterID filter)
virtual CosNotifyFilter::Filter_ptr	get_filter (CosNotifyFilter::FilterID filter)
virtual CosNotifyFilter::FilterIDSeq *	get_all_filters ()
virtual void	remove_all_filters ()
Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy ()
	Constructor.
virtual	~TAO_Notify_Proxy ()
	Destructor.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID.
void	deactivate ()
	Deactivate.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types.
CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters.
void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised.
CORBA::Boolean	updates_off ()
	Have updates been turned off.
virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change ()
Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.
virtual	~Topology_Object ()
	The destructor.
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.
virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.
bool	is_changed () const
	Is there an unsaved change for this object or its children?
Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.
ID	id () const
	This Object's ID.
void	deactivate ()
	Deactivate.
bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref ()
	Get CORBA Ref.
CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.
TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt ()
CORBA::ULong	_decr_refcnt ()
Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.
virtual void	reconnect ()
Public Member Functions inherited from TAO_Notify_ProxySupplier
	TAO_Notify_ProxySupplier ()
	Constructor.
virtual	~TAO_Notify_ProxySupplier ()
	Destructor.
virtual void	init (TAO_Notify_ConsumerAdmin *consumer_admin)
	Init.
void	connect (TAO_Notify_Consumer *consumer)
	Connect.
void	disconnect ()
	Disconnect.
virtual void	deliver (TAO_Notify_Method_Request_Dispatch_No_Copy &request)
	Dispatch Event to consumer.
virtual int	shutdown ()
	Override TAO_Notify_Container_T::shutdown method.
virtual void	destroy ()
	Destroy this object.
void	destroy (bool from_timeout)
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.
bool	is_connected () const
	Returns true if connected.
TAO_Notify_Consumer *	consumer ()
	Access the Consumer.
TAO_Notify_ConsumerAdmin &	consumer_admin ()
	The CA parent.

Private Member Functions
virtual void	release ()
	Release.

Friends
class	TAO_Notify_Builder

Additional Inherited Members
Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Proxy >	Ptr
typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.
Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr
Public Types inherited from TAO_Notify_ProxySupplier
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ProxySupplier >	Ptr
Protected Member Functions inherited from TAO_Notify_ProxySupplier_T< POA_CosEventChannelAdmin::ProxyPushSupplier >
virtual CosNotifyChannelAdmin::ConsumerAdmin_ptr	MyAdmin ()
virtual void	suspend_connection ()
virtual void	resume_connection ()
virtual CosNotifyFilter::MappingFilter_ptr	priority_filter ()
virtual void	priority_filter (CosNotifyFilter::MappingFilter_ptr priority_filter)
virtual CosNotifyFilter::MappingFilter_ptr	lifetime_filter ()
virtual void	lifetime_filter (CosNotifyFilter::MappingFilter_ptr lifetime_filter)
virtual CosNotification::EventTypeSeq *	obtain_offered_types (CosNotifyChannelAdmin::ObtainInfoMode mode)
virtual void	subscription_change (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent () const
	Should this object be saved?
bool	self_change ()
	Method to report change in this object.
Topology_Parent *	topology_parent () const
	pointer to our topological parent
bool	send_change ()
	Handle details of propagating change.
bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.
Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.
void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.
void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.
void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.
void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.
TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.
TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.
TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.
void	set_event_manager (TAO_Notify_Event_Manager *event_manager)
void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.
Protected Attributes inherited from TAO_Notify_ProxySupplier_T< POA_CosEventChannelAdmin::ProxyPushSupplier >
CORBA::Boolean	is_suspended_
Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager.
CORBA::Boolean	updates_off_
	True if updates have been turned off.
Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent
bool	children_changed_
	true of any of this object's children changed since last save_persistent
Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.
Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.
TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Constructor & Destructor Documentation

TAO_Notify_CosEC_ProxyPushSupplier()

TAO_Notify_CosEC_ProxyPushSupplier::TAO_Notify_CosEC_ProxyPushSupplier

(

)

Constructor.

~TAO_Notify_CosEC_ProxyPushSupplier()

TAO_Notify_CosEC_ProxyPushSupplier::~TAO_Notify_CosEC_ProxyPushSupplier ( )

virtual

Destructor.

Member Function Documentation

configure()

void TAO_Notify_CosEC_ProxyPushSupplier::configure ( TAO_Notify_ConsumerAdmin & admin, CosNotifyChannelAdmin::ProxyID_out proxy_id )

virtual

connect_push_consumer()

void TAO_Notify_CosEC_ProxyPushSupplier::connect_push_consumer ( CosEventComm::PushConsumer_ptr push_consumer )

virtual

disconnect_push_supplier()

void TAO_Notify_CosEC_ProxyPushSupplier::disconnect_push_supplier ( )

virtual

get_proxy_type_name()

const char * TAO_Notify_CosEC_ProxyPushSupplier::get_proxy_type_name ( ) const

virtual

Implements TAO_Notify_Proxy.

release()

void TAO_Notify_CosEC_ProxyPushSupplier::release ( )

privatevirtual

Release.

Implements TAO_Notify_Refcountable.

validate()

void TAO_Notify_CosEC_ProxyPushSupplier::validate ( )

virtual

Implements TAO_Notify_Proxy.

Friends And Related Symbol Documentation

TAO_Notify_Builder

friend class TAO_Notify_Builder

friend

---

The documentation for this class was generated from the following files:

• CosEC_ProxyPushSupplier.h
• CosEC_ProxyPushSupplier.cpp
