Implementation of CosNotifyChannelAdmin::ConsumerAdmin. More...

#include <ConsumerAdmin.h>

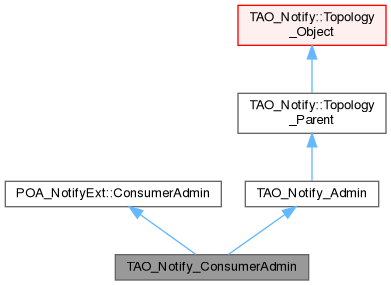

Inheritance diagram for TAO_Notify_ConsumerAdmin:

[legend]

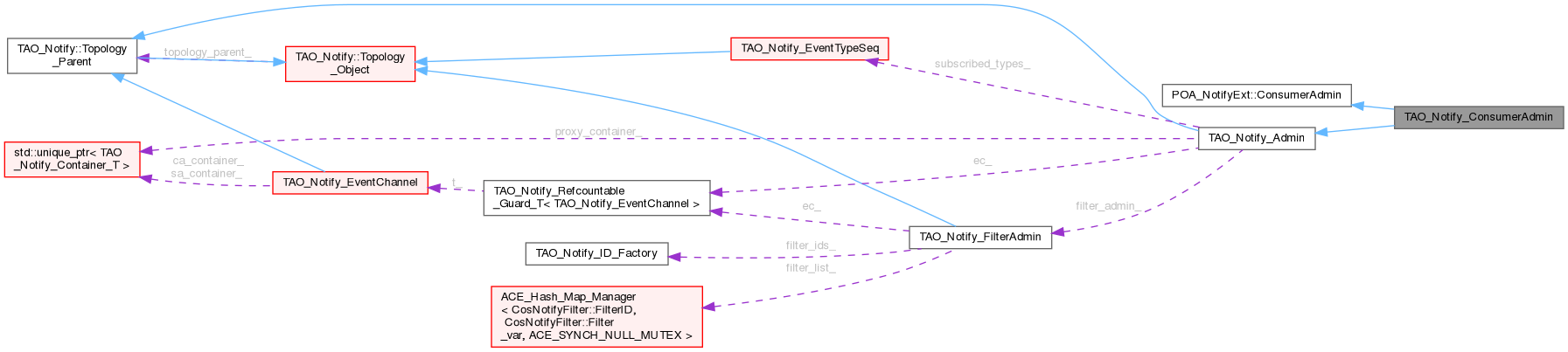

Collaboration diagram for TAO_Notify_ConsumerAdmin:

[legend]

Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ConsumerAdmin >	Ptr

Public Types inherited from TAO_Notify_Admin
typedef CosNotifyChannelAdmin::AdminIDSeq	SEQ

typedef CosNotifyChannelAdmin::AdminIDSeq_var	SEQ_VAR

Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Public Member Functions
	TAO_Notify_ConsumerAdmin ()
	Constructor.

virtual	~TAO_Notify_ConsumerAdmin ()
	Destructor.

void	init (TAO_Notify_EventChannel *ec)
	Init.

virtual void	_add_ref ()
	ServantBase refcount methods.

virtual void	_remove_ref ()

virtual const char *	get_admin_type_name () const

virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.

TAO_Notify_ProxySupplier *	find_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position)

virtual void	destroy ()
	TAO_Notify_Container_T requires a destroy method.

Public Member Functions inherited from TAO_Notify_Admin
	TAO_Notify_Admin ()
	Constructor.

virtual	~TAO_Notify_Admin ()
	Destructor.

void	init (TAO_Notify::Topology_Parent *parent)
	Init.

void	insert (TAO_Notify_Proxy *proxy)
	Insert the proxy in the <proxy_container_>.

void	cleanup_proxy (TAO_Notify_Proxy *proxy, bool is_supplier, bool experienced_timeout)
	Remove type from container_ and cleanup any EC resources.

TAO_Notify_FilterAdmin &	filter_admin ()
	Access Admin FilterAdmin.

void	filter_operator (CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Set Filter operator.

CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator ()
	Access Filter operator.

void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Admin's subscribed types.

TAO_Notify_EventChannel *	event_channel () const

virtual int	shutdown ()
	Shutdown.

virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)

virtual void	reconnect ()

virtual void	validate ()

void	set_default (bool is_default)

bool	is_default () const

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change ()

Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.

virtual	~Topology_Object ()
	The destructor.

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.

virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.

bool	is_changed () const
	Is there an unsaved change for this object or its children?

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.

ID	id () const
	This Object's ID.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id.

void	deactivate ()
	Deactivate.

bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref ()
	Get CORBA Ref.

CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.

TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.

TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt ()

CORBA::ULong	_decr_refcnt ()

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.

Protected Member Functions
TAO_Notify::Topology_Object *	load_proxy (CORBA::Long id, CosNotifyChannelAdmin::ClientType ctype, const TAO_Notify::NVPList &attrs)

virtual CosNotifyChannelAdmin::ProxySupplier_ptr	obtain_notification_push_supplier_with_qos (CosNotifyChannelAdmin::ClientType ctype, CosNotifyChannelAdmin::ProxyID_out proxy_id, const CosNotification::QoSProperties &initial_qos)
	= NotifyExt::ConsumerAdmin methods

virtual CosNotifyChannelAdmin::AdminID	MyID ()
	= CosNotifyChannelAdmin::ConsumerAdmin methods

virtual::CosNotifyChannelAdmin::EventChannel_ptr	MyChannel ()

virtual::CosNotifyChannelAdmin::InterFilterGroupOperator	MyOperator ()

virtual::CosNotifyFilter::MappingFilter_ptr	priority_filter ()

virtual void	priority_filter (CosNotifyFilter::MappingFilter_ptr priority_filter)

virtual::CosNotifyFilter::MappingFilter_ptr	lifetime_filter ()

virtual void	lifetime_filter (CosNotifyFilter::MappingFilter_ptr lifetime_filter)

virtual::CosNotifyChannelAdmin::ProxyIDSeq *	pull_suppliers ()

virtual::CosNotifyChannelAdmin::ProxyIDSeq *	push_suppliers ()

virtual::CosNotifyChannelAdmin::ProxySupplier_ptr	get_proxy_supplier (CosNotifyChannelAdmin::ProxyID proxy_id)

virtual::CosNotifyChannelAdmin::ProxySupplier_ptr	obtain_notification_pull_supplier (CosNotifyChannelAdmin::ClientType ctype, CosNotifyChannelAdmin::ProxyID_out proxy_id)

virtual::CosNotifyChannelAdmin::ProxySupplier_ptr	obtain_notification_push_supplier (CosNotifyChannelAdmin::ClientType ctype, CosNotifyChannelAdmin::ProxyID_out proxy_id)

virtual::CosNotification::QoSProperties *	get_qos ()

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.

virtual void	validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)

virtual void	subscription_change (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)

virtual CosNotifyFilter::FilterID	add_filter (CosNotifyFilter::Filter_ptr new_filter)

virtual void	remove_filter (CosNotifyFilter::FilterID filter)

virtual::CosNotifyFilter::Filter_ptr	get_filter (CosNotifyFilter::FilterID filter)

virtual::CosNotifyFilter::FilterIDSeq *	get_all_filters ()

virtual void	remove_all_filters ()

virtual::CosEventChannelAdmin::ProxyPushSupplier_ptr	obtain_push_supplier ()

virtual::CosEventChannelAdmin::ProxyPullSupplier_ptr	obtain_pull_supplier ()

Protected Member Functions inherited from TAO_Notify_Admin
void	save_attrs (TAO_Notify::NVPList &attrs)

TAO_Notify_Proxy_Container &	proxy_container ()

Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent () const
	Should this object be saved?

bool	self_change ()
	Method to report change in this object.

Topology_Parent *	topology_parent () const
	pointer to our topological parent

bool	send_change ()
	Handle details of propagating change.

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.

TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.

TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.

TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)

Private Member Functions
virtual void	release ()
	Release this object.

Additional Inherited Members
Protected Types inherited from TAO_Notify_Admin
typedef TAO_Notify_Container_T< TAO_Notify_Proxy >	TAO_Notify_Proxy_Container

Protected Attributes inherited from TAO_Notify_Admin
TAO_Notify_EventChannel::Ptr	ec_
	= Data Members

TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we've subscribed our proxy objects with the event manager.

TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.

CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator_
	Filter operator.

bool	is_default_

Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent

bool	children_changed_
	true of any of this object's children changed since last save_persistent

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Detailed Description

Implementation of CosNotifyChannelAdmin::ConsumerAdmin.

Member Typedef Documentation

◆ Ptr

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ConsumerAdmin > TAO_Notify_ConsumerAdmin::Ptr

Constructor & Destructor Documentation

◆ TAO_Notify_ConsumerAdmin()

TAO_Notify_ConsumerAdmin::TAO_Notify_ConsumerAdmin ( )

Constructor.

◆ ~TAO_Notify_ConsumerAdmin()

TAO_Notify_ConsumerAdmin::~TAO_Notify_ConsumerAdmin ( )

virtual

Destructor.

Member Function Documentation

◆ _add_ref()

void TAO_Notify_ConsumerAdmin::_add_ref ( )

virtual

ServantBase refcount methods.

◆ _remove_ref()

void TAO_Notify_ConsumerAdmin::_remove_ref ( )

virtual

◆ add_filter()

CosNotifyFilter::FilterID TAO_Notify_ConsumerAdmin::add_filter ( CosNotifyFilter::Filter_ptr new_filter )

protectedvirtual

◆ destroy()

void TAO_Notify_ConsumerAdmin::destroy ( )

virtual

TAO_Notify_Container_T requires a destroy method.

◆ find_proxy_supplier()

TAO_Notify_ProxySupplier * TAO_Notify_ConsumerAdmin::find_proxy_supplier	(	TAO_Notify::IdVec &	id_path,
		size_t	position )

◆ get_admin_type_name()

const char * TAO_Notify_ConsumerAdmin::get_admin_type_name ( ) const

virtual

Implements TAO_Notify_Admin.

◆ get_all_filters()

CosNotifyFilter::FilterIDSeq * TAO_Notify_ConsumerAdmin::get_all_filters ( )

protected

◆ get_filter()

CosNotifyFilter::Filter_ptr TAO_Notify_ConsumerAdmin::get_filter ( CosNotifyFilter::FilterID filter )

protected

◆ get_proxy_supplier()

CosNotifyChannelAdmin::ProxySupplier_ptr TAO_Notify_ConsumerAdmin::get_proxy_supplier ( CosNotifyChannelAdmin::ProxyID proxy_id )

protected

◆ get_qos()

CosNotification::QoSProperties * TAO_Notify_ConsumerAdmin::get_qos ( )

protected

◆ init()

void TAO_Notify_ConsumerAdmin::init ( TAO_Notify_EventChannel * ec )

Init.

◆ lifetime_filter() [1/2]

CosNotifyFilter::MappingFilter_ptr TAO_Notify_ConsumerAdmin::lifetime_filter ( )

protected

◆ lifetime_filter() [2/2]

void TAO_Notify_ConsumerAdmin::lifetime_filter ( CosNotifyFilter::MappingFilter_ptr lifetime_filter )

protectedvirtual

◆ load_child()

TAO_Notify::Topology_Object * TAO_Notify_ConsumerAdmin::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const TAO_Notify::NVPList &	attrs )

virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify_Admin.

◆ load_proxy()

TAO_Notify::Topology_Object * TAO_Notify_ConsumerAdmin::load_proxy	(	CORBA::Long	id,
		CosNotifyChannelAdmin::ClientType	ctype,
		const TAO_Notify::NVPList &	attrs )

protected

◆ MyChannel()

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_ConsumerAdmin::MyChannel ( )

protected

◆ MyID()

CosNotifyChannelAdmin::AdminID TAO_Notify_ConsumerAdmin::MyID ( )

protectedvirtual

= CosNotifyChannelAdmin::ConsumerAdmin methods

◆ MyOperator()

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_ConsumerAdmin::MyOperator ( )

protected

◆ obtain_notification_pull_supplier()

CosNotifyChannelAdmin::ProxySupplier_ptr TAO_Notify_ConsumerAdmin::obtain_notification_pull_supplier	(	CosNotifyChannelAdmin::ClientType	ctype,
		CosNotifyChannelAdmin::ProxyID_out	proxy_id )

protected

◆ obtain_notification_push_supplier()

CosNotifyChannelAdmin::ProxySupplier_ptr TAO_Notify_ConsumerAdmin::obtain_notification_push_supplier	(	CosNotifyChannelAdmin::ClientType	ctype,
		CosNotifyChannelAdmin::ProxyID_out	proxy_id )

protected

◆ obtain_notification_push_supplier_with_qos()

CosNotifyChannelAdmin::ProxySupplier_ptr TAO_Notify_ConsumerAdmin::obtain_notification_push_supplier_with_qos	(	CosNotifyChannelAdmin::ClientType	ctype,
		CosNotifyChannelAdmin::ProxyID_out	proxy_id,
		const CosNotification::QoSProperties &	initial_qos )

protectedvirtual

= NotifyExt::ConsumerAdmin methods

◆ obtain_pull_supplier()

CosEventChannelAdmin::ProxyPullSupplier_ptr TAO_Notify_ConsumerAdmin::obtain_pull_supplier ( )

protected

◆ obtain_push_supplier()

CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_Notify_ConsumerAdmin::obtain_push_supplier ( )

protected

◆ priority_filter() [1/2]

CosNotifyFilter::MappingFilter_ptr TAO_Notify_ConsumerAdmin::priority_filter ( )

protected

◆ priority_filter() [2/2]

void TAO_Notify_ConsumerAdmin::priority_filter ( CosNotifyFilter::MappingFilter_ptr priority_filter )

protectedvirtual

◆ pull_suppliers()

CosNotifyChannelAdmin::ProxyIDSeq * TAO_Notify_ConsumerAdmin::pull_suppliers ( )

protected

◆ push_suppliers()

CosNotifyChannelAdmin::ProxyIDSeq * TAO_Notify_ConsumerAdmin::push_suppliers ( )

protected

◆ release()

void TAO_Notify_ConsumerAdmin::release ( )

privatevirtual

Release this object.

Implements TAO_Notify_Refcountable.

◆ remove_all_filters()

void TAO_Notify_ConsumerAdmin::remove_all_filters ( )

protectedvirtual

◆ remove_filter()

void TAO_Notify_ConsumerAdmin::remove_filter ( CosNotifyFilter::FilterID filter )

protectedvirtual

◆ set_qos()

void TAO_Notify_ConsumerAdmin::set_qos ( const CosNotification::QoSProperties & qos )

protectedvirtual

Set the QoS Properties.

Reimplemented from TAO_Notify_Object.

◆ subscription_change()

void TAO_Notify_ConsumerAdmin::subscription_change	(	const CosNotification::EventTypeSeq &	added,
		const CosNotification::EventTypeSeq &	removed )

protectedvirtual

◆ validate_qos()

void TAO_Notify_ConsumerAdmin::validate_qos	(	const CosNotification::QoSProperties &	required_qos,
		CosNotification::NamedPropertyRangeSeq_out	available_qos )

protectedvirtual

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Ptr

Constructor & Destructor Documentation

◆ TAO_Notify_ConsumerAdmin()

◆ ~TAO_Notify_ConsumerAdmin()

Member Function Documentation

◆ _add_ref()

◆ _remove_ref()

◆ add_filter()

◆ destroy()

◆ find_proxy_supplier()

◆ get_admin_type_name()

◆ get_all_filters()

◆ get_filter()

◆ get_proxy_supplier()

◆ get_qos()

◆ init()

◆ lifetime_filter() [1/2]

◆ lifetime_filter() [2/2]

◆ load_child()

◆ load_proxy()

◆ MyChannel()

◆ MyID()

◆ MyOperator()

◆ obtain_notification_pull_supplier()

◆ obtain_notification_push_supplier()

◆ obtain_notification_push_supplier_with_qos()

◆ obtain_pull_supplier()

◆ obtain_push_supplier()

◆ priority_filter() [1/2]

◆ priority_filter() [2/2]

◆ pull_suppliers()

◆ push_suppliers()

◆ release()

◆ remove_all_filters()

◆ remove_filter()

◆ set_qos()

◆ subscription_change()

◆ validate_qos()
