#include <QoSProperties.h>

Inheritance diagram for TAO_Notify_QoSProperties:

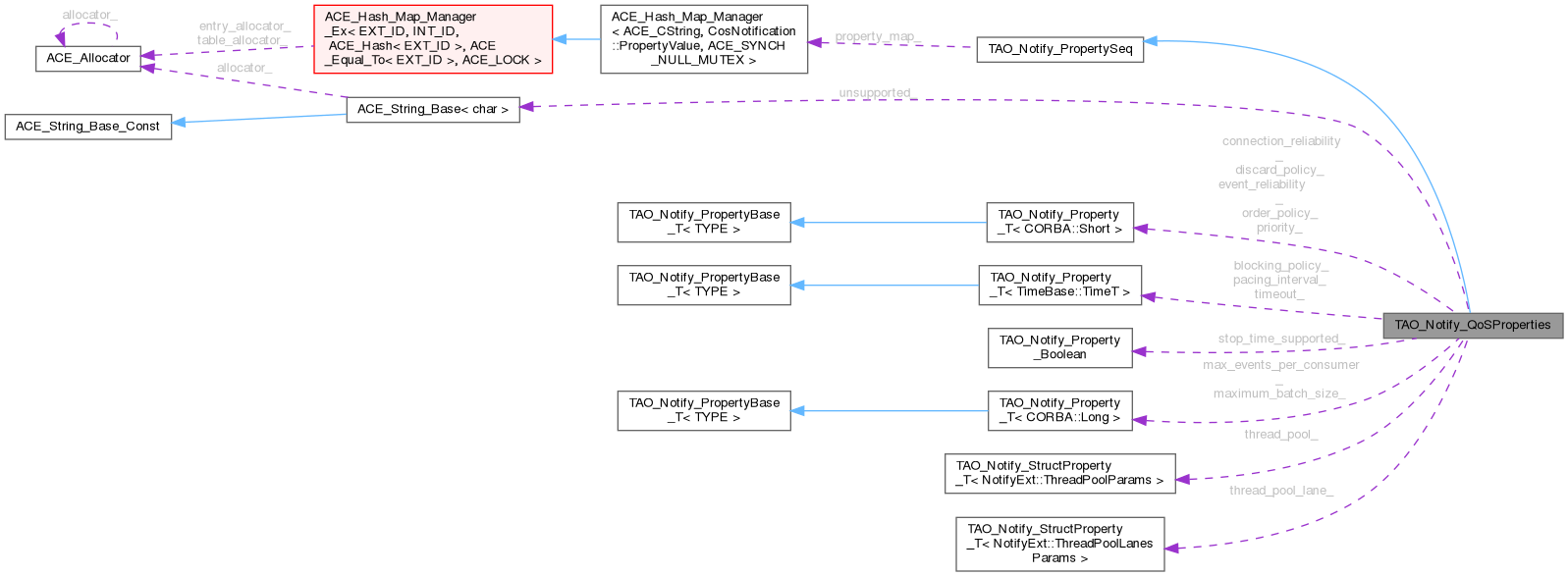

Collaboration diagram for TAO_Notify_QoSProperties:

[legend]

Public Member Functions
	TAO_Notify_QoSProperties ()
	Constructor.

virtual	~TAO_Notify_QoSProperties ()
	Destructor.

int	init (const CosNotification::PropertySeq &prop_seq, CosNotification::PropertyErrorSeq &err_seq)
	Return 0 on success, 1 if unsupported properties were detected and -1 on error.

void	init ()
	This version initializes the base from our members.

int	copy (TAO_Notify_QoSProperties &qos_properties)
	Populate qos_properties with all properties from this object. Returns -1 on error.

int	transfer (TAO_Notify_QoSProperties &qos_properties)
	Populate qos_properties with properties that can be transfered.Returns -1 on error.

const TAO_Notify_Property_ThreadPool &	thread_pool () const
	= Accessors

const TAO_Notify_Property_ThreadPoolLanes &	thread_pool_lane () const

const TAO_Notify_Property_Short &	event_reliability () const

const TAO_Notify_Property_Short &	connection_reliability () const

const TAO_Notify_Property_Short &	priority () const

const TAO_Notify_Property_Time &	timeout () const

const TAO_Notify_Property_Boolean &	stop_time_supported () const

const TAO_Notify_Property_Long &	maximum_batch_size () const

const TAO_Notify_Property_Time &	pacing_interval () const

const TAO_Notify_Property_Long &	max_events_per_consumer () const

const TAO_Notify_Property_Short &	discard_policy () const

const TAO_Notify_Property_Short &	order_policy () const

const TAO_Notify_Property_Time &	blocking_policy () const

TAO_Notify_Property_Short &	event_reliability ()

TAO_Notify_Property_Short &	connection_reliability ()

TAO_Notify_Property_Short &	priority ()

TAO_Notify_Property_Time &	timeout ()

TAO_Notify_Property_Boolean &	stop_time_supported ()

TAO_Notify_Property_Long &	maximum_batch_size ()

TAO_Notify_Property_Time &	pacing_interval ()

TAO_Notify_Property_Long &	max_events_per_consumer ()

TAO_Notify_Property_Short &	discard_policy ()

TAO_Notify_Property_Short &	order_policy ()

TAO_Notify_Property_Time &	blocking_policy ()

Public Member Functions inherited from TAO_Notify_PropertySeq
	TAO_Notify_PropertySeq ()
	Constructor.

	~TAO_Notify_PropertySeq ()
	Destructor.

int	init (const CosNotification::PropertySeq &prop_seq)
	Return 0 on success, -1 on error.

int	find (const char *name, CosNotification::PropertyValue &value) const
	Find the for property <name>. Returns 0 on success.

int	populate (CosNotification::PropertySeq_var &prop_seq) const
	Return -1 on error.

size_t	size () const
	return the number of properties available as a sequence

Protected Types
enum	{ UNSUPPORTED_PROPERTY_COUNT = 1 }

Protected Types inherited from TAO_Notify_PropertySeq
typedef ACE_Hash_Map_Manager< ACE_CString, CosNotification::PropertyValue, ACE_SYNCH_NULL_MUTEX >	PROPERTY_MAP
	Property Map.

Protected Member Functions
int	unsupported (ACE_CString &name)
	Return 1 if is unsupported.

Protected Member Functions inherited from TAO_Notify_PropertySeq
void	add (const ACE_CString &name, const CORBA::Any &val)

Protected Attributes
ACE_CString	unsupported_ [UNSUPPORTED_PROPERTY_COUNT]
	= Unsupported Properties.

TAO_Notify_Property_Short	event_reliability_
	= Supported standard properties

TAO_Notify_Property_Short	connection_reliability_

TAO_Notify_Property_Short	priority_

TAO_Notify_Property_Time	timeout_

TAO_Notify_Property_Boolean	stop_time_supported_

TAO_Notify_Property_Long	maximum_batch_size_

TAO_Notify_Property_Time	pacing_interval_

TAO_Notify_Property_Long	max_events_per_consumer_

TAO_Notify_Property_Short	discard_policy_

TAO_Notify_Property_Short	order_policy_

TAO_Notify_Property_ThreadPool	thread_pool_
	TAO Extensions.

TAO_Notify_Property_ThreadPoolLanes	thread_pool_lane_

TAO_Notify_Property_Time	blocking_policy_

Protected Attributes inherited from TAO_Notify_PropertySeq
PROPERTY_MAP	property_map_

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
UNSUPPORTED_PROPERTY_COUNT

Constructor & Destructor Documentation

◆ TAO_Notify_QoSProperties()

TAO_Notify_QoSProperties::TAO_Notify_QoSProperties ( )

Constructor.

◆ ~TAO_Notify_QoSProperties()

TAO_Notify_QoSProperties::~TAO_Notify_QoSProperties ( )

virtual

Destructor.

Member Function Documentation

◆ blocking_policy() [1/2]

TAO_Notify_Property_Time & TAO_Notify_QoSProperties::blocking_policy ( )

◆ blocking_policy() [2/2]

const TAO_Notify_Property_Time & TAO_Notify_QoSProperties::blocking_policy ( ) const

◆ connection_reliability() [1/2]

TAO_Notify_Property_Short & TAO_Notify_QoSProperties::connection_reliability ( )

◆ connection_reliability() [2/2]

const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::connection_reliability ( ) const

◆ copy()

int TAO_Notify_QoSProperties::copy ( TAO_Notify_QoSProperties & qos_properties )

Populate qos_properties with all properties from this object. Returns -1 on error.

◆ discard_policy() [1/2]

TAO_Notify_Property_Short & TAO_Notify_QoSProperties::discard_policy ( )

◆ discard_policy() [2/2]

const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::discard_policy ( ) const

◆ event_reliability() [1/2]

TAO_Notify_Property_Short & TAO_Notify_QoSProperties::event_reliability ( )

◆ event_reliability() [2/2]

const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::event_reliability ( ) const

◆ init() [1/2]

void TAO_Notify_QoSProperties::init ( )

This version initializes the base from our members.

◆ init() [2/2]

int TAO_Notify_QoSProperties::init	(	const CosNotification::PropertySeq &	prop_seq,
		CosNotification::PropertyErrorSeq &	err_seq )

Return 0 on success, 1 if unsupported properties were detected and -1 on error.

◆ max_events_per_consumer() [1/2]

TAO_Notify_Property_Long & TAO_Notify_QoSProperties::max_events_per_consumer ( )

◆ max_events_per_consumer() [2/2]

const TAO_Notify_Property_Long & TAO_Notify_QoSProperties::max_events_per_consumer ( ) const

◆ maximum_batch_size() [1/2]

TAO_Notify_Property_Long & TAO_Notify_QoSProperties::maximum_batch_size ( )

◆ maximum_batch_size() [2/2]

const TAO_Notify_Property_Long & TAO_Notify_QoSProperties::maximum_batch_size ( ) const

◆ order_policy() [1/2]

TAO_Notify_Property_Short & TAO_Notify_QoSProperties::order_policy ( )

◆ order_policy() [2/2]

const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::order_policy ( ) const

◆ pacing_interval() [1/2]

TAO_Notify_Property_Time & TAO_Notify_QoSProperties::pacing_interval ( )

◆ pacing_interval() [2/2]

const TAO_Notify_Property_Time & TAO_Notify_QoSProperties::pacing_interval ( ) const

◆ priority() [1/2]

TAO_Notify_Property_Short & TAO_Notify_QoSProperties::priority ( )

◆ priority() [2/2]

const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::priority ( ) const

◆ stop_time_supported() [1/2]

TAO_Notify_Property_Boolean & TAO_Notify_QoSProperties::stop_time_supported ( )

◆ stop_time_supported() [2/2]

const TAO_Notify_Property_Boolean & TAO_Notify_QoSProperties::stop_time_supported ( ) const

◆ thread_pool()

const TAO_Notify_Property_ThreadPool & TAO_Notify_QoSProperties::thread_pool ( ) const

= Accessors

◆ thread_pool_lane()

const TAO_Notify_Property_ThreadPoolLanes & TAO_Notify_QoSProperties::thread_pool_lane ( ) const

◆ timeout() [1/2]

TAO_Notify_Property_Time & TAO_Notify_QoSProperties::timeout ( )

◆ timeout() [2/2]

const TAO_Notify_Property_Time & TAO_Notify_QoSProperties::timeout ( ) const

◆ transfer()

int TAO_Notify_QoSProperties::transfer ( TAO_Notify_QoSProperties & qos_properties )

Populate qos_properties with properties that can be transfered.Returns -1 on error.

◆ unsupported()

int TAO_Notify_QoSProperties::unsupported ( ACE_CString & name )

protected

Return 1 if is unsupported.

Member Data Documentation

◆ blocking_policy_

TAO_Notify_Property_Time TAO_Notify_QoSProperties::blocking_policy_

protected

◆ connection_reliability_

TAO_Notify_Property_Short TAO_Notify_QoSProperties::connection_reliability_

protected

◆ discard_policy_

TAO_Notify_Property_Short TAO_Notify_QoSProperties::discard_policy_

protected

◆ event_reliability_

TAO_Notify_Property_Short TAO_Notify_QoSProperties::event_reliability_

protected

= Supported standard properties

◆ max_events_per_consumer_

TAO_Notify_Property_Long TAO_Notify_QoSProperties::max_events_per_consumer_

protected

◆ maximum_batch_size_

TAO_Notify_Property_Long TAO_Notify_QoSProperties::maximum_batch_size_

protected

◆ order_policy_

TAO_Notify_Property_Short TAO_Notify_QoSProperties::order_policy_

protected

◆ pacing_interval_

TAO_Notify_Property_Time TAO_Notify_QoSProperties::pacing_interval_

protected

◆ priority_

TAO_Notify_Property_Short TAO_Notify_QoSProperties::priority_

protected

◆ stop_time_supported_

TAO_Notify_Property_Boolean TAO_Notify_QoSProperties::stop_time_supported_

protected

◆ thread_pool_

TAO_Notify_Property_ThreadPool TAO_Notify_QoSProperties::thread_pool_

protected

TAO Extensions.

◆ thread_pool_lane_

TAO_Notify_Property_ThreadPoolLanes TAO_Notify_QoSProperties::thread_pool_lane_

protected

◆ timeout_

TAO_Notify_Property_Time TAO_Notify_QoSProperties::timeout_

protected

◆ unsupported_

ACE_CString TAO_Notify_QoSProperties::unsupported_[UNSUPPORTED_PROPERTY_COUNT]

protected

= Unsupported Properties.

The documentation for this class was generated from the following files:
