Base class for Persistent Topology Objects. More...

#include <Topology_Object.h>

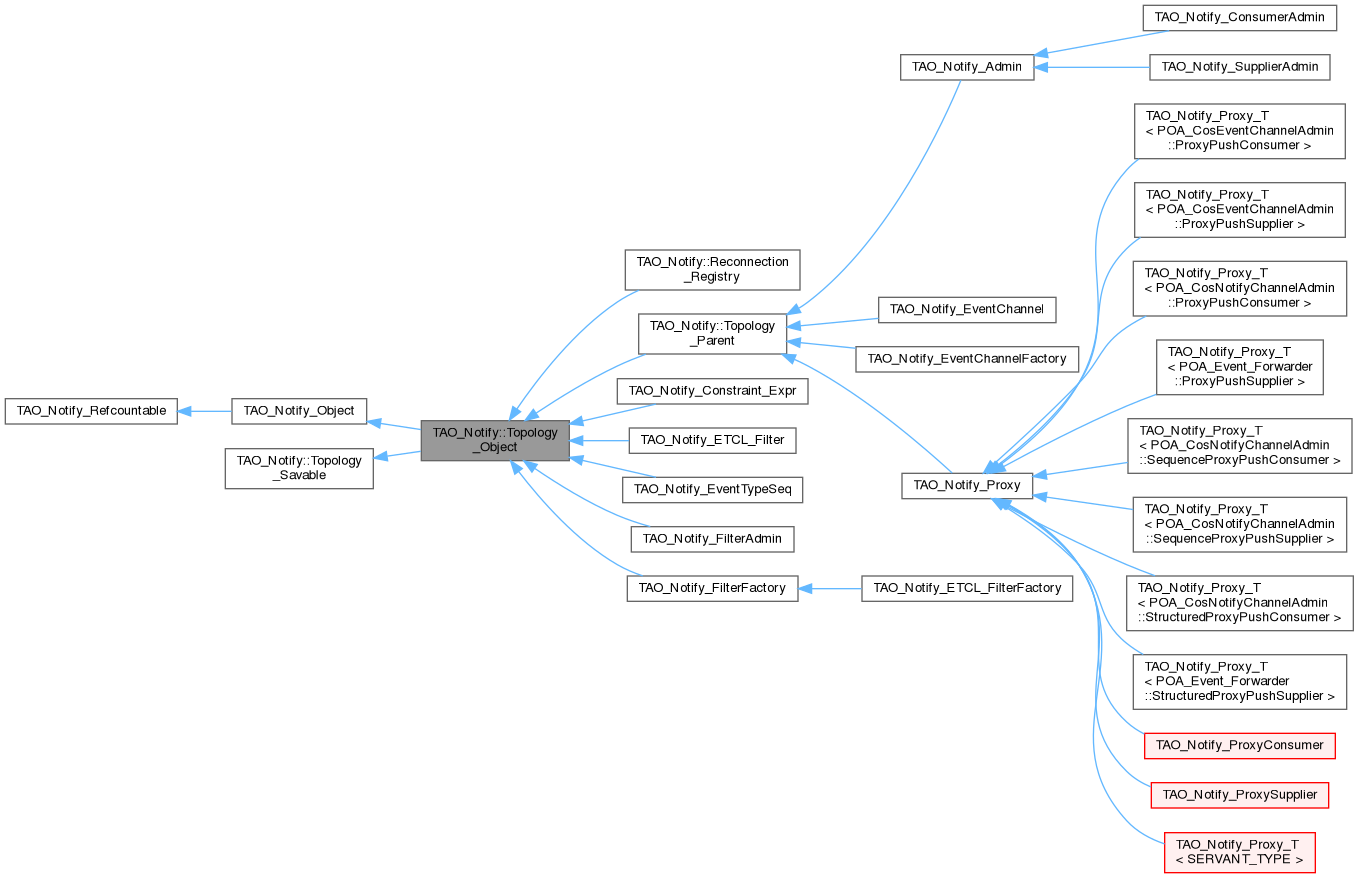

Inheritance diagram for TAO_Notify::Topology_Object:

[legend]

Collaboration diagram for TAO_Notify::Topology_Object:

[legend]

Public Member Functions
	Topology_Object ()
	The constructor.

virtual	~Topology_Object ()
	The destructor.

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.

virtual Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const NVPList &attrs)
	Create a child of the appropriate type and return it.

virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.

bool	is_changed () const
	Is there an unsaved change for this object or its children?

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.

ID	id () const
	This Object's ID.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id.

void	deactivate ()
	Deactivate.

bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref ()
	Get CORBA Ref.

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.

CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.

TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.

virtual int	shutdown ()
	Shutdown. Returns 1 if the shutdown was already run once before.

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt ()

CORBA::ULong	_decr_refcnt ()

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.

virtual void	save_persistent (Topology_Saver &saver)=0

virtual void	reconnect ()

Protected Member Functions
virtual bool	is_persistent () const
	Should this object be saved?

bool	self_change ()
	Method to report change in this object.

Topology_Parent *	topology_parent () const
	pointer to our topological parent

bool	send_change ()
	Handle details of propagating change.

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.

TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.

TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.

TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

Protected Attributes
bool	self_changed_
	true if this object changed since last save_persistent

bool	children_changed_
	true of any of this object's children changed since last save_persistent

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Private Member Functions
virtual bool	change_to_parent ()
	Send change to parent.

Additional Inherited Members
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Detailed Description

Base class for Persistent Topology Objects.

Topology objects must be derived from this class to allow themselves to be persisted. Note: virtual inheritance from TopologySavable is unnecessary, but HP ACC compiler warns if it's not there.

Constructor & Destructor Documentation

◆ Topology_Object()

TAO_Notify::Topology_Object::Topology_Object ( )

The constructor.

◆ ~Topology_Object()

TAO_Notify::Topology_Object::~Topology_Object ( )

virtual

The destructor.

Member Function Documentation

◆ change_to_parent()

bool TAO_Notify::Topology_Object::change_to_parent ( )

privatevirtual

Send change to parent.

Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()

Returns: false if save will never happen

Reimplemented in TAO_Notify_EventChannelFactory.

◆ get_id()

TAO_Notify_Object::ID TAO_Notify::Topology_Object::get_id ( ) const

virtual

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id – we just need someone to find it for us.

Reimplemented in TAO_Notify_EventChannel, and TAO_Notify_EventChannelFactory.

◆ get_id_path()

void TAO_Notify::Topology_Object::get_id_path ( TAO_Notify::IdVec & id_path ) const

Get the path of id's from the root to this object.

◆ initialize()

void TAO_Notify::Topology_Object::initialize ( Topology_Parent * topology_parent )

virtual

Init this object with data from <rhs>.

◆ is_changed()

bool TAO_Notify::Topology_Object::is_changed ( ) const

Is there an unsaved change for this object or its children?

◆ is_persistent()

bool TAO_Notify::Topology_Object::is_persistent ( ) const

protectedvirtual

Should this object be saved?

This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.

Returns: true (default) if object should be saved.

Reimplemented in TAO_Notify_EventChannelFactory.

◆ load_child()

Topology_Object * TAO_Notify::Topology_Object::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const NVPList &	attrs )

virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented in TAO_Notify::Reconnection_Registry, TAO_Notify_Admin, TAO_Notify_ConsumerAdmin, TAO_Notify_Constraint_Expr, TAO_Notify_ETCL_Filter, TAO_Notify_ETCL_FilterFactory, TAO_Notify_EventChannel, TAO_Notify_EventChannelFactory, TAO_Notify_EventTypeSeq, TAO_Notify_FilterAdmin, TAO_Notify_Proxy, and TAO_Notify_SupplierAdmin.

◆ self_change()

bool TAO_Notify::Topology_Object::self_change ( )

protected

Method to report change in this object.

Returns: false if save will never happen

◆ send_change()

bool TAO_Notify::Topology_Object::send_change ( )

protected

Handle details of propagating change.

Returns: false if save will never happen

◆ send_deletion_change()

bool TAO_Notify::Topology_Object::send_deletion_change ( )

protected

Handle details of propagating change for a deleted object.

Returns: false if save will never happen

◆ topology_parent()

Topology_Parent * TAO_Notify::Topology_Object::topology_parent ( ) const

protected

pointer to our topological parent

Returns: 0 if none

Member Data Documentation

◆ children_changed_

bool TAO_Notify::Topology_Object::children_changed_

protected

true of any of this object's children changed since last save_persistent

◆ self_changed_

bool TAO_Notify::Topology_Object::self_changed_

protected

true if this object changed since last save_persistent

◆ topology_parent_

Topology_Parent* TAO_Notify::Topology_Object::topology_parent_

protected

A safely-typed copy of parent_;.
