The is a base class for all proxys , templatized by the servant type. All the Filter Admin and QoS Admin interface methods are implemented here by delegating to the admin implementations. More...

#include <Proxy_T.h>

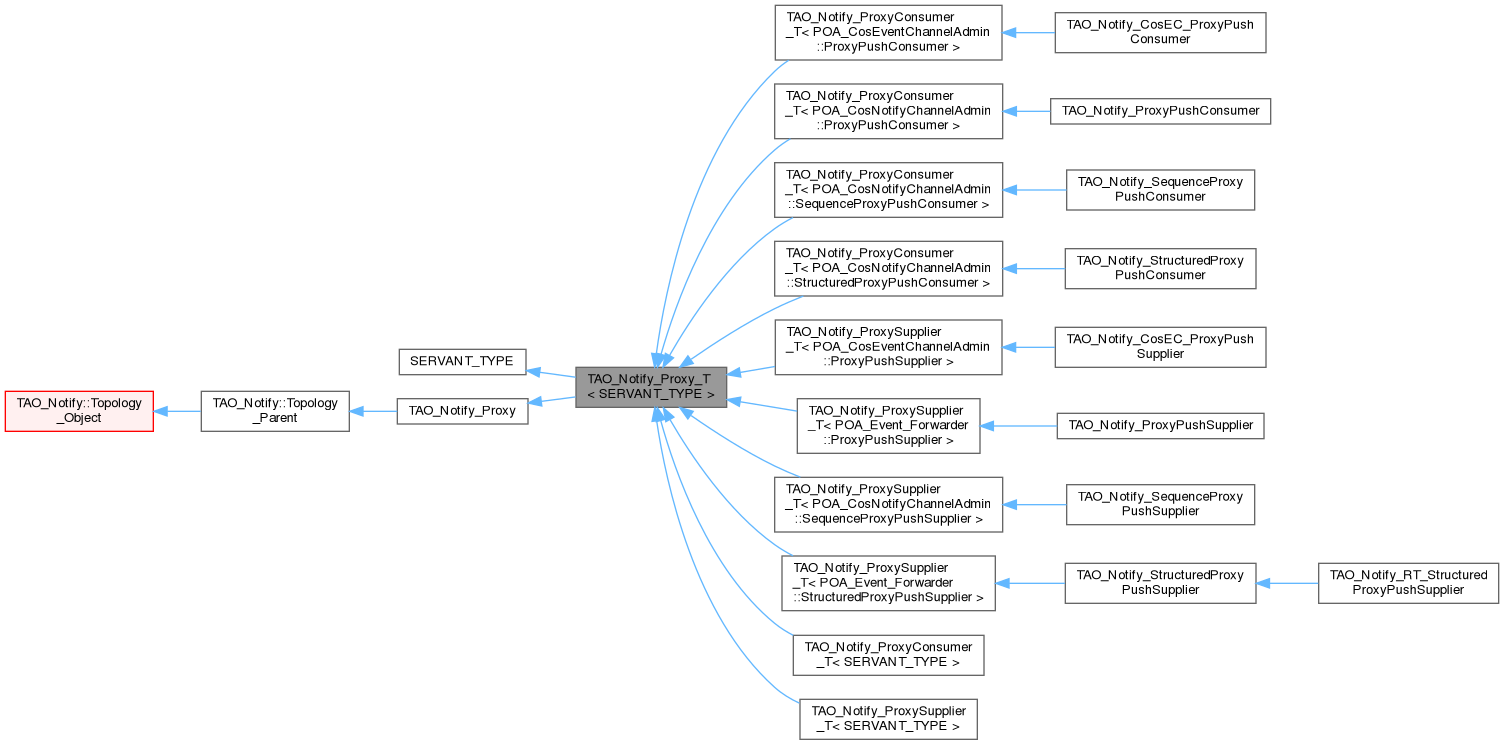

Inheritance diagram for TAO_Notify_Proxy_T< SERVANT_TYPE >:

[legend]

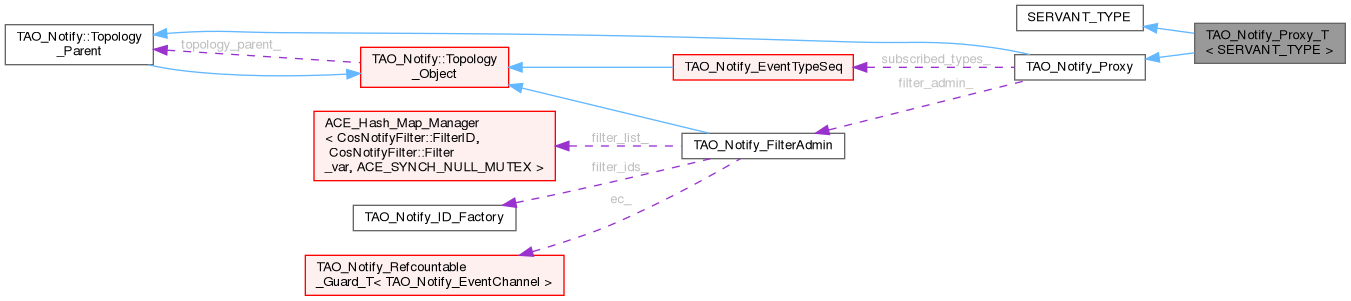

Collaboration diagram for TAO_Notify_Proxy_T< SERVANT_TYPE >:

[legend]

Public Member Functions
	TAO_Notify_Proxy_T ()
	Constructor.

	~TAO_Notify_Proxy_T ()
	Destructor.

virtual PortableServer::Servant	servant ()
	Implements TAO_Notify_Object::servant method.

virtual void	_add_ref ()
	ServantBase refcount methods.

virtual void	_remove_ref ()

virtual void	validate_event_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)

virtual CosNotification::QoSProperties *	get_qos ()

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.

virtual void	validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)

virtual CosNotifyFilter::FilterID	add_filter (CosNotifyFilter::Filter_ptr new_filter)

virtual void	remove_filter (CosNotifyFilter::FilterID filter)

virtual CosNotifyFilter::Filter_ptr	get_filter (CosNotifyFilter::FilterID filter)

virtual CosNotifyFilter::FilterIDSeq *	get_all_filters ()

virtual void	remove_all_filters ()

Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy ()
	Constructor.

virtual	~TAO_Notify_Proxy ()
	Destructor.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID.

void	deactivate ()
	Deactivate.

void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types.

CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters.

void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised.

CORBA::Boolean	updates_off ()
	Have updates been turned off.

virtual void	destroy ()=0
	Destroy this object.

virtual TAO_Notify_Peer *	peer ()=0
	Access our Peer.

virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types.

virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
	Notification of subscriptions/offers set at the admin.

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Object::qos_changed.

virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

virtual const char *	get_proxy_type_name () const =0

virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.

virtual void	validate ()=0

Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change ()

Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.

virtual	~Topology_Object ()
	The destructor.

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.

virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.

bool	is_changed () const
	Is there an unsaved change for this object or its children?

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.

ID	id () const
	This Object's ID.

void	deactivate ()
	Deactivate.

bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref ()
	Get CORBA Ref.

CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.

TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.

virtual int	shutdown ()
	Shutdown. Returns 1 if the shutdown was already run once before.

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt ()

CORBA::ULong	_decr_refcnt ()

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.

virtual void	reconnect ()

Additional Inherited Members
Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Proxy >	Ptr

typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ

typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR

Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent () const
	Should this object be saved?

bool	self_change ()
	Method to report change in this object.

Topology_Parent *	topology_parent () const
	pointer to our topological parent

bool	send_change ()
	Handle details of propagating change.

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.

TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.

TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.

TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.

Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.

TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager.

CORBA::Boolean	updates_off_
	True if updates have been turned off.

Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent

bool	children_changed_
	true of any of this object's children changed since last save_persistent

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Detailed Description

template<class SERVANT_TYPE>
class TAO_Notify_Proxy_T< SERVANT_TYPE >

The is a base class for all proxys , templatized by the servant type. All the Filter Admin and QoS Admin interface methods are implemented here by delegating to the admin implementations.

Constructor & Destructor Documentation

◆ TAO_Notify_Proxy_T()

template<class SERVANT_TYPE >

TAO_Notify_Proxy_T< SERVANT_TYPE >::TAO_Notify_Proxy_T ( )

Constructor.

◆ ~TAO_Notify_Proxy_T()

template<class SERVANT_TYPE >

TAO_Notify_Proxy_T< SERVANT_TYPE >::~TAO_Notify_Proxy_T ( )

Destructor.

Member Function Documentation

◆ _add_ref()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::_add_ref ( )

virtual

ServantBase refcount methods.

◆ _remove_ref()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::_remove_ref ( )

virtual

◆ add_filter()

template<class SERVANT_TYPE >

CosNotifyFilter::FilterID TAO_Notify_Proxy_T< SERVANT_TYPE >::add_filter ( CosNotifyFilter::Filter_ptr new_filter )

virtual

◆ get_all_filters()

template<class SERVANT_TYPE >

CosNotifyFilter::FilterIDSeq * TAO_Notify_Proxy_T< SERVANT_TYPE >::get_all_filters ( )

virtual

◆ get_filter()

template<class SERVANT_TYPE >

CosNotifyFilter::Filter_ptr TAO_Notify_Proxy_T< SERVANT_TYPE >::get_filter ( CosNotifyFilter::FilterID filter )

virtual

◆ get_qos()

template<class SERVANT_TYPE >

CosNotification::QoSProperties * TAO_Notify_Proxy_T< SERVANT_TYPE >::get_qos ( )

virtual

◆ remove_all_filters()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::remove_all_filters ( )

virtual

◆ remove_filter()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::remove_filter ( CosNotifyFilter::FilterID filter )

virtual

◆ servant()

template<class SERVANT_TYPE >

PortableServer::Servant TAO_Notify_Proxy_T< SERVANT_TYPE >::servant ( )

virtual

Implements TAO_Notify_Object::servant method.

◆ set_qos()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::set_qos ( const CosNotification::QoSProperties & qos )

virtual

Set the QoS Properties.

Reimplemented from TAO_Notify_Object.

◆ validate_event_qos()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::validate_event_qos	(	const CosNotification::QoSProperties &	required_qos,
		CosNotification::NamedPropertyRangeSeq_out	available_qos )

virtual

◆ validate_qos()

template<class SERVANT_TYPE >

void TAO_Notify_Proxy_T< SERVANT_TYPE >::validate_qos	(	const CosNotification::QoSProperties &	required_qos,
		CosNotification::NamedPropertyRangeSeq_out	available_qos )

virtual
