TAO_Notify_ProxySupplier Class Reference

Base class for all the ProxySuppliers. More...

#include <ProxySupplier.h>

Inheritance diagram for TAO_Notify_ProxySupplier:

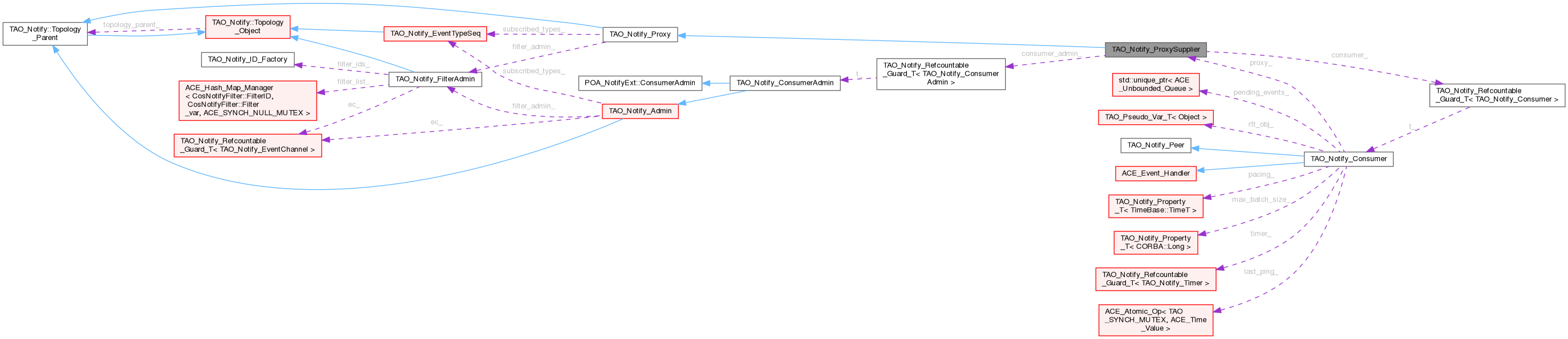

Collaboration diagram for TAO_Notify_ProxySupplier:

Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ProxySupplier >	Ptr
Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Proxy >	Ptr
typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.
Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Public Member Functions
	TAO_Notify_ProxySupplier ()
	Constructor.
virtual	~TAO_Notify_ProxySupplier ()
	Destructor.
virtual void	init (TAO_Notify_ConsumerAdmin *consumer_admin)
	Init.
void	connect (TAO_Notify_Consumer *consumer)
	Connect.
void	disconnect ()
	Disconnect.
virtual void	deliver (TAO_Notify_Method_Request_Dispatch_No_Copy &request)
	Dispatch Event to consumer.
virtual int	shutdown ()
	Override TAO_Notify_Container_T::shutdown method.
virtual void	destroy ()
	Destroy this object.
void	destroy (bool from_timeout)
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.
bool	is_connected () const
	Returns true if connected.
TAO_Notify_Consumer *	consumer ()
	Access the Consumer.
TAO_Notify_ConsumerAdmin &	consumer_admin ()
	The CA parent.
Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy ()
	Constructor.
virtual	~TAO_Notify_Proxy ()
	Destructor.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID.
void	deactivate ()
	Deactivate.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types.
CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters.
void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised.
CORBA::Boolean	updates_off ()
	Have updates been turned off.
virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types.
virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
	Notification of subscriptions/offers set at the admin.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_proxy_type_name () const =0
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual void	validate ()=0
Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change ()
Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.
virtual	~Topology_Object ()
	The destructor.
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.
virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.
bool	is_changed () const
	Is there an unsaved change for this object or its children?
Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.
ID	id () const
	This Object's ID.
void	deactivate ()
	Deactivate.
bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref ()
	Get CORBA Ref.
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.
CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.
TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt ()
CORBA::ULong	_decr_refcnt ()
Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.
virtual void	reconnect ()

Private Member Functions
virtual TAO_Notify_Peer *	peer ()
	Access our Peer.

Private Attributes
TAO_Notify_ConsumerAdmin::Ptr	consumer_admin_
TAO_Notify_Consumer::Ptr	consumer_
	The Consumer that we're connect to.

Friends
class	TAO_Notify_Consumer

Additional Inherited Members
Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent () const
	Should this object be saved?
bool	self_change ()
	Method to report change in this object.
Topology_Parent *	topology_parent () const
	pointer to our topological parent
bool	send_change ()
	Handle details of propagating change.
bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.
Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.
void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.
void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.
void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.
void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.
TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.
TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.
TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.
void	set_event_manager (TAO_Notify_Event_Manager *event_manager)
void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.
Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager.
CORBA::Boolean	updates_off_
	True if updates have been turned off.
Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent
bool	children_changed_
	true of any of this object's children changed since last save_persistent
Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.
Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.
TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Detailed Description

Base class for all the ProxySuppliers.

Member Typedef Documentation

Ptr

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_ProxySupplier> TAO_Notify_ProxySupplier::Ptr

Constructor & Destructor Documentation

TAO_Notify_ProxySupplier()

TAO_Notify_ProxySupplier::TAO_Notify_ProxySupplier

(

)

Constructor.

~TAO_Notify_ProxySupplier()

TAO_Notify_ProxySupplier::~TAO_Notify_ProxySupplier ( )

virtual

Destructor.

Member Function Documentation

connect()

void TAO_Notify_ProxySupplier::connect

(

TAO_Notify_Consumer *

consumer

)

Connect.

consumer()

TAO_Notify_Consumer * TAO_Notify_ProxySupplier::consumer

(

)

Access the Consumer.

consumer_admin()

TAO_Notify_ConsumerAdmin & TAO_Notify_ProxySupplier::consumer_admin

(

)

The CA parent.

deliver()

void TAO_Notify_ProxySupplier::deliver ( TAO_Notify_Method_Request_Dispatch_No_Copy & request )

virtual

Dispatch Event to consumer.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

destroy() [1/2]

void TAO_Notify_ProxySupplier::destroy ( )

virtual

Destroy this object.

Implements TAO_Notify_Proxy.

destroy() [2/2]

void TAO_Notify_ProxySupplier::destroy

(

bool

from_timeout

)

Destroy this object, but also indicate if it is due to a timeout or not.

disconnect()

void TAO_Notify_ProxySupplier::disconnect

(

)

Disconnect.

init()

void TAO_Notify_ProxySupplier::init ( TAO_Notify_ConsumerAdmin * consumer_admin )

virtual

Init.

is_connected()

bool TAO_Notify_ProxySupplier::is_connected

(

)

const

Returns true if connected.

peer()

TAO_Notify_Peer * TAO_Notify_ProxySupplier::peer ( )

privatevirtual

Access our Peer.

Implements TAO_Notify_Proxy.

qos_changed()

void TAO_Notify_ProxySupplier::qos_changed ( const TAO_Notify_QoSProperties & qos_properties )

virtual

Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.

Reimplemented from TAO_Notify_Proxy.

shutdown()

int TAO_Notify_ProxySupplier::shutdown ( )

virtual

Override TAO_Notify_Container_T::shutdown method.

Reimplemented from TAO_Notify_Object.

Friends And Related Symbol Documentation

TAO_Notify_Consumer

friend class TAO_Notify_Consumer

friend

Member Data Documentation

consumer_

TAO_Notify_Consumer::Ptr TAO_Notify_ProxySupplier::consumer_

private

The Consumer that we're connect to.

consumer_admin_

TAO_Notify_ConsumerAdmin::Ptr TAO_Notify_ProxySupplier::consumer_admin_

private

= Data Members. The CA parent.

---

The documentation for this class was generated from the following files:

• ProxySupplier.h
• ProxySupplier.cpp
• ProxySupplier.inl
