TAO_Notify_Object Class Reference

Base Object for RT_Notify's CORBA Objects. More...

#include <Object.h>

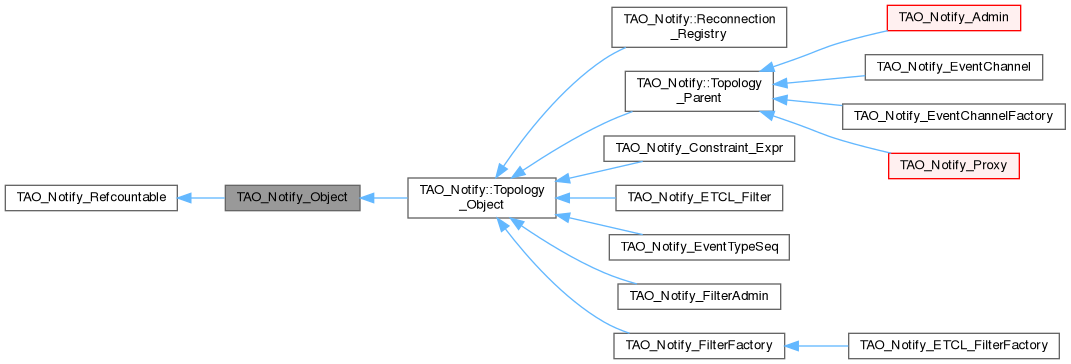

Inheritance diagram for TAO_Notify_Object:

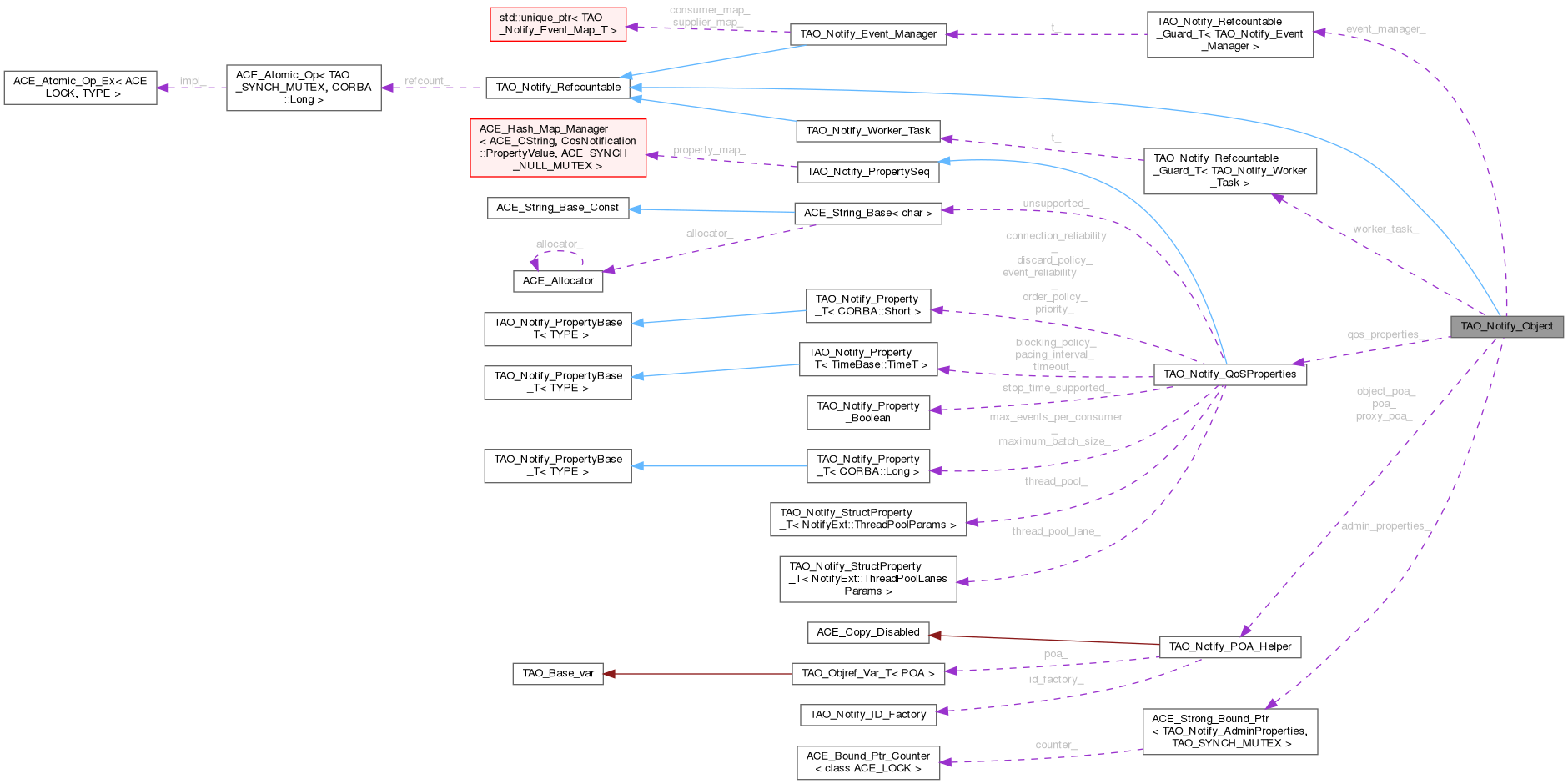

Collaboration diagram for TAO_Notify_Object:

Public Types
typedef CORBA::Long	ID
	Id for Objects.
Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Public Member Functions
virtual	~TAO_Notify_Object ()
	Destructor.
ID	id () const
	This Object's ID.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id.
void	deactivate ()
	Deactivate.
bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref ()
	Get CORBA Ref.
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.
CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.
TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.
virtual int	shutdown ()
	Shutdown. Returns 1 if the shutdown was already run once before.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt ()
CORBA::ULong	_decr_refcnt ()

Protected Member Functions
	TAO_Notify_Object ()
	Constructor.
void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.
void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.
void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.
void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.
TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.
TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.
TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.
void	set_event_manager (TAO_Notify_Event_Manager *event_manager)
void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)

Protected Attributes
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.
TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Private Member Functions
void	set_worker_task (TAO_Notify_Worker_Task *worker_task)
	Set Worker Task. This object assume ownership of the set object.
void	set_proxy_poa (TAO_Notify_POA_Helper *proxy_poa)
	Setting the proxy_poa_ gives ownership to this class.
void	set_object_poa (TAO_Notify_POA_Helper *object_poa)
	Setting the object_poa_ gives ownership to this class.
void	set_poa (TAO_Notify_POA_Helper *object_poa)
	Setting the object_poa_ gives ownership to this class.
void	shutdown_worker_task ()
	Shutdown the current worker task and delete it if we own it.
void	destroy_proxy_poa ()
	Shutdown the current proxy poa.
void	destroy_object_poa ()
	Shutdown the current object poa.
void	destroy_poa ()
	Shutdown the current poa.

Private Attributes
TAO_Notify_POA_Helper *	poa_
	The POA in which the object is activated.
TAO_Notify_POA_Helper *	proxy_poa_
	The POA in which the proxys are activated.
bool	own_proxy_poa_
TAO_Notify_POA_Helper *	object_poa_
	The POA in which the object's children are activated.
bool	own_object_poa_
ID	id_
	Id assigned to this object.
TAO_Notify_Refcountable_Guard_T< TAO_Notify_Event_Manager >	event_manager_
TAO_Notify_AdminProperties::Ptr	admin_properties_
	Admin Properties.
TAO_Notify_Worker_Task::Ptr	worker_task_
	Worker Task.
bool	own_worker_task_
bool	shutdown_
	Are we shutdown (i,e. scheduled for destroy).

Friends
class	TAO_Notify_Builder
class	TAO_Notify_RT_Builder

Detailed Description

Base Object for RT_Notify's CORBA Objects.

Member Typedef Documentation

ID

typedef CORBA::Long TAO_Notify_Object::ID

Id for Objects.

Constructor & Destructor Documentation

~TAO_Notify_Object()

TAO_Notify_Object::~TAO_Notify_Object ( )

virtual

Destructor.

TAO_Notify_Object()

TAO_Notify_Object::TAO_Notify_Object ( )

protected

Constructor.

Member Function Documentation

activate() [1/2]

CORBA::Object_ptr TAO_Notify_Object::activate ( PortableServer::Servant servant )

virtual

Activate.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_RT_StructuredProxyPushSupplier.

activate() [2/2]

CORBA::Object_ptr TAO_Notify_Object::activate ( PortableServer::Servant servant, CORBA::Long id )

virtual

Activate with existing id.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_RT_StructuredProxyPushSupplier.

admin_properties()

TAO_Notify_AdminProperties & TAO_Notify_Object::admin_properties ( )

protected

Accessor for the Admin Properties.

adopt_poa()

void TAO_Notify_Object::adopt_poa ( TAO_Notify_POA_Helper * single )

protected

Adopts the supplied poa as all are poas.

deactivate()

void TAO_Notify_Object::deactivate

(

)

Deactivate.

destroy_object_poa()

void TAO_Notify_Object::destroy_object_poa ( )

private

Shutdown the current object poa.

destroy_poa()

void TAO_Notify_Object::destroy_poa ( )

private

Shutdown the current poa.

destroy_proxy_poa()

void TAO_Notify_Object::destroy_proxy_poa ( )

private

Shutdown the current proxy poa.

event_manager()

TAO_Notify_Event_Manager & TAO_Notify_Object::event_manager

(

)

Accessor for the Event Manager.

execute_task()

void TAO_Notify_Object::execute_task

(

TAO_Notify_Method_Request &

method_request

)

find_qos_property_value()

bool TAO_Notify_Object::find_qos_property_value	(	const char *	name,
		CosNotification::PropertyValue &	value ) const

get_qos()

CosNotification::QoSProperties * TAO_Notify_Object::get_qos

(

)

Get the QoS Properties.

get_worker_task()

TAO_Notify_Worker_Task * TAO_Notify_Object::get_worker_task

(

)

Allow access to the underlying worker task.

has_shutdown()

bool TAO_Notify_Object::has_shutdown

(

)

Have we been shutdown. returns true if shutdown.

id()

CORBA::Long TAO_Notify_Object::id

(

)

const

This Object's ID.

inherit_poas()

void TAO_Notify_Object::inherit_poas ( TAO_Notify_Object & parent )

protected

Uses the poas from the supplied object.

initialize()

void TAO_Notify_Object::initialize ( TAO_Notify_Object * parent )

protected

Init this object with data from <rhs>.

load_attrs()

void TAO_Notify_Object::load_attrs ( const TAO_Notify::NVPList & attrs )

virtual

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented in TAO_Notify_Admin, TAO_Notify_ProxyPushConsumer, TAO_Notify_ProxyPushSupplier, TAO_Notify_Constraint_Expr, TAO_Notify_ETCL_Filter, TAO_Notify_EventChannel, TAO_Notify_SequenceProxyPushConsumer, TAO_Notify_SequenceProxyPushSupplier, TAO_Notify_StructuredProxyPushConsumer, and TAO_Notify_StructuredProxyPushSupplier.

object_poa()

TAO_Notify_POA_Helper * TAO_Notify_Object::object_poa ( )

protected

Accessor for the object_poa_.

poa()

TAO_Notify_POA_Helper * TAO_Notify_Object::poa ( )

protected

Get the POA assigned to us.

proxy_poa()

TAO_Notify_POA_Helper * TAO_Notify_Object::proxy_poa ( )

protected

Accessor for the proxy_poa_.

qos_changed()

void TAO_Notify_Object::qos_changed ( const TAO_Notify_QoSProperties & qos_properties )

protectedvirtual

Notification that can be overridden by subclasses to be informed that <qos_properties_> have been modified.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_ProxySupplier.

ref()

CORBA::Object_ptr TAO_Notify_Object::ref

(

)

Get CORBA Ref.

save_attrs()

void TAO_Notify_Object::save_attrs ( TAO_Notify::NVPList & attrs )

protectedvirtual

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented in TAO_Notify_Admin, TAO_Notify_EventChannel, and TAO_Notify_Proxy.

set_admin_properties()

void TAO_Notify_Object::set_admin_properties ( TAO_Notify_AdminProperties * admin_properties )

protected

set_event_manager()

void TAO_Notify_Object::set_event_manager ( TAO_Notify_Event_Manager * event_manager )

protected

set_object_poa()

void TAO_Notify_Object::set_object_poa ( TAO_Notify_POA_Helper * object_poa )

private

Setting the object_poa_ gives ownership to this class.

set_poa()

void TAO_Notify_Object::set_poa ( TAO_Notify_POA_Helper * object_poa )

private

Setting the object_poa_ gives ownership to this class.

set_primary_as_proxy_poa()

void TAO_Notify_Object::set_primary_as_proxy_poa ( )

protected

Changes the primary poa to the current proxy poa.

set_proxy_poa()

void TAO_Notify_Object::set_proxy_poa ( TAO_Notify_POA_Helper * proxy_poa )

private

Setting the proxy_poa_ gives ownership to this class.

set_qos()

void TAO_Notify_Object::set_qos ( const CosNotification::QoSProperties & qos )

virtual

Set the QoS Properties.

Reimplemented in TAO_Notify_ConsumerAdmin, TAO_Notify_EventChannel, TAO_Notify_Proxy_T< SERVANT_TYPE >, TAO_Notify_Proxy_T< POA_CosEventChannelAdmin::ProxyPushConsumer >, TAO_Notify_Proxy_T< POA_CosEventChannelAdmin::ProxyPushSupplier >, TAO_Notify_Proxy_T< POA_CosNotifyChannelAdmin::ProxyPushConsumer >, TAO_Notify_Proxy_T< POA_CosNotifyChannelAdmin::SequenceProxyPushConsumer >, TAO_Notify_Proxy_T< POA_CosNotifyChannelAdmin::SequenceProxyPushSupplier >, TAO_Notify_Proxy_T< POA_CosNotifyChannelAdmin::StructuredProxyPushConsumer >, TAO_Notify_Proxy_T< POA_Event_Forwarder::ProxyPushSupplier >, TAO_Notify_Proxy_T< POA_Event_Forwarder::StructuredProxyPushSupplier >, and TAO_Notify_SupplierAdmin.

set_worker_task()

void TAO_Notify_Object::set_worker_task ( TAO_Notify_Worker_Task * worker_task )

private

Set Worker Task. This object assume ownership of the set object.

shutdown()

int TAO_Notify_Object::shutdown ( )

virtual

Shutdown. Returns 1 if the shutdown was already run once before.

Reimplemented in TAO_Notify_Admin, TAO_Notify_EventChannel, TAO_Notify_EventChannelFactory, TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

shutdown_worker_task()

void TAO_Notify_Object::shutdown_worker_task ( )

private

Shutdown the current worker task and delete it if we own it.

timer()

TAO_Notify_Timer * TAO_Notify_Object::timer ( )

virtual

Obtain the Timer manager associated with this object.

Friends And Related Symbol Documentation

TAO_Notify_Builder

friend class TAO_Notify_Builder

friend

TAO_Notify_RT_Builder

friend class TAO_Notify_RT_Builder

friend

Member Data Documentation

admin_properties_

TAO_Notify_AdminProperties::Ptr TAO_Notify_Object::admin_properties_

private

Admin Properties.

event_manager_

TAO_Notify_Refcountable_Guard_T< TAO_Notify_Event_Manager > TAO_Notify_Object::event_manager_

private

The event manager. TAO_Notify_Event_Manager inl includes Object.h

id_

ID TAO_Notify_Object::id_

private

Id assigned to this object.

lock_

TAO_SYNCH_MUTEX TAO_Notify_Object::lock_

protected

The mutex to serialize access to state variables.

object_poa_

TAO_Notify_POA_Helper* TAO_Notify_Object::object_poa_

private

The POA in which the object's children are activated.

own_object_poa_

bool TAO_Notify_Object::own_object_poa_

private

own_proxy_poa_

bool TAO_Notify_Object::own_proxy_poa_

private

own_worker_task_

bool TAO_Notify_Object::own_worker_task_

private

poa_

TAO_Notify_POA_Helper* TAO_Notify_Object::poa_

private

The POA in which the object is activated.

proxy_poa_

TAO_Notify_POA_Helper* TAO_Notify_Object::proxy_poa_

private

The POA in which the proxys are activated.

qos_properties_

TAO_Notify_QoSProperties TAO_Notify_Object::qos_properties_

protected

= Protected data members.

QoS Properties.

shutdown_

bool TAO_Notify_Object::shutdown_

private

Are we shutdown (i,e. scheduled for destroy).

worker_task_

TAO_Notify_Worker_Task::Ptr TAO_Notify_Object::worker_task_

private

Worker Task.

---

The documentation for this class was generated from the following files:

• Object.h
• Object.cpp
• Object.inl
