TAO_Notify_ProxyConsumer Class Reference

Base class for all types of ProxyConsumer implementations. More...

#include <ProxyConsumer.h>

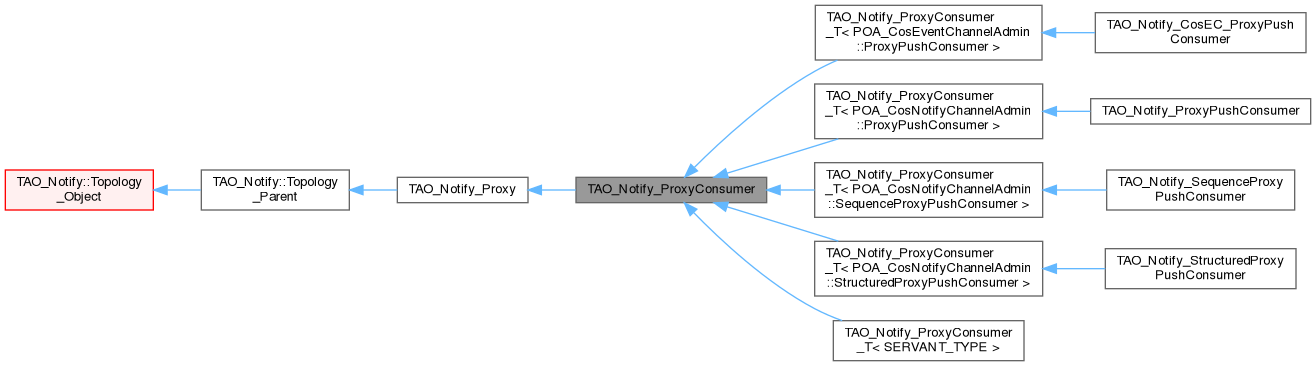

Inheritance diagram for TAO_Notify_ProxyConsumer:

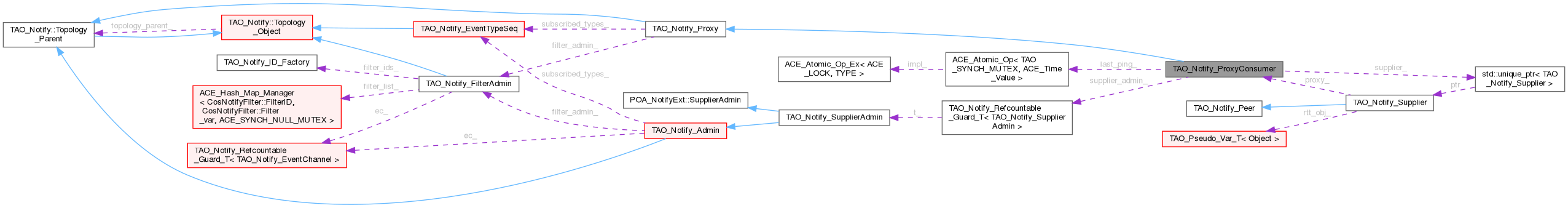

Collaboration diagram for TAO_Notify_ProxyConsumer:

Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ProxyConsumer >	Ptr
Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Proxy >	Ptr
typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects.
Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Public Member Functions
	TAO_Notify_ProxyConsumer ()
	Constructor.
virtual	~TAO_Notify_ProxyConsumer ()
	Destructor.
virtual void	init (TAO_Notify::Topology_Parent *topology_parent)
	init: overrides Topology_Object method
void	connect (TAO_Notify_Supplier *supplier)
	Connect.
void	disconnect ()
	Disconnect.
virtual int	shutdown ()
	Shutdown (TAO_Notify_Container_T method)
virtual void	destroy ()
	Destroy this object.
bool	is_connected () const
	Return true if connected.
TAO_Notify_SupplierAdmin &	supplier_admin ()
	The SA parent.
ACE_Time_Value	last_ping () const
void	last_ping (const ACE_Time_Value &tv)
Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy ()
	Constructor.
virtual	~TAO_Notify_Proxy ()
	Destructor.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID.
void	deactivate ()
	Deactivate.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types.
CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters.
void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised.
CORBA::Boolean	updates_off ()
	Have updates been turned off.
virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types.
virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
	Notification of subscriptions/offers set at the admin.
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Object::qos_changed.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_proxy_type_name () const =0
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual void	validate ()=0
Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change ()
Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.
virtual	~Topology_Object ()
	The destructor.
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.
virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.
bool	is_changed () const
	Is there an unsaved change for this object or its children?
Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object ()
	Destructor.
ID	id () const
	This Object's ID.
void	deactivate ()
	Deactivate.
bool	has_shutdown ()
	Have we been shutdown. returns true if shutdown.
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref ()
	Get CORBA Ref.
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.
CosNotification::QoSProperties *	get_qos ()
	Get the QoS Properties.
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer ()
	Obtain the Timer manager associated with this object.
TAO_Notify_Event_Manager &	event_manager ()
	Accessor for the Event Manager.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Task *	get_worker_task ()
	Allow access to the underlying worker task.
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable ()
	Constructor.
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt ()
CORBA::ULong	_decr_refcnt ()
Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable ()
	Destructor.
virtual void	reconnect ()

Protected Member Functions
TAO_Notify_Supplier *	supplier ()
	Access the Supplier.
void	push_i (TAO_Notify_Event *event)
	Accept an event from the Supplier.
Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent () const
	Should this object be saved?
bool	self_change ()
	Method to report change in this object.
Topology_Parent *	topology_parent () const
	pointer to our topological parent
bool	send_change ()
	Handle details of propagating change.
bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.
Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object ()
	Constructor.
void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>.
void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object.
void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas.
void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa.
TAO_Notify_POA_Helper *	proxy_poa ()
	Accessor for the proxy_poa_.
TAO_Notify_POA_Helper *	object_poa ()
	Accessor for the object_poa_.
TAO_Notify_POA_Helper *	poa ()
	Get the POA assigned to us.
void	set_event_manager (TAO_Notify_Event_Manager *event_manager)
void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminProperties &	admin_properties ()
	Accessor for the Admin Properties.

Protected Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, ACE_Time_Value >	last_ping_
Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager.
CORBA::Boolean	updates_off_
	True if updates have been turned off.
Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent
bool	children_changed_
	true of any of this object's children changed since last save_persistent
Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.
Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members.
TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables.

Private Member Functions
bool	supports_reliable_events () const
	Is this part of a reliable channel.
virtual TAO_Notify_Peer *	peer ()
	Access our Peer.

Private Attributes
TAO_Notify_SupplierAdmin::Ptr	supplier_admin_
std::unique_ptr< TAO_Notify_Supplier >	supplier_
	The Supplier that we're connect to.

Detailed Description

Base class for all types of ProxyConsumer implementations.

Member Typedef Documentation

Ptr

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_ProxyConsumer> TAO_Notify_ProxyConsumer::Ptr

Constructor & Destructor Documentation

TAO_Notify_ProxyConsumer()

TAO_Notify_ProxyConsumer::TAO_Notify_ProxyConsumer

(

)

Constructor.

~TAO_Notify_ProxyConsumer()

TAO_Notify_ProxyConsumer::~TAO_Notify_ProxyConsumer ( )

virtual

Destructor.

Member Function Documentation

connect()

void TAO_Notify_ProxyConsumer::connect

(

TAO_Notify_Supplier *

supplier

)

Connect.

destroy()

void TAO_Notify_ProxyConsumer::destroy ( )

virtual

Destroy this object.

Implements TAO_Notify_Proxy.

disconnect()

void TAO_Notify_ProxyConsumer::disconnect

(

)

Disconnect.

init()

void TAO_Notify_ProxyConsumer::init ( TAO_Notify::Topology_Parent * topology_parent )

virtual

init: overrides Topology_Object method

is_connected()

bool TAO_Notify_ProxyConsumer::is_connected

(

)

const

Return true if connected.

last_ping() [1/2]

ACE_Time_Value TAO_Notify_ProxyConsumer::last_ping

(

)

const

last_ping() [2/2]

void TAO_Notify_ProxyConsumer::last_ping

(

const ACE_Time_Value &

tv

)

peer()

TAO_Notify_Peer * TAO_Notify_ProxyConsumer::peer ( )

privatevirtual

Access our Peer.

Implements TAO_Notify_Proxy.

push_i()

void TAO_Notify_ProxyConsumer::push_i ( TAO_Notify_Event * event )

protected

Accept an event from the Supplier.

shutdown()

int TAO_Notify_ProxyConsumer::shutdown ( )

virtual

Shutdown (TAO_Notify_Container_T method)

Reimplemented from TAO_Notify_Object.

supplier()

TAO_Notify_Supplier * TAO_Notify_ProxyConsumer::supplier ( )

protected

Access the Supplier.

supplier_admin()

TAO_Notify_SupplierAdmin & TAO_Notify_ProxyConsumer::supplier_admin

(

)

The SA parent.

supports_reliable_events()

bool TAO_Notify_ProxyConsumer::supports_reliable_events ( ) const

private

Is this part of a reliable channel.

Member Data Documentation

last_ping_

ACE_Atomic_Op<TAO_SYNCH_MUTEX, ACE_Time_Value> TAO_Notify_ProxyConsumer::last_ping_

protected

Last time either push an event or validate connection via _non_exist call.

supplier_

std::unique_ptr<TAO_Notify_Supplier> TAO_Notify_ProxyConsumer::supplier_

private

The Supplier that we're connect to.

supplier_admin_

TAO_Notify_SupplierAdmin::Ptr TAO_Notify_ProxyConsumer::supplier_admin_

private

= Data Members. The SA parent.

---

The documentation for this class was generated from the following files:

• ProxyConsumer.h
• ProxyConsumer.cpp
• ProxyConsumer.inl
