ACE_Task<> Class Template Reference

Primary interface for application message processing, as well as input and output message queueing. More...

#include <Task_T.h>

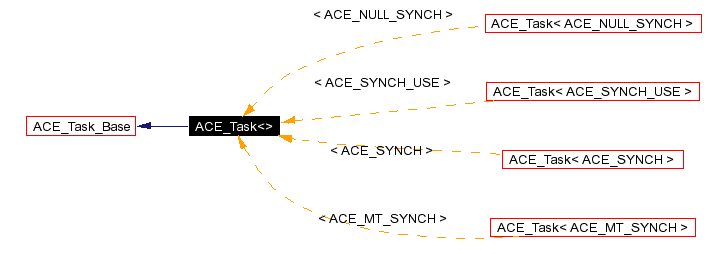

Inheritance diagram for ACE_Task<>:

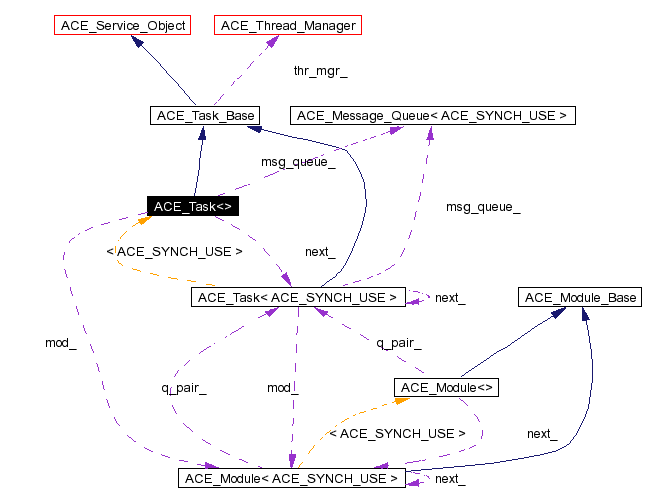

[legend]Collaboration diagram for ACE_Task<>:

[legend]List of all members.

Public Methods
	ACE_Task (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0)
virtual	~ACE_Task (void)
	Destructor.
ACE_Message_Queue< ACE_SYNCH_USE > *	msg_queue (void)
	Gets the message queue associated with this task.
void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE > *)
	Sets the message queue associated with this task.
int	putq (ACE_Message_Block *, ACE_Time_Value *timeout=0)
int	getq (ACE_Message_Block *&mb, ACE_Time_Value *timeout=0)
int	ungetq (ACE_Message_Block *, ACE_Time_Value *timeout=0)
int	reply (ACE_Message_Block *, ACE_Time_Value *timeout=0)
int	put_next (ACE_Message_Block *msg, ACE_Time_Value *timeout=0)
int	can_put (ACE_Message_Block *)
	Tests whether we can enqueue a message without blocking.
const ACE_TCHAR *	name (void) const
ACE_Task< ACE_SYNCH_USE > *	next (void)
	Get next Task pointer.
void	next (ACE_Task< ACE_SYNCH_USE > *)
	Set next Task pointer.
ACE_Task< ACE_SYNCH_USE > *	sibling (void)
ACE_Module< ACE_SYNCH_USE > *	module (void) const
	Return the Task's Module if there is one, else returns 0.
int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)
void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
	Manipulate watermarks.
void	dump (void) const
	Dump the state of an object.
Public Attributes
ACE_Message_Queue< ACE_SYNCH_USE > *	msg_queue_
	Queue of messages on the ACE_Task..
int	delete_msg_queue_
	1 if should delete Message_Queue, 0 otherwise.
ACE_Module< ACE_SYNCH_USE > *	mod_
	Back-pointer to the enclosing module.
ACE_Task< ACE_SYNCH_USE > *	next_
	Pointer to adjacent ACE_Task.
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Methods
void	operator= (const ACE_Task< _ACE_SYNCH > &)
	ACE_Task (const ACE_Task< _ACE_SYNCH > &)
Friends
class	ACE_Module< ACE_SYNCH_USE >
class	ACE_Module_Type

---

Detailed Description

template<ACE_SYNCH_DECL>
class ACE_Task<>

Primary interface for application message processing, as well as input and output message queueing.

This class serves as the basis for passive and active objects in ACE.

---

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL > ACE_Task<>::ACE_Task (  ACE_Thread_Manager *    thr_mgr = 0, ACE_Message_Queue< ACE_SYNCH_USE > *    mq = 0 )

Initialize a Task, supplying a thread manager and a message queue. If the user doesn't supply a ACE_Message_Queue pointer then we'll allocate one dynamically. Otherwise, we'll use the one passed as a parameter.

template<ACE_SYNCH_DECL > virtual ACE_Task<>::~ACE_Task (  void    )  [virtual]

Destructor.

template<ACE_SYNCH_DECL > ACE_Task<>::ACE_Task (  const ACE_Task< _ACE_SYNCH > &    )  [private]

---

Member Function Documentation

template<ACE_SYNCH_DECL > int ACE_Task<>::can_put (  ACE_Message_Block *    )

Tests whether we can enqueue a message without blocking.

template<ACE_SYNCH_DECL > void ACE_Task<>::dump (  void    )  const

Dump the state of an object. Reimplemented in ACE_Stream_Head<>, ACE_Stream_Tail<>, ACE_Thru_Task<>, ACE_Svc_Handler<, >, ACE_Buffered_Svc_Handler<, >, and ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

template<ACE_SYNCH_DECL > int ACE_Task<>::flush (  u_long    flag = ACE_Task_Flags::ACE_FLUSHALL )

Flush the task's queue, i.e., free all of the enqueued message blocks and releases any threads blocked on the queue. Note that if this conflicts with the C++ iostream <flush> function, just rewrite the iostream function as ::<flush>.

template<ACE_SYNCH_DECL > int ACE_Task<>::getq (  ACE_Message_Block *&    mb, ACE_Time_Value *    timeout = 0 )

Extract the first message from the queue (blocking). Note that <timeout> uses <{absolute}> time rather than <{relative}> time. Returns number of items in queue if the call succeeds or -1 otherwise.

template<ACE_SYNCH_DECL > ACE_Module<ACE_SYNCH_USE>* ACE_Task<>::module (  void    )  const

Return the Task's Module if there is one, else returns 0.

template<ACE_SYNCH_DECL > void ACE_Task<>::msg_queue (  ACE_Message_Queue< ACE_SYNCH_USE > *    )

Sets the message queue associated with this task.

template<ACE_SYNCH_DECL > ACE_Message_Queue<ACE_SYNCH_USE>* ACE_Task<>::msg_queue (  void    )

Gets the message queue associated with this task.

template<ACE_SYNCH_DECL > const ACE_TCHAR* ACE_Task<>::name (  void    )  const

Return the name of the enclosing Module if there's one associated with the Task, else returns 0. Reimplemented in ACE_NT_Service.

template<ACE_SYNCH_DECL > void ACE_Task<>::next (  ACE_Task< ACE_SYNCH_USE > *    )

Set next Task pointer.

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Task<>::next (  void    )

Get next Task pointer.

template<ACE_SYNCH_DECL > void ACE_Task<>::operator= (  const ACE_Task< _ACE_SYNCH > &    )  [private]

template<ACE_SYNCH_DECL > int ACE_Task<>::put_next (  ACE_Message_Block *    msg, ACE_Time_Value *    timeout = 0 )

Transfer message to the adjacent ACE_Task in a ACE_Stream. Note that <timeout> uses <{absolute}> time rather than <{relative}> time.

template<ACE_SYNCH_DECL > int ACE_Task<>::putq (  ACE_Message_Block *   , ACE_Time_Value *    timeout = 0 )

Insert message into the message queue. Note that <timeout> uses <{absolute}> time rather than <{relative}> time.

template<ACE_SYNCH_DECL > int ACE_Task<>::reply (  ACE_Message_Block *   , ACE_Time_Value *    timeout = 0 )

Turn the message around and send it back down the Stream. Note that <timeout> uses <{absolute}> time rather than <{relative}> time.

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Task<>::sibling (  void    )

Return the Task's sibling if there's one associated with the Task's Module, else returns 0.

template<ACE_SYNCH_DECL > int ACE_Task<>::ungetq (  ACE_Message_Block *   , ACE_Time_Value *    timeout = 0 )

Return a message to the queue. Note that <timeout> uses <{absolute}> time rather than <{relative}> time.

template<ACE_SYNCH_DECL > void ACE_Task<>::water_marks (  ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds   , size_t    )

Manipulate watermarks.

---

Friends And Related Function Documentation

template<ACE_SYNCH_DECL > friend class ACE_Module< ACE_SYNCH_USE > [friend]

template<ACE_SYNCH_DECL > friend class ACE_Module_Type [friend]

---

Member Data Documentation

template<ACE_SYNCH_DECL > ACE_Task<>::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented in ACE_NT_Service, ACE_Stream_Head<>, ACE_Stream_Tail<>, and ACE_Thru_Task<>.

template<ACE_SYNCH_DECL > int ACE_Task<>::delete_msg_queue_

1 if should delete Message_Queue, 0 otherwise.

template<ACE_SYNCH_DECL > ACE_Module<ACE_SYNCH_USE>* ACE_Task<>::mod_

Back-pointer to the enclosing module.

template<ACE_SYNCH_DECL > ACE_Message_Queue<ACE_SYNCH_USE>* ACE_Task<>::msg_queue_

Queue of messages on the ACE_Task..

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Task<>::next_

Pointer to adjacent ACE_Task.

---

The documentation for this class was generated from the following file:

• Task_T.h

---
