ACE_Stream_Head<> Class Template Reference

Standard module that acts as the head of a ustream. More...

#include <Stream_Modules.h>

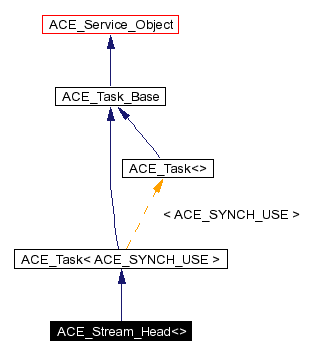

Inheritance diagram for ACE_Stream_Head<>:

[legend]Collaboration diagram for ACE_Stream_Head<>:

[legend]List of all members.

Public Methods
	ACE_Stream_Head (void)
	Construction.
	~ACE_Stream_Head (void)
	Destruction.
virtual int	open (void *a=0)
virtual int	close (u_long flags=0)
virtual int	put (ACE_Message_Block *msg, ACE_Time_Value *=0)
virtual int	svc (void)
	Run by a daemon thread to handle deferred processing.
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.
virtual int	info (ACE_TCHAR **info_string, size_t length) const
	Returns information on a service object.
virtual int	fini (void)
	Terminates object when dynamic unlinking occurs.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Methods
int	control (ACE_Message_Block *)
	Performs canonical flushing at the ACE_Stream Head.
int	canonical_flush (ACE_Message_Block *)

---

Detailed Description

template<ACE_SYNCH_DECL>
class ACE_Stream_Head<>

Standard module that acts as the head of a ustream.

---

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL > ACE_Stream_Head<>::ACE_Stream_Head (  void    )

Construction.

template<ACE_SYNCH_DECL > ACE_Stream_Head<>::~ACE_Stream_Head (  void    )

Destruction.

---

Member Function Documentation

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::canonical_flush (  ACE_Message_Block *    )  [private]

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::close (  u_long    flags = 0 )  [virtual]

Hook called from <ACE_Thread_Exit> when during thread exit and from the default implementation of <module_closed>. In general, this method shouldn't be called directly by an application, particularly if the <Task> is running as an Active Object. Instead, a special message should be passed into the <Task> via the <put> method defined below, and the <svc> method should interpret this as a flag to shut down the <Task>. Reimplemented from ACE_Task_Base.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::control (  ACE_Message_Block *    )  [private]

Performs canonical flushing at the ACE_Stream Head.

template<ACE_SYNCH_DECL > void ACE_Stream_Head<>::dump (  void    )  const

Dump the state of an object. Reimplemented from ACE_Task< ACE_SYNCH_USE >.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::fini (  void    )  [virtual]

Terminates object when dynamic unlinking occurs. Reimplemented from ACE_Shared_Object.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::info (  ACE_TCHAR **    info_string, size_t    length )  const [virtual]

Returns information on a service object. Reimplemented from ACE_Shared_Object.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::init (  int    argc, ACE_TCHAR *    argv[] )  [virtual]

Initializes object when dynamic linking occurs. Reimplemented from ACE_Shared_Object.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::open (  void *    a = 0 )  [virtual]

Hook called to open a Task. <args> can be used to pass arbitrary information into <open>. Reimplemented from ACE_Task_Base.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::put (  ACE_Message_Block *    msg, ACE_Time_Value *    = 0 )  [virtual]

A hook method that can be used to pass a message to a task, where it can be processed immediately or queued for subsequent processing in the <svc> hook method. Reimplemented from ACE_Task_Base.

template<ACE_SYNCH_DECL > int ACE_Stream_Head<>::svc (  void    )  [virtual]

Run by a daemon thread to handle deferred processing. Reimplemented from ACE_Task_Base.

---

Member Data Documentation

template<ACE_SYNCH_DECL > ACE_Stream_Head<>::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented from ACE_Task< ACE_SYNCH_USE >.

---

The documentation for this class was generated from the following files:

• Stream_Modules.h
• Stream_Modules.cpp

---
