#include <Svc_Handler.h>

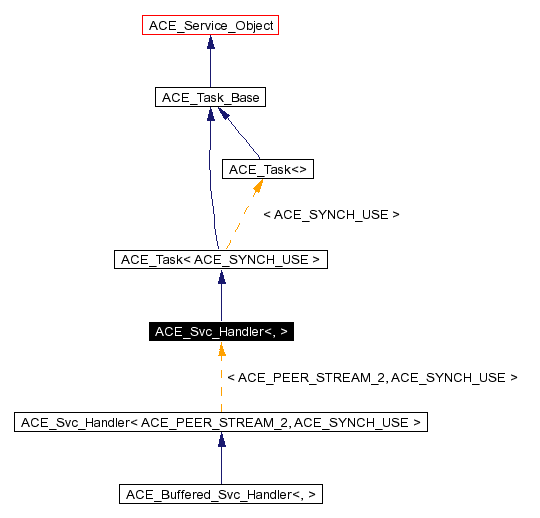

Inheritance diagram for ACE_Svc_Handler<, >:
Public Types | |
| typedef ACE_PEER_STREAM_ADDR | addr_type |
| typedef ACE_PEER_STREAM | stream_type |
Public Methods | |
| ACE_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance()) | |
| virtual | ~ACE_Svc_Handler (void) |
| Destructor. | |
| virtual int | open (void *=0) |
| virtual int | close (u_long flags=0) |
| virtual int | idle (u_long flags=0) |
| virtual ACE_Recyclable_State | recycle_state (void) const |
| virtual int | recycle_state (ACE_Recyclable_State new_state) |
| virtual void | cleanup_hint (void **act_holder=0) |
| virtual int | init (int argc, ACE_TCHAR *argv[]) |
| virtual int | fini (void) |
| virtual int | info (ACE_TCHAR **info_string, size_t length) const |
| virtual int | handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK) |
| virtual int | handle_timeout (const ACE_Time_Value &time, const void *) |
| virtual ACE_HANDLE | get_handle (void) const |
| Get the underlying handle associated with the <peer_>. | |
| virtual void | set_handle (ACE_HANDLE) |
| Set the underlying handle associated with the <peer_>. | |
| ACE_PEER_STREAM & | peer (void) const |
| void * | operator new (size_t n) |
| void * | operator new (size_t n, void *p) |
| This operator permits "placement new" on a per-object basis. | |
| virtual void | destroy (void) |
| void | operator delete (void *) |
| void | operator delete (void *, void *) |
| void | shutdown (void) |
| Close down the descriptor and unregister from the Reactor. | |
| void | dump (void) const |
| Dump the state of an object. | |
| virtual void | recycler (ACE_Connection_Recycling_Strategy *recycler, const void *recycling_act) |
| virtual ACE_Connection_Recycling_Strategy * | recycler (void) const |
| Get the recycler. | |
| virtual const void * | recycling_act (void) const |
| Get the recycling act. | |
| virtual int | recycle (void *=0) |
Protected Attributes | |
| ACE_PEER_STREAM | peer_ |
| Maintain connection with client. | |
| int | dynamic_ |
| Have we been dynamically created? | |
| char | closing_ |
| ACE_Connection_Recycling_Strategy * | recycler_ |
| Pointer to the connection recycler. | |
| const void * | recycling_act_ |
This class provides a well-defined interface that the Acceptor and Connector pattern factories use as their target. Typically, client applications will subclass ACE_Svc_Handler and do all the interesting work in the subclass. One thing that the ACE_Svc_Handler does contain is a PEER_STREAM endpoint that is initialized by an ACE_Acceptor or ACE_Connector when a connection is established successfully. This endpoint is used to exchange data between a ACE_Svc_Handler and the peer it is connected with.
|
|||||
|
|
|
|||||
|
|
|
||||||||||||||||||||
|
Constructor initializes the <thr_mgr> and <mq> by passing them down to the <ACE_Task> base class. The <reactor> is passed to the <ACE_Event_Handler>. |
|
||||||||||
|
Destructor.
|
|
||||||||||
|
When the svc_handle is no longer needed around as a hint, call this method. In addition, reset <*act_holder> to zero if <act_holder != 0>. |
|
||||||||||
|
Object termination hook -- application-specific cleanup code goes here. This function is called by the idle() function if the object does not have a ACE_Connection_Recycling_Strategy associated with it. Also, due to this class's derivation from <ACE_Task>, <close> is also called when a thread activated with this object exits. See <ACE_Task::close> for further details. The default action of this function is to call <handle_close> with the default arguments. Reimplemented from ACE_Task_Base. |
|
||||||||||
|
Call this to free up dynamically allocated <Svc_Handlers> (otherwise you will get memory leaks). In general, you should call this method rather than <delete> since this method knows whether or not the object was allocated dynamically, and can act accordingly (i.e., deleting it if it was allocated dynamically). |
|
||||||||||
|
Dump the state of an object.
Reimplemented from ACE_Task< ACE_SYNCH_USE >. Reimplemented in ACE_Buffered_Svc_Handler<, >. |
|
||||||||||
|
Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful. Reimplemented from ACE_Shared_Object. |
|
||||||||||
|
Get the underlying handle associated with the <peer_>.
Reimplemented from ACE_Event_Handler. |
|
||||||||||||||||
|
Perform termination activities on the SVC_HANDLER. The default behavior is to close down the <peer_> (to avoid descriptor leaks) and to <destroy> this object (to avoid memory leaks)! If you don't want this behavior make sure you override this method... Reimplemented from ACE_Event_Handler. |
|
||||||||||||||||
|
Default behavior when timeouts occur is to close down the <Svc_Handler> by calling <handle_close>. Reimplemented from ACE_Event_Handler. Reimplemented in ACE_Buffered_Svc_Handler<, >. |
|
||||||||||
|
Call this method if you want to recycling the <Svc_Handler> instead of closing it. If the object does not have a recycler, it will be closed. |
|
||||||||||||||||
|
Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful. Reimplemented from ACE_Shared_Object. |
|
||||||||||||||||
|
Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful. Reimplemented from ACE_Shared_Object. |
|
||||||||||
|
Activate the client handler. This is typically called by the <ACE_Acceptor> or <ACE_Connector>. Reimplemented from ACE_Task_Base. |
|
||||||||||||||||
|
This operator is necessary to complement the class-specific operator new above. Unfortunately, it's not portable to all C++ compilers... |
|
||||||||||
|
This really should be private so that users are forced to call <destroy>. Unfortunately, the C++ standard doesn't allow there to be a public new and a private delete. It is a bad idea to call this method directly, so use <destroy> instead, unless you know for sure that you've allocated the object dynamically. |
|
||||||||||||||||
|
This operator permits "placement new" on a per-object basis.
|
|
||||||||||
|
Overloaded new operator. This method unobtrusively records if a <Svc_Handler> is allocated dynamically, which allows it to clean itself up correctly whether or not it's allocated statically or dynamically. |
|
||||||||||
|
Returns the underlying PEER_STREAM. Used by <ACE_Acceptor::accept> and <ACE_Connector::connect> factories |
|
||||||||||
|
Upcall made by the recycler when it is about to recycle the connection. This gives the object a chance to prepare itself for recycling. Return 0 if the object is ready for recycling, -1 on failures. |
|
||||||||||
|
|
|
||||||||||
|
Call this method if you want to get/set the state of the <Svc_Handler>. If the object does not have a recycler, this call will have no effect (and the accessor will return ACE_RECYCLABLE_UNKNOWN). |
|
||||||||||
|
Get the recycler.
|
|
||||||||||||||||
|
Set the recycler and the <recycling_act> that is used during purging and caching. |
|
||||||||||
|
Get the recycling act.
|
|
||||||||||
|
Set the underlying handle associated with the <peer_>.
Reimplemented from ACE_Event_Handler. |
|
||||||||||
|
Close down the descriptor and unregister from the Reactor.
|
|
|||||
|
Keeps track of whether we are in the process of closing (required to avoid circular calls to <handle_close>). |
|
|||||
|
Have we been dynamically created?
|
|
|||||
|
Maintain connection with client.
|
|
|||||
|
Pointer to the connection recycler.
|
|
|||||
|
Asynchronous Completion Token (ACT) to be used to when talking to the recycler. |
