ACE_Reactor_Impl Class Reference

An abstract class for implementing the Reactor Pattern. More...

#include <Reactor_Impl.h>

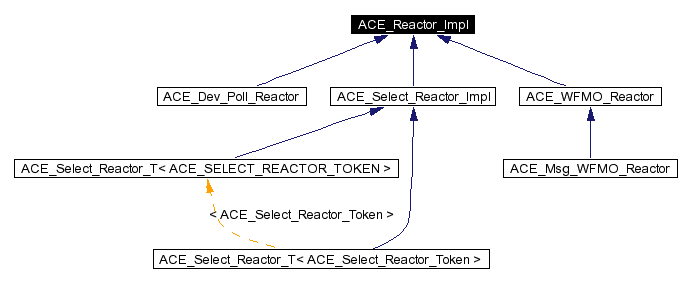

Inheritance diagram for ACE_Reactor_Impl:

Inheritance graph
[legend]
List of all members.

Public Methods

virtual ~ACE_Reactor_Impl (void)
 Close down and release all resources.

virtual int open (size_t size, int restart=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *=0)=0
 Initialization.

virtual int current_info (ACE_HANDLE, size_t &)=0
virtual int set_sig_handler (ACE_Sig_Handler *signal_handler)=0
 Use a user specified signal handler instead.

virtual int set_timer_queue (ACE_Timer_Queue *tq)=0
virtual int timer_queue (ACE_Timer_Queue *tq)=0
 Set a user-specified timer queue.

virtual ACE_Timer_Queue * timer_queue (void) const=0
 Return the current <ACE_Timer_Queue>.

virtual int close (void)=0
 Close down and release all resources.

virtual int work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)=0
virtual int handle_events (ACE_Time_Value *max_wait_time=0)=0
virtual int alertable_handle_events (ACE_Time_Value *max_wait_time=0)=0
virtual int handle_events (ACE_Time_Value &max_wait_time)=0
virtual int alertable_handle_events (ACE_Time_Value &max_wait_time)=0
virtual int deactivated (void)=0
virtual void deactivate (int do_stop)=0
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int register_handler (ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)=0
virtual int register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
 Register <event_handler> with all the <handles> in the <Handle_Set>.

virtual int register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)=0
virtual int register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0)=0
virtual int remove_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)=0
virtual int remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask mask)=0
virtual int remove_handler (const ACE_Handle_Set &handle_set, ACE_Reactor_Mask mask)=0
virtual int remove_handler (int signum, ACE_Sig_Action *new_disp, ACE_Sig_Action *old_disp=0, int sigkey=-1)=0
virtual int remove_handler (const ACE_Sig_Set &sigset)=0
 Calls <remove_handler> for every signal in <sigset>.

virtual int suspend_handler (ACE_Event_Handler *event_handler)=0
virtual int suspend_handler (ACE_HANDLE handle)=0
 Suspend <handle> temporarily.

virtual int suspend_handler (const ACE_Handle_Set &handles)=0
 Suspend all <handles> in handle set temporarily.

virtual int suspend_handlers (void)=0
 Suspend all <handles> temporarily.

virtual int resume_handler (ACE_Event_Handler *event_handler)=0
virtual int resume_handler (ACE_HANDLE handle)=0
 Resume <handle>.

virtual int resume_handler (const ACE_Handle_Set &handles)=0
 Resume all <handles> in handle set.

virtual int resume_handlers (void)=0
 Resume all <handles>.

virtual int resumable_handler (void)=0
virtual int uses_event_associations (void)=0
virtual long schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)=0
virtual int reset_timer_interval (long timer_id, const ACE_Time_Value &interval)=0
virtual int cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)=0
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)=0
virtual int schedule_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_added)=0
virtual int schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_added)=0
virtual int cancel_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_cleared)=0
 Clear <masks_to_be_cleared> from the <event_handler>'s entry.

virtual int cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_cleared)=0
 Clear <masks_to_be_cleared> from the <handle>'s entry.

virtual int notify (ACE_Event_Handler *event_handler=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)=0
virtual void max_notify_iterations (int)=0
virtual int max_notify_iterations (void)=0
virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual ACE_Event_Handler * find_handler (ACE_HANDLE handle)=0
virtual int handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)=0
virtual int handler (int signum, ACE_Event_Handler **=0)=0
virtual int initialized (void)=0
virtual size_t size (void) const=0
virtual ACE_Lock & lock (void)=0
 Returns a reference to the Reactor's internal lock.

virtual void wakeup_all_threads (void)=0
 Wake up all threads in waiting in the event loop.

virtual int owner (ACE_thread_t new_owner, ACE_thread_t *old_owner=0)=0
 Transfers ownership of Reactor_Impl to the <new_owner>.

virtual int owner (ACE_thread_t *owner)=0
 Return the ID of the "owner" thread.

virtual int restart (void)=0
 Get the existing restart value.

virtual int restart (int r)=0
 Set a new value for restart and return the original value.

virtual void requeue_position (int)=0
 Set position of the owner thread.

virtual int requeue_position (void)=0
 Get position of the owner thread.

virtual int mask_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)=0
virtual int mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)=0
virtual int ready_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)=0
virtual int ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask, int ops)=0
 GET/SET/ADD/CLR the ready "bit" bound with the <handle> and <mask>.

virtual void dump (void) const=0
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Detailed Description

An abstract class for implementing the Reactor Pattern.

Constructor & Destructor Documentation

virtual ACE_Reactor_Impl::~ACE_Reactor_Impl (  void    )  [inline, virtual]


Close down and release all resources.

Member Function Documentation

virtual int ACE_Reactor_Impl::alertable_handle_events (  ACE_Time_Value &    max_wait_time )  [pure virtual]


Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::alertable_handle_events (  ACE_Time_Value *    max_wait_time = 0 )  [pure virtual]


Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_timer (  long    timer_id,
const void **    arg = 0,
int    dont_call_handle_close = 1
)  [pure virtual]


Cancel the single Event_Handler that matches the <timer_id> value (which was returned from the schedule method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_QtReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_timer (  ACE_Event_Handler *    event_handler,
int    dont_call_handle_close = 1
)  [pure virtual]


Cancel all Event_Handlers that match the address of <event_handler>. Returns number of handlers cancelled.

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_QtReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_wakeup (  ACE_HANDLE    handle,
ACE_Reactor_Mask    masks_to_be_cleared
)  [pure virtual]


Clear <masks_to_be_cleared> from the <handle>'s entry.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::cancel_wakeup (  ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    masks_to_be_cleared
)  [pure virtual]


Clear <masks_to_be_cleared> from the <event_handler>'s entry.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::close (  void    )  [pure virtual]


Close down and release all resources.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::current_info (  ACE_HANDLE   ,
size_t &
)  [pure virtual]


Returns 0, if the size of the current message has been put in <size> Returns -1, if not. ACE_HANDLE allows the reactor to check if the caller is valid.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::deactivate (  int    do_stop )  [pure virtual]


Control whether the Reactor will handle any more incoming events or not. If <do_stop> == 1, the Reactor will be disabled. By default, a reactor is in active state and can be deactivated/reactived as wish.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::deactivated (  void    )  [pure virtual]


Return the status of Reactor. If this function returns 0, the reactor is actively handling events. If it returns non-zero, <handling_events> and <handle_alertable_events> return -1 immediately.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::dump (  void    )  const [pure virtual]


Dump the state of an object.

Implemented in ACE_Dev_Poll_Reactor, ACE_Priority_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual ACE_Event_Handler* ACE_Reactor_Impl::find_handler (  ACE_HANDLE    handle )  [pure virtual]


Return the Event_Handler associated with <handle>. Return 0 if <handle> is not registered.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handle_events (  ACE_Time_Value &    max_wait_time )  [pure virtual]


This method is just like the one above, except the <max_wait_time> value is a reference and can therefore never be NULL.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, the eventloop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.

Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handle_events (  ACE_Time_Value *    max_wait_time = 0 )  [pure virtual]


This event loop driver blocks for up to <max_wait_time> before returning. It will return earlier if events occur. Note that <max_wait_time> can be 0, in which case this method blocks indefinitely until events occur.

<max_wait_time> is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events and an event occurs after 2 seconds, <max_wait_time> will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.

Returns the total number of <ACE_Event_Handler>s that were dispatched, 0 if the <max_wait_time> elapsed without dispatching any handlers, or -1 if an error occurs.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, the eventloop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.

Implemented in ACE_Dev_Poll_Reactor, ACE_Msg_WFMO_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handler (  int    signum,
ACE_Event_Handler **    = 0
)  [pure virtual]


Check to see if <signum> is associated with a valid Event_Handler bound to a signal. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::handler (  ACE_HANDLE    handle,
ACE_Reactor_Mask    mask,
ACE_Event_Handler **    event_handler = 0
)  [pure virtual]


Check to see if <handle> is associated with a valid Event_Handler bound to <mask>. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::initialized (  void    )  [pure virtual]


Returns true if Reactor has been successfully initialized, else false.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual ACE_Lock& ACE_Reactor_Impl::lock (  void    )  [pure virtual]


Returns a reference to the Reactor's internal lock.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::mask_ops (  ACE_HANDLE    handle,
ACE_Reactor_Mask    mask,
int    ops
)  [pure virtual]


GET/SET/ADD/CLR the dispatch MASK "bit" bound with the <handle> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::mask_ops (  ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask,
int    ops
)  [pure virtual]


GET/SET/ADD/CLR the dispatch mask "bit" bound with the <event_handler> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::max_notify_iterations (  void    )  [pure virtual]


Get the maximum number of times that the ACE_Reactor_Impl will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::max_notify_iterations (  int    )  [pure virtual]


Set the maximum number of times that ACE_Reactor_Impl will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::notify (  ACE_Event_Handler *    event_handler = 0,
ACE_Reactor_Mask    mask = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value *    = 0
)  [pure virtual]


Notify <event_handler> of <mask> event. The <ACE_Time_Value> indicates how long to blocking trying to notify. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in <timeout> elapses).

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::open (  size_t    size,
int    restart = 0,
ACE_Sig_Handler *    = 0,
ACE_Timer_Queue *    = 0,
int    disable_notify_pipe = 0,
ACE_Reactor_Notify *    = 0
)  [pure virtual]


Initialization.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::owner (  ACE_thread_t *    owner )  [pure virtual]


Return the ID of the "owner" thread.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::owner (  ACE_thread_t    new_owner,
ACE_thread_t *    old_owner = 0
)  [pure virtual]


Transfers ownership of Reactor_Impl to the <new_owner>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::purge_pending_notifications (  ACE_Event_Handler *    = 0,
ACE_Reactor_Mask    = ACE_Event_Handler::ALL_EVENTS_MASK
)  [pure virtual]


Purge any notifications pending in this reactor for the specified <ACE_Event_Handler> object. Returns the number of notifications purged. Returns -1 on error.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_Impl, and ACE_WFMO_Reactor.

virtual int ACE_Reactor_Impl::ready_ops (  ACE_HANDLE    handle,
ACE_Reactor_Mask   ,
int    ops
)  [pure virtual]


GET/SET/ADD/CLR the ready "bit" bound with the <handle> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::ready_ops (  ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask,
int    ops
)  [pure virtual]


GET/SET/ADD/CLR the ready "bit" bound with the <event_handler> and <mask>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  const ACE_Sig_Set &    sigset,
ACE_Event_Handler *    new_sh,
ACE_Sig_Action *    new_disp = 0
)  [pure virtual]


Registers <new_sh> to handle a set of signals <sigset> using the <new_disp>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  int    signum,
ACE_Event_Handler *    new_sh,
ACE_Sig_Action *    new_disp = 0,
ACE_Event_Handler **    old_sh = 0,
ACE_Sig_Action *    old_disp = 0
)  [pure virtual]


Register <new_sh> to handle the signal <signum> using the <new_disp>. Returns the <old_sh> that was previously registered (if any), along with the <old_disp> of the signal handler.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  const ACE_Handle_Set &    handles,
ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask
)  [pure virtual]


Register <event_handler> with all the <handles> in the <Handle_Set>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  ACE_HANDLE    event_handle,
ACE_HANDLE    io_handle,
ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask
)  [pure virtual]


Register an <event_handler> that will be notified when <event_handle> is signaled. <mask> specifies the network events that the <event_handler> is interested in.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  ACE_Event_Handler *    event_handler,
ACE_HANDLE    event_handle = ACE_INVALID_HANDLE
)  [pure virtual]


Register an <event_handler> that will be notified when <event_handle> is signaled. Since no event mask is passed through this interface, it is assumed that the <event_handle> being passed in is an event handle and not an I/O handle.

Implemented in ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  ACE_HANDLE    io_handle,
ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask
)  [pure virtual]


Register <event_handler> with <mask>. The I/O handle is provided through the <io_handle> parameter.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::register_handler (  ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask
)  [pure virtual]


Register <event_handler> with <mask>. The I/O handle will always come from <get_handle> on the <event_handler>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler (  const ACE_Sig_Set &    sigset )  [pure virtual]


Calls <remove_handler> for every signal in <sigset>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler (  int    signum,
ACE_Sig_Action *    new_disp,
ACE_Sig_Action *    old_disp = 0,
int    sigkey = -1
)  [pure virtual]


Remove the ACE_Event_Handler currently associated with <signum>. Install the new disposition (if given) and return the previous disposition (if desired by the caller). Returns 0 on success and -1 if <signum> is invalid.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler (  const ACE_Handle_Set &    handle_set,
ACE_Reactor_Mask    mask
)  [pure virtual]


Removes all handles in <handle_set>. If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the associated <event_handler>s is not invoked.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler (  ACE_HANDLE    handle,
ACE_Reactor_Mask    mask
)  [pure virtual]


Removes <handle>. If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the associated <event_handler> is not invoked.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::remove_handler (  ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    mask
)  [pure virtual]


Removes <event_handler>. Note that the I/O handle will be obtained using <get_handle> method of <event_handler> . If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the <event_handler> is not invoked.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::requeue_position (  void    )  [pure virtual]


Get position of the owner thread.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::requeue_position (  int    )  [pure virtual]


Set position of the owner thread.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::reset_timer_interval (  long    timer_id,
const ACE_Time_Value &    interval
)  [pure virtual]


Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::restart (  int    r )  [pure virtual]


Set a new value for restart and return the original value.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::restart (  void    )  [pure virtual]


Get the existing restart value.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resumable_handler (  void    )  [pure virtual]


Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_Impl, ACE_TP_Reactor, and ACE_WFMO_Reactor.

virtual int ACE_Reactor_Impl::resume_handler (  const ACE_Handle_Set &    handles )  [pure virtual]


Resume all <handles> in handle set.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resume_handler (  ACE_HANDLE    handle )  [pure virtual]


Resume <handle>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resume_handler (  ACE_Event_Handler *    event_handler )  [pure virtual]


Resume <event_handler>. Use <ACE_Event_Handler::get_handle> to get the handle.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::resume_handlers (  void    )  [pure virtual]


Resume all <handles>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual long ACE_Reactor_Impl::schedule_timer (  ACE_Event_Handler *    event_handler,
const void *    arg,
const ACE_Time_Value &    delay,
const ACE_Time_Value &    interval = ACE_Time_Value::zero
)  [pure virtual]


Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer() , reset_timer_interval()
Parameters:
event_handler  event handler to schedule on reactor
arg  argument passed to the handle_timeout() method of event_handler
delay  time interval after which the timer will expire
interval  time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Implemented in ACE_Dev_Poll_Reactor, ACE_FlReactor, ACE_QtReactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TkReactor, ACE_WFMO_Reactor, ACE_XtReactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::schedule_wakeup (  ACE_HANDLE    handle,
ACE_Reactor_Mask    masks_to_be_added
)  [pure virtual]


Add <masks_to_be_added> to the <handle>'s entry. <event_handler> associated with <handle> must already have been registered.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::schedule_wakeup (  ACE_Event_Handler *    event_handler,
ACE_Reactor_Mask    masks_to_be_added
)  [pure virtual]


Add <masks_to_be_added> to the <event_handler>'s entry. <event_handler> must already have been registered.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::set_sig_handler (  ACE_Sig_Handler *    signal_handler )  [pure virtual]


Use a user specified signal handler instead.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::set_timer_queue (  ACE_Timer_Queue *    tq )  [pure virtual]


Deprecated:
The following method is deprecated. Use <timer_queue> instead. Set a user specified timer queue.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual size_t ACE_Reactor_Impl::size (  void    )  const [pure virtual]


Returns the current size of the Reactor's internal descriptor table.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handler (  const ACE_Handle_Set &    handles )  [pure virtual]


Suspend all <handles> in handle set temporarily.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handler (  ACE_HANDLE    handle )  [pure virtual]


Suspend <handle> temporarily.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handler (  ACE_Event_Handler *    event_handler )  [pure virtual]


Suspend <event_handler> temporarily. Use <ACE_Event_Handler::get_handle> to get the handle.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::suspend_handlers (  void    )  [pure virtual]


Suspend all <handles> temporarily.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual ACE_Timer_Queue* ACE_Reactor_Impl::timer_queue (  void    )  const [pure virtual]


Return the current <ACE_Timer_Queue>.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::timer_queue (  ACE_Timer_Queue *    tq )  [pure virtual]


Set a user-specified timer queue.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::uses_event_associations (  void    )  [pure virtual]


Return 1 if we any event associations were made by the reactor for the handles that it waits on, 0 otherwise.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual void ACE_Reactor_Impl::wakeup_all_threads (  void    )  [pure virtual]


Wake up all threads in waiting in the event loop.

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

virtual int ACE_Reactor_Impl::work_pending (  const ACE_Time_Value &    max_wait_time = ACE_Time_Value::zero )  [pure virtual]


Returns non-zero if there are I/O events "ready" for dispatching, but does not actually dispatch the event handlers. By default, don't block while checking this, i.e., "poll".

Implemented in ACE_Dev_Poll_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Member Data Documentation

ACE_Reactor_Impl::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented in ACE_Dev_Poll_Reactor, ACE_Priority_Reactor, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, ACE_TP_Reactor, ACE_WFMO_Reactor, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

The documentation for this class was generated from the following file:
Generated on Fri Apr 2 16:52:31 2004 for ACE by doxygen1.2.18
