ACE_Select_Reactor_Impl Class Reference

This class simply defines how Select_Reactor's basic interface functions should look like and provides a common base class for <Select_Reactor> using various locking mechanism. More...

#include <Select_Reactor_Base.h>

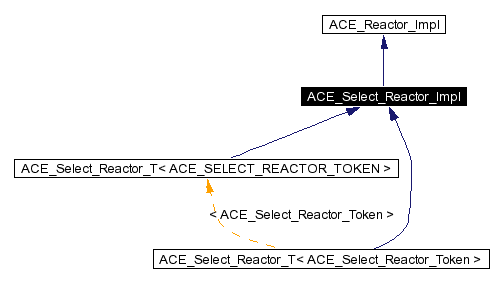

Inheritance diagram for ACE_Select_Reactor_Impl:

Inheritance graph
[legend]

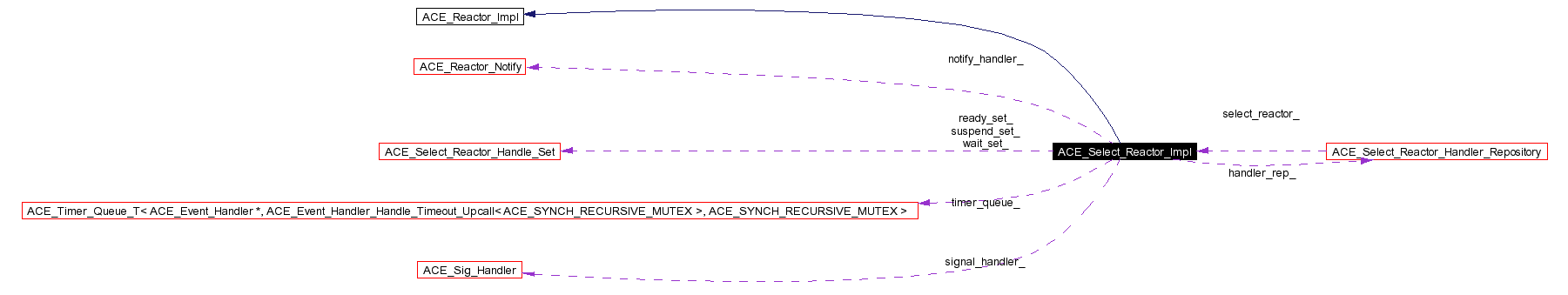

Collaboration diagram for ACE_Select_Reactor_Impl:

Collaboration graph
[legend]
List of all members.

Public Types

enum  { DEFAULT_SIZE = ACE_DEFAULT_SELECT_REACTOR_SIZE }

Public Methods

 ACE_Select_Reactor_Impl (void)
 Constructor.

virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual int resumable_handler (void)

Protected Methods

virtual int bit_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Select_Reactor_Handle_Set &wait_Set, int ops)
 Allow manipulation of the <wait_set_> mask and <ready_set_> mask.

virtual void renew (void)=0
virtual int is_suspended_i (ACE_HANDLE handle)=0
int supress_notify_renew (void)
void supress_notify_renew (int sr)

Protected Attributes

ACE_Select_Reactor_Handler_Repository handler_rep_
 Table that maps <ACE_HANDLEs> to <ACE_Event_Handler *>'s.

ACE_Select_Reactor_Handle_Set wait_set_
 Tracks handles that are waited for by <select>.

ACE_Select_Reactor_Handle_Set suspend_set_
 Tracks handles that are currently suspended.

ACE_Select_Reactor_Handle_Set ready_set_
ACE_Timer_Queuetimer_queue_
 Defined as a pointer to allow overriding by derived classes...

int delete_timer_queue_
ACE_Sig_Handlersignal_handler_
 Handle signals without requiring global/static variables.

int delete_signal_handler_
ACE_Reactor_Notifynotify_handler_
int delete_notify_handler_
int restart_
int requeue_position_
int initialized_
 True if we've been initialized yet...

ACE_thread_t owner_
 The original thread that created this Select_Reactor.

int state_changed_

Private Methods

 ACE_Select_Reactor_Impl (const ACE_Select_Reactor_Impl &)
 Deny access since member-wise won't work...

ACE_Select_Reactor_Impl & operator= (const ACE_Select_Reactor_Impl &)

Private Attributes

int supress_renew_

Friends

class ACE_Select_Reactor_Notify
class ACE_Select_Reactor_Handler_Repository

Detailed Description

This class simply defines how Select_Reactor's basic interface functions should look like and provides a common base class for <Select_Reactor> using various locking mechanism.


Member Enumeration Documentation

anonymous enum


Enumeration values:
DEFAULT_SIZE  Default size of the Select_Reactor's handle table.


Constructor & Destructor Documentation

ACE_INLINE ACE_Select_Reactor_Impl::ACE_Select_Reactor_Impl void


Constructor.

ACE_Select_Reactor_Impl::ACE_Select_Reactor_Impl const ACE_Select_Reactor_Impl &    [private]


Deny access since member-wise won't work...


Member Function Documentation

int ACE_Select_Reactor_Impl::bit_ops ACE_HANDLE    handle,
ACE_Reactor_Mask    mask,
ACE_Select_Reactor_Handle_Set   wait_Set,
int    ops
[protected, virtual]


Allow manipulation of the <wait_set_> mask and <ready_set_> mask.

Reimplemented in ACE_QtReactor.

virtual int ACE_Select_Reactor_Impl::is_suspended_i ACE_HANDLE    handle [protected, pure virtual]


Check to see if the <Event_Handler> associated with <handle> is suspended. Returns 0 if not, 1 if so.

Implemented in ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

ACE_Select_Reactor_Impl& ACE_Select_Reactor_Impl::operator= const ACE_Select_Reactor_Impl &    [private]


ACE_INLINE int ACE_Select_Reactor_Impl::purge_pending_notifications ACE_Event_Handler   = 0,
ACE_Reactor_Mask    = ACE_Event_Handler::ALL_EVENTS_MASK
[virtual]


Purge any notifications pending in this reactor for the specified <ACE_Event_Handler> object. Returns the number of notifications purged. Returns -1 on error.

Implements ACE_Reactor_Impl.

virtual void ACE_Select_Reactor_Impl::renew void    [protected, pure virtual]


Enqueue ourselves into the list of waiting threads at the appropriate point specified by <requeue_position_>.

Implemented in ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_Select_Reactor_Impl::resumable_handler void    [virtual]


Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application. The select reactor has no handlers that can be resumed by the application. So return 0;

Implements ACE_Reactor_Impl.

Reimplemented in ACE_TP_Reactor.

ACE_INLINE void ACE_Select_Reactor_Impl::supress_notify_renew int    sr [protected]


ACE_INLINE int ACE_Select_Reactor_Impl::supress_notify_renew void    [protected]


Controls/access whether the notify handler should renew the Select_Reactor's token or not.


Friends And Related Function Documentation

friend class ACE_Select_Reactor_Handler_Repository [friend]


friend class ACE_Select_Reactor_Notify [friend]



Member Data Documentation

int ACE_Select_Reactor_Impl::delete_notify_handler_ [protected]


Keeps track of whether we need to delete the notify handler (if we didn't create it, then we don't delete it).

int ACE_Select_Reactor_Impl::delete_signal_handler_ [protected]


Keeps track of whether we should delete the signal handler (if we didn't create it, then we don't delete it).

int ACE_Select_Reactor_Impl::delete_timer_queue_ [protected]


Keeps track of whether we should delete the timer queue (if we didn't create it, then we don't delete it).

ACE_Select_Reactor_Handler_Repository ACE_Select_Reactor_Impl::handler_rep_ [protected]


Table that maps <ACE_HANDLEs> to <ACE_Event_Handler *>'s.

int ACE_Select_Reactor_Impl::initialized_ [protected]


True if we've been initialized yet...

ACE_Reactor_Notify* ACE_Select_Reactor_Impl::notify_handler_ [protected]


Callback object that unblocks the <ACE_Select_Reactor> if it's sleeping.

ACE_thread_t ACE_Select_Reactor_Impl::owner_ [protected]


The original thread that created this Select_Reactor.

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::ready_set_ [protected]


Track HANDLES we are interested in for various events that must be dispatched *without* going through <select>.

int ACE_Select_Reactor_Impl::requeue_position_ [protected]


Position that the main ACE_Select_Reactor thread is requeued in the list of waiters during a <notify> callback. If this value == -1 we are requeued at the end of the list. Else if it's 0 then we are requeued at the front of the list. Else if it's > 1 then that indicates the number of waiters to skip over.

int ACE_Select_Reactor_Impl::restart_ [protected]


Restart the <handle_events> event-loop method automatically when <select> is interrupted via <EINTR>.

ACE_Sig_Handler* ACE_Select_Reactor_Impl::signal_handler_ [protected]


Handle signals without requiring global/static variables.

int ACE_Select_Reactor_Impl::state_changed_ [protected]


True if state has changed during dispatching of <ACE_Event_Handlers>, else false. This is used to determine whether we need to make another trip through the <Select_Reactor>'s <wait_for_multiple_events> loop.

int ACE_Select_Reactor_Impl::supress_renew_ [private]


Determine whether we should renew Select_Reactor's token after handling the notification message.

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::suspend_set_ [protected]


Tracks handles that are currently suspended.

ACE_Timer_Queue* ACE_Select_Reactor_Impl::timer_queue_ [protected]


Defined as a pointer to allow overriding by derived classes...

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::wait_set_ [protected]


Tracks handles that are waited for by <select>.


The documentation for this class was generated from the following files:
