ACE_QtReactor Class Reference

An object-oriented event demultiplexor and event handler dispatcher that uses the Qt Library. This class declaration also uses the extension facilities provided by the Qt. So, readers of the class declaration should not be upset with the appearence of the Keywords like Q_OBJECT, private slots etc. They are specific to Qt which uses these as a call back methods implementation mechanism. More...

#include <QtReactor.h>

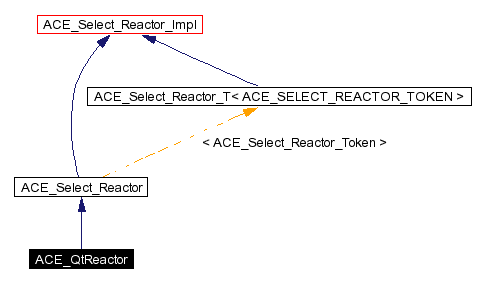

Inheritance diagram for ACE_QtReactor:

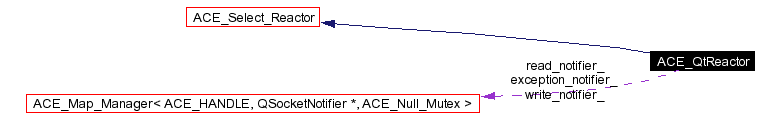

[legend]Collaboration diagram for ACE_QtReactor:

[legend]List of all members.

Public Methods
	ACE_QtReactor (QApplication *qapp=NULL, size_t size=DEFAULT_SIZE, int restart=0, ACE_Sig_Handler *handler=0)
virtual	~ACE_QtReactor (void)
void	qapplication (QApplication *qapp)
virtual long	schedule_timer (ACE_Event_Handler *handler, const void *arg, const ACE_Time_Value &delay_time, const ACE_Time_Value &interval)
virtual int	cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int	cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
Protected Types
typedef ACE_Map_Manager< ACE_HANDLE, QSocketNotifier *, ACE_Null_Mutex >	MAP
	Typedef of a map.
Protected Methods
virtual int	register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a single <handler>.
virtual int	register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a set of <handlers> with Qt.
virtual int	remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
	Remove the <handler> associated with this <handle>.
virtual int	remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask mask)
	Remove a set of <handles>.
virtual int	wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &handle_set, ACE_Time_Value *max_wait_time)
	Wait for events to occur.
virtual int	QtWaitForMultipleEvents (int width, ACE_Select_Reactor_Handle_Set &wait_set, ACE_Time_Value *max_wait_time)
virtual int	bit_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Select_Reactor_Handle_Set &handle_set, int ops)
	Allow manipulation of the <wait_set_> mask and <ready_set_> mask.
int	set_enable_flag_by_mask (int flag_value, ACE_HANDLE handle, ACE_Reactor_Mask mask)
void	create_notifiers_for_handle (ACE_HANDLE handle)
void	destroy_notifiers_for_handle (ACE_HANDLE handle)
Protected Attributes
QApplication *	qapp_
	Some Qt stuff that we need to have.
MAP	read_notifier_
	A notifier for a read.
MAP	write_notifier_
	A write notifier.
MAP	exception_notifier_
	An exception notifier.
QTimer *	qtime_
	The timer class that would provide timer-sgnals & single-shot timers.
Private Slots
void	read_event (int FD)
	Dispatch a Read Event.
void	write_event (int FD)
	Dispatch a Write Event.
void	exception_event (int FD)
	Dispatch an exception event.
void	timeout_event (void)
	Dispach a timeout event.
Private Methods
void	reset_timeout (void)
	ACE_QtReactor (const ACE_QtReactor &)
	Deny access since member-wise won't work...
ACE_QtReactor &	operator= (const ACE_QtReactor &)

---

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the Qt Library. This class declaration also uses the extension facilities provided by the Qt. So, readers of the class declaration should not be upset with the appearence of the Keywords like Q_OBJECT, private slots etc. They are specific to Qt which uses these as a call back methods implementation mechanism.

---

Member Typedef Documentation

typedef ACE_Map_Manager<ACE_HANDLE, QSocketNotifier *, ACE_Null_Mutex> ACE_QtReactor::MAP [protected]

Typedef of a map.

---

Constructor & Destructor Documentation

ACE_QtReactor::ACE_QtReactor (  QApplication *    qapp = NULL, size_t    size = DEFAULT_SIZE, int    restart = 0, ACE_Sig_Handler *    handler = 0 )

ACE_QtReactor::~ACE_QtReactor (  void    )  [virtual]

ACE_QtReactor::ACE_QtReactor (  const ACE_QtReactor &    )  [private]

Deny access since member-wise won't work...

---

Member Function Documentation

int ACE_QtReactor::bit_ops (  ACE_HANDLE    handle, ACE_Reactor_Mask    mask, ACE_Select_Reactor_Handle_Set &    handle_set, int    ops )  [protected, virtual]

Allow manipulation of the <wait_set_> mask and <ready_set_> mask. Reimplemented from ACE_Select_Reactor_Impl.

int ACE_QtReactor::cancel_timer (  long    timer_id, const void **    arg = 0, int    dont_call_handle_close = 1 )  [virtual]

Cancel the single <ACE_Event_Handler> that matches the <timer_id> value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <Event_Handler> was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::cancel_timer (  ACE_Event_Handler *    handler, int    dont_call_handle_close = 1 )  [virtual]

Cancel all <event_handlers> that match the address of <event_handler>. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns number of handler's cancelled. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_QtReactor::create_notifiers_for_handle (  ACE_HANDLE    handle )  [protected]

void ACE_QtReactor::destroy_notifiers_for_handle (  ACE_HANDLE    handle )  [protected]

void ACE_QtReactor::exception_event (  int    FD )  [private, slot]

Dispatch an exception event.

ACE_QtReactor& ACE_QtReactor::operator= (  const ACE_QtReactor &    )  [private]

void ACE_QtReactor::qapplication (  QApplication *    qapp )

int ACE_QtReactor::QtWaitForMultipleEvents (  int    width, ACE_Select_Reactor_Handle_Set &    wait_set, ACE_Time_Value *    max_wait_time )  [protected, virtual]

void ACE_QtReactor::read_event (  int    FD )  [private, slot]

Dispatch a Read Event.

int ACE_QtReactor::register_handler_i (  const ACE_Handle_Set &    handles, ACE_Event_Handler *    handler, ACE_Reactor_Mask    mask )  [protected, virtual]

Register a set of <handlers> with Qt. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::register_handler_i (  ACE_HANDLE    handle, ACE_Event_Handler *    handler, ACE_Reactor_Mask    mask )  [protected, virtual]

Register a single <handler>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::remove_handler_i (  const ACE_Handle_Set &    handles, ACE_Reactor_Mask    mask )  [protected, virtual]

Remove a set of <handles>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::remove_handler_i (  ACE_HANDLE    handle, ACE_Reactor_Mask    mask )  [protected, virtual]

Remove the <handler> associated with this <handle>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_QtReactor::reset_timeout (  void    )  [private]

This method ensures there's an Qt timeout for the first timeout in the Reactor's Timer_Queue.

long ACE_QtReactor::schedule_timer (  ACE_Event_Handler *    handler, const void *    arg, const ACE_Time_Value &    delay_time, const ACE_Time_Value &    interval )  [virtual]

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call. See also: cancel_timer() , reset_timer_interval() Parameters: event_handler  Event handler to schedule on reactor arg  Argument passed to the handle_timeout() method of event_handler delay  Time interval after which the timer will expire interval  Time interval after which the timer will be automatically rescheduled Returns: -1 on failure, a timer_id value on success Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_QtReactor::set_enable_flag_by_mask (  int    flag_value, ACE_HANDLE    handle, ACE_Reactor_Mask    mask )  [protected]

void ACE_QtReactor::timeout_event (  void    )  [private, slot]

Dispach a timeout event.

int ACE_QtReactor::wait_for_multiple_events (  ACE_Select_Reactor_Handle_Set &    handle_set, ACE_Time_Value *    max_wait_time )  [protected, virtual]

Wait for events to occur. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_QtReactor::write_event (  int    FD )  [private, slot]

Dispatch a Write Event.

---

Member Data Documentation

MAP ACE_QtReactor::exception_notifier_ [protected]

An exception notifier.

QApplication* ACE_QtReactor::qapp_ [protected]

Some Qt stuff that we need to have.

QTimer* ACE_QtReactor::qtime_ [protected]

The timer class that would provide timer-sgnals & single-shot timers.

MAP ACE_QtReactor::read_notifier_ [protected]

A notifier for a read.

MAP ACE_QtReactor::write_notifier_ [protected]

A write notifier.

---

The documentation for this class was generated from the following files:

• QtReactor.h
• QtReactor.cpp

---
