ACE_TkReactor Class Reference

An object-oriented event demultiplexor and event handler dispatcher that uses the Tk functions. More...

#include <TkReactor.h>

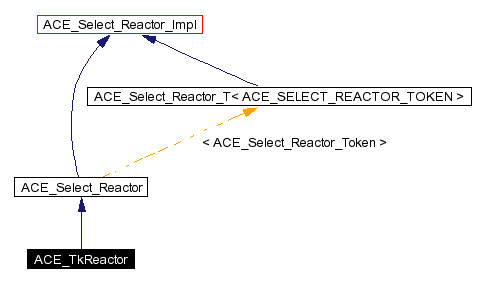

Inheritance diagram for ACE_TkReactor:

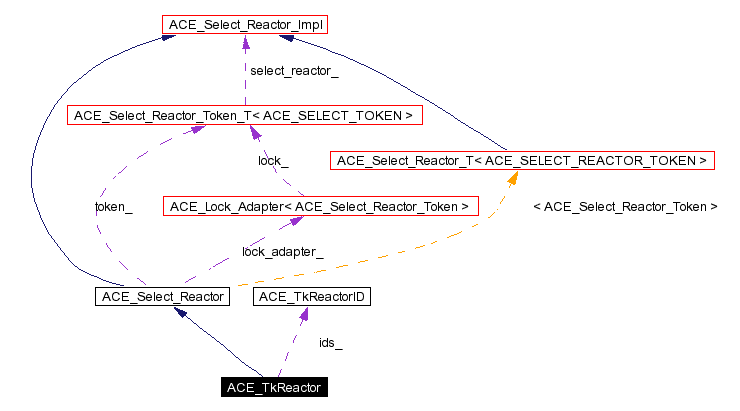

[legend]Collaboration diagram for ACE_TkReactor:

[legend]List of all members.

Public Methods
	ACE_TkReactor (size_t size=DEFAULT_SIZE, int restart=0, ACE_Sig_Handler *=0)
virtual	~ACE_TkReactor (void)
virtual long	schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval)
virtual int	reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int	cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
Protected Methods
virtual int	register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a single <handler>.
virtual int	register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a set of <handlers>.
virtual int	remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
	Remove the <handler> associated with this <handle>.
virtual int	remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask)
	Remove a set of <handles>.
virtual void	remove_TkFileHandler (ACE_HANDLE handle)
	Removes an Tk FileHandler.
virtual int	wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
	Wait for events to occur.
virtual int	TkWaitForMultipleEvents (int, ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
	Wait for Tk events to occur.
Protected Attributes
ACE_TkReactorID *	ids_
Tk_TimerToken	timeout_
Private Methods
void	reset_timeout (void)
	ACE_TkReactor (const ACE_TkReactor &)
	Deny access since member-wise won't work...
ACE_TkReactor &	operator= (const ACE_TkReactor &)
Static Private Methods
void	TimerCallbackProc (ClientData cd)
void	InputCallbackProc (ClientData cd, int mask)

---

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the Tk functions.

---

Constructor & Destructor Documentation

ACE_TkReactor::ACE_TkReactor (  size_t    size = DEFAULT_SIZE, int    restart = 0, ACE_Sig_Handler *    = 0 )

ACE_TkReactor::~ACE_TkReactor (  void    )  [virtual]

ACE_TkReactor::ACE_TkReactor (  const ACE_TkReactor &    )  [private]

Deny access since member-wise won't work...

---

Member Function Documentation

int ACE_TkReactor::cancel_timer (  long    timer_id, const void **    arg = 0, int    dont_call_handle_close = 1 )  [virtual]

Cancel the single <ACE_Event_Handler> that matches the <timer_id> value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <Event_Handler> was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TkReactor::cancel_timer (  ACE_Event_Handler *    handler, int    dont_call_handle_close = 1 )  [virtual]

Cancel all <event_handlers> that match the address of <event_handler>. If <dont_call_handle_close> is 0 then the <handle_close> method of <event_handler> will be invoked. Returns number of handler's cancelled. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_TkReactor::InputCallbackProc (  ClientData    cd, int    mask )  [static, private]

Todo: the unused mask argument is probably quite useful, but we ignore it, why? In fact the following comment probably relates to that: This could be made shorter if we know which *kind* of event we were about to get. Here we use <select> to find out which one might be available.

ACE_TkReactor& ACE_TkReactor::operator= (  const ACE_TkReactor &    )  [private]

int ACE_TkReactor::register_handler_i (  const ACE_Handle_Set &    handles, ACE_Event_Handler *    handler, ACE_Reactor_Mask    mask )  [protected, virtual]

Register a set of <handlers>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TkReactor::register_handler_i (  ACE_HANDLE    handle, ACE_Event_Handler *    handler, ACE_Reactor_Mask    mask )  [protected, virtual]

Register a single <handler>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TkReactor::remove_handler_i (  const ACE_Handle_Set &    handles, ACE_Reactor_Mask    )  [protected, virtual]

Remove a set of <handles>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

int ACE_TkReactor::remove_handler_i (  ACE_HANDLE    handle, ACE_Reactor_Mask    mask )  [protected, virtual]

Remove the <handler> associated with this <handle>. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_TkReactor::remove_TkFileHandler (  ACE_HANDLE    handle )  [protected, virtual]

Removes an Tk FileHandler.

void ACE_TkReactor::reset_timeout (  void    )  [private]

This method ensures there's a Tk timeout for the first timeout in the Reactor's Timer_Queue.

int ACE_TkReactor::reset_timer_interval (  long    timer_id, const ACE_Time_Value &    interval )  [virtual]

Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

long ACE_TkReactor::schedule_timer (  ACE_Event_Handler *    event_handler, const void *    arg, const ACE_Time_Value &    delay, const ACE_Time_Value &    interval )  [virtual]

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call. See also: cancel_timer() , reset_timer_interval() Parameters: event_handler  Event handler to schedule on reactor arg  Argument passed to the handle_timeout() method of event_handler delay  Time interval after which the timer will expire interval  Time interval after which the timer will be automatically rescheduled Returns: -1 on failure, a timer_id value on success Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_TkReactor::TimerCallbackProc (  ClientData    cd )  [static, private]

int ACE_TkReactor::TkWaitForMultipleEvents (  int   , ACE_Select_Reactor_Handle_Set &   , ACE_Time_Value *    )  [protected, virtual]

Wait for Tk events to occur.

int ACE_TkReactor::wait_for_multiple_events (  ACE_Select_Reactor_Handle_Set &   , ACE_Time_Value *    )  [protected, virtual]

Wait for events to occur. Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

---

Member Data Documentation

ACE_TkReactorID* ACE_TkReactor::ids_ [protected]

Tk_TimerToken ACE_TkReactor::timeout_ [protected]

---

The documentation for this class was generated from the following files:

• TkReactor.h
• TkReactor.cpp

---
