ACE_POSIX_Proactor Class Reference

POSIX implementation of the Proactor. More...

#include <POSIX_Proactor.h>

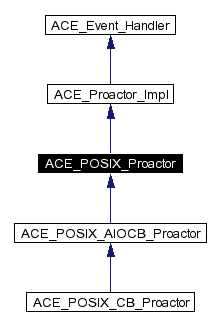

Inheritance diagram for ACE_POSIX_Proactor:

Inheritance graph
[legend]

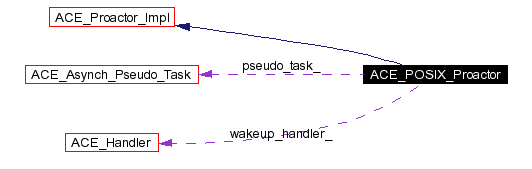

Collaboration diagram for ACE_POSIX_Proactor:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Proactor_Type {
  PROACTOR_POSIX = 0, PROACTOR_AIOCB = 1, PROACTOR_SIG = 2, PROACTOR_SUN = 3,
  PROACTOR_CB = 4
}
enum  SystemType {
  OS_UNDEFINED = 0x0000, OS_WIN = 0x0100, OS_WIN_NT = OS_WIN | 0x0001, OS_WIN_2000 = OS_WIN | 0x0002,
  OS_SUN = 0x0200, OS_SUN_55 = OS_SUN | 0x0001, OS_SUN_56 = OS_SUN | 0x0002, OS_SUN_57 = OS_SUN | 0x0004,
  OS_SUN_58 = OS_SUN | 0x0008, OS_HPUX = 0x0400, OS_HPUX_11 = OS_HPUX | 0x0001, OS_LINUX = 0x0800,
  OS_FREEBSD = 0x1000, OS_IRIX = 0x2000, OS_OPENBSD = 0x4000
}
enum  Opcode { READ = 1, WRITE = 2 }

Public Methods

virtual Proactor_Type get_impl_type (void)
virtual ~ACE_POSIX_Proactor (void)
 Virtual destructor.

virtual int close (void)
 Close down the Proactor.

virtual int handle_events (ACE_Time_Value &wait_time)=0
virtual int handle_events (void)=0
virtual int post_completion (ACE_POSIX_Asynch_Result *result)=0
virtual int start_aio (ACE_POSIX_Asynch_Result *result, Opcode op)=0
virtual int cancel_aio (ACE_HANDLE h)=0
ACE_Asynch_Pseudo_Taskget_asynch_pseudo_task ()
 Task to process pseudo-asynchronous operations.

virtual int register_handle (ACE_HANDLE handle, const void *completion_key)
 This function is a no-op function for Unix systems. Returns 0.

int wake_up_dispatch_threads (void)
 This is a no-op on POSIX platforms. Returns 0.

int close_dispatch_threads (int wait)
 This is a no-op on POSIX platforms. Returns 0.

size_t number_of_threads (void) const
 This is a no-op on POSIX platforms. Returns 0.

void number_of_threads (size_t threads)
 Set number of thread used as a parameter to CreatIoCompletionPort.

virtual ACE_HANDLE get_handle (void) const
 This is a no-op in POSIX. Returns ACE_INVALID_HANDLE.

virtual ACE_Asynch_Read_Stream_Implcreate_asynch_read_stream (void)
 Create the correct implementation class for doing Asynch_Read_Stream.

virtual ACE_Asynch_Read_Stream_Result_Implcreate_asynch_read_stream_result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

virtual ACE_Asynch_Write_Stream_Implcreate_asynch_write_stream (void)
 Create the correct implementation class for doing Asynch_Write_Stream.

virtual ACE_Asynch_Write_Stream_Result_Implcreate_asynch_write_stream_result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

virtual ACE_Asynch_Read_File_Implcreate_asynch_read_file (void)
 Create the correct implementation class for doing Asynch_Read_File.

virtual ACE_Asynch_Read_File_Result_Implcreate_asynch_read_file_result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Read_File::Result.

virtual ACE_Asynch_Write_File_Implcreate_asynch_write_file (void)
 Create the correct implementation class for doing Asynch_Write_File.

virtual ACE_Asynch_Write_File_Result_Implcreate_asynch_write_file_result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Write_File::Result.

virtual ACE_Asynch_Read_Dgram_Implcreate_asynch_read_dgram (void)
virtual ACE_Asynch_Read_Dgram_Result_Implcreate_asynch_read_dgram_result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_read, int flags, int protocol_family, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

virtual ACE_Asynch_Write_Dgram_Implcreate_asynch_write_dgram (void)
virtual ACE_Asynch_Write_Dgram_Result_Implcreate_asynch_write_dgram_result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_write, int flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

virtual ACE_Asynch_Accept_Implcreate_asynch_accept (void)
 Create the correct implementation class for doing Asynch_Accept.

virtual ACE_Asynch_Accept_Result_Implcreate_asynch_accept_result (ACE_Handler &handler, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Accept::Result.

virtual ACE_Asynch_Connect_Implcreate_asynch_connect (void)
 Create the correct implementation class for doing Asynch_Connect.

virtual ACE_Asynch_Connect_Result_Implcreate_asynch_connect_result (ACE_Handler &handler, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Connect::Result.

virtual ACE_Asynch_Transmit_File_Implcreate_asynch_transmit_file (void)
 Create the correct implementation class for doing Asynch_Transmit_File.

virtual ACE_Asynch_Transmit_File_Result_Implcreate_asynch_transmit_file_result (ACE_Handler &handler, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

virtual ACE_Asynch_Result_Implcreate_asynch_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

Protected Methods

 ACE_POSIX_Proactor (void)
 Constructor.

void application_specific_code (ACE_POSIX_Asynch_Result *asynch_result, size_t bytes_transferred, const void *completion_key, u_long error)
virtual int post_wakeup_completions (int how_many)

Protected Attributes

ACE_Handler wakeup_handler_
int os_id_

Private Attributes

ACE_Asynch_Pseudo_Task pseudo_task_
 Task to process pseudo-asynchronous accept/connect.


Detailed Description

POSIX implementation of the Proactor.

There are two different strategies by which Proactor can get to know the completion of <aio> operations. One is based on Asynchronous I/O Control Blocks (AIOCB) where a list of AIOCBs are stored and completion status of the corresponding operations are queried on them. The other one is based on POSIX Real Time signals. This class abstracts out the common code needed for both the strategies. <ACE_AIOCB_Proactor> and <ACE_SIG_Proactor> specialize this class for each strategy.


Member Enumeration Documentation

enum ACE_POSIX_Proactor::Opcode


Enumeration values:
READ
WRITE

enum ACE_POSIX_Proactor::Proactor_Type


Enumeration values:
PROACTOR_POSIX  Base class type.
PROACTOR_AIOCB  Aio_suspend() based.
PROACTOR_SIG  Signals notifications.
PROACTOR_SUN  SUN specific aiowait().
PROACTOR_CB  Callback notifications.

enum ACE_POSIX_Proactor::SystemType


Enumeration values:
OS_UNDEFINED
OS_WIN
OS_WIN_NT
OS_WIN_2000
OS_SUN
OS_SUN_55
OS_SUN_56
OS_SUN_57
OS_SUN_58
OS_HPUX
OS_HPUX_11
OS_LINUX
OS_FREEBSD
OS_IRIX
OS_OPENBSD


Constructor & Destructor Documentation

ACE_POSIX_Proactor::~ACE_POSIX_Proactor void    [virtual]


Virtual destructor.

ACE_POSIX_Proactor::ACE_POSIX_Proactor void    [protected]


Constructor.


Member Function Documentation

void ACE_POSIX_Proactor::application_specific_code ACE_POSIX_Asynch_Result   asynch_result,
size_t    bytes_transferred,
const void *    completion_key,
u_long    error
[protected]


Protect against structured exceptions caused by user code when dispatching handles. The <completion_key> is not very useful compared to <AST> that can be associated each asynchronous operation. <completion_key> is implemented right now for the POSIX Proators.

virtual int ACE_POSIX_Proactor::cancel_aio ACE_HANDLE    h [pure virtual]


Implemented in ACE_POSIX_AIOCB_Proactor.

int ACE_POSIX_Proactor::close void    [virtual]


Close down the Proactor.

Implements ACE_Proactor_Impl.

Reimplemented in ACE_POSIX_AIOCB_Proactor.

int ACE_POSIX_Proactor::close_dispatch_threads int    wait [virtual]


This is a no-op on POSIX platforms. Returns 0.

@

Implements ACE_Proactor_Impl.

ACE_Asynch_Accept_Impl * ACE_POSIX_Proactor::create_asynch_accept void    [virtual]


Create the correct implementation class for doing Asynch_Accept.

Implements ACE_Proactor_Impl.

ACE_Asynch_Accept_Result_Impl * ACE_POSIX_Proactor::create_asynch_accept_result ACE_Handler   handler,
ACE_HANDLE    listen_handle,
ACE_HANDLE    accept_handle,
ACE_Message_Block   message_block,
size_t    bytes_to_read,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Accept::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Connect_Impl * ACE_POSIX_Proactor::create_asynch_connect void    [virtual]


Create the correct implementation class for doing Asynch_Connect.

Implements ACE_Proactor_Impl.

ACE_Asynch_Connect_Result_Impl * ACE_POSIX_Proactor::create_asynch_connect_result ACE_Handler   handler,
ACE_HANDLE    connect_handle,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Connect::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Read_Dgram_Impl * ACE_POSIX_Proactor::create_asynch_read_dgram void    [virtual]


Create the correct implementation class for doing Asynch_Read_Dgram.

Implements ACE_Proactor_Impl.

ACE_Asynch_Read_Dgram_Result_Impl * ACE_POSIX_Proactor::create_asynch_read_dgram_result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_read,
int    flags,
int    protocol_family,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Read_File_Impl * ACE_POSIX_Proactor::create_asynch_read_file void    [virtual]


Create the correct implementation class for doing Asynch_Read_File.

Implements ACE_Proactor_Impl.

ACE_Asynch_Read_File_Result_Impl * ACE_POSIX_Proactor::create_asynch_read_file_result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_read,
const void *    act,
u_long    offset,
u_long    offset_high,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Read_File::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Read_Stream_Impl * ACE_POSIX_Proactor::create_asynch_read_stream void    [virtual]


Create the correct implementation class for doing Asynch_Read_Stream.

Implements ACE_Proactor_Impl.

ACE_Asynch_Read_Stream_Result_Impl * ACE_POSIX_Proactor::create_asynch_read_stream_result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_read,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

Implements ACE_Proactor_Impl.

ACE_Asynch_Result_Impl * ACE_POSIX_Proactor::create_asynch_timer ACE_Handler   handler,
const void *    act,
const ACE_Time_Value   tv,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create a timer result object which can be used with the Timer mechanism of the Proactor.

Implements ACE_Proactor_Impl.

ACE_Asynch_Transmit_File_Impl * ACE_POSIX_Proactor::create_asynch_transmit_file void    [virtual]


Create the correct implementation class for doing Asynch_Transmit_File.

Implements ACE_Proactor_Impl.

ACE_Asynch_Transmit_File_Result_Impl * ACE_POSIX_Proactor::create_asynch_transmit_file_result ACE_Handler   handler,
ACE_HANDLE    socket,
ACE_HANDLE    file,
ACE_Asynch_Transmit_File::Header_And_Trailer   header_and_trailer,
size_t    bytes_to_write,
u_long    offset,
u_long    offset_high,
size_t    bytes_per_send,
u_long    flags,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Write_Dgram_Impl * ACE_POSIX_Proactor::create_asynch_write_dgram void    [virtual]


Create the correct implementation class for doing Asynch_Write_Dgram.

Implements ACE_Proactor_Impl.

ACE_Asynch_Write_Dgram_Result_Impl * ACE_POSIX_Proactor::create_asynch_write_dgram_result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_write,
int    flags,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Write_File_Impl * ACE_POSIX_Proactor::create_asynch_write_file void    [virtual]


Create the correct implementation class for doing Asynch_Write_File.

Implements ACE_Proactor_Impl.

ACE_Asynch_Write_File_Result_Impl * ACE_POSIX_Proactor::create_asynch_write_file_result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_write,
const void *    act,
u_long    offset,
u_long    offset_high,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Write_File::Result.

Implements ACE_Proactor_Impl.

ACE_Asynch_Write_Stream_Impl * ACE_POSIX_Proactor::create_asynch_write_stream void    [virtual]


Create the correct implementation class for doing Asynch_Write_Stream.

Implements ACE_Proactor_Impl.

ACE_Asynch_Write_Stream_Result_Impl * ACE_POSIX_Proactor::create_asynch_write_stream_result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_write,
const void *    act,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[virtual]


Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

Implements ACE_Proactor_Impl.

ACE_INLINE ACE_Asynch_Pseudo_Task & ACE_POSIX_Proactor::get_asynch_pseudo_task


Task to process pseudo-asynchronous operations.

ACE_HANDLE ACE_POSIX_Proactor::get_handle void    const [virtual]


This is a no-op in POSIX. Returns ACE_INVALID_HANDLE.

Implements ACE_Proactor_Impl.

ACE_INLINE ACE_POSIX_Proactor::Proactor_Type ACE_POSIX_Proactor::get_impl_type void    [virtual]


Reimplemented in ACE_POSIX_CB_Proactor, and ACE_POSIX_AIOCB_Proactor.

virtual int ACE_POSIX_Proactor::handle_events void    [pure virtual]


Block indefinitely until at least one event is dispatched. Dispatch a single set of events. If <wait_time> elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly.

Implements ACE_Proactor_Impl.

Implemented in ACE_POSIX_CB_Proactor, and ACE_POSIX_AIOCB_Proactor.

virtual int ACE_POSIX_Proactor::handle_events ACE_Time_Value   wait_time [pure virtual]


Dispatch a single set of events. If <wait_time> elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly.

Implements ACE_Proactor_Impl.

Implemented in ACE_POSIX_CB_Proactor, and ACE_POSIX_AIOCB_Proactor.

void ACE_POSIX_Proactor::number_of_threads size_t    threads [virtual]


Set number of thread used as a parameter to CreatIoCompletionPort.

Implements ACE_Proactor_Impl.

size_t ACE_POSIX_Proactor::number_of_threads void    const [virtual]


This is a no-op on POSIX platforms. Returns 0.

@

Implements ACE_Proactor_Impl.

virtual int ACE_POSIX_Proactor::post_completion ACE_POSIX_Asynch_Result   result [pure virtual]


Post a result to the completion port of the Proactor. If errors occur, the result will be deleted by this method. If successful, the result will be deleted by the Proactor when the result is removed from the completion port. Therefore, the result should have been dynamically allocated and should be orphaned by the user once this method is called.

Implemented in ACE_POSIX_AIOCB_Proactor.

int ACE_POSIX_Proactor::post_wakeup_completions int    how_many [protected, virtual]


Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <run_event_loop>.

Implements ACE_Proactor_Impl.

int ACE_POSIX_Proactor::register_handle ACE_HANDLE    handle,
const void *    completion_key
[virtual]


This function is a no-op function for Unix systems. Returns 0.

Implements ACE_Proactor_Impl.

virtual int ACE_POSIX_Proactor::start_aio ACE_POSIX_Asynch_Result   result,
Opcode    op
[pure virtual]


int ACE_POSIX_Proactor::wake_up_dispatch_threads void    [virtual]


This is a no-op on POSIX platforms. Returns 0.

@

Implements ACE_Proactor_Impl.


Member Data Documentation

int ACE_POSIX_Proactor::os_id_ [protected]


ACE_Asynch_Pseudo_Task ACE_POSIX_Proactor::pseudo_task_ [private]


Task to process pseudo-asynchronous accept/connect.

ACE_Handler ACE_POSIX_Proactor::wakeup_handler_ [protected]


Handler to handle the wakeups. This works in conjunction with the <ACE_Proactor::run_event_loop>.


The documentation for this class was generated from the following files:
Generated on Fri Apr 2 16:52:08 2004 for ACE by doxygen1.2.18
