ACE_Asynch_Read_Stream_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Read_Stream. More...

#include <Asynch_IO_Impl.h>

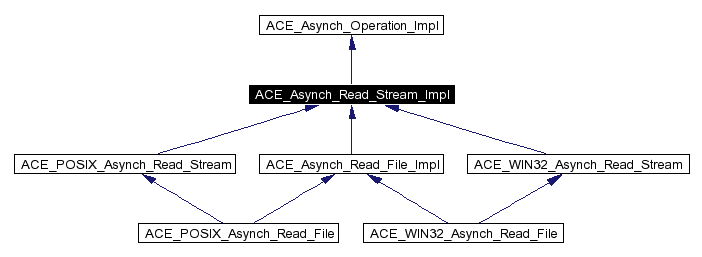

Inheritance diagram for ACE_Asynch_Read_Stream_Impl:

[legend]Collaboration diagram for ACE_Asynch_Read_Stream_Impl:

[legend]List of all members.

Public Methods
virtual	~ACE_Asynch_Read_Stream_Impl (void)
virtual int	read (ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, int priority, int signal_number)=0
virtual int	readv (ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, int priority, int signal_number)=0
Protected Methods
	ACE_Asynch_Read_Stream_Impl (void)
	Do-nothing constructor.

---

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Read_Stream.

---

Constructor & Destructor Documentation

ACE_Asynch_Read_Stream_Impl::~ACE_Asynch_Read_Stream_Impl (  void    )  [virtual]

ACE_INLINE ACE_Asynch_Read_Stream_Impl::ACE_Asynch_Read_Stream_Impl (  void    )  [protected]

Do-nothing constructor.

---

Member Function Documentation

virtual int ACE_Asynch_Read_Stream_Impl::read (  ACE_Message_Block &    message_block, size_t    bytes_to_read, const void *    act, int    priority, int    signal_number )  [pure virtual]

This starts off an asynchronous read. Upto <bytes_to_read> will be read and stored in the <message_block>. Implemented in ACE_Asynch_Read_File_Impl, ACE_POSIX_Asynch_Read_Stream, ACE_POSIX_Asynch_Read_File, ACE_WIN32_Asynch_Read_Stream, and ACE_WIN32_Asynch_Read_File.

virtual int ACE_Asynch_Read_Stream_Impl::readv (  ACE_Message_Block &    message_block, size_t    bytes_to_read, const void *    act, int    priority, int    signal_number )  [pure virtual]

Same as above but with scatter support, through chaining of composite message blocks using the continuation field. Implemented in ACE_Asynch_Read_File_Impl, ACE_WIN32_Asynch_Read_Stream, and ACE_WIN32_Asynch_Read_File.

---

The documentation for this class was generated from the following files:

• Asynch_IO_Impl.h
• Asynch_IO_Impl.cpp
• Asynch_IO_Impl.i

---
