ACE_Asynch_Write_Dgram_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Dgram class. More...

#include <Asynch_IO_Impl.h>

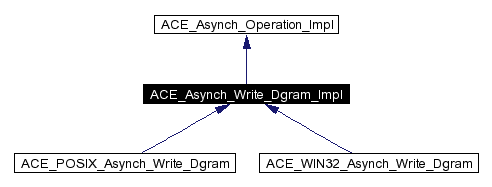

Inheritance diagram for ACE_Asynch_Write_Dgram_Impl:

Inheritance graph
[legend]
Collaboration diagram for ACE_Asynch_Write_Dgram_Impl:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual ~ACE_Asynch_Write_Dgram_Impl (void)
virtual ssize_t send (ACE_Message_Block *message_block, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, const void *act, int priority, int signal_number)=0

Protected Methods

 ACE_Asynch_Write_Dgram_Impl (void)
 Do-nothing constructor.


Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Dgram class.


Constructor & Destructor Documentation

ACE_Asynch_Write_Dgram_Impl::~ACE_Asynch_Write_Dgram_Impl void    [virtual]


ACE_Asynch_Write_Dgram_Impl::ACE_Asynch_Write_Dgram_Impl void    [protected]


Do-nothing constructor.


Member Function Documentation

virtual ssize_t ACE_Asynch_Write_Dgram_Impl::send ACE_Message_Block   message_block,
size_t &    number_of_bytes_sent,
int    flags,
const ACE_Addr   addr,
const void *    act,
int    priority,
int    signal_number
[pure virtual]


This starts off an asynchronous send. Upto <message_block->total_length()> will be sent. <message_block>'s <rd_ptr> will be updated to reflect the sent bytes if the send operation is successful completed. Return code of 1 means immediate success and <number_of_bytes_sent> is updated to number of bytes sent. The <ACE_Handler::handle_write_dgram> method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code.

Scatter/gather is supported on WIN32 by using the <message_block->cont()> method. Up to ACE_IOV_MAX <message_block>'s are supported. Upto <message_block->length()> bytes will be sent from each <message block> for a total of <message_block->total_length()> bytes. All <message_block>'s <rd_ptr>'s will be updated to reflect the bytes sent from each <message_block>.

Priority of the operation is specified by <priority>. On POSIX4-Unix, this is supported. Works like <nice> in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, this argument is a no-op. <signal_number> is the POSIX4 real-time signal number to be used for the operation. <signal_number> ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems.

Implemented in ACE_POSIX_Asynch_Write_Dgram, and ACE_WIN32_Asynch_Write_Dgram.


The documentation for this class was generated from the following files:
Generated on Fri Apr 2 16:46:55 2004 for ACE by doxygen1.2.18
