ACE_Asynch_Operation_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Operation. More...

#include <Asynch_IO_Impl.h>

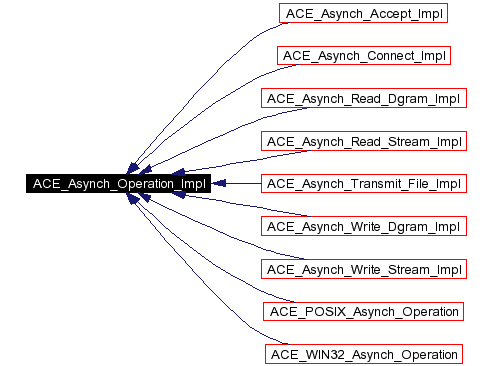

Inheritance diagram for ACE_Asynch_Operation_Impl:

[legend]List of all members.

Public Methods
virtual	~ACE_Asynch_Operation_Impl (void)
virtual int	open (ACE_Handler &handler, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)=0
virtual int	cancel (void)=0
virtual ACE_Proactor *	proactor (void) const=0
	Return the underlying proactor.
Protected Methods
	ACE_Asynch_Operation_Impl (void)
	Do-nothing constructor.

---

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Operation.

---

Constructor & Destructor Documentation

ACE_Asynch_Operation_Impl::~ACE_Asynch_Operation_Impl (  void    )  [virtual]

ACE_INLINE ACE_Asynch_Operation_Impl::ACE_Asynch_Operation_Impl (  void    )  [protected]

Do-nothing constructor.

---

Member Function Documentation

virtual int ACE_Asynch_Operation_Impl::cancel (  void    )  [pure virtual]

This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads. Implemented in ACE_POSIX_Asynch_Operation, ACE_POSIX_Asynch_Accept, ACE_POSIX_Asynch_Connect, ACE_WIN32_Asynch_Operation, ACE_WIN32_Asynch_Read_Stream, ACE_WIN32_Asynch_Write_Stream, ACE_WIN32_Asynch_Read_File, ACE_WIN32_Asynch_Write_File, ACE_WIN32_Asynch_Accept, ACE_WIN32_Asynch_Connect, ACE_WIN32_Asynch_Transmit_File, ACE_WIN32_Asynch_Read_Dgram, and ACE_WIN32_Asynch_Write_Dgram.

virtual int ACE_Asynch_Operation_Impl::open (  ACE_Handler &    handler, ACE_HANDLE    handle, const void *    completion_key, ACE_Proactor *    proactor )  [pure virtual]

Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle. Implemented in ACE_POSIX_Asynch_Operation, ACE_POSIX_Asynch_Accept, ACE_POSIX_Asynch_Connect, ACE_WIN32_Asynch_Operation, ACE_WIN32_Asynch_Read_Stream, ACE_WIN32_Asynch_Write_Stream, ACE_WIN32_Asynch_Read_File, ACE_WIN32_Asynch_Write_File, ACE_WIN32_Asynch_Accept, ACE_WIN32_Asynch_Connect, ACE_WIN32_Asynch_Transmit_File, ACE_WIN32_Asynch_Read_Dgram, and ACE_WIN32_Asynch_Write_Dgram.

virtual ACE_Proactor* ACE_Asynch_Operation_Impl::proactor (  void    )  const [pure virtual]

Return the underlying proactor. Implemented in ACE_POSIX_Asynch_Operation, ACE_WIN32_Asynch_Operation, ACE_WIN32_Asynch_Read_Stream, ACE_WIN32_Asynch_Write_Stream, ACE_WIN32_Asynch_Read_File, ACE_WIN32_Asynch_Write_File, ACE_WIN32_Asynch_Accept, ACE_WIN32_Asynch_Connect, ACE_WIN32_Asynch_Transmit_File, ACE_WIN32_Asynch_Read_Dgram, and ACE_WIN32_Asynch_Write_Dgram.

---

The documentation for this class was generated from the following files:

• Asynch_IO_Impl.h
• Asynch_IO_Impl.cpp
• Asynch_IO_Impl.i

---
