ACE_WIN32_Asynch_Read_Dgram Class Reference

This class is a factory for starting off asynchronous reads on a UDP socket. More...

#include <WIN32_Asynch_IO.h>

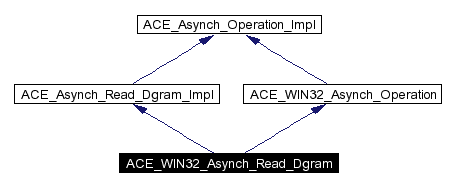

Inheritance diagram for ACE_WIN32_Asynch_Read_Dgram:

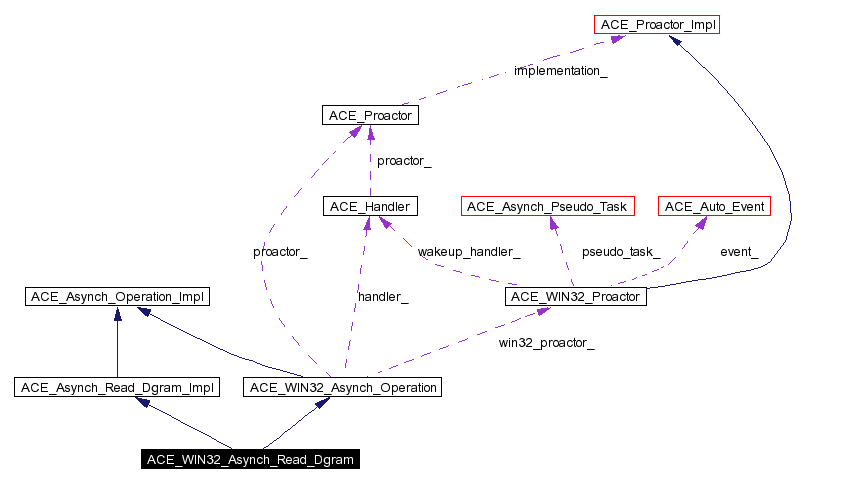

[legend]Collaboration diagram for ACE_WIN32_Asynch_Read_Dgram:

[legend]List of all members.

Public Methods
	ACE_WIN32_Asynch_Read_Dgram (ACE_WIN32_Proactor *win32_proactor)
	Constructor.
virtual	~ACE_WIN32_Asynch_Read_Dgram (void)
	Destructor.
virtual ssize_t	recv (ACE_Message_Block *message_block, size_t &number_of_bytes_recvd, int flags, int protocol_family, const void *act, int priority, int signal_number)
int	open (ACE_Handler &handler, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)
int	cancel (void)
ACE_Proactor *	proactor (void) const
	Return the underlying proactor.
Protected Methods
	ACE_WIN32_Asynch_Read_Dgram (void)
	Do-nothing constructor.

---

Detailed Description

This class is a factory for starting off asynchronous reads on a UDP socket.

Once <open> is called, multiple asynchronous <read>s can be started using this class. An ACE_Asynch_Read_Dgram::Result will be passed back to the <handler> when the asynchronous reads completes through the <ACE_Handler::handle_read_stream> callback.

---

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Read_Dgram::ACE_WIN32_Asynch_Read_Dgram (  ACE_WIN32_Proactor *    win32_proactor )

Constructor.

ACE_WIN32_Asynch_Read_Dgram::~ACE_WIN32_Asynch_Read_Dgram (  void    )  [virtual]

Destructor.

ACE_WIN32_Asynch_Read_Dgram::ACE_WIN32_Asynch_Read_Dgram (  void    )  [protected]

Do-nothing constructor.

---

Member Function Documentation

int ACE_WIN32_Asynch_Read_Dgram::cancel (  void    )  [virtual]

This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads. Reimplemented from ACE_WIN32_Asynch_Operation.

int ACE_WIN32_Asynch_Read_Dgram::open (  ACE_Handler &    handler, ACE_HANDLE    handle, const void *    completion_key, ACE_Proactor *    proactor )  [virtual]

Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle. Reimplemented from ACE_WIN32_Asynch_Operation.

ACE_Proactor * ACE_WIN32_Asynch_Read_Dgram::proactor (  void    )  const [virtual]

Return the underlying proactor. Reimplemented from ACE_WIN32_Asynch_Operation.

ssize_t ACE_WIN32_Asynch_Read_Dgram::recv (  ACE_Message_Block *    message_block, size_t &    number_of_bytes_recvd, int    flags, int    protocol_family, const void *    act, int    priority, int    signal_number )  [virtual]

This starts off an asynchronous read. Upto <message_block->total_size()> will be read and stored in the <message_block>. <message_block>'s <wr_ptr> will be updated to reflect the added bytes if the read operation is successfully completed. Return code of 1 means immediate success and <number_of_bytes_recvd> will contain number of bytes read. The <ACE_Handler::handle_read_dgram> method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code. Scatter/gather is supported on WIN32 by using the <message_block->cont()> method. Up to ACE_IOV_MAX <message_block>'s are supported. Upto <message_block->size()> bytes will be read into each <message block> for a total of <message_block->total_size()> bytes. All <message_block>'s <wr_ptr>'s will be updated to reflect the added bytes for each <message_block> Implements ACE_Asynch_Read_Dgram_Impl.

---

The documentation for this class was generated from the following files:

• WIN32_Asynch_IO.h
• WIN32_Asynch_IO.cpp

---
