ACE_Reactor Class Reference

The responsibility of this class is to forward all methods to its delegation/implementation class, e.g., ACE_Select_Reactor or ACE_WFMO_Reactor. More...

#include <Reactor.h>

Inheritance diagram for ACE_Reactor:

[legend]

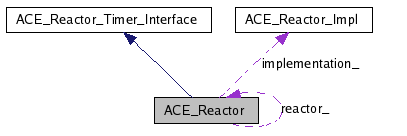

Collaboration diagram for ACE_Reactor:

[legend]

List of all members.

Public Types
enum	{ GET_MASK = 1, SET_MASK = 2, ADD_MASK = 3, CLR_MASK = 4 }
	Operations on the "ready" mask and the "dispatch" mask. More...
typedef int(*	REACTOR_EVENT_HOOK )(ACE_Reactor *)
Public Member Functions
int	run_reactor_event_loop (REACTOR_EVENT_HOOK=0)
int	run_alertable_reactor_event_loop (REACTOR_EVENT_HOOK=0)
int	run_reactor_event_loop (ACE_Time_Value &tv, REACTOR_EVENT_HOOK=0)
int	run_alertable_reactor_event_loop (ACE_Time_Value &tv, REACTOR_EVENT_HOOK=0)
int	end_reactor_event_loop (void)
int	reactor_event_loop_done (void)
	Indicate if the Reactor's event loop has been ended.
void	reset_reactor_event_loop (void)
	ACE_Reactor (ACE_Reactor_Impl *implementation=0, bool delete_implementation=false)
virtual	~ACE_Reactor (void)
	Close down and release all resources.
int	open (size_t max_number_of_handles, int restart=0, ACE_Sig_Handler *signal_handler=0, ACE_Timer_Queue *timer_queue=0)
int	set_sig_handler (ACE_Sig_Handler *signal_handler)
	Use a user specified signal handler instead.
int	timer_queue (ACE_Timer_Queue *tq)
	Set a user-specified timer queue.
ACE_Timer_Queue *	timer_queue (void) const
	Return the current ACE_Timer_Queue.
int	close (void)
	Close down and release all resources.
int	work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)
int	handle_events (ACE_Time_Value *max_wait_time=0)
int	alertable_handle_events (ACE_Time_Value *max_wait_time=0)
int	handle_events (ACE_Time_Value &max_wait_time)
int	alertable_handle_events (ACE_Time_Value &max_wait_time)
int	register_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
int	register_handler (ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
int	register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)
int	register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
int	register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks)
int	register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)
int	register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *event_handler, ACE_Sig_Action *sig_action=0)
int	remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask masks)
int	remove_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks)
int	remove_handler (const ACE_Handle_Set &handles, ACE_Reactor_Mask masks)
int	remove_handler (int signum, ACE_Sig_Action *new_disp, ACE_Sig_Action *old_disp=0, int sigkey=-1)
int	remove_handler (const ACE_Sig_Set &sigset)
int	suspend_handler (ACE_HANDLE handle)
int	suspend_handler (ACE_Event_Handler *event_handler)
int	suspend_handler (const ACE_Handle_Set &handles)
int	suspend_handlers (void)
int	resume_handler (ACE_HANDLE handle)
int	resume_handler (ACE_Event_Handler *event_handler)
int	resume_handler (const ACE_Handle_Set &handles)
int	resume_handlers (void)
int	resumable_handler (void)
virtual long	schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int	reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
virtual int	cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)
int	schedule_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_added)
int	schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_added)
int	cancel_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_cleared)
int	cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_cleared)
int	notify (ACE_Event_Handler *event_handler=0, ACE_Reactor_Mask masks=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)
void	max_notify_iterations (int iterations)
int	max_notify_iterations (void)
int	purge_pending_notifications (ACE_Event_Handler *eh, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
ACE_Event_Handler *	find_handler (ACE_HANDLE handle)
int	handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)
int	handler (int signum, ACE_Event_Handler **event_handler=0)
int	initialized (void)
size_t	size (void) const
ACE_Lock &	lock (void)
	Returns a reference to the Reactor's internal lock.
void	wakeup_all_threads (void)
	Wake up all threads in waiting in the event loop.
int	owner (ACE_thread_t new_owner, ACE_thread_t *old_owner=0)
	Transfers ownership of Reactor to the new_owner.
int	owner (ACE_thread_t *owner)
	Return the ID of the "owner" thread.
void	requeue_position (int position)
	Set position of the owner thread.
int	requeue_position (void)
	Get position of the owner thread.
int	restart (void)
	Get the existing restart value.
int	restart (int r)
	Set a new value for restart and return the original value.
int	mask_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)
int	mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)
int	ready_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)
int	ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)
	GET/SET/ADD/CLR the ready "bit" bound with the <handle> and mask.
ACE_Reactor_Impl *	implementation (void) const
	Get the implementation class.
int	current_info (ACE_HANDLE handle, size_t &msg_size)
int	uses_event_associations (void)
void	dump (void) const
	Dump the state of the object.
Static Public Member Functions
static ACE_Reactor *	instance (void)
	Get pointer to a process-wide ACE_Reactor.
static ACE_Reactor *	instance (ACE_Reactor *, bool delete_reactor=false)
static void	close_singleton (void)
	Delete the dynamically allocated Singleton.
static const ACE_TCHAR *	dll_name (void)
	Name of the dll in which the dll lives.
static const ACE_TCHAR *	name (void)
	Name of the component--ACE_Reactor in this case.
static int	run_event_loop (void)
static int	run_alertable_event_loop (void)
static int	run_event_loop (ACE_Time_Value &tv)
static int	run_alertable_event_loop (ACE_Time_Value &tv)
static int	end_event_loop (void)
static int	event_loop_done (void)
static void	reset_event_loop (void)
static int	check_reconfiguration (ACE_Reactor *)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
void	implementation (ACE_Reactor_Impl *implementation)
	Set the implementation class.
	ACE_Reactor (const ACE_Reactor &)
	Deny access since member-wise won't work...
ACE_Reactor &	operator= (const ACE_Reactor &)
Protected Attributes
ACE_Reactor_Impl *	implementation_
bool	delete_implementation_
Static Protected Attributes
static ACE_Reactor *	reactor_ = 0
	Pointer to a process-wide ACE_Reactor singleton.
static bool	delete_reactor_ = false
	Must delete the reactor_ singleton if true.

---

Detailed Description

The responsibility of this class is to forward all methods to its delegation/implementation class, e.g., ACE_Select_Reactor or ACE_WFMO_Reactor.

---

Member Typedef Documentation

typedef int(* ACE_Reactor::REACTOR_EVENT_HOOK)(ACE_Reactor *)

You can specify a hook function to event-handling methods that will be called after each iteration of event handling. If the hook function returns a non-zero value, the event loop will immediately resume waiting for the next event(s) to process without checking the error status of the just-completed iteration of event handling or the end-of-loop indication. If the hook function returns 0, the event handling error status and the end-of-loop indication will be checked as normal, just as if there is no hook function specified.

---

Member Enumeration Documentation

anonymous enum

Operations on the "ready" mask and the "dispatch" mask.

Enumerator:

GET_MASK	Retrieve current value of the the "ready" mask or the "dispatch" mask.
SET_MASK	Set value of bits to new mask (changes the entire mask).
ADD_MASK	Bitwise "or" the value into the mask (only changes enabled bits).
CLR_MASK	Bitwise "and" the negation of the value out of the mask (only changes enabled bits).

---

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Reactor::ACE_Reactor	(	ACE_Reactor_Impl *	implementation = 0,
		bool	delete_implementation = false
	)

Create the Reactor using implementation. The flag delete_implementation tells the Reactor whether or not to delete the implementation on destruction.

ACE_Reactor::~ACE_Reactor

(

void

)

[virtual]

Close down and release all resources.

Any notifications that remain queued on this reactor instance are lost.

ACE_Reactor::ACE_Reactor

(

const ACE_Reactor &

)

[protected]

Deny access since member-wise won't work...

---

Member Function Documentation

ACE_Reactor * ACE_Reactor::instance

(

void

)

[static]

Get pointer to a process-wide ACE_Reactor.

ACE_Reactor * ACE_Reactor::instance	(	ACE_Reactor *	r,
		bool	delete_reactor = false
	)			[static]

Set pointer to a process-wide ACE_Reactor and return existing pointer. If delete_reactor == true then we'll delete the Reactor at destruction time.

void ACE_Reactor::close_singleton

(

void

)

[static]

Delete the dynamically allocated Singleton.

const ACE_TCHAR * ACE_Reactor::dll_name

(

void

)

[static]

Name of the dll in which the dll lives.

const ACE_TCHAR * ACE_Reactor::name

(

void

)

[static]

Name of the component--ACE_Reactor in this case.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_Reactor::run_event_loop

(

void

)

[static]

Run the event loop until the <ACE_Reactor::handle_events/ACE_Reactoralertable_handle_events> method returns -1 or the <end_event_loop> method is invoked. Note that this method can only be used by the singleton <ACE_Reactor::instance>. Thus, to run another reactor use <ACE_Reactor::run_reactor_event_loop>.

Deprecated:

Use ACE_Reactor::instance()->run_reactor_event_loop() instead

ACE_INLINE int ACE_Reactor::run_alertable_event_loop

(

void

)

[static]

ACE_INLINE int ACE_Reactor::run_event_loop

(

ACE_Time_Value &

tv

)

[static]

Run the event loop until the <ACE_Reactor::handle_events> or <ACE_Reactor::alertable_handle_events> methods returns -1, the <end_event_loop> method is invoked, or the ACE_Time_Value expires. Note that this method can only be used by the singleton <ACE_Reactor::instance>. Thus, to run another reactor use <ACE_Reactor::run_reactor_event_loop>.

Deprecated:

Use ACE_Reactor::instance()->run_reactor_event_loop() instead

ACE_INLINE int ACE_Reactor::run_alertable_event_loop

(

ACE_Time_Value &

tv

)

[static]

ACE_INLINE int ACE_Reactor::end_event_loop

(

void

)

[static]

Instruct the <ACE_Reactor::instance> to terminate its event loop and notifies the <ACE_Reactor::instance> so that it can wake up and close down gracefully. Note that this method can only be used by the singleton <ACE_Reactor::instance>. Thus, to terminate another reactor, use <ACE_Reactor::end_reactor_event_loop>.

Deprecated:

Use ACE_Reactor::instance()->end_reactor_event_loop() instead

ACE_INLINE int ACE_Reactor::event_loop_done

(

void

)

[static]

Report if the <ACE_Reactor::instance>'s event loop is finished. Note that this method can only be used by the singleton <ACE_Reactor::instance>. Thus, to check another reactor use <ACE_Reactor::reactor_event_loop_done>.

Deprecated:

Use ACE_Reactor::instance()->reactor_event_loop_done() instead

ACE_INLINE void ACE_Reactor::reset_event_loop

(

void

)

[static]

Resets the <ACE_Reactor::end_event_loop_> static so that the <run_event_loop> method can be restarted. Note that this method can only be used by the singleton <ACE_Reactor::instance>. Thus, to reset another reactor use <ACE_Reactor::reset_reactor_event_loop>.

Deprecated:

Use ACE_Reactor::instance()->reset_reactor_event_loop() instead

int ACE_Reactor::check_reconfiguration

(

ACE_Reactor *

)

[static]

The singleton reactor is used by the ACE_Service_Config. Therefore, we must check for the reconfiguration request and handle it after handling an event.

int ACE_Reactor::run_reactor_event_loop

(

REACTOR_EVENT_HOOK

eh = 0

)

Run the event loop until the <ACE_Reactor::handle_events/ACE_Reactoralertable_handle_events> method returns -1 or the <end_reactor_event_loop> method is invoked.

int ACE_Reactor::run_alertable_reactor_event_loop

(

REACTOR_EVENT_HOOK

eh = 0

)

int ACE_Reactor::run_reactor_event_loop	(	ACE_Time_Value &	tv,
		REACTOR_EVENT_HOOK	eh = 0
	)

Run the event loop until the <ACE_Reactor::handle_events> or <ACE_Reactor::alertable_handle_events> methods returns -1, the <end_reactor_event_loop> method is invoked, or the ACE_Time_Value expires.

int ACE_Reactor::run_alertable_reactor_event_loop	(	ACE_Time_Value &	tv,
		REACTOR_EVENT_HOOK	eh = 0
	)

ACE_INLINE int ACE_Reactor::end_reactor_event_loop

(

void

)

Instruct the Reactor to terminate its event loop and notifies the Reactor so that it can wake up and deactivate itself. Deactivating the Reactor would allow the Reactor to be shutdown gracefully. Internally the Reactor calls deactivate () on the underlying implementation. Any queued notifications remain queued on return from this method. If the event loop is restarted in the future, the notifications will be dispatched then. If the reactor is closed or deleted without further dispatching, the notifications will be lost.

ACE_INLINE int ACE_Reactor::reactor_event_loop_done

(

void

)

Indicate if the Reactor's event loop has been ended.

ACE_INLINE void ACE_Reactor::reset_reactor_event_loop

(

void

)

Resets the <ACE_Reactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

ACE_INLINE int ACE_Reactor::open	(	size_t	max_number_of_handles,
		int	restart = 0,
		ACE_Sig_Handler *	signal_handler = 0,
		ACE_Timer_Queue *	timer_queue = 0
	)

Initialize the ACE_Reactor to manage <max_number_of_handles>. If <restart> is non-0 then the ACE_Reactor's <handle_events> method will be restarted automatically when <EINTR> occurs. If <signal_handler> or <timer_queue> are non-0 they are used as the signal handler and timer queue, respectively.

ACE_INLINE int ACE_Reactor::set_sig_handler

(

ACE_Sig_Handler *

signal_handler

)

Use a user specified signal handler instead.

ACE_INLINE int ACE_Reactor::timer_queue

(

ACE_Timer_Queue *

tq

)

Set a user-specified timer queue.

ACE_INLINE ACE_Timer_Queue * ACE_Reactor::timer_queue

(

void

)

const

Return the current ACE_Timer_Queue.

ACE_INLINE int ACE_Reactor::close

(

void

)

Close down and release all resources.

ACE_INLINE int ACE_Reactor::work_pending

(

const ACE_Time_Value &

max_wait_time = ACE_Time_Value::zero

)

Returns non-zero if there are I/O events "ready" for dispatching, but does not actually dispatch the event handlers. By default, don't block while checking this, i.e., "poll".

ACE_INLINE int ACE_Reactor::handle_events

(

ACE_Time_Value *

max_wait_time = 0

)

This event loop driver blocks for up to max_wait_time before returning. It will return earlier if events occur. Note that max_wait_time can be 0, in which case this method blocks indefinitely until events occur.

max_wait_time is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events and an event occurs after 2 seconds, max_wait_time will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.

Returns the total number of timers and I/O ACE_Event_Handlers that were dispatched, 0 if the max_wait_time elapsed without dispatching any handlers, or -1 if an error occurs.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, the eventloop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.

ACE_INLINE int ACE_Reactor::alertable_handle_events

(

ACE_Time_Value *

max_wait_time = 0

)

ACE_INLINE int ACE_Reactor::handle_events

(

ACE_Time_Value &

max_wait_time

)

This method is just like the one above, except the max_wait_time value is a reference and can therefore never be NULL.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, the eventloop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.

ACE_INLINE int ACE_Reactor::alertable_handle_events

(

ACE_Time_Value &

max_wait_time

)

int ACE_Reactor::register_handler	(	ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask
	)

Register handler for I/O events.

A handler can be associated with multiple handles. A handle cannot be associated with multiple handlers.

The handle will come from ACE_Event_Handler::get_handle().

Reactor will call ACE_Event_Handler::add_reference() for a new handler/handle pair.

If this handler/handle pair has already been registered, any new masks specified will be added. In this case, ACE_Event_Handler::add_reference() will not be called.

If the registered handler is currently suspended, it will remain suspended. When the handler is resumed, it will have the existing masks plus any masks added through this call. Handlers do not have partial suspensions.

int ACE_Reactor::register_handler	(	ACE_HANDLE	io_handle,
		ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask
	)

Register handler for I/O events.

Same as register_handler(ACE_Event_Handler*,ACE_Reactor_Mask), except handle is explicitly specified.

int ACE_Reactor::register_handler	(	ACE_Event_Handler *	event_handler,
		ACE_HANDLE	event_handle = ACE_INVALID_HANDLE
	)

Register handler for OS events.

Register an event_handler that will be notified when <event_handle> is signaled. This will call back its <handle_signal> hook method.

Reactor will call ACE_Event_Handler::add_reference() for a new handler/handle pair.

This interface is only available Win32 platforms because ACE_HANDLE is an int on non-Win32 platforms and compilers are not able to tell the difference between register_handler(ACE_Event_Handler*,ACE_Reactor_Mask) and register_handler(ACE_Event_Handler*,ACE_HANDLE).

int ACE_Reactor::register_handler	(	ACE_HANDLE	event_handle,
		ACE_HANDLE	io_handle,
		ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask
	)

Register handler for I/O events.

Similar to register_handler(ACE_HANDLE,ACE_Event_Handler*,ACE_Reactor_Mask), except that the user gets to specify the event handle that will be used for this registration. This only applies to Reactors that use event handles for I/O registrations.

int ACE_Reactor::register_handler	(	const ACE_Handle_Set &	handles,
		ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	masks
	)

Register handler for multiple I/O events.

Shorthand for calling register_handler(ACE_HANDLE,ACE_Event_Handler*,ACE_Reactor_Mask), multiple times for the same event_handler and masks but different <handles>.

ACE_INLINE int ACE_Reactor::register_handler	(	int	signum,
		ACE_Event_Handler *	new_sh,
		ACE_Sig_Action *	new_disp = 0,
		ACE_Event_Handler **	old_sh = 0,
		ACE_Sig_Action *	old_disp = 0
	)

Register handler for signals.

Register new_sh to handle the signal signum using the new_disp. Returns the old_sh that was previously registered (if any), along with the old_disp of the signal handler.

Reactor will call ACE_Event_Handler::add_reference() on new_sh and ACE_Event_Handler::remove_reference() on old_sh.

ACE_INLINE int ACE_Reactor::register_handler	(	const ACE_Sig_Set &	sigset,
		ACE_Event_Handler *	event_handler,
		ACE_Sig_Action *	sig_action = 0
	)

Register handler for multiple signals.

Shorthand for calling register_handler(int,ACE_Event_Handler*,ACE_Sig_Action*,ACE_Event_Handler**,ACE_Sig_Action*) multiple times for the same event_handler and sig_action but different <signals>.

ACE_INLINE int ACE_Reactor::remove_handler	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	masks
	)

Remove masks from handle registration.

For I/O handles, masks are removed from the Reactor. Unless masks includes ACE_Event_Handler::DONT_CALL, ACE_Event_Handler::handle_close() will be called with the masks that have been removed. If all masks have been removed, ACE_Event_Handler::remove_reference() will be called.

For OS handles, the handle is removed from the Reactor. Unless masks includes ACE_Event_Handler::DONT_CALL, ACE_Event_Handler::handle_close() will be called with ACE_Event_Handler::NULL_MASK. ACE_Event_Handler::remove_reference() will also be called.

ACE_INLINE int ACE_Reactor::remove_handler	(	ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	masks
	)

Remove masks from event_handler registration.

Same as remove_handler(ACE_HANDLE,ACE_Reactor_Mask), except handle comes from ACE_Event_Handler::get_handle().

ACE_INLINE int ACE_Reactor::remove_handler	(	const ACE_Handle_Set &	handles,
		ACE_Reactor_Mask	masks
	)

Remove masks from multiple <handle> registrations.

Shorthand for calling remove_handler(ACE_HANDLE,ACE_Reactor_Mask) multiple times for the same masks but different handles.

ACE_INLINE int ACE_Reactor::remove_handler	(	int	signum,
		ACE_Sig_Action *	new_disp,
		ACE_Sig_Action *	old_disp = 0,
		int	sigkey = -1
	)

Remove signal handler registration.

Remove the ACE_Event_Handler currently associated with signum. Install the new disposition (if given) and return the previous disposition (if desired by the caller).

ACE_Event_Handler::handle_close() will be called with ACE_Event_Handler::SIGNAL_MASK. ACE_Event_Handler::remove_reference() will also be called.

ACE_INLINE int ACE_Reactor::remove_handler

(

const ACE_Sig_Set &

sigset

)

Remove multiple signal handler registrations.

Shorthand for calling remove_handler(int,ACE_Sig_Action*,ACE_Sig_Action*,int) multiple times for every signal in sigset.

ACE_INLINE int ACE_Reactor::suspend_handler

(

ACE_HANDLE

handle

)

Suspend handle temporarily.

ACE_INLINE int ACE_Reactor::suspend_handler

(

ACE_Event_Handler *

event_handler

)

Suspend event_handler temporarily.

Handle is obtained from ACE_Event_Handler::get_handle().

ACE_INLINE int ACE_Reactor::suspend_handler

(

const ACE_Handle_Set &

handles

)

Suspend handles temporarily.

Shorthand for calling suspend_handler(ACE_HANDLE) with multiple handles.

ACE_INLINE int ACE_Reactor::suspend_handlers

(

void

)

Suspend all registered handles temporarily.

ACE_INLINE int ACE_Reactor::resume_handler

(

ACE_HANDLE

handle

)

Resume handle.

ACE_INLINE int ACE_Reactor::resume_handler

(

ACE_Event_Handler *

event_handler

)

Resume event_handler.

Handle is obtained from ACE_Event_Handler::get_handle().

ACE_INLINE int ACE_Reactor::resume_handler

(

const ACE_Handle_Set &

handles

)

Resume handles.

Shorthand for calling resume_handler(ACE_HANDLE) with multiple <handles>.

ACE_INLINE int ACE_Reactor::resume_handlers

(

void

)

Resume all registered handles.

ACE_INLINE int ACE_Reactor::resumable_handler

(

void

)

Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application. A positive value indicates that the handlers are application resumable. A value of 0 indicates otherwise.

long ACE_Reactor::schedule_timer	(	ACE_Event_Handler *	event_handler,
		const void *	arg,
		const ACE_Time_Value &	delay,
		const ACE_Time_Value &	interval = ACE_Time_Value::zero
	)			[virtual]

Schedule a timer event.

Schedule a timer event that will expire after an <delay> amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

Reactor will call ACE_Event_Handler::add_reference() on the handler. After the timeout occurs and ACE_Event_Handler::handle_timeout() has completed, the handler will be implicitly removed from the Reactor and ACE_Event_Handler::remove_reference() will be called.

See also:

cancel_timer()

reset_timer_interval()

Parameters:

	event_handler	Event handler to schedule on reactor
	arg	Argument passed to the handle_timeout() method of event_handler
	delay	Time interval after which the timer will expire
	interval	Time interval after which the timer will be automatically rescheduled

Returns:

-1 on failure, a timer_id value on success

Implements ACE_Reactor_Timer_Interface.

int ACE_Reactor::reset_timer_interval	(	long	timer_id,
		const ACE_Time_Value &	interval
	)			[virtual]

Reset recurring timer interval.

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

This change will not take effect until the next timeout.

Implements ACE_Reactor_Timer_Interface.

int ACE_Reactor::cancel_timer	(	long	timer_id,
		const void **	arg = 0,
		int	dont_call_handle_close = 1
	)			[virtual]

Cancel timer.

Cancel timer associated with timer_id that was returned from the schedule_timer() method. If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the handler was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

On successful cancellation, ACE_Event_Handler::handle_close() will be called with ACE_Event_Handler::TIMER_MASK. ACE_Event_Handler::remove_reference() will also be called.

Implements ACE_Reactor_Timer_Interface.

int ACE_Reactor::cancel_timer	(	ACE_Event_Handler *	event_handler,
		int	dont_call_handle_close = 1
	)			[virtual]

Cancel all timers associated with event handler.

Shorthand for calling cancel_timer(long,const void **,int) multiple times for all timer associated with event_handler.

ACE_Event_Handler::handle_close() will be called with ACE_Event_Handler::TIMER_MASK only once irrespective of the number of timers associated with the event handler. ACE_Event_Handler::remove_reference() will also be called once for every timer associated with the event handler.

Returns number of handlers cancelled.

Implements ACE_Reactor_Timer_Interface.

int ACE_Reactor::schedule_wakeup	(	ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	masks_to_be_added
	)

Add masks_to_be_added to the event_handler's entry. event_handler must already have been registered. Note that this call does not cause the Reactor to re-examine its set of handlers - the new masks will be noticed the next time the Reactor waits for activity. If there is no other activity expected, or you need immediate re-examination of the wait masks, either call ACE_Reactor::notify after this call, or use ACE_Reactor::register_handler instead.

ACE_INLINE int ACE_Reactor::schedule_wakeup	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	masks_to_be_added
	)

Add masks_to_be_added to the handle's entry. <event_handler> associated with handle must already have been registered. Note that this call does not cause the Reactor to re-examine its set of handlers - the new masks will be noticed the next time the Reactor waits for activity. If there is no other activity expected, or you need immediate re-examination of the wait masks, either call ACE_Reactor::notify after this call, or use ACE_Reactor::register_handler instead.

ACE_INLINE int ACE_Reactor::cancel_wakeup	(	ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	masks_to_be_cleared
	)

Clear masks_to_be_cleared from the event_handler's entry. Note that this call does not cause the Reactor to re-examine its set of handlers - the new masks will be noticed the next time the Reactor waits for activity. If there is no other activity expected, or you need immediate re-examination of the wait masks, either call ACE_Reactor::notify after this call, or use ACE_Reactor::register_handler instead.

ACE_INLINE int ACE_Reactor::cancel_wakeup	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	masks_to_be_cleared
	)

Clear masks_to_be_cleared from the <handle>'s entry. Note that this call does not cause the Reactor to re-examine its set of handlers - the new masks will be noticed the next time the Reactor waits for activity. If there is no other activity expected, or you need immediate re-examination of the wait masks, either call ACE_Reactor::notify after this call, or use ACE_Reactor::register_handler instead.

int ACE_Reactor::notify	(	ACE_Event_Handler *	event_handler = 0,
		ACE_Reactor_Mask	masks = ACE_Event_Handler::EXCEPT_MASK,
		ACE_Time_Value *	timeout = 0
	)

Dispatch user specified events.

Handler will be dispatched irrespective of whether it is registered, not registered, or suspended in the Reactor.

If user specified event is successfully queued, ACE_Event_Handler::add_reference() will be called. After the notify occurs and the upcall to the handler completes, the handler will be implicitly removed from the Reactor and ACE_Event_Handler::remove_reference() will be called. No other upcall reference counting is done.

For I/O or OS events, the upcall is invoked with an ACE_INVALID_HANDLE.

For timer events, the upcall is invoked with a null ACT.

Parameters:

	event_handler,:	IN - Handler on which the event will be dispatched.
	masks,:	IN - Events to be dispatched - multiple events can be OR'd together.
	timeout,:	INOUT - Relative time up to which to wait for user specified event to be queued. If tv is 0, wait indefinitely. When the call returns, tv has the time remaining after the call completes.

ACE_INLINE void ACE_Reactor::max_notify_iterations

(

int

iterations

)

Set the maximum number of times that ACE_Reactor will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

ACE_INLINE int ACE_Reactor::max_notify_iterations

(

void

)

Get the maximum number of times that the ACE_Reactor will iterate and dispatch the ACE_Event_Handler's that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop.

ACE_INLINE int ACE_Reactor::purge_pending_notifications	(	ACE_Event_Handler *	eh,
		ACE_Reactor_Mask	mask = ACE_Event_Handler::ALL_EVENTS_MASK
	)

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. If eh == 0, all notifications for all handlers are removed (but not any notifications posted just to wake up the reactor itself). Returns the number of notifications purged. Returns -1 on error.

After the purging occurs, the handler will be implicitly removed from the Reactor and ACE_Event_Handler::remove_reference() will be called.

ACE_INLINE ACE_Event_Handler * ACE_Reactor::find_handler

(

ACE_HANDLE

handle

)

Return the Event_Handler associated with handle. Return 0 if handle is not registered.

Reactor will call ACE_Event_Handler::add_reference() on the handler before returning it.

ACE_INLINE int ACE_Reactor::handler	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask,
		ACE_Event_Handler **	event_handler = 0
	)

Check to see if handle is associated with a valid Event_Handler bound to mask. Return the event_handler associated with this handler if event_handler != 0.

Reactor will call ACE_Event_Handler::add_reference() on the handler before returning it if event_handler != 0.

ACE_INLINE int ACE_Reactor::handler	(	int	signum,
		ACE_Event_Handler **	event_handler = 0
	)

Check to see if signum is associated with a valid Event_Handler bound to a signal. Return the event_handler associated with this handler if event_handler != 0.

ACE_INLINE int ACE_Reactor::initialized

(

void

)

Returns true if Reactor has been successfully initialized, else false.

ACE_INLINE size_t ACE_Reactor::size

(

void

)

const

Returns the current size of the Reactor's internal descriptor table.

ACE_INLINE ACE_Lock & ACE_Reactor::lock

(

void

)

Returns a reference to the Reactor's internal lock.

ACE_INLINE void ACE_Reactor::wakeup_all_threads

(

void

)

Wake up all threads in waiting in the event loop.

ACE_INLINE int ACE_Reactor::owner	(	ACE_thread_t	new_owner,
		ACE_thread_t *	old_owner = 0
	)

Transfers ownership of Reactor to the new_owner.

ACE_INLINE int ACE_Reactor::owner

(

ACE_thread_t *

owner

)

Return the ID of the "owner" thread.

ACE_INLINE void ACE_Reactor::requeue_position

(

int

position

)

Set position of the owner thread.

ACE_INLINE int ACE_Reactor::requeue_position

(

void

)

Get position of the owner thread.

ACE_INLINE int ACE_Reactor::restart

(

void

)

Get the existing restart value.

ACE_INLINE int ACE_Reactor::restart

(

int

r

)

Set a new value for restart and return the original value.

ACE_INLINE int ACE_Reactor::mask_ops	(	ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask,
		int	ops
	)

GET/SET/ADD/CLR the dispatch mask "bit" bound with the event_handler and mask.

ACE_INLINE int ACE_Reactor::mask_ops	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask,
		int	ops
	)

GET/SET/ADD/CLR the dispatch MASK "bit" bound with the handle and mask.

ACE_INLINE int ACE_Reactor::ready_ops	(	ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask,
		int	ops
	)

GET/SET/ADD/CLR the ready "bit" bound with the event_handler and mask.

ACE_INLINE int ACE_Reactor::ready_ops	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask,
		int	ops
	)

GET/SET/ADD/CLR the ready "bit" bound with the <handle> and mask.

ACE_INLINE ACE_Reactor_Impl * ACE_Reactor::implementation

(

void

)

const

Get the implementation class.

ACE_INLINE int ACE_Reactor::current_info	(	ACE_HANDLE	handle,
		size_t &	msg_size
	)

Returns 0, if the size of the current message has been put in size returns -1, if not. ACE_HANDLE allows the reactor to check if the caller is valid. Used for CLASSIX Reactor implementation.

ACE_INLINE int ACE_Reactor::uses_event_associations

(

void

)

Return 1 if we any event associations were made by the reactor for the handles that it waits on, 0 otherwise.

ACE_INLINE void ACE_Reactor::dump

(

void

)

const

Dump the state of the object.

ACE_INLINE void ACE_Reactor::implementation

(

ACE_Reactor_Impl *

implementation

)

[protected]

Set the implementation class.

ACE_Reactor& ACE_Reactor::operator=

(

const ACE_Reactor &

)

[protected]

---

Member Data Documentation

ACE_Reactor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Reactor_Impl* ACE_Reactor::implementation_ [protected]

Delegation/implementation class that all methods will be forwarded to.

bool ACE_Reactor::delete_implementation_ [protected]

Flag used to indicate whether we are responsible for cleaning up the implementation instance

ACE_Reactor * ACE_Reactor::reactor_ = 0 [static, protected]

Pointer to a process-wide ACE_Reactor singleton.

bool ACE_Reactor::delete_reactor_ = false [static, protected]

Must delete the reactor_ singleton if true.

---

The documentation for this class was generated from the following files:

• Reactor.h
• Reactor.cpp
• Reactor.inl
