ACE_Event_Handler Class Reference

Provides an abstract interface for handling various types of I/O, timer, and signal events. More...

#include <Event_Handler.h>

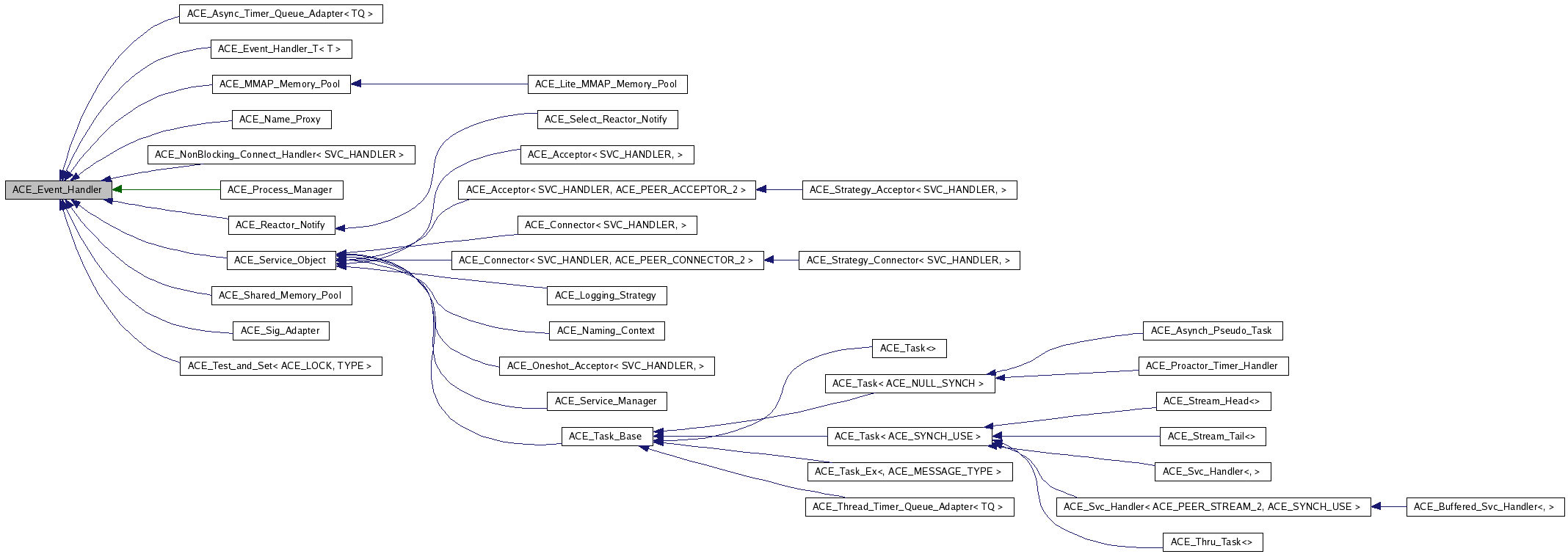

Inheritance diagram for ACE_Event_Handler:

Inheritance graph
[legend]

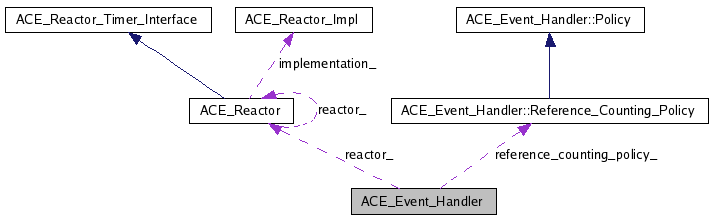

Collaboration diagram for ACE_Event_Handler:

Collaboration graph
[legend]

List of all members.

Public Types

enum  {
  LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0),
  WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4),
  TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8),
  ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9)
}
enum  { ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }
typedef long Reference_Count
 Reference count type.

Public Member Functions

virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle.
virtual void set_handle (ACE_HANDLE)
 Set the I/O handle.
virtual int priority (void) const
 Get the priority of the Event_Handler.
virtual void priority (int priority)
 Set the priority of the Event_Handler.
virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data).
virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG).
virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int handle_exit (ACE_Process *)
 Called when a process exits.
virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int resume_handler (void)
virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors.
virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors.
virtual
ACE_Reactor_Timer_Interface
reactor_timer_interface (void) const
 Get only the reactor's timer related interface.
virtual Reference_Count add_reference (void)
 Increment reference count on the handler.
virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler.
Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy.

Static Public Member Functions

static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)
static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the <register_stdin_handler> method.

Protected Types

typedef ACE_Atomic_Op
< ACE_SYNCH_MUTEX,
Reference_Count
Atomic_Reference_Count
 Typedef for implementation of reference counting.

Protected Member Functions

 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class.

Protected Attributes

Atomic_Reference_Count reference_count_
 Reference count.

Private Attributes

int priority_
 Priority of this Event_Handler.
ACE_Reactorreactor_
 Pointer to the various event demultiplexors.
Reference_Counting_Policy reference_counting_policy_
 Reference counting requirements.

Classes

class  Policy
 Base class for all handler policies. More...
class  Reference_Counting_Policy
 This policy dictates the reference counting requirements for the handler. More...


Detailed Description

Provides an abstract interface for handling various types of I/O, timer, and signal events.

Subclasses read/write input/output on an I/O descriptor, handle an exception raised on an I/O descriptor, handle a timer's expiration, or handle a signal.


Member Typedef Documentation

Reference count type.

Typedef for implementation of reference counting.


Member Enumeration Documentation

anonymous enum

Enumerator:
LO_PRIORITY
HI_PRIORITY
NULL_MASK
READ_MASK
WRITE_MASK
EXCEPT_MASK
ACCEPT_MASK
CONNECT_MASK
TIMER_MASK
QOS_MASK
GROUP_QOS_MASK
SIGNAL_MASK
ALL_EVENTS_MASK
RWE_MASK
DONT_CALL

anonymous enum

Enumerator:
ACE_EVENT_HANDLER_NOT_RESUMED  The handler is not resumed at all. Could lead to deadlock..
ACE_REACTOR_RESUMES_HANDLER  The reactor takes responsibility of resuming the handler and is the default
ACE_APPLICATION_RESUMES_HANDLER  The application takes responsibility of resuming the handler.


Constructor & Destructor Documentation

ACE_Event_Handler::~ACE_Event_Handler ( void   )  [virtual]

Destructor is virtual to enable proper cleanup.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Event_Handler::ACE_Event_Handler ( ACE_Reactor r = 0,
int  priority = ACE_Event_Handler::LO_PRIORITY
) [protected]

Force ACE_Event_Handler to be an abstract base class.


Member Function Documentation

ACE_HANDLE ACE_Event_Handler::get_handle ( void   )  const [virtual]

void ACE_Event_Handler::set_handle ( ACE_HANDLE   )  [virtual]

int ACE_Event_Handler::priority ( void   )  const [virtual]

Get the priority of the Event_Handler.

void ACE_Event_Handler::priority ( int  priority  )  [virtual]

Set the priority of the Event_Handler.

int ACE_Event_Handler::handle_input ( ACE_HANDLE  fd = ACE_INVALID_HANDLE  )  [virtual]

int ACE_Event_Handler::handle_output ( ACE_HANDLE  fd = ACE_INVALID_HANDLE  )  [virtual]

Called when output events are possible (e.g., when flow control abates or non-blocking connection completes).

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >, and ACE_Event_Handler_T< T >.

int ACE_Event_Handler::handle_exception ( ACE_HANDLE  fd = ACE_INVALID_HANDLE  )  [virtual]

Called when an exceptional events occur (e.g., SIGURG).

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >, and ACE_Event_Handler_T< T >.

int ACE_Event_Handler::handle_timeout ( const ACE_Time_Value current_time,
const void *  act = 0
) [virtual]

Called when timer expires. current_time represents the current time that the <Event_Handler> was selected for timeout dispatching and act is the asynchronous completion token that was passed in when <schedule_timer> was invoked.

Reimplemented in ACE_Oneshot_Acceptor< SVC_HANDLER, >, ACE_NonBlocking_Connect_Handler< SVC_HANDLER >, ACE_Event_Handler_T< T >, ACE_Logging_Strategy, ACE_Svc_Handler<, >, ACE_Buffered_Svc_Handler<, >, and ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

int ACE_Event_Handler::handle_exit ( ACE_Process  )  [virtual]

Called when a process exits.

int ACE_Event_Handler::handle_close ( ACE_HANDLE  handle,
ACE_Reactor_Mask  close_mask
) [virtual]

Called when a <handle_*()> method returns -1 or when the <remove_handler> method is called on an ACE_Reactor. The close_mask indicates which event has triggered the <handle_close> method callback on a particular handle.

Reimplemented in ACE_Acceptor< SVC_HANDLER, >, ACE_Strategy_Acceptor< SVC_HANDLER, >, ACE_Oneshot_Acceptor< SVC_HANDLER, >, ACE_Event_Handler_T< T >, ACE_Service_Manager, ACE_Svc_Handler<, >, ACE_Acceptor< SVC_HANDLER, ACE_PEER_ACCEPTOR_2 >, and ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

int ACE_Event_Handler::handle_signal ( int  signum,
siginfo_t = 0,
ucontext_t = 0
) [virtual]

Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled).

Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >, ACE_Event_Handler_T< T >, ACE_Process_Manager, ACE_Service_Manager, ACE_Shared_Memory_Pool, ACE_Sig_Adapter, ACE_Test_and_Set< ACE_LOCK, TYPE >, and ACE_Async_Timer_Queue_Adapter< TQ >.

int ACE_Event_Handler::resume_handler ( void   )  [virtual]

Called to figure out whether the handler needs to resumed by the reactor or the application can take care of it. The default value of 0 would be returned which would allow the reactor to take care of resumption of the handler. The application can return a value more than zero and decide to resume the handler themseleves.

Note:
This method is only useful for the ACE_TP_Reactor. Sad that we have to have this method in a class that is supposed to be used across different components in ACE.

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >.

int ACE_Event_Handler::handle_qos ( ACE_HANDLE  = ACE_INVALID_HANDLE  )  [virtual]

int ACE_Event_Handler::handle_group_qos ( ACE_HANDLE  = ACE_INVALID_HANDLE  )  [virtual]

void ACE_Event_Handler::reactor ( ACE_Reactor reactor  )  [virtual]

Set the event demultiplexors.

Reimplemented in ACE_Connector< SVC_HANDLER, >, and ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

ACE_Reactor * ACE_Event_Handler::reactor ( void   )  const [virtual]

Get the event demultiplexors.

Reimplemented in ACE_Connector< SVC_HANDLER, >, and ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

ACE_Reactor_Timer_Interface * ACE_Event_Handler::reactor_timer_interface ( void   )  const [virtual]

Get only the reactor's timer related interface.

ACE_THR_FUNC_RETURN ACE_Event_Handler::read_adapter ( void *  event_handler  )  [static]

Used to read from non-socket ACE_HANDLEs in our own thread to work around Win32 limitations that don't allow us to <select> on non-sockets (such as ACE_STDIN). This is commonly used in situations where the Reactor is used to demultiplex read events on ACE_STDIN on UNIX. Note that event_handler must be a subclass of ACE_Event_Handler. If the <get_handle> method of this event handler returns <ACE_INVALID_HANDLE> we default to reading from ACE_STDIN.

int ACE_Event_Handler::register_stdin_handler ( ACE_Event_Handler eh,
ACE_Reactor reactor,
ACE_Thread_Manager thr_mgr,
int  flags = THR_DETACHED
) [static]

Abstracts away from the differences between Win32 and ACE with respect to reading from ACE_STDIN, which is non-<select>'able on Win32.

int ACE_Event_Handler::remove_stdin_handler ( ACE_Reactor reactor,
ACE_Thread_Manager thr_mgr
) [static]

Performs the inverse of the <register_stdin_handler> method.

ACE_Event_Handler::Reference_Count ACE_Event_Handler::add_reference ( void   )  [virtual]

Increment reference count on the handler.

This method is called when the handler is registered with the Reactor and when the Reactor makes an upcall on the handler. Reference count is 1 when the handler is created.

Returns:
Current reference count.

ACE_Event_Handler::Reference_Count ACE_Event_Handler::remove_reference ( void   )  [virtual]

Decrement reference count on the handler.

This method is called when the handler is removed from the Reactor and when an upcall made on the handler by the Reactor completes. Handler is deleted when the reference count reaches 0.

Returns:
Current reference count.

ACE_Event_Handler::Reference_Counting_Policy & ACE_Event_Handler::reference_counting_policy ( void   )


Member Data Documentation

Reference count.

Priority of this Event_Handler.

Reference counting requirements.


The documentation for this class was generated from the following files:
