TAO_DIOP_Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <DIOP_Connection_Handler.h>

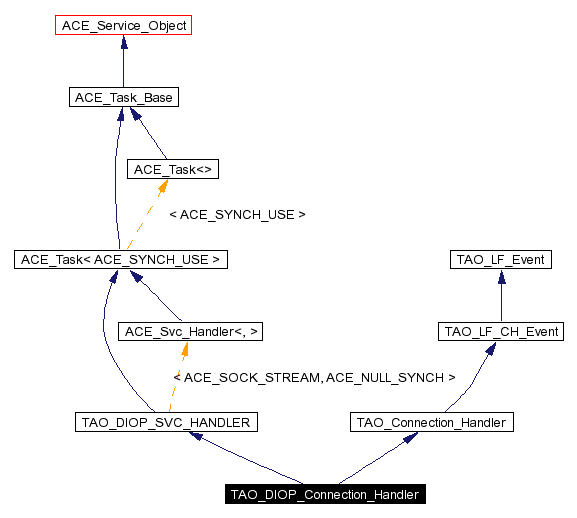

Inheritance diagram for TAO_DIOP_Connection_Handler:

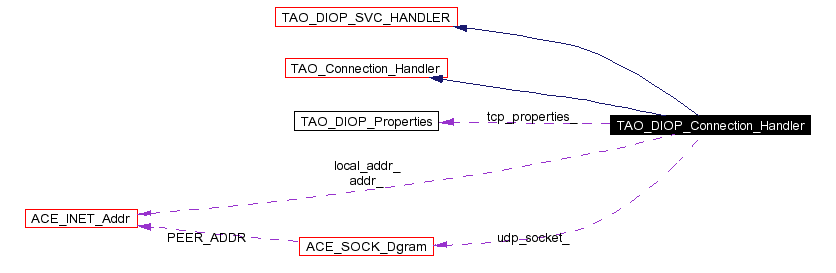

[legend]Collaboration diagram for TAO_DIOP_Connection_Handler:

[legend]List of all members.

Public Methods
	TAO_DIOP_Connection_Handler (ACE_Thread_Manager *t=0)
	TAO_DIOP_Connection_Handler (TAO_ORB_Core *orb_core, CORBA::Boolean flag, void *arg)
	~TAO_DIOP_Connection_Handler (void)
	Destructor.
virtual int	open (void *)
virtual int	open_server (void)
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to Cache.
virtual int	open_handler (void *)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
The DIOP Additions
ACE_HANDLE	get_handle (void) const
const ACE_INET_Addr &	addr (void)
void	addr (const ACE_INET_Addr &addr)
const ACE_INET_Addr &	local_addr (void)
void	local_addr (const ACE_INET_Addr &addr)
const ACE_INET_Addr &	server_addr (void)
void	server_addr (const ACE_INET_Addr &addr)
const ACE_SOCK_Dgram &	dgram (void)
Protected Methods
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
Protected Attributes
The DIOP Additions
ACE_SOCK_Dgram	udp_socket_
ACE_INET_Addr	addr_
	This is always the remote address.
ACE_INET_Addr	local_addr_
	This is always the local address for the connector.
Private Attributes
TAO_DIOP_Properties *	tcp_properties_
	TCP configuration for this connection.

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

---

Constructor & Destructor Documentation

TAO_DIOP_Connection_Handler::TAO_DIOP_Connection_Handler (  ACE_Thread_Manager *    t = 0 )

TAO_DIOP_Connection_Handler::TAO_DIOP_Connection_Handler (  TAO_ORB_Core *    orb_core, CORBA::Boolean    flag, void *    arg )

Constructor. <arg> parameter is used by the Acceptor to pass the protocol configuration properties for this connection.

TAO_DIOP_Connection_Handler::~TAO_DIOP_Connection_Handler (  void    )

Destructor.

---

Member Function Documentation

int TAO_DIOP_Connection_Handler::add_transport_to_cache (  void    )

Add ourselves to Cache.

void TAO_DIOP_Connection_Handler::addr (  const ACE_INET_Addr &    addr )

const ACE_INET_Addr & TAO_DIOP_Connection_Handler::addr (  void    )

int TAO_DIOP_Connection_Handler::close (  u_long    = 0 )  [virtual]

Close called by the Acceptor or Connector when connection establishment fails. Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_DIOP_Connection_Handler::close_connection (  void    )  [virtual]

Implements TAO_Connection_Handler.

const ACE_SOCK_Dgram & TAO_DIOP_Connection_Handler::dgram (  void    )

ACE_HANDLE TAO_DIOP_Connection_Handler::get_handle (  void    )  const [virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_DIOP_Connection_Handler::handle_close (  ACE_HANDLE   , ACE_Reactor_Mask    )  [virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_DIOP_Connection_Handler::handle_input (  ACE_HANDLE    )  [virtual]

Implements TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::handle_output (  ACE_HANDLE    )  [virtual]

Reimplemented from ACE_Event_Handler.

int TAO_DIOP_Connection_Handler::handle_timeout (  const ACE_Time_Value &    current_time, const void *    act = 0 )  [virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

void TAO_DIOP_Connection_Handler::local_addr (  const ACE_INET_Addr &    addr )

const ACE_INET_Addr & TAO_DIOP_Connection_Handler::local_addr (  void    )

int TAO_DIOP_Connection_Handler::open (  void *    )  [virtual]

Called by the <Strategy_Acceptor> when the handler is completely connected. Argument is unused. Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_DIOP_Connection_Handler::open_handler (  void *    )  [virtual]

Connection_Handler overloads Implements TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::open_server (  void    )  [virtual]

int TAO_DIOP_Connection_Handler::release_os_resources (  void    )  [protected, virtual]

Reimplemented from TAO_Connection_Handler.

int TAO_DIOP_Connection_Handler::resume_handler (  void    )  [virtual]

Reimplemented from ACE_Event_Handler.

void TAO_DIOP_Connection_Handler::server_addr (  const ACE_INET_Addr &    addr )

const ACE_INET_Addr& TAO_DIOP_Connection_Handler::server_addr (  void    )

---

Member Data Documentation

ACE_INET_Addr TAO_DIOP_Connection_Handler::addr_ [protected]

This is always the remote address.

ACE_INET_Addr TAO_DIOP_Connection_Handler::local_addr_ [protected]

This is always the local address for the connector.

TAO_DIOP_Properties* TAO_DIOP_Connection_Handler::tcp_properties_ [private]

TCP configuration for this connection.

ACE_SOCK_Dgram TAO_DIOP_Connection_Handler::udp_socket_ [protected]

---

The documentation for this class was generated from the following files:

• DIOP_Connection_Handler.h
• DIOP_Connection_Handler.cpp

---
