ACE_SOCK_Dgram Class Reference

Defines the member functions for the ACE_SOCK datagram abstraction. More...

#include <SOCK_Dgram.h>

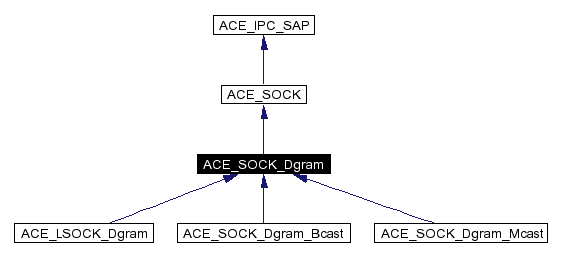

Inheritance diagram for ACE_SOCK_Dgram:

[legend]Collaboration diagram for ACE_SOCK_Dgram:

[legend]List of all members.


Public Types
typedef ACE_INET_Addr	PEER_ADDR
Public Methods
	ACE_SOCK_Dgram (void)
	Default constructor.
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
	~ACE_SOCK_Dgram (void)
	Default dtor.
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
	Send an <n> byte <buf> to the datagram socket (uses <sendto(3)>).
ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value timeout=0) const
ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an <n> byte <buf> to the datagram socket (uses <WSASendTo>).
ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
void	dump (void) const
	Dump the state of an object.
void	set_nic (const char *option_value)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Methods
int	shared_open (const ACE_Addr &local, int protocol_family)
	Open is shared by this and by <LSOCK_Dgram>.
Private Methods
int	get_remote_addr (ACE_Addr &) const
	Do not allow this function to percolate up to this interface...

Detailed Description

Defines the member functions for the ACE_SOCK datagram abstraction.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_SOCK_Dgram::PEER_ADDR

Constructor & Destructor Documentation

ASYS_INLINE ACE_SOCK_Dgram::ACE_SOCK_Dgram ( void )

Default constructor.

ACE_SOCK_Dgram::ACE_SOCK_Dgram ( const ACE_Addr & local,

int protocol_family = ACE_PROTOCOL_FAMILY_INET,

int protocol = 0,

int reuse_addr = 0

)

This is a BSD-style method (i.e., no QoS) for initiating a socket dgram that will accept datagrams at the <local> address.

ACE_SOCK_Dgram::ACE_SOCK_Dgram ( const ACE_Addr & local,

int protocol_family,

int protocol,

ACE_Protocol_Info * protocolinfo,

ACE_SOCK_GROUP g = 0,

u_long flags = 0,

int reuse_addr = 0

)

This is a QoS-enabed method for initiating a socket dgram that will accept datagrams at the <local> address. The <qos_params> are passed to <ACE_OS::join_leaf>.

ASYS_INLINE ACE_SOCK_Dgram::~ACE_SOCK_Dgram ( void )

Default dtor.

Member Function Documentation

void ACE_SOCK_Dgram::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_SOCK.
Reimplemented in ACE_LSOCK_Dgram, ACE_SOCK_Dgram_Bcast, and ACE_SOCK_Dgram_Mcast.

int ACE_SOCK_Dgram::get_remote_addr ( ACE_Addr & ) const [private]

Do not allow this function to percolate up to this interface...

Reimplemented from ACE_SOCK.
Reimplemented in ACE_SOCK_Dgram_Bcast.

int ACE_SOCK_Dgram::open ( const ACE_Addr & local,

int protocol_family,

int protocol,

ACE_Protocol_Info * protocolinfo,

ACE_SOCK_GROUP g = 0,

u_long flags = 0,

int reuse_addr = 0

)

This is a QoS-enabed method for initiating a socket dgram that will accept datagrams at the <local> address. The <qos_params> are passed to <ACE_OS::join_leaf>.

int ACE_SOCK_Dgram::open ( const ACE_Addr & local,

int protocol_family = ACE_PROTOCOL_FAMILY_INET,

int protocol = 0,

int reuse_addr = 0

)

This is a BSD-style method (i.e., no QoS) for initiating a socket dgram that will accept datagrams at the <local> address.

ASYS_INLINE ssize_t ACE_SOCK_Dgram::recv ( void * buf,

size_t n,

ACE_Addr & addr,

int flags,

ACE_OVERLAPPED * overlapped,

ACE_OVERLAPPED_COMPLETION_FUNC func

) const

Receive an <n> byte <buf> from the datagram socket (uses <WSARecvFrom>).

ASYS_INLINE ssize_t ACE_SOCK_Dgram::recv ( iovec buffers[],

int buffer_count,

size_t & number_of_bytes_recvd,

int & flags,

ACE_Addr & addr,

ACE_OVERLAPPED * overlapped,

ACE_OVERLAPPED_COMPLETION_FUNC func

) const

Recv <buffer_count> worth of <buffers> from <addr> using overlapped I/O (uses <WSARecvFrom>). Returns 0 on success.

ssize_t ACE_SOCK_Dgram::recv ( void * buf,

size_t n,

ACE_Addr & addr,

int flags,

const ACE_Time_Value * timeout

) const

Wait up to <timeout> amount of time to receive a datagram into <buf>. The <ACE_Time_Value> indicates how long to blocking trying to receive. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in *<timeout> elapses). If <recv> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes received is returned.

ssize_t ACE_SOCK_Dgram::recv ( iovec iov[],

int n,

ACE_Addr & addr,

int flags = 0

) const

Recv an <iovec> of size <n> to the datagram socket (uses <recvmsg(3)>).

ssize_t ACE_SOCK_Dgram::recv ( iovec * io_vec,

ACE_Addr & addr,

int flags = 0,

const ACE_Time_Value * timeout = 0

) const

Allows a client to read from a socket without having to provide a buffer to read. This method determines how much data is in the socket, allocates a buffer of this size, reads in the data, and returns the number of bytes read. The caller is responsible for deleting the member in the <iov_base> field of <io_vec> using the ``delete []'' syntax.

ASYS_INLINE ssize_t ACE_SOCK_Dgram::recv ( void * buf,

size_t n,

ACE_Addr & addr,

int flags = 0

) const

Receive an <n> byte <buf> from the datagram socket (uses <recvfrom(3)>).

ASYS_INLINE ssize_t ACE_SOCK_Dgram::send ( const void * buf,

size_t n,

const ACE_Addr & addr,

int flags,

ACE_OVERLAPPED * overlapped,

ACE_OVERLAPPED_COMPLETION_FUNC func

) const

Send an <n> byte <buf> to the datagram socket (uses <WSASendTo>).

ASYS_INLINE ssize_t ACE_SOCK_Dgram::send ( const iovec buffers[],

int buffer_count,

size_t & number_of_bytes_sent,

int flags,

const ACE_Addr & addr,

ACE_OVERLAPPED * overlapped,

ACE_OVERLAPPED_COMPLETION_FUNC func

) const

Send <buffer_count> worth of <buffers> to <addr> using overlapped I/O (uses <WSASendTo>). Returns 0 on success.

ssize_t ACE_SOCK_Dgram::send ( const void * buf,

size_t n,

const ACE_Addr & addr,

int flags,

const ACE_Time_Value * timeout

) const

Wait up to <timeout> amount of time to send a datagram to <buf>. The <ACE_Time_Value> indicates how long to blocking trying to receive. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in *<timeout> elapses). If <send> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes sent is returned.

ssize_t ACE_SOCK_Dgram::send ( const iovec iov[],

int n,

const ACE_Addr & addr,

int flags = 0

) const

Send an <iovec> of size <n> to the datagram socket (uses <sendmsg(3)>).
Reimplemented in ACE_SOCK_Dgram_Bcast.

ASYS_INLINE ssize_t ACE_SOCK_Dgram::send ( const void * buf,

size_t n,

const ACE_Addr & addr,

int flags = 0

) const

Send an <n> byte <buf> to the datagram socket (uses <sendto(3)>).

Reimplemented in ACE_SOCK_Dgram_Bcast.

void ACE_SOCK_Dgram::set_nic ( const char * option_value )

int ACE_SOCK_Dgram::shared_open ( const ACE_Addr & local,

int protocol_family

) [protected]

Open is shared by this and by <LSOCK_Dgram>.

Member Data Documentation

ACE_SOCK_Dgram::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK.
Reimplemented in ACE_LSOCK_Dgram, ACE_SOCK_Dgram_Bcast, and ACE_SOCK_Dgram_Mcast.

The documentation for this class was generated from the following files:

Generated on Fri Apr 2 16:53:39 2004 for ACE by

1.2.18
