TAO_Connection_Handler Class Reference

TAO_Connection_Handler. More...

#include <Connection_Handler.h>

Inheritance diagram for TAO_Connection_Handler:

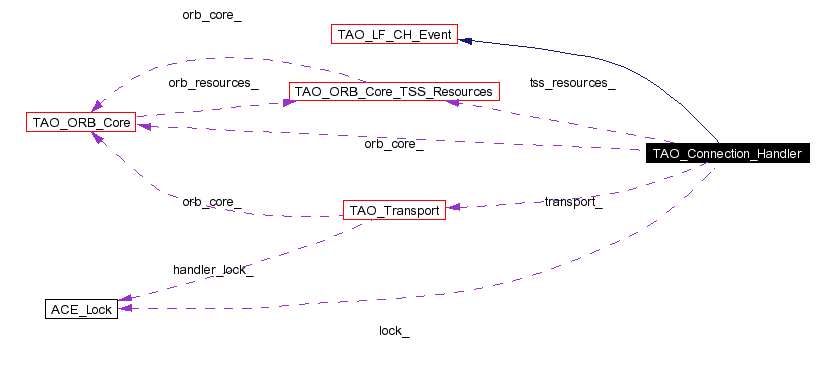

[legend]Collaboration diagram for TAO_Connection_Handler:

[legend]List of all members.

Public Methods
	TAO_Connection_Handler (void)
	Constructor.
	TAO_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor.
virtual	~TAO_Connection_Handler (void)
	Destructor.
TAO_Transport *	transport (void)
	Return the underlying transport object.
void	transport (TAO_Transport *transport)
	Set the underlying transport object.
int	is_closed (void)
	Is the handler closed?
int	is_open (void)
	Is the handler open?
int	is_connecting (void)
	Is the handler in the process of being connected?
virtual int	close_connection (void)=0
	Close the underlying connection.
virtual int	handle_input (ACE_HANDLE fd)=0
int	svc_i (void)
virtual int	open_handler (void *)=0
	A open () hook.
Protected Methods
TAO_ORB_Core *	orb_core (void)
	Return our TAO_ORB_Core pointer.
TAO_ORB_Core_TSS_Resources *	tss_resources (void)
	Return our TSS Resources pointer.
int	set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)
	Set options on the socket.
Helper methods for Event_Handler-based derived classes.
Many (actually all so far) implementations of TAO_Connection_Handler are a mixin of TAO_Connection_Handler and some form of ACE_Event_Handler. The following methods simplify such implementations by capturing the common code in a single place.
int	handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_output() callback.
int	handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_input() callback.
int	close_connection_eh (ACE_Event_Handler *eh)
virtual int	release_os_resources (void)
	Release the OS resources related to this handler.
virtual void	pre_io_hook (int &return_value)
virtual void	pos_io_hook (int &return_value)
Private Attributes
TAO_ORB_Core *	orb_core_
	Pointer to the TAO_ORB_Core.
TAO_Transport *	transport_
	Transport object reference.
TAO_ORB_Core_TSS_Resources *	tss_resources_
	Cached tss resources of the ORB that activated this object.
ACE_Lock *	lock_

---

Detailed Description

TAO_Connection_Handler.

This class is an abstraction for the connection handlers. The connections handler in every protocol can derive from this class as well as the ACE_Svc_Handler specialised for the right protocol. This way, most of the common code for the different protocols would be in this implementation.

---

Constructor & Destructor Documentation

TAO_Connection_Handler::TAO_Connection_Handler (  void    )

Constructor.

TAO_Connection_Handler::TAO_Connection_Handler (  TAO_ORB_Core *    orb_core )

Constructor.

TAO_Connection_Handler::~TAO_Connection_Handler (  void    )  [virtual]

Destructor.

---

Member Function Documentation

virtual int TAO_Connection_Handler::close_connection (  void    )  [pure virtual]

Close the underlying connection. Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does. Returns: Return 0 if the connection was already closed, non-zero otherwise. Implemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::close_connection_eh (  ACE_Event_Handler *    eh )  [protected]

Implement close_connection() for Connection_Handlers that are also Event_Handlers.

virtual int TAO_Connection_Handler::handle_input (  ACE_HANDLE    fd )  [pure virtual]

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods. Implemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::handle_input_eh (  ACE_HANDLE    h, ACE_Event_Handler *    eh )  [protected]

Implement the handle_input() callback.

int TAO_Connection_Handler::handle_output_eh (  ACE_HANDLE    h, ACE_Event_Handler *    eh )  [protected]

Implement the handle_output() callback.

ACE_INLINE int TAO_Connection_Handler::is_closed (  void    )

Is the handler closed?

ACE_INLINE int TAO_Connection_Handler::is_connecting (  void    )

Is the handler in the process of being connected?

ACE_INLINE int TAO_Connection_Handler::is_open (  void    )

Is the handler open?

virtual int TAO_Connection_Handler::open_handler (  void *    )  [pure virtual]

A open () hook. See Thread_Per_Connection_Handler for a use case Implemented in TAO_IIOP_Connection_Handler.

ACE_INLINE TAO_ORB_Core * TAO_Connection_Handler::orb_core (  void    )  [protected]

Return our TAO_ORB_Core pointer.

void TAO_Connection_Handler::pos_io_hook (  int &    return_value )  [protected, virtual]

See the SSLIOP protocol for an interesting use-case

void TAO_Connection_Handler::pre_io_hook (  int &    return_value )  [protected, virtual]

See the SSLIOP protocol for an interesting use-case

int TAO_Connection_Handler::release_os_resources (  void    )  [protected, virtual]

Release the OS resources related to this handler. Reimplemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::set_socket_option (  ACE_SOCK &    sock, int    snd_size, int    rcv_size )  [protected]

Set options on the socket.

int TAO_Connection_Handler::svc_i (  void    )

This method is invoked from the svc () method of the Svc_Handler Object.

void TAO_Connection_Handler::transport (  TAO_Transport *    transport )

Set the underlying transport object.

ACE_INLINE TAO_Transport * TAO_Connection_Handler::transport (  void    )

Return the underlying transport object.

ACE_INLINE TAO_ORB_Core_TSS_Resources * TAO_Connection_Handler::tss_resources (  void    )  [protected]

Return our TSS Resources pointer.

---

Member Data Documentation

ACE_Lock* TAO_Connection_Handler::lock_ [private]

Internal state lock, needs to be separate from the reference count / pending upcalls lock because they interleave.

TAO_ORB_Core* TAO_Connection_Handler::orb_core_ [private]

Pointer to the TAO_ORB_Core.

TAO_Transport* TAO_Connection_Handler::transport_ [private]

Transport object reference.

TAO_ORB_Core_TSS_Resources* TAO_Connection_Handler::tss_resources_ [private]

Cached tss resources of the ORB that activated this object.

---

The documentation for this class was generated from the following files:

• Connection_Handler.h
• Connection_Handler.cpp
• Connection_Handler.inl

---
