ACE_Acceptor< SVC_HANDLER, > Class Template Reference

Abstract factory for creating a service handler (SVC_HANDLER), accepting into the SVC_HANDLER, and activating the SVC_HANDLER. More...

#include <Acceptor.h>

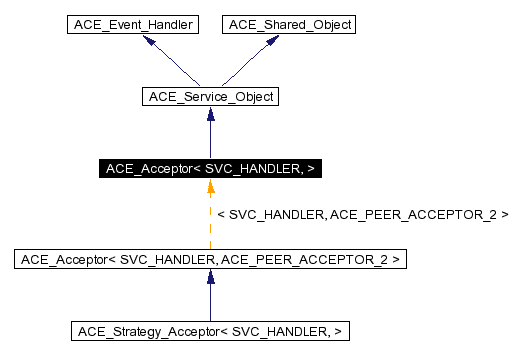

Inheritance diagram for ACE_Acceptor< SVC_HANDLER, >:

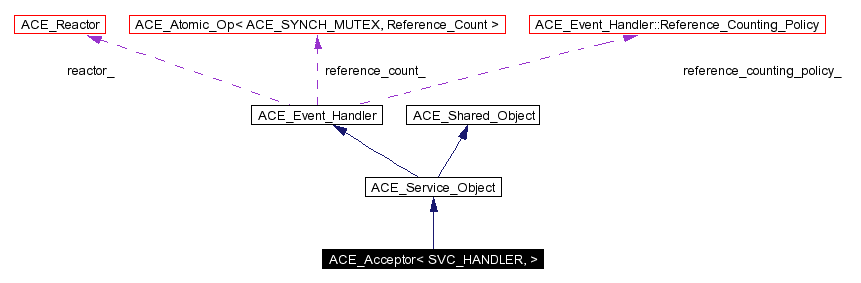

[legend]Collaboration diagram for ACE_Acceptor< SVC_HANDLER, >:

[legend]List of all members.

Public Types
typedef ACE_PEER_ACCEPTOR_ADDR	addr_type
typedef ACE_PEER_ACCEPTOR	acceptor_type
typedef SVC_HANDLER	handler_type
typedef ACE_TYPENAME SVC_HANDLER::stream_type	stream_type
Public Methods
	ACE_Acceptor (ACE_Reactor *=0, int use_select=1)
	"Do-nothing" constructor.
	ACE_Acceptor (const ACE_PEER_ACCEPTOR_ADDR &local_addr, ACE_Reactor *=ACE_Reactor::instance(), int flags=0, int use_select=1, int reuse_addr=1)
virtual int	open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, ACE_Reactor *reactor=ACE_Reactor::instance(), int flags=0, int use_select=1, int reuse_addr=1)
virtual	~ACE_Acceptor (void)
	Close down the Acceptor's resources.
virtual	operator ACE_PEER_ACCEPTOR & () const
	Return the underlying PEER_ACCEPTOR object.
virtual ACE_PEER_ACCEPTOR &	acceptor (void) const
	Return the underlying PEER_ACCEPTOR object.
virtual ACE_HANDLE	get_handle (void) const
	Returns the listening acceptor's <ACE_HANDLE>.
virtual int	close (void)
	Close down the Acceptor.
void	dump (void) const
	Dump the state of an object.
virtual int	suspend (void)
	This method calls <Reactor::suspend>.
virtual int	resume (void)
	This method calls <Reactor::resume>.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Methods
virtual int	make_svc_handler (SVC_HANDLER *&sh)
virtual int	accept_svc_handler (SVC_HANDLER *svc_handler)
virtual int	activate_svc_handler (SVC_HANDLER *svc_handler)
virtual int	handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual int	handle_input (ACE_HANDLE)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini (void)
	Calls <handle_close>.
virtual int	info (ACE_TCHAR **buf, size_t) const
	Default version returns address info in <buf>.
Protected Attributes
ACE_PEER_ACCEPTOR	peer_acceptor_
	Concrete factory for accepting connections from clients...
ACE_PEER_ACCEPTOR_ADDR	peer_acceptor_addr_
	Needed to reopen the socket if <accept> fails.
int	flags_
int	use_select_
int	reuse_addr_
	Needed to reopen the socket if <accept> fails.

---

Detailed Description

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1>
class ACE_Acceptor< SVC_HANDLER, >

Abstract factory for creating a service handler (SVC_HANDLER), accepting into the SVC_HANDLER, and activating the SVC_HANDLER.

Implements the basic strategy for passively establishing connections with clients. An ACE_Acceptor is parameterized by concrete types that conform to the interfaces of PEER_ACCEPTOR and SVC_HANDLER. The PEER_ACCEPTOR is instantiated with a transport mechanism that passively establishes connections. The SVC_HANDLER is instantiated with a concrete type that performs the application-specific service. An ACE_Acceptor inherits from ACE_Service_Object, which in turn inherits from ACE_Event_Handler. This enables the ACE_Reactor to dispatch the ACE_Acceptor's handle_input method when connection events occur. The handle_input method performs the ACE_Acceptor's default creation, connection establishment, and service activation strategies. These strategies can be overridden by subclasses individually or as a group.

---

Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef ACE_PEER_ACCEPTOR ACE_Acceptor< SVC_HANDLER, >::acceptor_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef ACE_PEER_ACCEPTOR_ADDR ACE_Acceptor< SVC_HANDLER, >::addr_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef SVC_HANDLER ACE_Acceptor< SVC_HANDLER, >::handler_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > typedef ACE_TYPENAME SVC_HANDLER::stream_type ACE_Acceptor< SVC_HANDLER, >::stream_type

---

Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Acceptor< SVC_HANDLER, >::ACE_Acceptor (  ACE_Reactor *    = 0, int    use_select = 1 )

"Do-nothing" constructor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Acceptor< SVC_HANDLER, >::ACE_Acceptor (  const ACE_PEER_ACCEPTOR_ADDR &    local_addr, ACE_Reactor *    = ACE_Reactor::instance(), int    flags = 0, int    use_select = 1, int    reuse_addr = 1 )

Initialize and register <this> with the Reactor and listen for connection requests at the designated <local_addr>. <flags> indicates how <SVC_HANDLER>'s should be initialized prior to being activated. Right now, the only flag that is processed is <ACE_NONBLOCK>, which enabled non-blocking I/O on the <SVC_HANDLER> when it is opened. If <use_select> is non-zero then <select> is used to determine when to break out of the <accept> loop. <reuse_addr> is passed down to the <PEER_ACCEPTOR>. If it is non-zero this will allow the OS to reuse this listen port.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_Acceptor< SVC_HANDLER, >::~ACE_Acceptor (  void    )  [virtual]

Close down the Acceptor's resources.

---

Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::accept_svc_handler (  SVC_HANDLER *    svc_handler )  [protected, virtual]

Bridge method for accepting the new connection into the <svc_handler>. The default behavior delegates to the PEER_ACCEPTOR::accept. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_PEER_ACCEPTOR& ACE_Acceptor< SVC_HANDLER, >::acceptor (  void    )  const [virtual]

Return the underlying PEER_ACCEPTOR object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::activate_svc_handler (  SVC_HANDLER *    svc_handler )  [protected, virtual]

Bridge method for activating a <svc_handler> with the appropriate concurrency strategy. The default behavior of this method is to activate the SVC_HANDLER by calling its <open> method (which allows the SVC_HANDLER to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as making the SVC_HANDLER as an "active object" via multi-threading or multi-processing). Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::close (  void    )  [virtual]

Close down the Acceptor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > void ACE_Acceptor< SVC_HANDLER, >::dump (  void    )  const

Dump the state of an object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::fini (  void    )  [protected, virtual]

Calls <handle_close>. Reimplemented from ACE_Shared_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_HANDLE ACE_Acceptor< SVC_HANDLER, >::get_handle (  void    )  const [virtual]

Returns the listening acceptor's <ACE_HANDLE>. Reimplemented from ACE_Event_Handler. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::handle_close (  ACE_HANDLE    = ACE_INVALID_HANDLE, ACE_Reactor_Mask    = ACE_Event_Handler::ALL_EVENTS_MASK )  [protected, virtual]

Perform termination activities when <this> is removed from the <reactor>. Reimplemented from ACE_Event_Handler. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::handle_input (  ACE_HANDLE    )  [protected, virtual]

Accepts all pending connections from clients, and creates and activates SVC_HANDLERs. Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::info (  ACE_TCHAR **    buf, size_t    )  const [protected, virtual]

Default version returns address info in <buf>. Reimplemented from ACE_Shared_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::init (  int    argc, ACE_TCHAR *    argv[] )  [protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful. Reimplemented from ACE_Shared_Object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::make_svc_handler (  SVC_HANDLER *&    sh )  [protected, virtual]

Bridge method for creating a SVC_HANDLER. The default is to create a new <SVC_HANDLER> if <sh> == 0, else <sh> is unchanged. However, subclasses can override this policy to perform SVC_HANDLER creation in any way that they like (such as creating subclass instances of SVC_HANDLER, using a singleton, dynamically linking the handler, etc.). Returns -1 on failure, else 0. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::open (  const ACE_PEER_ACCEPTOR_ADDR &    local_addr, ACE_Reactor *    reactor = ACE_Reactor::instance(), int    flags = 0, int    use_select = 1, int    reuse_addr = 1 )  [virtual]

Open the contained PEER_ACCEPTOR object to begin listening, and register with the specified reactor for accept events. The PEER_ACCEPTOR handle is put into non-blocking mode as a safeguard against the race condition that can otherwise occur between the time when the passive-mode socket handle is "ready" and when the actual accept call is made. During this interval, the client can shutdown the connection, in which case, the <accept> call can hang. Parameters: local_addr  The address to listen at. reactor  Pointer to the ACE_Reactor instance to register this object with. The default is the singleton. flags  Flags to control what mode an accepted socket will be put into after it is accepted. The only legal value for this argument is ACE_NONBLOCK, which enables non-blocking mode on the accepted peer stream object in SVC_HANDLER. The default is 0. use_select  Affects behavior when called back by the reactor when a connection can be accepted. If non-zero, this object will accept all pending connections, intead of just the one that triggered the reactor callback. Uses ACE_OS::select() internally to detect any remaining acceptable connections. The default is 1. reuse_addr  Passed to the PEER_ACCEPTOR::open() method with local_addr. Generally used to request that the OS allow reuse of the listen port. The default is 1. Return values: 0  Success -1  Failure, errno contains an error code. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual ACE_Acceptor< SVC_HANDLER, >::operator ACE_PEER_ACCEPTOR & (    )  [virtual]

Return the underlying PEER_ACCEPTOR object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::resume (  void    )  [virtual]

This method calls <Reactor::resume>. Reimplemented from ACE_Service_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > virtual int ACE_Acceptor< SVC_HANDLER, >::suspend (  void    )  [virtual]

This method calls <Reactor::suspend>. Reimplemented from ACE_Service_Object. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

---

Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_Acceptor< SVC_HANDLER, >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented in ACE_Strategy_Acceptor< SVC_HANDLER, >.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > int ACE_Acceptor< SVC_HANDLER, >::flags_ [protected]

Flags that indicate how <SVC_HANDLER>'s should be initialized prior to being activated. Right now, the only flag that is processed is <ACE_NONBLOCK>, which enabled non-blocking I/O on the <SVC_HANDLER> when it is opened.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_PEER_ACCEPTOR ACE_Acceptor< SVC_HANDLER, >::peer_acceptor_ [protected]

Concrete factory for accepting connections from clients...

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > ACE_PEER_ACCEPTOR_ADDR ACE_Acceptor< SVC_HANDLER, >::peer_acceptor_addr_ [protected]

Needed to reopen the socket if <accept> fails.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > int ACE_Acceptor< SVC_HANDLER, >::reuse_addr_ [protected]

Needed to reopen the socket if <accept> fails.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > int ACE_Acceptor< SVC_HANDLER, >::use_select_ [protected]

Flag that indicates whether it shall use <select> in the <accept>-loop.

---

The documentation for this class was generated from the following file:

• Acceptor.h

---
