ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > Class Template Reference

Define a map abstraction that associates <EXT_ID>s with <INT_ID>s. More...

#include <Map_Manager.h>

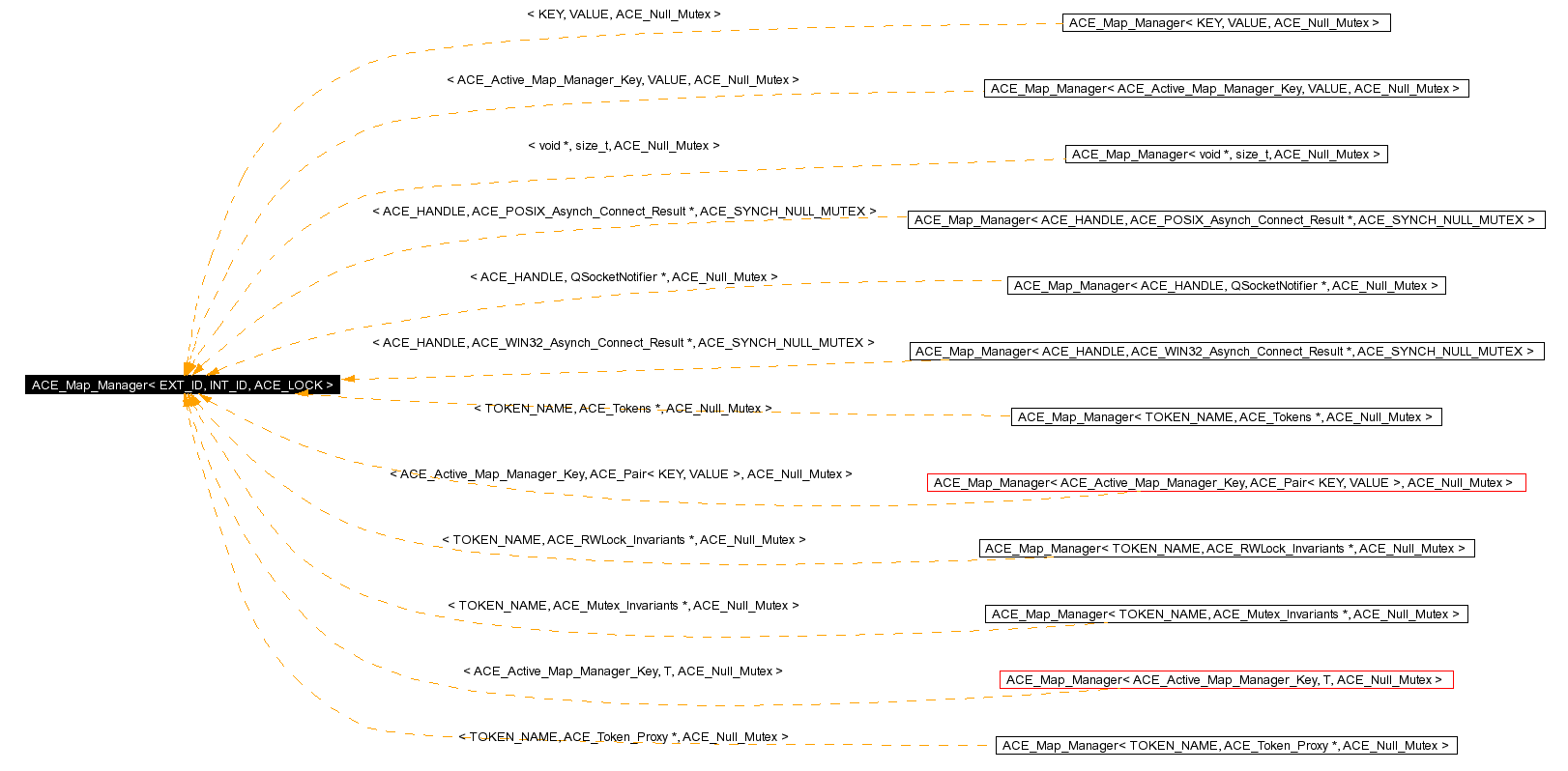

Inheritance diagram for ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >:

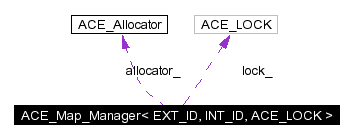

[legend]Collaboration diagram for ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >:

[legend]List of all members.


Public Types
typedef EXT_ID	KEY
typedef INT_ID	VALUE
typedef ACE_Map_Entry< EXT_ID, INT_ID >	ENTRY
typedef ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	ITERATOR
typedef ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >	CONST_ITERATOR
typedef ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	REVERSE_ITERATOR
typedef ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	iterator
typedef ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >	const_iterator
typedef ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	reverse_iterator
Public Methods
	ACE_Map_Manager (ACE_Allocator *alloc=0)
	Initialize a ACE_Map_Manager with the ACE_DEFAULT_MAP_SIZE.
	ACE_Map_Manager (size_t size, ACE_Allocator *alloc=0)
	Initialize a ACE_Map_Manager with size* entries.*
int	open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
	Initialize a ACE_Map_Manager with size length.
int	close (void)
	~ACE_Map_Manager (void)
int	bind (const EXT_ID &ext_id, const INT_ID &int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id)
int	trybind (const EXT_ID &ext_id, INT_ID &int_id)
int	find (const EXT_ID &ext_id, INT_ID &int_id) const
int	find (const EXT_ID &ext_id) const
	Returns 0 if the <ext_id> is in the mapping, otherwise -1.
int	unbind (const EXT_ID &ext_id)
int	unbind (const EXT_ID &ext_id, INT_ID &int_id)
void	unbind_all (void)
size_t	current_size (void) const
	Return the current size of the map.
size_t	total_size (void) const
	Return the total size of the map.
ACE_LOCK &	mutex (void)
void	dump (void) const
	Dump the state of an object.
ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	begin (void)
	Return forward iterator.
ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >	end (void)
ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	rbegin (void)
	Return reverse iterator.
ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >	rend (void)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Types
enum	{ MAX_EXPONENTIAL = 64 * 1024, LINEAR_INCREASE = 32 * 1024 }
Protected Methods
int	bind_i (const EXT_ID &ext_id, const INT_ID &int_id)
int	shared_bind (const EXT_ID &ext_id, const INT_ID &int_id)
int	rebind_i (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id)
int	rebind_i (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id)
int	rebind_i (const EXT_ID &ext_id, const INT_ID &int_id)
int	trybind_i (const EXT_ID &ext_id, INT_ID &int_id)
int	find_i (const EXT_ID &ext_id, INT_ID &int_id)
int	find_and_return_index (const EXT_ID &ext_id, ACE_UINT32 &slot)
int	unbind_i (const EXT_ID &ext_id, INT_ID &int_id)
int	unbind_i (const EXT_ID &ext_id)
int	unbind_and_return_index (const EXT_ID &ext_id, ACE_UINT32 &slot)
void	unbind_slot (ACE_UINT32 slot)
	Unbind <slot>.
int	resize_i (ACE_UINT32 size)
	Resize the map. Must be called with locks held.
int	close_i (void)
	Close down a <Map_Manager>. Must be called with locks held.
int	equal (const EXT_ID &id1, const EXT_ID &id2)
ACE_UINT32	new_size (void)
void	free_search_structure (void)
ACE_UINT32	free_list_id (void) const
	Id of the free list sentinel.
ACE_UINT32	occupied_list_id (void) const
	Id of the occupied list sentinel.
int	next_free (ACE_UINT32 &slot)
	Finds the next free slot.
void	move_from_free_list_to_occupied_list (ACE_UINT32 slot)
	Move from free list to occupied list.
void	move_from_occupied_list_to_free_list (ACE_UINT32 slot)
	Move from occupied list to free list.
void	shared_move (ACE_UINT32 slot, ACE_Map_Entry< EXT_ID, INT_ID > &current_list, ACE_UINT32 current_list_id, ACE_Map_Entry< EXT_ID, INT_ID > &new_list, ACE_UINT32 new_list_id)
	Move helper.
Protected Attributes
ACE_Allocator *	allocator_
	Pointer to a memory allocator.
ACE_LOCK	lock_
	Synchronization variable for the MT_SAFE <ACE_Map_Manager>.
ACE_Map_Entry< EXT_ID, INT_ID > *	search_structure_
	Implement the Map as a resizeable array of <ACE_Map_Entry>.
ACE_UINT32	total_size_
	Total number of elements in this->search_structure_.
ACE_UINT32	cur_size_
	Current size of the map.
ACE_Map_Entry< EXT_ID, INT_ID >	free_list_
	Free list.
ACE_Map_Entry< EXT_ID, INT_ID >	occupied_list_
	Occupied list.
Private Methods
void	operator= (const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > &)
	ACE_Map_Manager (const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > &)
Friends
class	ACE_Map_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK >
class	ACE_Map_Const_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK >
class	ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK >
class	ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK >
class	ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK >

Detailed Description

template<class EXT_ID, class INT_ID, class ACE_LOCK>
class ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >

Define a map abstraction that associates <EXT_ID>s with <INT_ID>s.

The <EXT_ID> must support <operator==>. This constraint can be alleviated via template specialization, as shown in the $ACE_ROOT/tests/Conn_Test.cpp test. This class uses an <ACE_Allocator> to allocate memory. The user can make this a persistant class by providing an <ACE_Allocator> with a persistable memory pool. This implementation of a map uses an array, which is searched linearly. For more efficient searching you should use the <ACE_Hash_Map_Manager>.

Member Typedef Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Const_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::const_iterator

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Const_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::CONST_ITERATOR

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Entry<EXT_ID, INT_ID> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ENTRY

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::iterator

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ITERATOR

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef EXT_ID ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::KEY

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Reverse_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::reverse_iterator

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef ACE_Map_Reverse_Iterator<EXT_ID, INT_ID, ACE_LOCK> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::REVERSE_ITERATOR

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

typedef INT_ID ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::VALUE

Member Enumeration Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

anonymous enum [protected]

Enumeration values:

MAX_EXPONENTIAL Grow map exponentially up to 64K.

LINEAR_INCREASE Afterwards grow in chunks of 32K.

Constructor & Destructor Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_Map_Manager ( ACE_Allocator * alloc = 0 )

Initialize a ACE_Map_Manager with the ACE_DEFAULT_MAP_SIZE.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_Map_Manager ( size_t size,

ACE_Allocator * alloc = 0

)

Initialize a ACE_Map_Manager with size entries.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::~ACE_Map_Manager ( void )

Close down a ACE_Map_Manager and release dynamically allocated resources.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_Map_Manager ( const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > & ) [private]

Member Function Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::begin ( void )

Return forward iterator.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::bind ( const EXT_ID & ext_id,

const INT_ID & int_id

)

Associate ext_id with int_id. If ext_id is already in the map then the ACE_Map_Entry is not changed.
Return values:

0 If a new entry is bound successfully.

1 If an attempt is made to bind an existing entry.

-1 If failures occur.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::bind_i ( const EXT_ID & ext_id,

const INT_ID & int_id

) [protected]

Performs the binding of <ext_id> to <int_id>. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::close ( void )

Close down a ACE_Map_Manager and release dynamically allocated resources.
Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::close_i ( void ) [protected]

Close down a <Map_Manager>. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE size_t ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::current_size ( void ) const

Return the current size of the map.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::dump ( void ) const

Dump the state of an object.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::end ( void )

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::equal ( const EXT_ID & id1,

const EXT_ID & id2

) [protected]

Returns 1 if <id1> == <id2>, else 0. This is defined as a separate method to facilitate template specialization.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find ( const EXT_ID & ext_id ) const

Returns 0 if the <ext_id> is in the mapping, otherwise -1.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find ( const EXT_ID & ext_id,

INT_ID & int_id

) const

Locate <ext_id> and pass out parameter via <int_id>.
Return values:

0 If found.

-1 If not found.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find_and_return_index ( const EXT_ID & ext_id,

ACE_UINT32 & slot

) [protected]

Performs a find using <ext_id> as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::find_i ( const EXT_ID & ext_id,

INT_ID & int_id

) [protected]

Performs a find of <int_id> using <ext_id> as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::free_list_id ( void ) const [protected]

Id of the free list sentinel.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::free_search_structure ( void ) [protected]

Explicitly call the destructors and free up the <search_structure_>.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::move_from_free_list_to_occupied_list ( ACE_UINT32 slot ) [protected]

Move from free list to occupied list.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::move_from_occupied_list_to_free_list ( ACE_UINT32 slot ) [protected]

Move from occupied list to free list.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_LOCK & ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::mutex ( void )

Returns a reference to the underlying <ACE_LOCK>. This makes it possible to acquire the lock explicitly, which can be useful in some cases if you instantiate the <ACE_Atomic_Op> with an <ACE_Recursive_Mutex> or <ACE_Process_Mutex>, or if you need to guard the state of an iterator. NOTE: the right name would be <lock>, but HP/C++ will choke on that!

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::new_size ( void ) [protected]

This function returns the new size of the Map Manager. This function is called when we run out of room and need to resize.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::next_free ( ACE_UINT32 & slot ) [protected]

Finds the next free slot.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::occupied_list_id ( void ) const [protected]

Id of the occupied list sentinel.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::open ( size_t length = ACE_DEFAULT_MAP_SIZE,

ACE_Allocator * alloc = 0

)

Initialize a ACE_Map_Manager with size length.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::operator= ( const ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > & ) [private]

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rbegin ( void )

Return reverse iterator.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id

)

Reassociate ext_id with int_id. Old values in the map are ignored.
Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

INT_ID & old_int_id

)

Reassociate ext_id with int_id. If <ext_id> is not in the map then behaves just like <bind>. Otherwise, store the old values of <int_id> into the "out" parameter and rebind the new parameters.
Return values:

0 If a new entry is bound successfully.

1 If an existing entry was rebound.

-1 If failures occur.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

EXT_ID & old_ext_id,

INT_ID & old_int_id

)

Reassociate ext_id with int_id. If ext_id is not in the map then behaves just like bind(). Otherwise, store the old values of <ext_id> and <int_id> into the "out" parameters and rebind the new parameters. This is very useful if you need to have an atomic way of updating <Map_Entries> and you also need full control over memory allocation.
Return values:

0 If a new entry is bound successfully.

1 If an existing entry was rebound.

-1 If failures occur.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind_i ( const EXT_ID & ext_id,

const INT_ID & int_id

) [protected]

Performs a rebinding of <ext_it> to <int_id>. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind_i ( const EXT_ID & ext_id,

const INT_ID & int_id,

INT_ID & old_int_id

) [protected]

Performs a rebinding of <ext_it> to <int_id>. Also, recovers old values. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rebind_i ( const EXT_ID & ext_id,

const INT_ID & int_id,

EXT_ID & old_ext_id,

INT_ID & old_int_id

) [protected]

Performs a rebinding of <ext_it> to <int_id>. Also, recovers old values. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK > ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::rend ( void )

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::resize_i ( ACE_UINT32 size ) [protected]

Resize the map. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::shared_bind ( const EXT_ID & ext_id,

const INT_ID & int_id

) [protected]

Bind an entry (without finding first). Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::shared_move ( ACE_UINT32 slot,

ACE_Map_Entry< EXT_ID, INT_ID > & current_list,

ACE_UINT32 current_list_id,

ACE_Map_Entry< EXT_ID, INT_ID > & new_list,

ACE_UINT32 new_list_id

) [protected]

Move helper.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE size_t ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::total_size ( void ) const

Return the total size of the map.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::trybind ( const EXT_ID & ext_id,

INT_ID & int_id

)

Associate <ext_id> with <int_id> if and only if <ext_id> is not in the map. If <ext_id> is already in the map then the <int_id> parameter is overwritten with the existing value in the map
Return values:

0 If a new entry is bound successfully.

1 If an attempt is made to bind an existing entry.

-1 If failures occur.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::trybind_i ( const EXT_ID & ext_id,

INT_ID & int_id

) [protected]

Performs a conditional bind of <int_id> using <ext_id> as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind ( const EXT_ID & ext_id,

INT_ID & int_id

)

Break any association of <ext_id>. Returns the value of <int_id> in case the caller needs to deallocate memory. Returns 0 if successful, else -1.
Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind ( const EXT_ID & ext_id )

Unbind (remove) the <ext_id> from the map. Don't return the <int_id> to the caller (this is useful for collections where the <int_id>s are *not* dynamically allocated...) Returns 0 if successful, else -1.
Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_all ( void )

Unbind all entires.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_and_return_index ( const EXT_ID & ext_id,

ACE_UINT32 & slot

) [protected]

Performs an unbind using <ext_id> as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_INLINE int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_i ( const EXT_ID & ext_id ) [protected]

Performs an unbind using <ext_id> as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

int ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_i ( const EXT_ID & ext_id,

INT_ID & int_id

) [protected]

Performs an unbind of <int_id> using <ext_id> as the key. Must be called with locks held.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

void ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::unbind_slot ( ACE_UINT32 slot ) [protected]

Unbind <slot>.

Friends And Related Function Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Const_Iterator< EXT_ID, INT_ID, ACE_LOCK > [friend]

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Const_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK > [friend]

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Iterator< EXT_ID, INT_ID, ACE_LOCK > [friend]

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Iterator_Base< EXT_ID, INT_ID, ACE_LOCK > [friend]

template<class EXT_ID, class INT_ID, class ACE_LOCK>

friend class ACE_Map_Reverse_Iterator< EXT_ID, INT_ID, ACE_LOCK > [friend]

Member Data Documentation

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented in ACE_Active_Map_Manager< T >, and ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > >.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Allocator* ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::allocator_ [protected]

Pointer to a memory allocator.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::cur_size_ [protected]

Current size of the map.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Entry<EXT_ID, INT_ID> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::free_list_ [protected]

Free list.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_LOCK ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::lock_ [protected]

Synchronization variable for the MT_SAFE <ACE_Map_Manager>.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Entry<EXT_ID, INT_ID> ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::occupied_list_ [protected]

Occupied list.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_Map_Entry<EXT_ID, INT_ID>* ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::search_structure_ [protected]

Implement the Map as a resizeable array of <ACE_Map_Entry>.

template<class EXT_ID, class INT_ID, class ACE_LOCK>

ACE_UINT32 ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::total_size_ [protected]

Total number of elements in this->search_structure_.

The documentation for this class was generated from the following files:

Generated on Fri Apr 2 16:50:05 2004 for ACE by

1.2.18

ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK > Class Template Reference

Public Types

Public Methods

Public Attributes

Protected Types

Protected Methods

Protected Attributes

Private Methods

Friends
