TAO_CEC_Factory Class Reference

Abstract factory for the CosEventChannel components. More...

#include <CEC_Factory.h>

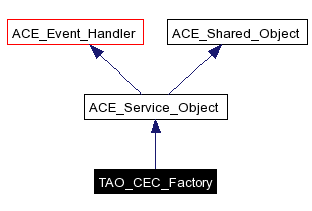

Inheritance diagram for TAO_CEC_Factory:

[legend]Collaboration diagram for TAO_CEC_Factory:

[legend]List of all members.

Public Member Functions
virtual	~TAO_CEC_Factory (void)
	destructor...
virtual TAO_CEC_Dispatching *	create_dispatching (TAO_CEC_EventChannel *)=0
	Create and destroy the dispatching module.
virtual void	destroy_dispatching (TAO_CEC_Dispatching *)=0
virtual TAO_CEC_Pulling_Strategy *	create_pulling_strategy (TAO_CEC_EventChannel *)=0
	Create and destroy the pulling strategy.
virtual void	destroy_pulling_strategy (TAO_CEC_Pulling_Strategy *)=0
virtual TAO_CEC_ConsumerAdmin *	create_consumer_admin (TAO_CEC_EventChannel *)=0
	Create and destroy the consumer admin implementation.
virtual void	destroy_consumer_admin (TAO_CEC_ConsumerAdmin *)=0
virtual TAO_CEC_SupplierAdmin *	create_supplier_admin (TAO_CEC_EventChannel *)=0
	Create and destroy the supplier admin implementation.
virtual void	destroy_supplier_admin (TAO_CEC_SupplierAdmin *)=0
virtual TAO_CEC_ProxyPushSupplier *	create_proxy_push_supplier (TAO_CEC_EventChannel *)=0
	Create and destroy a ProxyPushSupplier.
virtual void	destroy_proxy_push_supplier (TAO_CEC_ProxyPushSupplier *)=0
virtual TAO_CEC_ProxyPullSupplier *	create_proxy_pull_supplier (TAO_CEC_EventChannel *)=0
	Create and destroy a ProxyPullSupplier.
virtual void	destroy_proxy_pull_supplier (TAO_CEC_ProxyPullSupplier *)=0
virtual TAO_CEC_ProxyPushConsumer *	create_proxy_push_consumer (TAO_CEC_EventChannel *)=0
	Create and destroy a ProxyPushConsumer.
virtual void	destroy_proxy_push_consumer (TAO_CEC_ProxyPushConsumer *)=0
virtual TAO_CEC_ProxyPullConsumer *	create_proxy_pull_consumer (TAO_CEC_EventChannel *)=0
	Create and destroy a ProxyPullConsumer.
virtual void	destroy_proxy_pull_consumer (TAO_CEC_ProxyPullConsumer *)=0
virtual TAO_CEC_ProxyPushConsumer_Collection *	create_proxy_push_consumer_collection (TAO_CEC_EventChannel *)=0
	Create and destroy a collection of TAO_CEC_ProxyPushConsumers.
virtual void	destroy_proxy_push_consumer_collection (TAO_CEC_ProxyPushConsumer_Collection *)=0
virtual TAO_CEC_ProxyPullConsumer_Collection *	create_proxy_pull_consumer_collection (TAO_CEC_EventChannel *)=0
	Create and destroy a collection of TAO_CEC_ProxyPullConsumers.
virtual void	destroy_proxy_pull_consumer_collection (TAO_CEC_ProxyPullConsumer_Collection *)=0
virtual TAO_CEC_ProxyPushSupplier_Collection *	create_proxy_push_supplier_collection (TAO_CEC_EventChannel *)=0
	Create and destroy a collection of TAO_CEC_ProxyPushSuppliers.
virtual void	destroy_proxy_push_supplier_collection (TAO_CEC_ProxyPushSupplier_Collection *)=0
virtual TAO_CEC_ProxyPullSupplier_Collection *	create_proxy_pull_supplier_collection (TAO_CEC_EventChannel *)=0
	Create and destroy a collection of TAO_CEC_ProxyPullSuppliers.
virtual void	destroy_proxy_pull_supplier_collection (TAO_CEC_ProxyPullSupplier_Collection *)=0
virtual ACE_Lock *	create_consumer_lock (void)=0
virtual void	destroy_consumer_lock (ACE_Lock *)=0
virtual ACE_Lock *	create_supplier_lock (void)=0
virtual void	destroy_supplier_lock (ACE_Lock *)=0
virtual TAO_CEC_ConsumerControl *	create_consumer_control (TAO_CEC_EventChannel *)=0
virtual void	destroy_consumer_control (TAO_CEC_ConsumerControl *)=0
virtual TAO_CEC_SupplierControl *	create_supplier_control (TAO_CEC_EventChannel *)=0
virtual void	destroy_supplier_control (TAO_CEC_SupplierControl *)=0

---

Detailed Description

Abstract factory for the CosEventChannel components.

The CosEventChannel implementation can be configured at initialization time through several strategies and components. This class defines the interface of an Abstract Factory that creates all such components. = MEMORY MANAGMENT The objects it creates are owned by this class, the client must invoke the corresponding destroy() method to release them. Some implementations may require a different instance for the CEC_Factory for each instance of a CEC_EventChannel.

---

Constructor & Destructor Documentation

TAO_CEC_Factory::~TAO_CEC_Factory (  void   )  [virtual]

destructor...

---

Member Function Documentation

virtual TAO_CEC_ConsumerAdmin* TAO_CEC_Factory::create_consumer_admin (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy the consumer admin implementation. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ConsumerControl* TAO_CEC_Factory::create_consumer_control (  TAO_CEC_EventChannel *   )  [pure virtual]

The ConsumerControl and SupplierControl strategies are used to discard non-existent consumers and suppliers Implemented in TAO_CEC_Default_Factory.

virtual ACE_Lock* TAO_CEC_Factory::create_consumer_lock (  void   )  [pure virtual]

Create and destroy the locking strategies for both ProxyPushConsumers and ProxyPushSuppliers Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_Dispatching* TAO_CEC_Factory::create_dispatching (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy the dispatching module. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPullConsumer* TAO_CEC_Factory::create_proxy_pull_consumer (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a ProxyPullConsumer. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPullConsumer_Collection* TAO_CEC_Factory::create_proxy_pull_consumer_collection (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a collection of TAO_CEC_ProxyPullConsumers. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPullSupplier* TAO_CEC_Factory::create_proxy_pull_supplier (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a ProxyPullSupplier. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPullSupplier_Collection* TAO_CEC_Factory::create_proxy_pull_supplier_collection (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a collection of TAO_CEC_ProxyPullSuppliers. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPushConsumer* TAO_CEC_Factory::create_proxy_push_consumer (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a ProxyPushConsumer. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPushConsumer_Collection* TAO_CEC_Factory::create_proxy_push_consumer_collection (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a collection of TAO_CEC_ProxyPushConsumers. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPushSupplier* TAO_CEC_Factory::create_proxy_push_supplier (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a ProxyPushSupplier. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_ProxyPushSupplier_Collection* TAO_CEC_Factory::create_proxy_push_supplier_collection (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy a collection of TAO_CEC_ProxyPushSuppliers. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_Pulling_Strategy* TAO_CEC_Factory::create_pulling_strategy (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy the pulling strategy. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_SupplierAdmin* TAO_CEC_Factory::create_supplier_admin (  TAO_CEC_EventChannel *   )  [pure virtual]

Create and destroy the supplier admin implementation. Implemented in TAO_CEC_Default_Factory.

virtual TAO_CEC_SupplierControl* TAO_CEC_Factory::create_supplier_control (  TAO_CEC_EventChannel *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual ACE_Lock* TAO_CEC_Factory::create_supplier_lock (  void   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_consumer_admin (  TAO_CEC_ConsumerAdmin *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_consumer_control (  TAO_CEC_ConsumerControl *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_consumer_lock (  ACE_Lock *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_dispatching (  TAO_CEC_Dispatching *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_pull_consumer (  TAO_CEC_ProxyPullConsumer *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_pull_consumer_collection (  TAO_CEC_ProxyPullConsumer_Collection *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_pull_supplier (  TAO_CEC_ProxyPullSupplier *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_pull_supplier_collection (  TAO_CEC_ProxyPullSupplier_Collection *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_push_consumer (  TAO_CEC_ProxyPushConsumer *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_push_consumer_collection (  TAO_CEC_ProxyPushConsumer_Collection *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_push_supplier (  TAO_CEC_ProxyPushSupplier *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_proxy_push_supplier_collection (  TAO_CEC_ProxyPushSupplier_Collection *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_pulling_strategy (  TAO_CEC_Pulling_Strategy *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_supplier_admin (  TAO_CEC_SupplierAdmin *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_supplier_control (  TAO_CEC_SupplierControl *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

virtual void TAO_CEC_Factory::destroy_supplier_lock (  ACE_Lock *   )  [pure virtual]

Implemented in TAO_CEC_Default_Factory.

---

The documentation for this class was generated from the following files:

• CEC_Factory.h
• CEC_Factory.cpp

---
