TAO_CEC_SupplierAdmin Class Reference

ProxyPushSupplier. More...

#include <CEC_SupplierAdmin.h>

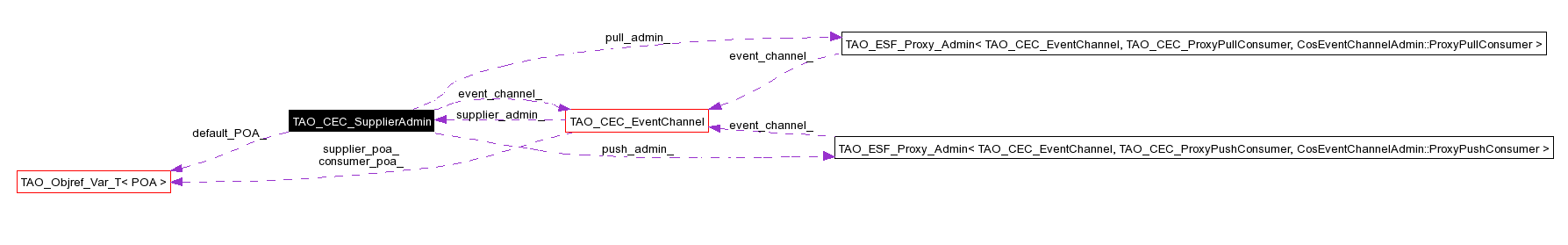

Collaboration diagram for TAO_CEC_SupplierAdmin:

[legend]List of all members.

Public Member Functions
	TAO_CEC_SupplierAdmin (TAO_CEC_EventChannel *event_channel)
	constructor...
virtual	~TAO_CEC_SupplierAdmin (void)
	destructor...
void	for_each (TAO_ESF_Worker< TAO_CEC_ProxyPushConsumer > *worker ACE_ENV_ARG_DECL)
	For each elements call <worker->work()>.
void	for_each (TAO_ESF_Worker< TAO_CEC_ProxyPullConsumer > *worker ACE_ENV_ARG_DECL)
	For each elements call <worker->work()>.
virtual void	connected (TAO_CEC_ProxyPushConsumer *ACE_ENV_ARG_DECL_NOT_USED)
	Keep track of connected consumers.
virtual void	reconnected (TAO_CEC_ProxyPushConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	disconnected (TAO_CEC_ProxyPushConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	connected (TAO_CEC_ProxyPullConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	reconnected (TAO_CEC_ProxyPullConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	disconnected (TAO_CEC_ProxyPullConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	shutdown (ACE_ENV_SINGLE_ARG_DECL_NOT_USED)
Public Attributes
virtual CosEventChannelAdmin::ProxyPushConsumer_ptr virtual obtain_push_consumer(ACE_ENV_SINGLE_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA CosEventChannelAdmin::ProxyPullConsumer_ptr virtual obtain_pull_consumer(ACE_ENV_SINGLE_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA PortableServer::POA_pt	_default_POA )(ACE_ENV_SINGLE_ARG_DECL)
Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel we belong to.
TAO_ESF_Proxy_Admin< TAO_CEC_EventChannel, TAO_CEC_ProxyPushConsumer, CosEventChannelAdmin::ProxyPushConsumer >	push_admin_
	The push and pull aspects are implemented using these classes.
TAO_ESF_Proxy_Admin< TAO_CEC_EventChannel, TAO_CEC_ProxyPullConsumer, CosEventChannelAdmin::ProxyPullConsumer >	pull_admin_
PortableServer::POA_var	default_POA_
	Store the default POA.

---

Detailed Description

ProxyPushSupplier.

Implement the CosEventChannelAdmin::SupplierAdmin interface. This class is an Abstract Factory for the TAO_CEC_ProxyPushConsumer. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_EventChannel object = LOCKING @ TODO No provisions for locking, access must be serialized externally. = TODO

---

Constructor & Destructor Documentation

TAO_CEC_SupplierAdmin::TAO_CEC_SupplierAdmin (  TAO_CEC_EventChannel *  event_channel  )

constructor...

TAO_CEC_SupplierAdmin::~TAO_CEC_SupplierAdmin (  void   )  [virtual]

destructor...

---

Member Function Documentation

virtual void TAO_CEC_SupplierAdmin::connected (  TAO_CEC_ProxyPullConsumer *  ACE_ENV_ARG_DECL_NOT_USED  )  [virtual]

virtual void TAO_CEC_SupplierAdmin::connected (  TAO_CEC_ProxyPushConsumer *  ACE_ENV_ARG_DECL_NOT_USED  )  [virtual]

Keep track of connected consumers.

virtual void TAO_CEC_SupplierAdmin::disconnected (  TAO_CEC_ProxyPullConsumer *  ACE_ENV_ARG_DECL_NOT_USED  )  [virtual]

virtual void TAO_CEC_SupplierAdmin::disconnected (  TAO_CEC_ProxyPushConsumer *  ACE_ENV_ARG_DECL_NOT_USED  )  [virtual]

ACE_INLINE void TAO_CEC_SupplierAdmin::for_each (  TAO_ESF_Worker< TAO_CEC_ProxyPullConsumer > *worker  ACE_ENV_ARG_DECL  )

For each elements call <worker->work()>.

ACE_INLINE void TAO_CEC_SupplierAdmin::for_each (  TAO_ESF_Worker< TAO_CEC_ProxyPushConsumer > *worker  ACE_ENV_ARG_DECL  )

For each elements call <worker->work()>.

virtual void TAO_CEC_SupplierAdmin::reconnected (  TAO_CEC_ProxyPullConsumer *  ACE_ENV_ARG_DECL_NOT_USED  )  [virtual]

virtual void TAO_CEC_SupplierAdmin::reconnected (  TAO_CEC_ProxyPushConsumer *  ACE_ENV_ARG_DECL_NOT_USED  )  [virtual]

void TAO_CEC_SupplierAdmin::shutdown (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED   )  [virtual]

The event channel is shutting down, inform all the consumers of this

---

Member Data Documentation

PortableServer::POA_ptr TAO_CEC_SupplierAdmin::_default_POA

PortableServer::POA_var TAO_CEC_SupplierAdmin::default_POA_ [private]

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_SupplierAdmin::event_channel_ [private]

The Event Channel we belong to.

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel, TAO_CEC_ProxyPullConsumer, CosEventChannelAdmin::ProxyPullConsumer> TAO_CEC_SupplierAdmin::pull_admin_ [private]

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel, TAO_CEC_ProxyPushConsumer, CosEventChannelAdmin::ProxyPushConsumer> TAO_CEC_SupplierAdmin::push_admin_ [private]

The push and pull aspects are implemented using these classes.

---

The documentation for this class was generated from the following files:

• CEC_SupplierAdmin.h
• CEC_SupplierAdmin.cpp
• CEC_SupplierAdmin.i

---
