TAO_CEC_ProxyPushSupplier Class Reference

ProxyPushSupplier. More...

#include <CEC_ProxyPushSupplier.h>

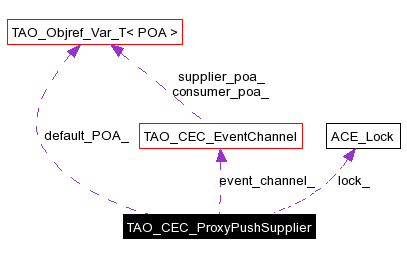

Collaboration diagram for TAO_CEC_ProxyPushSupplier:

[legend]List of all members.

Public Types
typedef CosEventChannelAdmin::ProxyPushSupplier_ptr	_ptr_type
typedef CosEventChannelAdmin::ProxyPushSupplier_var	_var_type
Public Member Functions
	TAO_CEC_ProxyPushSupplier (TAO_CEC_EventChannel *event_channel)
	constructor...
virtual	~TAO_CEC_ProxyPushSupplier (void)
	destructor...
CosEventComm::PushConsumer_ptr	consumer (void) const
virtual void	shutdown (ACE_ENV_SINGLE_ARG_DECL)
	The event channel is shutting down.
virtual void	push (const CORBA::Any &event ACE_ENV_ARG_DECL)
	Internal methods to push an event to each consumer.
virtual void	push_nocopy (CORBA::Any &event ACE_ENV_ARG_DECL)
void	push_to_consumer (const CORBA::Any &event ACE_ENV_ARG_DECL)
	Pushes to the consumer, verifies that it is connected.
void	reactive_push_to_consumer (const CORBA::Any &event ACE_ENV_ARG_DECL)
CORBA::Boolean	consumer_non_existent (CORBA::Boolean_out disconnected ACE_ENV_ARG_DECL)
CORBA::ULong	_decr_refcnt (void)
virtual PortableServer::POA_ptr	_default_POA (ACE_ENV_SINGLE_ARG_DECL)
virtual void	_add_ref (ACE_ENV_SINGLE_ARG_DECL)
virtual void	_remove_ref (ACE_ENV_SINGLE_ARG_DECL)
Public Attributes
virtual void virtual activate(CosEventChannelAdmin::ProxyPushSupplier_ptr &ACE_ENV_ARG_DECL) ACE_THROW_SPEC((CORBA void deactivate(ACE_ENV_SINGLE_ARG_DECL) ACE_THROW_SPEC((CORBA CORBA::Boolea	is_connected )(void) const
	Return 0 if no consumer is connected...
virtual void virtual connect_push_consumer(CosEventComm::PushConsumer_ptr push_consumer ACE_ENV_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA void disconnect_push_supplier(ACE_ENV_SINGLE_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA CORBA::ULon	_incr_refcnt )(void)
	Increment and decrement the reference count.
Protected Member Functions
void	consumer (CosEventComm::PushConsumer_ptr consumer)
void	consumer_i (CosEventComm::PushConsumer_ptr consumer)
CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected().
void	cleanup_i (void)
	Release the child and the consumer.
Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel that owns this object.
ACE_Lock *	lock_
	The locking strategy.
CORBA::ULong	refcount_
	The reference count.
CosEventComm::PushConsumer_var	consumer_
	The consumer....
PortableServer::POA_var	default_POA_
	Store the default POA.

---

Detailed Description

ProxyPushSupplier.

Implement the CosEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference. = LOCKING Locking is strategized, the event channel acts as a factory for the locking strategies.

---

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ProxyPushSupplier::_ptr_type

typedef CosEventChannelAdmin::ProxyPushSupplier_var TAO_CEC_ProxyPushSupplier::_var_type

---

Constructor & Destructor Documentation

TAO_CEC_ProxyPushSupplier::TAO_CEC_ProxyPushSupplier (  TAO_CEC_EventChannel *  event_channel  )

constructor...

TAO_CEC_ProxyPushSupplier::~TAO_CEC_ProxyPushSupplier (  void   )  [virtual]

destructor...

---

Member Function Documentation

void TAO_CEC_ProxyPushSupplier::_add_ref (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

CORBA::ULong TAO_CEC_ProxyPushSupplier::_decr_refcnt (  void   )

PortableServer::POA_ptr TAO_CEC_ProxyPushSupplier::_default_POA (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

void TAO_CEC_ProxyPushSupplier::_remove_ref (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

void TAO_CEC_ProxyPushSupplier::cleanup_i (  void   )  [protected]

Release the child and the consumer.

ACE_INLINE void TAO_CEC_ProxyPushSupplier::consumer (  CosEventComm::PushConsumer_ptr  consumer  )  [protected]

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

ACE_INLINE CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::consumer (  void   )  const

Return the consumer object reference. It returns nil() if it has not connected yet. NOTE: This method does not return a new reference!!! Doing so will increase the locking overhead on the critical path.

ACE_INLINE void TAO_CEC_ProxyPushSupplier::consumer_i (  CosEventComm::PushConsumer_ptr  consumer  )  [protected]

CORBA::Boolean TAO_CEC_ProxyPushSupplier::consumer_non_existent (  CORBA::Boolean_out disconnected  ACE_ENV_ARG_DECL  )

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected_i (  void   )  const [protected]

The private version (without locking) of is_connected().

void TAO_CEC_ProxyPushSupplier::push (  const CORBA::Any &event  ACE_ENV_ARG_DECL  )  [virtual]

Internal methods to push an event to each consumer.

void TAO_CEC_ProxyPushSupplier::push_nocopy (  CORBA::Any &event  ACE_ENV_ARG_DECL  )  [virtual]

void TAO_CEC_ProxyPushSupplier::push_to_consumer (  const CORBA::Any &event  ACE_ENV_ARG_DECL  )

Pushes to the consumer, verifies that it is connected.

void TAO_CEC_ProxyPushSupplier::reactive_push_to_consumer (  const CORBA::Any &event  ACE_ENV_ARG_DECL  )

void TAO_CEC_ProxyPushSupplier::shutdown (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

The event channel is shutting down.

---

Member Data Documentation

CORBA::ULong TAO_CEC_ProxyPushSupplier::_incr_refcnt

Increment and decrement the reference count.

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::consumer_ [private]

The consumer....

PortableServer::POA_var TAO_CEC_ProxyPushSupplier::default_POA_ [private]

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ProxyPushSupplier::event_channel_ [private]

The Event Channel that owns this object.

ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected

Return 0 if no consumer is connected...

ACE_Lock* TAO_CEC_ProxyPushSupplier::lock_ [private]

The locking strategy.

CORBA::ULong TAO_CEC_ProxyPushSupplier::refcount_ [private]

The reference count.

---

The documentation for this class was generated from the following files:

• CEC_ProxyPushSupplier.h
• CEC_ProxyPushSupplier.cpp
• CEC_ProxyPushSupplier.i

---
