ACE_UPIPE_Stream Class Reference

Defines the method that transfer data on a UPIPE. More...

#include <UPIPE_Stream.h>

Inheritance diagram for ACE_UPIPE_Stream:
Inheritance graph
[legend]

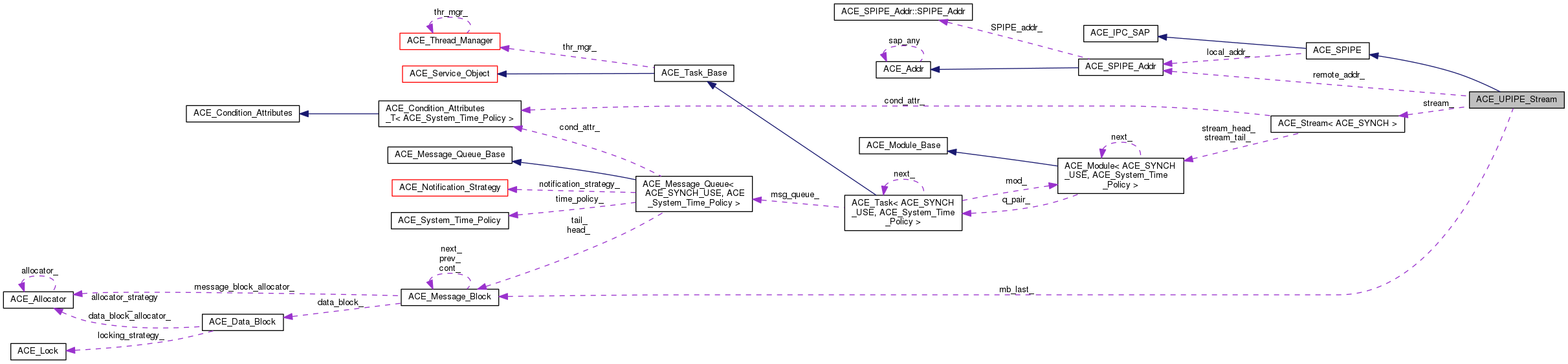

Collaboration diagram for ACE_UPIPE_Stream:
Collaboration graph
[legend]

Public Types

typedef ACE_Stream< ACE_SYNCHMT_Stream

typedef ACE_UPIPE_Addr PEER_ADDR


Public Member Functions

 ACE_UPIPE_Stream (void)

virtual ~ACE_UPIPE_Stream (void)

int close (void)
 Shut down the UPIPE and release resources. More...

ACE_HANDLE get_handle (void) const
 Return the underlying I/O handle. More...

int send (ACE_Message_Block *mb_p, ACE_Time_Value *timeout=0)

int recv (ACE_Message_Block *&mb_p, ACE_Time_Value *timeout=0)

ssize_t send (const char *buffer, size_t n, ACE_Time_Value *timeout=0)

ssize_t recv (char *buffer, size_t n, ACE_Time_Value *timeout=0)

ssize_t send_n (const char *buffer, size_t n, ACE_Time_Value *timeout=0)

ssize_t recv_n (char *buffer, size_t n, ACE_Time_Value *timeout=0)

int control (int cmd, void *val) const
 Perform control operations on the UPIPE_Stream. More...

int get_remote_addr (ACE_UPIPE_Addr &remote_sap) const
 Return the remote address we are connected to. More...

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_SPIPE
int close (void)
 Close down the SPIPE without removing the rendezvous point. More...

int remove (void)

int get_local_addr (ACE_SPIPE_Addr &) const
 Return the local address of this endpoint. More...

int disable (int signum) const

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_IPC_SAP
int control (int cmd, void *) const
 Interface for <ioctl>. More...

int enable (int value) const

int disable (int value) const

ACE_HANDLE get_handle (void) const
 Get the underlying handle. More...

void set_handle (ACE_HANDLE handle)
 Set the underlying handle. More...

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_SPIPE
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_IPC_SAP
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Attributes

ACE_Message_Blockmb_last_

ACE_UPIPE_Addr remote_addr_
 Address of who we are connected to. More...

MT_Stream stream_

int reference_count_
 Keep track of whether the sender and receiver have both shutdown. More...


Friends

class ACE_UPIPE_Acceptor

class ACE_UPIPE_Connector


Additional Inherited Members

- Protected Member Functions inherited from ACE_SPIPE
 ACE_SPIPE (void)
 Ensure that this class is an abstract base class. More...

- Protected Member Functions inherited from ACE_IPC_SAP
 ACE_IPC_SAP (void)
 Default constructor. More...

 ~ACE_IPC_SAP (void)
 Protected destructor. More...

- Protected Attributes inherited from ACE_SPIPE
ACE_SPIPE_Addr local_addr_
 Our local address. More...


Detailed Description

Defines the method that transfer data on a UPIPE.

Member Typedef Documentation

Constructor & Destructor Documentation

ACE_UPIPE_Stream::ACE_UPIPE_Stream ( void  )
ACE_UPIPE_Stream::~ACE_UPIPE_Stream ( void  )
virtual

Member Function Documentation

int ACE_UPIPE_Stream::close ( void  )

Shut down the UPIPE and release resources.

int ACE_UPIPE_Stream::control ( int  cmd,
void *  val
) const

Perform control operations on the UPIPE_Stream.

void ACE_UPIPE_Stream::dump ( void  ) const

Dump the state of an object.

ACE_HANDLE ACE_UPIPE_Stream::get_handle ( void  ) const
inline

Return the underlying I/O handle.

int ACE_UPIPE_Stream::get_remote_addr ( ACE_UPIPE_Addr remote_sap) const

Return the remote address we are connected to.

int ACE_UPIPE_Stream::recv ( ACE_Message_Block *&  mb_p,
ACE_Time_Value timeout = 0
)

Recv a message from the message queue. Returns -1 on error, else 0.

ssize_t ACE_UPIPE_Stream::recv ( char *  buffer,
size_t  n,
ACE_Time_Value timeout = 0
)

Recv a buffer of upto n bytes from the message queue. Returns -1 on error, else number of bytes read.

ssize_t ACE_UPIPE_Stream::recv_n ( char *  buffer,
size_t  n,
ACE_Time_Value timeout = 0
)

Recv a buffer of exactly n bytes from the message queue. Returns -1 on error, else the number of bytes read.

int ACE_UPIPE_Stream::send ( ACE_Message_Block mb_p,
ACE_Time_Value timeout = 0
)

Send a message through the message queue. Returns -1 on error, else 0.

ssize_t ACE_UPIPE_Stream::send ( const char *  buffer,
size_t  n,
ACE_Time_Value timeout = 0
)

Send a buffer of n bytes through the message queue. Returns -1 on error, else number of bytes sent.

ssize_t ACE_UPIPE_Stream::send_n ( const char *  buffer,
size_t  n,
ACE_Time_Value timeout = 0
)

Send a buffer of exactly n bytes to the message queue. Returns -1 on error, else number of bytes written (which should == n).

Friends And Related Function Documentation

friend class ACE_UPIPE_Acceptor
friend
friend class ACE_UPIPE_Connector
friend

Member Data Documentation

ACE_UPIPE_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Message_Block* ACE_UPIPE_Stream::mb_last_
private

To hold the last ACE_Message_Block read out of the stream. Thus allowing subsequent reads from one ACE_Message_Block

int ACE_UPIPE_Stream::reference_count_
private

Keep track of whether the sender and receiver have both shutdown.

ACE_UPIPE_Addr ACE_UPIPE_Stream::remote_addr_
private

Address of who we are connected to.

MT_Stream ACE_UPIPE_Stream::stream_
private

Stream component used by the UPIPE_Acceptor and UPIPE_Connector to link together two UPIPE_Streams.


The documentation for this class was generated from the following files:
