ACE_SPIPE Class Reference

Defines the member functions for the base class of the ACE_SPIPE abstraction. More...

#include <SPIPE.h>

Inheritance diagram for ACE_SPIPE:

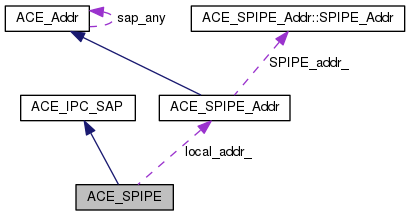

Collaboration diagram for ACE_SPIPE:

Public Member Functions
int	close (void)
	Close down the SPIPE without removing the rendezvous point. More...
int	remove (void)
int	get_local_addr (ACE_SPIPE_Addr &) const
	Return the local address of this endpoint. More...
int	disable (int signum) const
void	dump (void) const
	Dump the state of an object. More...
Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>. More...
int	enable (int value) const
int	disable (int value) const
ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...
void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...
void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...
Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Member Functions
	ACE_SPIPE (void)
	Ensure that this class is an abstract base class. More...
Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP (void)
	Default constructor. More...
	~ACE_IPC_SAP (void)
	Protected destructor. More...

Protected Attributes
ACE_SPIPE_Addr	local_addr_
	Our local address. More...

Detailed Description

Defines the member functions for the base class of the ACE_SPIPE abstraction.

ACE_SPIPE was designed as a wrapper facade for STREAM pipes. On Windows, however, ACE_SPIPE is a wrapper for Named Pipes. Therefore, on Windows, it is better to use the ACE_Proactor or blocking operations in lieu of using the ACE_Reactor.

See also

ACE_SPIPE_Acceptor for additional notes on use with ACE_Reactor on Windows.

Warning

Windows: Works only on Windows NT 4 and higher.

Works on non-Windows platforms only when ACE_HAS_STREAM_PIPES is defined.

Constructor & Destructor Documentation

ACE_SPIPE::ACE_SPIPE ( void  )

protected

Ensure that this class is an abstract base class.

Member Function Documentation

int ACE_SPIPE::close

(

void

)

Close down the SPIPE without removing the rendezvous point.

Closes the underlying pipe handle and sets this object's handle value to ACE_INVALID_HANDLE.

Returns

0 for success; -1 for failure. If a failure occurs, further error information is available from ACE_OS::last_error().

int ACE_SPIPE::disable ( int  signum ) const

inline

Disable signal

• signum.

  Note

  This reimplements the inherited method from ACE_IPC_SAP. Since the signal actions do not make any sense on Windows, this method intercepts the call and NOPs it. On non-Windows, it is passed through to ACE_IPC_SAP::disable().

void ACE_SPIPE::dump

(

void

)

const

Dump the state of an object.

int ACE_SPIPE::get_local_addr

(

ACE_SPIPE_Addr &

local_sap

)

const

Return the local address of this endpoint.

Returns the local address of the SPIPE's endpoint in

• addr.

  Returns

  0 for success; -1 for failure. If a failure occurs, further error information is available from ACE_OS::last_error().

int ACE_SPIPE::remove

(

void

)

Close down the SPIPE and remove the rendezvous point from the file system.

Returns

0 for success; -1 for failure. If a failure occurs, further error information is available from ACE_OS::last_error().

Member Data Documentation

ACE_SPIPE::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_SPIPE_Addr ACE_SPIPE::local_addr_

protected

Our local address.

---

The documentation for this class was generated from the following files:

• SPIPE.h
• SPIPE.cpp
• SPIPE.inl
