ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY > Class Template Reference

This class is the primary abstraction for the ASX framework. It is moduled after System V Stream. More...

#include <Stream.h>

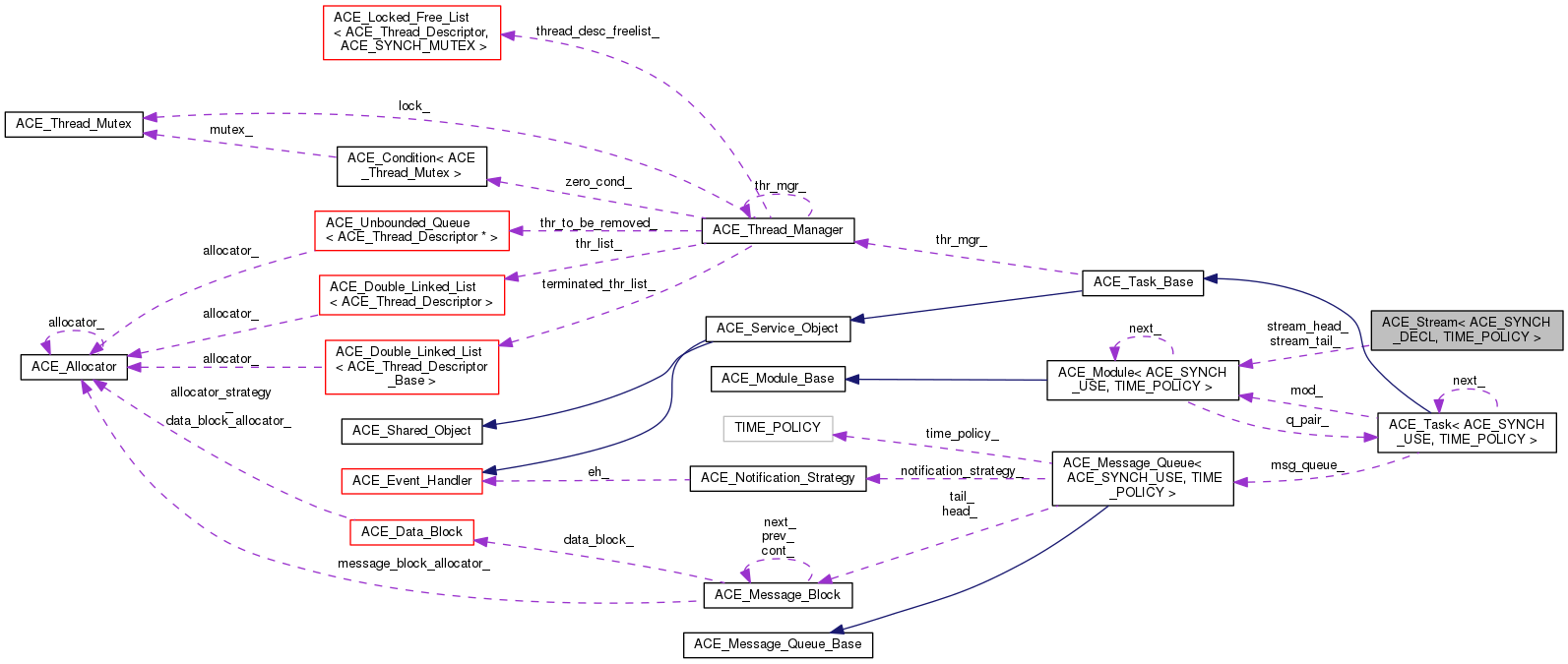

Collaboration diagram for ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >:
Collaboration graph
[legend]

Public Types

enum  { M_DELETE = 3 }


Public Member Functions

 ACE_Stream (void *arg=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *head=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *tail=0)

virtual int open (void *arg, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *head=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *tail=0)

virtual int close (int flags=M_DELETE)
 Close down the stream and release all the resources. More...

virtual ~ACE_Stream (void)
 Close down the stream and release all the resources. More...

virtual int push (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *mod)

virtual int pop (int flags=M_DELETE)
 Remove the mod right below the Stream head and close it down. More...

virtual int top (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *&mod)

virtual int insert (const ACE_TCHAR *prev_name, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *mod)
 Insert a new module mod below the named module prev_name. More...

virtual int replace (const ACE_TCHAR *replace_name, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *mod, int flags=M_DELETE)
 Replace the named module replace_name with a new module mod. More...

virtual int remove (const ACE_TCHAR *mod, int flags=M_DELETE)

virtual ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * head (void)
 Return current stream head. More...

virtual ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * tail (void)
 Return current stream tail. More...

virtual ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * find (const ACE_TCHAR *mod)
 Find a particular ACE_Module. More...

virtual int link (ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > &)
 Create a pipe between two Streams. More...

virtual int unlink (void)
 Remove a pipe formed between two Streams. More...

virtual int put (ACE_Message_Block *mb, ACE_Time_Value *timeout=0)

virtual int get (ACE_Message_Block *&mb, ACE_Time_Value *timeout=0)

virtual int control (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds cmd, void *args)
 Send control message down the stream. More...

virtual int wait (void)
 Synchronize with the final close of the stream. More...

virtual void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Member Functions

int unlink_i (void)

int link_i (ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > &)

int push_module (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *=0)
 Must a new module onto the Stream. More...


Private Attributes

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * stream_head_
 Pointer to the head of the stream. More...

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * stream_tail_
 Pointer to the tail of the stream. More...

ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > * linked_us_
 Pointer to an adjoining linked stream. More...

ACE_SYNCH_MUTEX_T lock_
 Protect the stream against race conditions. More...

ACE_Condition_Attributes_T< TIME_POLICY > cond_attr_
 Attributes to initialize condition with. More...

ACE_SYNCH_CONDITION_T final_close_
 Use to tell all threads waiting on the close that we are done. More...


Friends

class ACE_Stream_Iterator< ACE_SYNCH_USE, TIME_POLICY >


Detailed Description

template<ACE_SYNCH_DECL, class TIME_POLICY = ACE_System_Time_Policy>
class ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >

This class is the primary abstraction for the ASX framework. It is moduled after System V Stream.

A Stream consists of a stack of ACE_Modules, each of which contains two ACE_Tasks. Even though the methods in this class are virtual, this class isn't really intended for subclassing unless you know what you are doing. In particular, the ACE_Stream destructor calls <close>, which won't be overridden properly unless you call it in a subclass destructor.

Member Enumeration Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
anonymous enum
Enumerator
M_DELETE

Indicates that close() deletes the Tasks. Don't change this value without updating the same enum in class ACE_Module...

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY>
ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::ACE_Stream ( void *  arg = 0,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  head = 0,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  tail = 0
)

Create a Stream consisting of head and tail as the Stream head and Stream tail, respectively. If these are 0 then the ACE_Stream_Head and ACE_Stream_Tail are used, respectively. arg is the value past in to the <open> methods of the tasks.

template<ACE_SYNCH_DECL , class TIME_POLICY >
ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::~ACE_Stream ( void  )
virtual

Close down the stream and release all the resources.

Member Function Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::close ( int  flags = M_DELETE)
virtual

Close down the stream and release all the resources.

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::control ( ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds  cmd,
void *  args
)
virtual

Send control message down the stream.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
class TIME_POLICY void ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::dump ( void  ) const
virtual

Dump the state of an object.

template<ACE_SYNCH_DECL , class TIME_POLICY >
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::find ( const ACE_TCHAR mod)
virtual

Find a particular ACE_Module.

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::get ( ACE_Message_Block *&  mb,
ACE_Time_Value timeout = 0
)
virtual

Read the message mb that is stored in the stream head. Wait for upto timeout amount of absolute time for the operation to complete (or block forever if timeout == 0).

template<ACE_SYNCH_DECL , class TIME_POLICY >
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::head ( void  )
inlinevirtual

Return current stream head.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::insert ( const ACE_TCHAR prev_name,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  mod
)
virtual

Insert a new module mod below the named module prev_name.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::link ( ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > &  us)
virtual

Create a pipe between two Streams.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::link_i ( ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > &  us)
private

Actually perform the linking of two Streams (must be called with locks held).

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::open ( void *  arg,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  head = 0,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  tail = 0
)
virtual

Create a Stream consisting of head and tail as the Stream head and Stream tail, respectively. If these are 0 then the ACE_Stream_Head and ACE_Stream_Tail are used, respectively. arg is the value past in to the open() methods of the tasks.

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::pop ( int  flags = M_DELETE)
virtual

Remove the mod right below the Stream head and close it down.

are invoked to cleanup the tasks.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::push ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  mod)
virtual

Add a new module mod right below the Stream head. The open() hook methods of the ACE_Tasks in this ACE_Module are invoked to initialize the tasks.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::push_module ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  new_top,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  current_top = 0,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  head = 0
)
private

Must a new module onto the Stream.

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::put ( ACE_Message_Block mb,
ACE_Time_Value timeout = 0
)
virtual

Send the message mb down the stream, starting at the Module below the Stream head. Wait for upto timeout amount of absolute time for the operation to complete (or block forever if timeout == 0).

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::remove ( const ACE_TCHAR mod,
int  flags = M_DELETE
)
virtual

Remove the named module mod from the stream. This bypasses the strict LIFO ordering of push and pop.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::replace ( const ACE_TCHAR replace_name,
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  mod,
int  flags = M_DELETE
)
virtual

Replace the named module replace_name with a new module mod.

template<ACE_SYNCH_DECL , class TIME_POLICY >
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::tail ( void  )
inlinevirtual

Return current stream tail.

template<ACE_SYNCH_DECL , class TIME_POLICY>
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::top ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *&  mod)
virtual

Return the top module on the stream (right below the stream head).

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::unlink ( void  )
virtual

Remove a pipe formed between two Streams.

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::unlink_i ( void  )
private

Actually perform the unlinking of two Streams (must be called with locks held).

template<ACE_SYNCH_DECL , class TIME_POLICY >
int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::wait ( void  )
inlinevirtual

Synchronize with the final close of the stream.

Friends And Related Function Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
friend class ACE_Stream_Iterator< ACE_SYNCH_USE, TIME_POLICY >
friend

Member Data Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Condition_Attributes_T<TIME_POLICY> ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::cond_attr_
private

Attributes to initialize condition with.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_SYNCH_CONDITION_T ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::final_close_
private

Use to tell all threads waiting on the close that we are done.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Stream<ACE_SYNCH_USE, TIME_POLICY>* ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::linked_us_
private

Pointer to an adjoining linked stream.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_SYNCH_MUTEX_T ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::lock_
private

Protect the stream against race conditions.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module<ACE_SYNCH_USE, TIME_POLICY>* ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::stream_head_
private

Pointer to the head of the stream.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module<ACE_SYNCH_USE, TIME_POLICY>* ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::stream_tail_
private

Pointer to the tail of the stream.


The documentation for this class was generated from the following files:
