The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams. More...

#include <Service_Types.h>

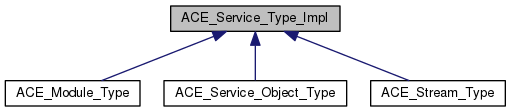

Inheritance diagram for ACE_Service_Type_Impl:

[legend]

Public Member Functions
	ACE_Service_Type_Impl (void object, const ACE_TCHAR s_name, u_int flags=0, ACE_Service_Object_Exterminator gobbler=0, int stype=ACE_Service_Type::INVALID_TYPE)

virtual	~ACE_Service_Type_Impl (void)

virtual int	suspend (void) const =0

virtual int	resume (void) const =0

virtual int	init (int argc, ACE_TCHAR *argv[]) const =0

virtual int	fini (void) const

virtual int	info (ACE_TCHAR **str, size_t len) const =0

void *	object (void) const
	The pointer to the service. More...

const ACE_TCHAR *	name (void) const
	Get the name of the service. More...

void	name (const ACE_TCHAR *)
	Set the name of the service. More...

void	dump (void) const
	Dump the state of an object. More...

int	service_type (void) const
	get the service_type of this service More...

void	service_type (int stype)
	set the service_type of this service More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Attributes
const ACE_TCHAR *	name_
	Name of the service. More...

void *	obj_

ACE_Service_Object_Exterminator	gobbler_
	Destroy function to deallocate obj_. More...

u_int	flags_
	Flags that control serivce behavior (particularly deletion). More...

int	service_type_

Detailed Description

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams.

This class provides the root of the implementation hierarchy of the "Bridge" pattern. It maintains a pointer to the appropriate type of service implementation, i.e., ACE_Service_Object, ACE_Module, or ACE_Stream.

Constructor & Destructor Documentation

ACE_Service_Type_Impl::ACE_Service_Type_Impl	(	void *	object,
		const ACE_TCHAR *	s_name,
		u_int	flags = `0`,
		ACE_Service_Object_Exterminator	gobbler = `0`,
		int	stype = `ACE_Service_Type::INVALID_TYPE`
	)

ACE_Service_Type_Impl::~ACE_Service_Type_Impl ( void )

virtual

Member Function Documentation

void ACE_Service_Type_Impl::dump ( void ) const

Dump the state of an object.

int ACE_Service_Type_Impl::fini ( void ) const

virtual

Reimplemented in ACE_Stream_Type, ACE_Module_Type, and ACE_Service_Object_Type.

virtual int ACE_Service_Type_Impl::info	(	ACE_TCHAR **	str,
		size_t	len
	)		const

pure virtual

Implemented in ACE_Stream_Type, ACE_Module_Type, and ACE_Service_Object_Type.

virtual int ACE_Service_Type_Impl::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)		const

pure virtual

Implemented in ACE_Stream_Type, ACE_Module_Type, and ACE_Service_Object_Type.

const ACE_TCHAR * ACE_Service_Type_Impl::name ( void ) const

inline

Get the name of the service.

void ACE_Service_Type_Impl::name ( const ACE_TCHAR * n )

inline

Set the name of the service.

void * ACE_Service_Type_Impl::object ( void ) const

inline

The pointer to the service.

virtual int ACE_Service_Type_Impl::resume ( void ) const

pure virtual

Implemented in ACE_Stream_Type, ACE_Module_Type, and ACE_Service_Object_Type.

int ACE_Service_Type_Impl::service_type ( void ) const

inline

get the service_type of this service

void ACE_Service_Type_Impl::service_type ( int stype )

inline

set the service_type of this service

virtual int ACE_Service_Type_Impl::suspend ( void ) const

pure virtual

Implemented in ACE_Stream_Type, ACE_Module_Type, and ACE_Service_Object_Type.

Member Data Documentation

ACE_Service_Type_Impl::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

u_int ACE_Service_Type_Impl::flags_

protected

Flags that control serivce behavior (particularly deletion).

ACE_Service_Object_Exterminator ACE_Service_Type_Impl::gobbler_

protected

Destroy function to deallocate obj_.

const ACE_TCHAR* ACE_Service_Type_Impl::name_

protected

Name of the service.

void* ACE_Service_Type_Impl::obj_

protected

Pointer to object that implements the service. This actually points to an ACE_Service_Object, ACE_Module, or ACE_Stream.

int ACE_Service_Type_Impl::service_type_

protected

type of this service Used to properly manage the lifecycle of ACE_Modules and ACE_Streams during shutdown
