ACE_Service_Type Class Reference

Keeps track of information related to the various ACE_Service_Type_Impl subclasses. More...

#include <Service_Object.h>

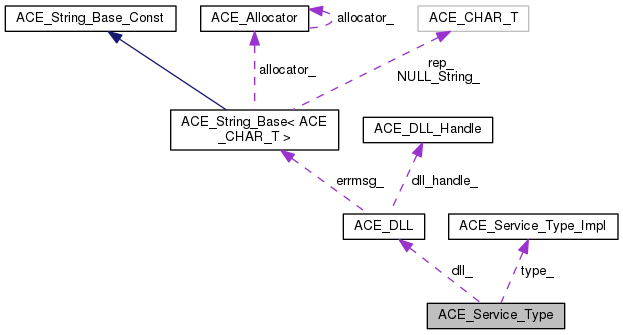

Collaboration diagram for ACE_Service_Type:

Public Types
enum	{ DELETE_OBJ = 1, DELETE_THIS = 2 }
enum	{ SERVICE_OBJECT = ACE_SVC_OBJ_T, MODULE = ACE_MODULE_T, STREAM = ACE_STREAM_T, INVALID_TYPE = -1 }

Public Member Functions
	ACE_Service_Type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, const ACE_DLL &dll, bool active)
	ACE_Service_Type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, ACE_SHLIB_HANDLE handle, bool active)
	~ACE_Service_Type (void)
const ACE_TCHAR *	name (void) const
void	name (const ACE_TCHAR *)
const ACE_Service_Type_Impl *	type (void) const
void	type (const ACE_Service_Type_Impl *, bool active=true)
bool	is_forward_declaration (void) const
	Is this just a stub for the real thing? More...
int	suspend (void) const
int	resume (void) const
bool	active (void) const
void	active (bool turnon)
int	fini (void)
	Calls fini on type_. More...
bool	fini_called (void) const
	Check if the service has been fini'ed. More...
void	dump (void) const
	Dump the state of an object. More...
const ACE_DLL &	dll (void) const
	Get to the DLL's implentation. More...
void	dll (const ACE_DLL &)
	Sets the DLL. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Attributes
const ACE_TCHAR *	name_
	Humanly readible name of svc. More...
const ACE_Service_Type_Impl *	type_
	Pointer to C++ object that implements the svc. More...
ACE_DLL	dll_
bool	active_
	true if svc is currently active, otherwise false. More...
bool	fini_already_called_
	true if fini on type_ has already been called, otherwise false. More...

Detailed Description

Keeps track of information related to the various ACE_Service_Type_Impl subclasses.

This class acts as the interface of the "Bridge" pattern.

Member Enumeration Documentation

anonymous enum

Enumerator
DELETE_OBJ	Delete the payload object.
DELETE_THIS	Delete the enclosing object.

anonymous enum

Enumerator
SERVICE_OBJECT
MODULE
STREAM
INVALID_TYPE

Constructor & Destructor Documentation

ACE_Service_Type::ACE_Service_Type	(	const ACE_TCHAR *	n,
		ACE_Service_Type_Impl *	o,
		const ACE_DLL &	dll,
		bool	active
	)

ACE_Service_Type::ACE_Service_Type	(	const ACE_TCHAR *	n,
		ACE_Service_Type_Impl *	o,
		ACE_SHLIB_HANDLE	handle,
		bool	active
	)

ACE_Service_Type::~ACE_Service_Type

(

void

)

Member Function Documentation

bool ACE_Service_Type::active ( void  ) const

inline

void ACE_Service_Type::active ( bool  turnon )

inline

const ACE_DLL & ACE_Service_Type::dll ( void  ) const

inline

Get to the DLL's implentation.

void ACE_Service_Type::dll ( const ACE_DLL &  adll )

inline

Sets the DLL.

void ACE_Service_Type::dump

(

void

)

const

Dump the state of an object.

int ACE_Service_Type::fini

(

void

)

Calls fini on type_.

bool ACE_Service_Type::fini_called ( void  ) const

inline

Check if the service has been fini'ed.

bool ACE_Service_Type::is_forward_declaration

(

void

)

const

Is this just a stub for the real thing?

const ACE_TCHAR * ACE_Service_Type::name ( void  ) const

inline

void ACE_Service_Type::name

(

const ACE_TCHAR *

n

)

int ACE_Service_Type::resume

(

void

)

const

int ACE_Service_Type::suspend

(

void

)

const

const ACE_Service_Type_Impl * ACE_Service_Type::type ( void  ) const

inline

void ACE_Service_Type::type ( const ACE_Service_Type_Impl *  o, bool  active = true  )

inline

Member Data Documentation

ACE_Service_Type::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

bool ACE_Service_Type::active_

private

true if svc is currently active, otherwise false.

ACE_DLL ACE_Service_Type::dll_

mutableprivate

ACE_DLL representing the shared object file (non-zero if dynamically linked).

bool ACE_Service_Type::fini_already_called_

private

true if fini on type_ has already been called, otherwise false.

const ACE_TCHAR* ACE_Service_Type::name_

private

Humanly readible name of svc.

const ACE_Service_Type_Impl* ACE_Service_Type::type_

private

Pointer to C++ object that implements the svc.

---

The documentation for this class was generated from the following files:

• Service_Object.h
• Service_Object.cpp
• Service_Object.inl
