TAO_CosNotification  2.3.2
Public Types | Public Member Functions | Private Member Functions | Private Attributes | Friends | List of all members
TAO_Notify_ProxySupplier Class Reference

Base class for all the ProxySuppliers. More...

#include <ProxySupplier.h>

Inheritance diagram for TAO_Notify_ProxySupplier:
Inheritance graph
[legend]

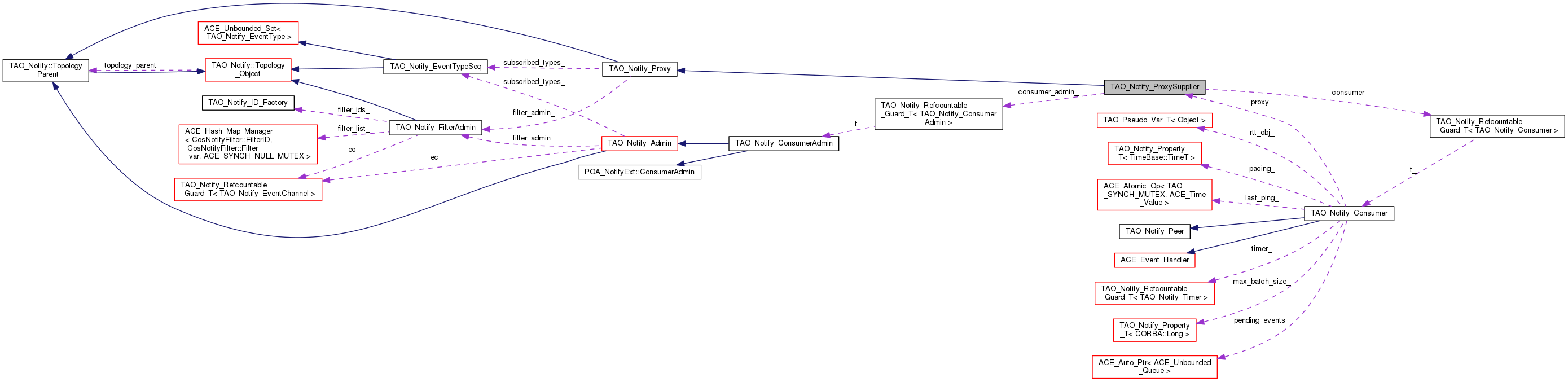

Collaboration diagram for TAO_Notify_ProxySupplier:
Collaboration graph
[legend]

Public Types

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ProxySupplierPtr

- Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_ProxyPtr

typedef CosNotifyChannelAdmin::ProxyIDSeq SEQ

typedef CosNotifyChannelAdmin::ProxyIDSeq_var SEQ_VAR

- Public Types inherited from TAO_Notify_Object
typedef CORBA::Long ID
 Id for Objects. More...

- Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_RefcountablePtr


Public Member Functions

 TAO_Notify_ProxySupplier (void)
 Constructor. More...

virtual ~TAO_Notify_ProxySupplier ()
 Destructor. More...

virtual void init (TAO_Notify_ConsumerAdmin *consumer_admin)
 Init. More...

void connect (TAO_Notify_Consumer *consumer)
 Connect. More...

void disconnect (void)
 Disconnect. More...

virtual void deliver (TAO_Notify_Method_Request_Dispatch_No_Copy &request)
 Dispatch Event to consumer. More...

virtual int shutdown (void)
 Override TAO_Notify_Container_T::shutdown method. More...

virtual void destroy (void)
 Destroy this object. More...

void destroy (bool from_timeout)

virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)
 Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS. More...

bool is_connected (void) const
 Returns true if connected. More...

TAO_Notify_Consumerconsumer (void)
 Access the Consumer. More...

TAO_Notify_ConsumerAdminconsumer_admin (void)
 The CA parent. More...

- Public Member Functions inherited from TAO_Notify_Proxy
 TAO_Notify_Proxy (void)
 Constructor. More...

virtual ~TAO_Notify_Proxy ()
 Destructor. More...

virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate. More...

virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with a given ID. More...

void deactivate (void)
 Deactivate. More...

void subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
 Obtain the Proxy's subscribed types. More...

CORBA::Boolean check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
 Check if this event passes the admin and proxy filters. More...

void types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
 Inform this proxy that the following types are being advertised. More...

CORBA::Boolean updates_off (void)
 Have updates been turned off. More...

virtual CosNotification::EventTypeSeqobtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
 Implement the Obtain Types. More...

virtual void admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
 Notification of subscriptions/offers set at the admin. More...

virtual void save_persistent (TAO_Notify::Topology_Saver &saver)

virtual void save_attrs (TAO_Notify::NVPList &attrs)

virtual const char * get_proxy_type_name (void) const =0

virtual TAO_Notify::Topology_Objectload_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
 Create a child of the appropriate type and return it. More...

virtual void validate ()=0

- Public Member Functions inherited from TAO_Notify::Topology_Parent
bool child_change (void)

- Public Member Functions inherited from TAO_Notify::Topology_Object
 Topology_Object ()
 The constructor. More...

virtual ~Topology_Object ()
 The destructor. More...

virtual void initialize (Topology_Parent *topology_parent)
 Init this object with data from <rhs>. More...

virtual TAO_Notify_Object::ID get_id (void) const
 Find the id associated with topology object. More...

void get_id_path (IdVec &id_path) const
 Get the path of id's from the root to this object. More...

bool is_changed (void) const
 Is there an unsaved change for this object or its children? More...

- Public Member Functions inherited from TAO_Notify_Object
virtual ~TAO_Notify_Object (void)
 Destructor. More...

ID id (void) const
 This Object's ID. More...

void deactivate (void)
 Deactivate. More...

bool has_shutdown (void)
 Have we been shutdown. returns true if shutdown. More...

void execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr ref (void)
 Get CORBA Ref. More...

virtual void set_qos (const CosNotification::QoSProperties &qos)
 Set the QoS Properties. More...

CosNotification::QoSPropertiesget_qos (void)
 Get the QoS Properties. More...

bool find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timertimer (void)
 Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Managerevent_manager (void)
 Accessor for the Event Manager. More...

virtual void load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Taskget_worker_task (void)
 Allow access to the underlying worker task. More...

- Public Member Functions inherited from TAO_Notify_Refcountable
 TAO_Notify_Refcountable (void)
 Constructor. More...

virtual ~TAO_Notify_Refcountable ()

CORBA::ULong _incr_refcnt (void)

CORBA::ULong _decr_refcnt (void)

- Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual ~Topology_Savable (void)
 Destructor. More...

virtual void reconnect (void)


Private Member Functions

virtual TAO_Notify_Peerpeer (void)
 Access our Peer. More...


Private Attributes

TAO_Notify_ConsumerAdmin::Ptr consumer_admin_

TAO_Notify_Consumer::Ptr consumer_
 The Consumer that we're connect to. More...


Friends

class TAO_Notify_Consumer


Additional Inherited Members

- Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool is_persistent (void) const
 Should this object be saved? More...

bool self_change (void)
 Method to report change in this object. More...

Topology_Parenttopology_parent () const
 pointer to our topological parent More...

bool send_change (void)
 Handle details of propagating change. More...

bool send_deletion_change ()
 Handle details of propagating change for a deleted object. More...

- Protected Member Functions inherited from TAO_Notify_Object
 TAO_Notify_Object (void)
 Constructor. More...

void initialize (TAO_Notify_Object *parent)
 Init this object with data from <rhs>. More...

void inherit_poas (TAO_Notify_Object &parent)
 Uses the poas from the supplied object. More...

void adopt_poa (TAO_Notify_POA_Helper *single)
 Adopts the supplied poa as all are poas. More...

void set_primary_as_proxy_poa ()
 Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helperproxy_poa (void)
 Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helperobject_poa (void)
 Accessor for the object_poa_. More...

TAO_Notify_POA_Helperpoa (void)
 Get the POA assigned to us. More...

void set_event_manager (TAO_Notify_Event_Manager *event_manager)

void set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminPropertiesadmin_properties (void)
 Accessor for the Admin Properties. More...

- Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin filter_admin_
 Filter Administration. More...

TAO_Notify_EventTypeSeq subscribed_types_
 The types that we're subscribed with the event manager. More...

CORBA::Boolean updates_off_
 True if updates have been turned off. More...

- Protected Attributes inherited from TAO_Notify::Topology_Object
bool self_changed_
 true if this object changed since last save_persistent More...

bool children_changed_
 true of any of this object's children changed since last save_persistent More...

Topology_Parenttopology_parent_
 A safely-typed copy of parent_;. More...

- Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties qos_properties_
 = Protected data members. More...

TAO_SYNCH_MUTEX lock_
 The mutex to serialize access to state variables. More...


Detailed Description

Base class for all the ProxySuppliers.

Member Typedef Documentation

Constructor & Destructor Documentation

TAO_Notify_ProxySupplier::TAO_Notify_ProxySupplier ( void  )

Constructor.

TAO_Notify_ProxySupplier::~TAO_Notify_ProxySupplier ( )
virtual

Destructor.

Member Function Documentation

void TAO_Notify_ProxySupplier::connect ( TAO_Notify_Consumer consumer)

Connect.

TAO_Notify_Consumer * TAO_Notify_ProxySupplier::consumer ( void  )

Access the Consumer.

TAO_Notify_ConsumerAdmin & TAO_Notify_ProxySupplier::consumer_admin ( void  )

The CA parent.

void TAO_Notify_ProxySupplier::deliver ( TAO_Notify_Method_Request_Dispatch_No_Copy request)
virtual

Dispatch Event to consumer.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

void TAO_Notify_ProxySupplier::destroy ( void  )
virtual

Destroy this object.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::destroy ( bool  from_timeout)

Destroy this object, but also indicate if it is due to a timeout or not.

void TAO_Notify_ProxySupplier::disconnect ( void  )

Disconnect.

void TAO_Notify_ProxySupplier::init ( TAO_Notify_ConsumerAdmin consumer_admin)
virtual

Init.

bool TAO_Notify_ProxySupplier::is_connected ( void  ) const

Returns true if connected.

TAO_Notify_Peer * TAO_Notify_ProxySupplier::peer ( void  )
privatevirtual

Access our Peer.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::qos_changed ( const TAO_Notify_QoSProperties qos_properties)
virtual

Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.

Reimplemented from TAO_Notify_Proxy.

int TAO_Notify_ProxySupplier::shutdown ( void  )
virtual

Override TAO_Notify_Container_T::shutdown method.

Reimplemented from TAO_Notify_Object.

Friends And Related Function Documentation

friend class TAO_Notify_Consumer
friend

Member Data Documentation

TAO_Notify_Consumer::Ptr TAO_Notify_ProxySupplier::consumer_
private

The Consumer that we're connect to.

TAO_Notify_ConsumerAdmin::Ptr TAO_Notify_ProxySupplier::consumer_admin_
private

= Data Members. The CA parent.


The documentation for this class was generated from the following files:
