TAO_Notify::Topology_Object Class Reference

Base class for Persistent Topology Objects. More...

#include <Topology_Object.h>

Inheritance diagram for TAO_Notify::Topology_Object:
Inheritance graph
[legend]

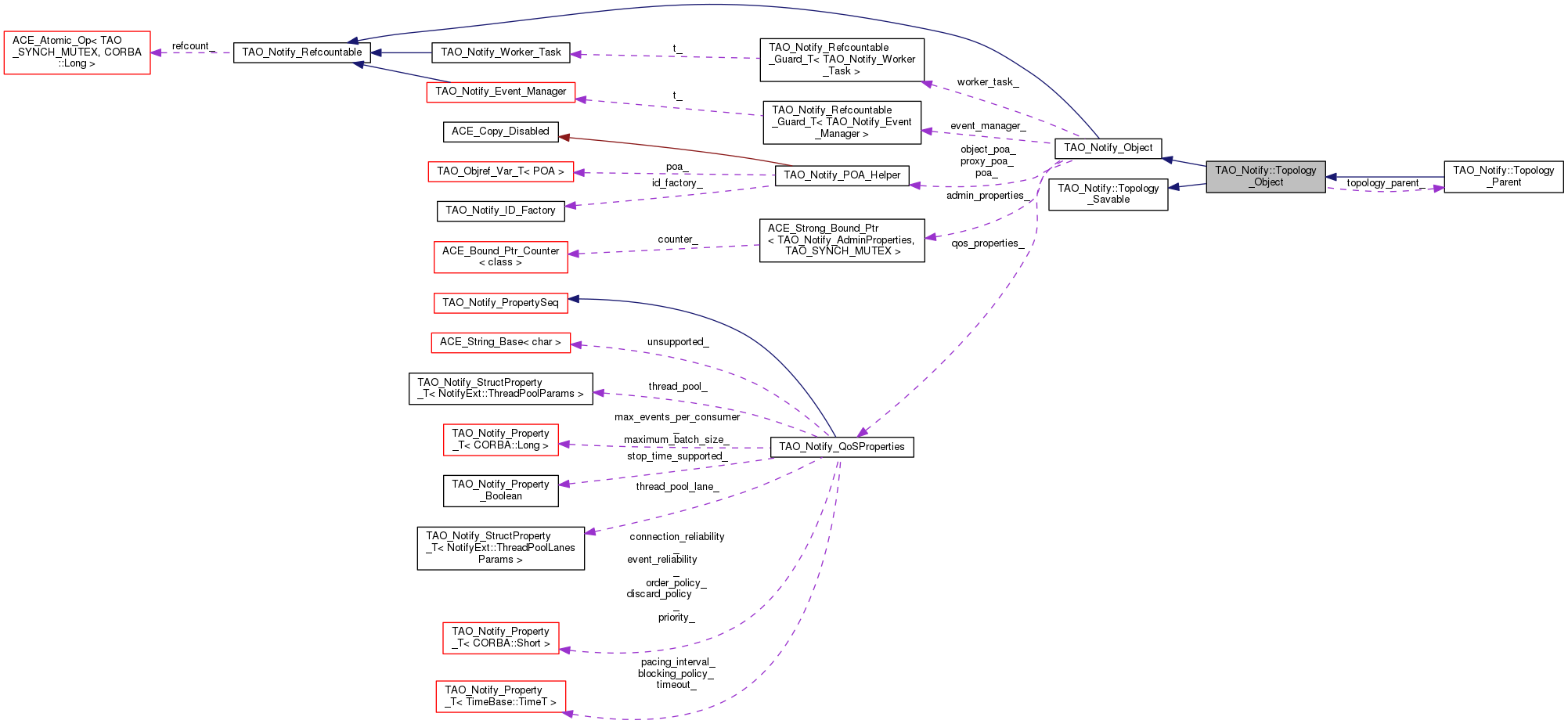

Collaboration diagram for TAO_Notify::Topology_Object:
Collaboration graph
[legend]

Public Member Functions

 Topology_Object ()
 The constructor. More...

virtual ~Topology_Object ()
 The destructor. More...

virtual void initialize (Topology_Parent *topology_parent)
 Init this object with data from <rhs>. More...

virtual Topology_Objectload_child (const ACE_CString &type, CORBA::Long id, const NVPList &attrs)
 Create a child of the appropriate type and return it. More...

virtual TAO_Notify_Object::ID get_id (void) const
 Find the id associated with topology object. More...

void get_id_path (IdVec &id_path) const
 Get the path of id's from the root to this object. More...

bool is_changed (void) const
 Is there an unsaved change for this object or its children? More...

- Public Member Functions inherited from TAO_Notify_Object
virtual ~TAO_Notify_Object (void)
 Destructor. More...

ID id (void) const
 This Object's ID. More...

virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate. More...

virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with existing id. More...

void deactivate (void)
 Deactivate. More...

bool has_shutdown (void)
 Have we been shutdown. returns true if shutdown. More...

void execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr ref (void)
 Get CORBA Ref. More...

virtual void set_qos (const CosNotification::QoSProperties &qos)
 Set the QoS Properties. More...

CosNotification::QoSPropertiesget_qos (void)
 Get the QoS Properties. More...

bool find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timertimer (void)
 Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Managerevent_manager (void)
 Accessor for the Event Manager. More...

virtual int shutdown (void)
 Shutdown. Returns 1 if the shutdown was already run once before. More...

virtual void load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Taskget_worker_task (void)
 Allow access to the underlying worker task. More...

- Public Member Functions inherited from TAO_Notify_Refcountable
 TAO_Notify_Refcountable (void)
 Constructor. More...

virtual ~TAO_Notify_Refcountable ()

CORBA::ULong _incr_refcnt (void)

CORBA::ULong _decr_refcnt (void)

- Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual ~Topology_Savable (void)
 Destructor. More...

virtual void save_persistent (Topology_Saver &saver)=0

virtual void reconnect (void)


Protected Member Functions

virtual bool is_persistent (void) const
 Should this object be saved? More...

bool self_change (void)
 Method to report change in this object. More...

Topology_Parenttopology_parent () const
 pointer to our topological parent More...

bool send_change (void)
 Handle details of propagating change. More...

bool send_deletion_change ()
 Handle details of propagating change for a deleted object. More...

- Protected Member Functions inherited from TAO_Notify_Object
 TAO_Notify_Object (void)
 Constructor. More...

void initialize (TAO_Notify_Object *parent)
 Init this object with data from <rhs>. More...

void inherit_poas (TAO_Notify_Object &parent)
 Uses the poas from the supplied object. More...

void adopt_poa (TAO_Notify_POA_Helper *single)
 Adopts the supplied poa as all are poas. More...

void set_primary_as_proxy_poa ()
 Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helperproxy_poa (void)
 Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helperobject_poa (void)
 Accessor for the object_poa_. More...

TAO_Notify_POA_Helperpoa (void)
 Get the POA assigned to us. More...

void set_event_manager (TAO_Notify_Event_Manager *event_manager)

void set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminPropertiesadmin_properties (void)
 Accessor for the Admin Properties. More...

virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)

virtual void save_attrs (TAO_Notify::NVPList &attrs)


Protected Attributes

bool self_changed_
 true if this object changed since last save_persistent More...

bool children_changed_
 true of any of this object's children changed since last save_persistent More...

Topology_Parenttopology_parent_
 A safely-typed copy of parent_;. More...

- Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties qos_properties_
 = Protected data members. More...

TAO_SYNCH_MUTEX lock_
 The mutex to serialize access to state variables. More...


Private Member Functions

virtual bool change_to_parent (void)
 Send change to parent. More...


Additional Inherited Members

- Public Types inherited from TAO_Notify_Object
typedef CORBA::Long ID
 Id for Objects. More...

- Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_RefcountablePtr


Detailed Description

Base class for Persistent Topology Objects.

Topology objects must be derived from this class to allow themselves to be persisted. Note: virtual inheritance from TopologySavable is unnecessary, but HP ACC compiler warns if it's not there.

Constructor & Destructor Documentation

TAO_Notify::Topology_Object::Topology_Object ( )

The constructor.

TAO_Notify::Topology_Object::~Topology_Object ( )
virtual

The destructor.

Member Function Documentation

bool TAO_Notify::Topology_Object::change_to_parent ( void  )
privatevirtual

Send change to parent.

Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()

Returns
false if save will never happen

Reimplemented in TAO_Notify_EventChannelFactory.

TAO_Notify_Object::ID TAO_Notify::Topology_Object::get_id ( void  ) const
virtual

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id – we just need someone to find it for us.

Reimplemented in TAO_Notify_EventChannelFactory, and TAO_Notify_EventChannel.

void TAO_Notify::Topology_Object::get_id_path ( TAO_Notify::IdVec id_path) const

Get the path of id's from the root to this object.

void TAO_Notify::Topology_Object::initialize ( Topology_Parent topology_parent)
virtual

Init this object with data from <rhs>.

bool TAO_Notify::Topology_Object::is_changed ( void  ) const

Is there an unsaved change for this object or its children?

bool TAO_Notify::Topology_Object::is_persistent ( void  ) const
protectedvirtual

Should this object be saved?

This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.

Returns
true (default) if object should be saved.

Reimplemented in TAO_Notify_EventChannelFactory.

Topology_Object * TAO_Notify::Topology_Object::load_child ( const ACE_CString type,
CORBA::Long  id,
const NVPList attrs
)
virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented in TAO_Notify_Proxy, TAO_Notify_EventChannelFactory, TAO_Notify_ETCL_Filter, TAO_Notify_EventChannel, TAO_Notify_Admin, TAO_Notify::Reconnection_Registry, TAO_Notify_ETCL_FilterFactory, TAO_Notify_EventTypeSeq, TAO_Notify_FilterAdmin, TAO_Notify_SupplierAdmin, TAO_Notify_ConsumerAdmin, and TAO_Notify_Constraint_Expr.

bool TAO_Notify::Topology_Object::self_change ( void  )
protected

Method to report change in this object.

see also Topology_Parent::child_change ()

Returns
false if save will never happen
bool TAO_Notify::Topology_Object::send_change ( void  )
protected

Handle details of propagating change.

Returns
false if save will never happen
bool TAO_Notify::Topology_Object::send_deletion_change ( void  )
protected

Handle details of propagating change for a deleted object.

Returns
false if save will never happen
Topology_Parent * TAO_Notify::Topology_Object::topology_parent ( ) const
protected

pointer to our topological parent

Returns
0 if none

Member Data Documentation

bool TAO_Notify::Topology_Object::children_changed_
protected

true of any of this object's children changed since last save_persistent

bool TAO_Notify::Topology_Object::self_changed_
protected

true if this object changed since last save_persistent

Topology_Parent* TAO_Notify::Topology_Object::topology_parent_
protected

A safely-typed copy of parent_;.


The documentation for this class was generated from the following files:
