ProxyPushSupplier. More...

#include <EC_ProxySupplier.h>

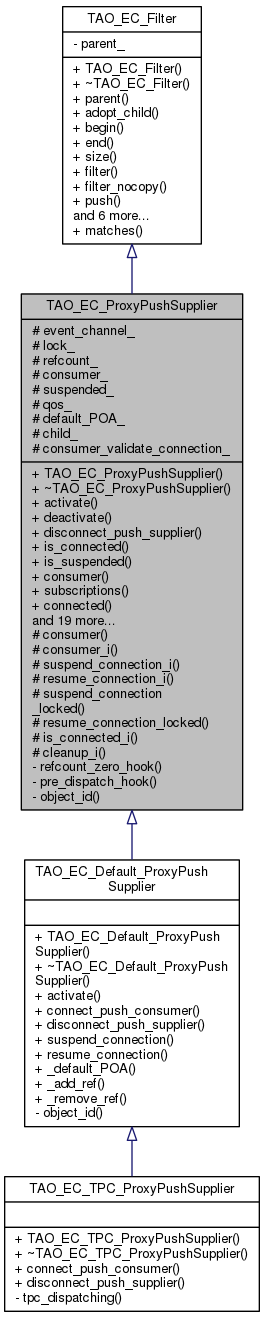

Inheritance diagram for TAO_EC_ProxyPushSupplier:

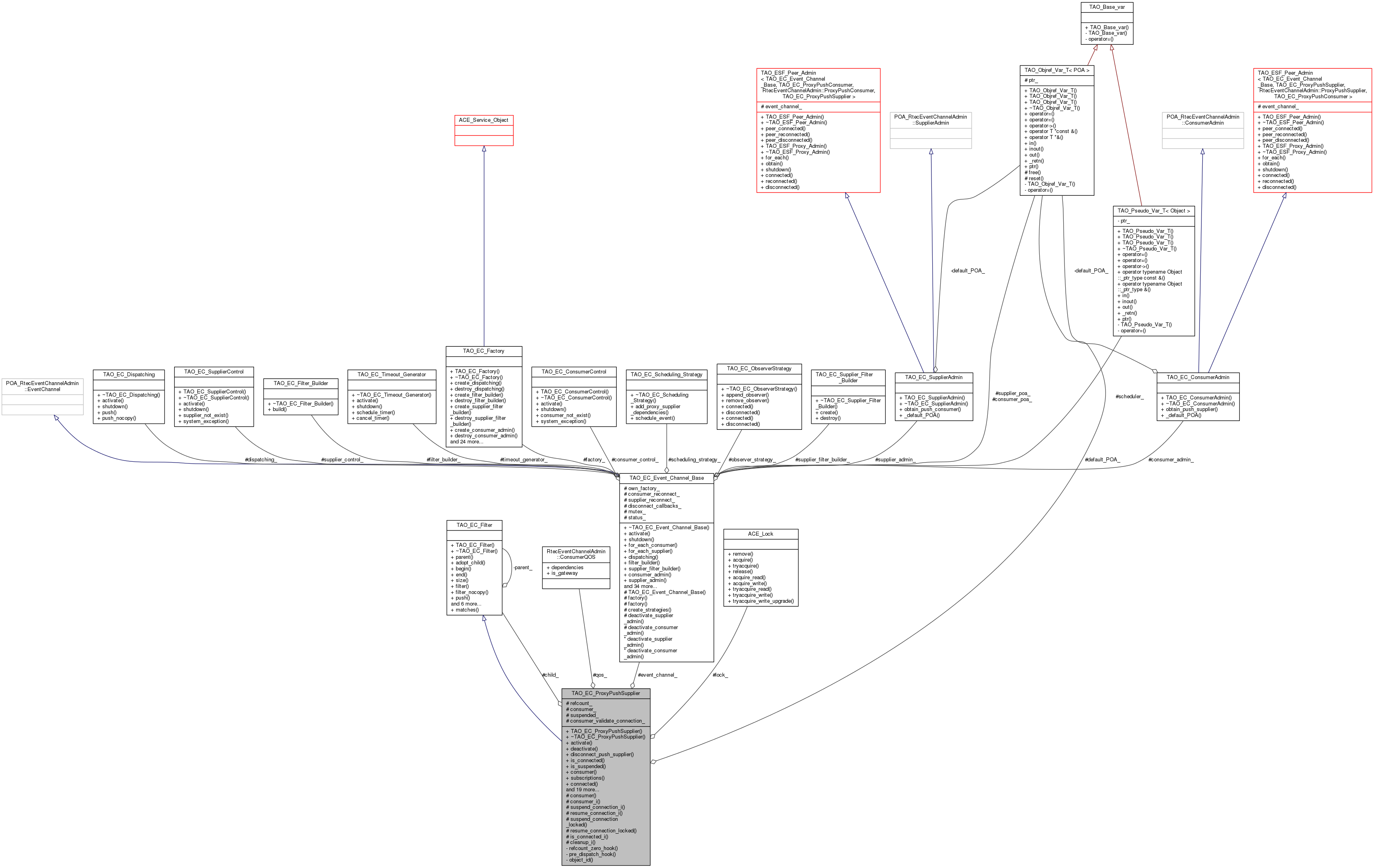

Collaboration diagram for TAO_EC_ProxyPushSupplier:

Public Types
typedef RtecEventChannelAdmin::ProxyPushSupplier	Interface

typedef RtecEventChannelAdmin::ProxyPushSupplier_var	_var_type

typedef RtecEventChannelAdmin::ProxyPushSupplier_ptr	_ptr_type

Public Types inherited from TAO_EC_Filter
typedef TAO_EC_Filter *	value_type

typedef TAO_EC_Filter *const	const_value_type

typedef const_value_type *	ChildrenIterator

Public Member Functions
	TAO_EC_ProxyPushSupplier (TAO_EC_Event_Channel_Base *event_channel, int validate_connection)
	Constructor... More...

virtual	~TAO_EC_ProxyPushSupplier (void)
	Destructor... More...

virtual void	activate (RtecEventChannelAdmin::ProxyPushSupplier_ptr &proxy)=0
	Activate in the POA. More...

virtual void	deactivate (void) throw ()
	Deactivate from the POA. More...

virtual void	disconnect_push_supplier ()=0
	Disconnect this from. More...

CORBA::Boolean	is_connected (void) const
	Return false if no consumer is connected... More...

CORBA::Boolean	is_suspended (void) const
	Return true if it is suspended. More...

RtecEventComm::PushConsumer_ptr	consumer (void) const

const RtecEventChannelAdmin::ConsumerQOS &	subscriptions (void) const
	The QoS (subscription) used to connect to the EC. More...

virtual void	connected (TAO_EC_ProxyPushConsumer *consumer)

virtual void	reconnected (TAO_EC_ProxyPushConsumer *consumer)

virtual void	disconnected (TAO_EC_ProxyPushConsumer *consumer)

virtual void	connected (TAO_EC_ProxyPushSupplier *supplier)

virtual void	reconnected (TAO_EC_ProxyPushSupplier *supplier)

virtual void	disconnected (TAO_EC_ProxyPushSupplier *supplier)

virtual void	shutdown (void)
	The event channel is shutting down. More...

void	push_to_consumer (RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event)

void	reactive_push_to_consumer (RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event)

CORBA::Boolean	consumer_non_existent (CORBA::Boolean_out disconnected)

CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count. More...

CORBA::ULong	_decr_refcnt (void)

virtual int	filter (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual int	filter_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void	push (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void	push_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void	clear (void)

virtual CORBA::ULong	max_event_size (void) const
	Returns the maximum size of the events pushed by this filter. More...

virtual int	can_match (const RtecEventComm::EventHeader &header) const

virtual int	add_dependencies (const RtecEventComm::EventHeader &header, const TAO_EC_QOS_Info &qos_info)

Public Member Functions inherited from TAO_EC_Filter
	TAO_EC_Filter (void)
	constructor... More...

virtual	~TAO_EC_Filter (void)
	destructor... More...

TAO_EC_Filter *	parent (void) const
	Obtain the parent of this filter. More...

void	adopt_child (TAO_EC_Filter *child)
	Become the parent of child. More...

virtual ChildrenIterator	begin (void) const

virtual ChildrenIterator	end (void) const

virtual int	size (void) const

virtual void	get_qos_info (TAO_EC_QOS_Info &qos_info)

Protected Member Functions
void	consumer (RtecEventComm::PushConsumer_ptr consumer)

void	consumer_i (RtecEventComm::PushConsumer_ptr consumer)

void	suspend_connection_i (void)

void	resume_connection_i (void)

void	suspend_connection_locked (void)

void	resume_connection_locked (void)

CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected(). More...

void	cleanup_i (void)
	Release the child and the consumer. More...

Protected Attributes
TAO_EC_Event_Channel_Base *	event_channel_
	The Event Channel that owns this object. More...

ACE_Lock *	lock_
	The locking strategy. More...

CORBA::ULong	refcount_
	The reference count. More...

RtecEventComm::PushConsumer_var	consumer_
	The consumer.... More...

CORBA::Boolean	suspended_
	Is this consumer suspended? More...

RtecEventChannelAdmin::ConsumerQOS	qos_
	The subscription and QoS information... More...

PortableServer::POA_var	default_POA_
	Store the default POA. More...

TAO_EC_Filter *	child_
	The filter object. More...

int	consumer_validate_connection_
	Validate the connection to consumer on connect. More...

Private Member Functions
virtual void	refcount_zero_hook (void)
	Template method hooks. More...

virtual void	pre_dispatch_hook (RtecEventComm::EventSet &)

virtual PortableServer::ObjectId	object_id (void)=0

Additional Inherited Members
Static Public Member Functions inherited from TAO_EC_Filter
static int	matches (const RtecEventComm::EventHeader &rhs, const RtecEventComm::EventHeader &lhs)

Detailed Description

ProxyPushSupplier.

Implement the RtecEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel.

Memory Management

It does not assume ownership of the TAO_EC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference.

Locking

Locking is strategized, the event channel acts as a factory for the locking strategies.

Todo:: We don't need to provide a trivial filter, the object itself could short-circuit the filter() —> push() cycle when the EC is properly configured, we need to explore this...

Member Typedef Documentation

typedef RtecEventChannelAdmin::ProxyPushSupplier_ptr TAO_EC_ProxyPushSupplier::_ptr_type

typedef RtecEventChannelAdmin::ProxyPushSupplier_var TAO_EC_ProxyPushSupplier::_var_type

typedef RtecEventChannelAdmin::ProxyPushSupplier TAO_EC_ProxyPushSupplier::Interface

Constructor & Destructor Documentation

TAO_EC_ProxyPushSupplier::TAO_EC_ProxyPushSupplier	(	TAO_EC_Event_Channel_Base *	event_channel,
		int	validate_connection
	)

Constructor...

TAO_EC_ProxyPushSupplier::~TAO_EC_ProxyPushSupplier ( void )

virtual

Destructor...

Member Function Documentation

CORBA::ULong TAO_EC_ProxyPushSupplier::_decr_refcnt ( void )

CORBA::ULong TAO_EC_ProxyPushSupplier::_incr_refcnt ( void )

Increment and decrement the reference count.

virtual void TAO_EC_ProxyPushSupplier::activate ( RtecEventChannelAdmin::ProxyPushSupplier_ptr & proxy )

pure virtual

Activate in the POA.

Implemented in TAO_EC_Default_ProxyPushSupplier.

int TAO_EC_ProxyPushSupplier::add_dependencies	(	const RtecEventComm::EventHeader &	header,
		const TAO_EC_QOS_Info &	qos_info
	)

virtual

This is used for computing the scheduling dependencies:

Leaf filters check if the header could be matched, similar to the can_match() method; if it does they return 1, and 0 otherwise. Intermediate nodes always return 0.

This is used to build precise dependencies between the suppliers and the leaf of the filters that accept that event. Notice that only the nodes doing scheduling recurse through the list, so in configurations that do no require scheduling the recursion stops fairly soon.

Implements TAO_EC_Filter.

int TAO_EC_ProxyPushSupplier::can_match ( const RtecEventComm::EventHeader & header ) const

virtual

Returns 0 if an event with that header could never be accepted. This can used by the suppliers to filter out consumers that couldn't possibly be interested in their events. The rt_info and

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::cleanup_i ( void )

protected

Release the child and the consumer.

void TAO_EC_ProxyPushSupplier::clear ( void )

virtual

Clear any saved state, must reset and assume no events have been received.

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::connected ( TAO_EC_ProxyPushConsumer * consumer )

virtual

Concrete implementations can use this methods to keep track of the suppliers that publish its events.

void TAO_EC_ProxyPushSupplier::connected ( TAO_EC_ProxyPushSupplier * supplier )

virtual

Usually implemented as no-ops, but some configurations may require this methods.

RtecEventComm::PushConsumer_ptr TAO_EC_ProxyPushSupplier::consumer ( void ) const

Return the consumer object reference. It returns nil() if it has not connected yet.

void TAO_EC_ProxyPushSupplier::consumer ( RtecEventComm::PushConsumer_ptr consumer )

protected

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

void TAO_EC_ProxyPushSupplier::consumer_i ( RtecEventComm::PushConsumer_ptr consumer )

protected

CORBA::Boolean TAO_EC_ProxyPushSupplier::consumer_non_existent ( CORBA::Boolean_out disconnected )

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

void TAO_EC_ProxyPushSupplier::deactivate	(	void	)
throw	(
	)

virtual

Deactivate from the POA.

virtual void TAO_EC_ProxyPushSupplier::disconnect_push_supplier ( )

pure virtual

Disconnect this from.

Implemented in TAO_EC_Default_ProxyPushSupplier, and TAO_EC_TPC_ProxyPushSupplier.

void TAO_EC_ProxyPushSupplier::disconnected ( TAO_EC_ProxyPushConsumer * consumer )

virtual

void TAO_EC_ProxyPushSupplier::disconnected ( TAO_EC_ProxyPushSupplier * supplier )

virtual

int TAO_EC_ProxyPushSupplier::filter	(	const RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

Filter this event, returns 1 if the event is accepted, 0 otherwise. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Attention: There seems to be a disparity in interfaces: Supplier always push event sets of size 1 to the EC_ProxyPushSupplier, and EC_Filters do not implement handling of sets of more than 1 event. Then, why is this not enforced by the interface by having EC_ProxyPushSupplier take an event rather than a set?

Implements TAO_EC_Filter.

int TAO_EC_ProxyPushSupplier::filter_nocopy	(	RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

Implements TAO_EC_Filter.

CORBA::Boolean TAO_EC_ProxyPushSupplier::is_connected ( void ) const

Return false if no consumer is connected...

CORBA::Boolean TAO_EC_ProxyPushSupplier::is_connected_i ( void ) const

protected

The private version (without locking) of is_connected().

CORBA::Boolean TAO_EC_ProxyPushSupplier::is_suspended ( void ) const

Return true if it is suspended.

CORBA::ULong TAO_EC_ProxyPushSupplier::max_event_size ( void ) const

virtual

Returns the maximum size of the events pushed by this filter.

Implements TAO_EC_Filter.

virtual PortableServer::ObjectId TAO_EC_ProxyPushSupplier::object_id ( void )

privatepure virtual

Implemented in TAO_EC_Default_ProxyPushSupplier.

void TAO_EC_ProxyPushSupplier::pre_dispatch_hook ( RtecEventComm::EventSet & )

privatevirtual

void TAO_EC_ProxyPushSupplier::push	(	const RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

This is called by the children when they accept an event and which to pass it up. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::push_nocopy	(	RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::push_to_consumer	(	RtecEventComm::PushConsumer_ptr	consumer,
		const RtecEventComm::EventSet &	event
	)

Pushes to the consumer, verifies that it is connected and that it is not suspended. These methods take consumer argument because during the time the filters have been processing the event, this proxy's consumer may have changed.

void TAO_EC_ProxyPushSupplier::reactive_push_to_consumer	(	RtecEventComm::PushConsumer_ptr	consumer,
		const RtecEventComm::EventSet &	event
	)

void TAO_EC_ProxyPushSupplier::reconnected ( TAO_EC_ProxyPushConsumer * consumer )

virtual

void TAO_EC_ProxyPushSupplier::reconnected ( TAO_EC_ProxyPushSupplier * supplier )

virtual

void TAO_EC_ProxyPushSupplier::refcount_zero_hook ( void )

privatevirtual

Template method hooks.

void TAO_EC_ProxyPushSupplier::resume_connection_i ( void )

protected

void TAO_EC_ProxyPushSupplier::resume_connection_locked ( void )

protected

void TAO_EC_ProxyPushSupplier::shutdown ( void )

virtual

The event channel is shutting down.

const RtecEventChannelAdmin::ConsumerQOS & TAO_EC_ProxyPushSupplier::subscriptions ( void ) const

The QoS (subscription) used to connect to the EC.

void TAO_EC_ProxyPushSupplier::suspend_connection_i ( void )

protected

void TAO_EC_ProxyPushSupplier::suspend_connection_locked ( void )

protected

Member Data Documentation

TAO_EC_Filter* TAO_EC_ProxyPushSupplier::child_

protected

The filter object.

RtecEventComm::PushConsumer_var TAO_EC_ProxyPushSupplier::consumer_

protected

The consumer....

int TAO_EC_ProxyPushSupplier::consumer_validate_connection_

protected

Validate the connection to consumer on connect.

PortableServer::POA_var TAO_EC_ProxyPushSupplier::default_POA_

protected

Store the default POA.

TAO_EC_Event_Channel_Base* TAO_EC_ProxyPushSupplier::event_channel_

protected

The Event Channel that owns this object.

ACE_Lock* TAO_EC_ProxyPushSupplier::lock_

protected

The locking strategy.

RtecEventChannelAdmin::ConsumerQOS TAO_EC_ProxyPushSupplier::qos_

protected

The subscription and QoS information...

CORBA::ULong TAO_EC_ProxyPushSupplier::refcount_

protected

The reference count.

CORBA::Boolean TAO_EC_ProxyPushSupplier::suspended_

protected

Is this consumer suspended?

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Memory Management

Locking

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
