TAO_EC_Factory Class Reference

Abstract base class for the Event Channel components. More...

#include <EC_Factory.h>

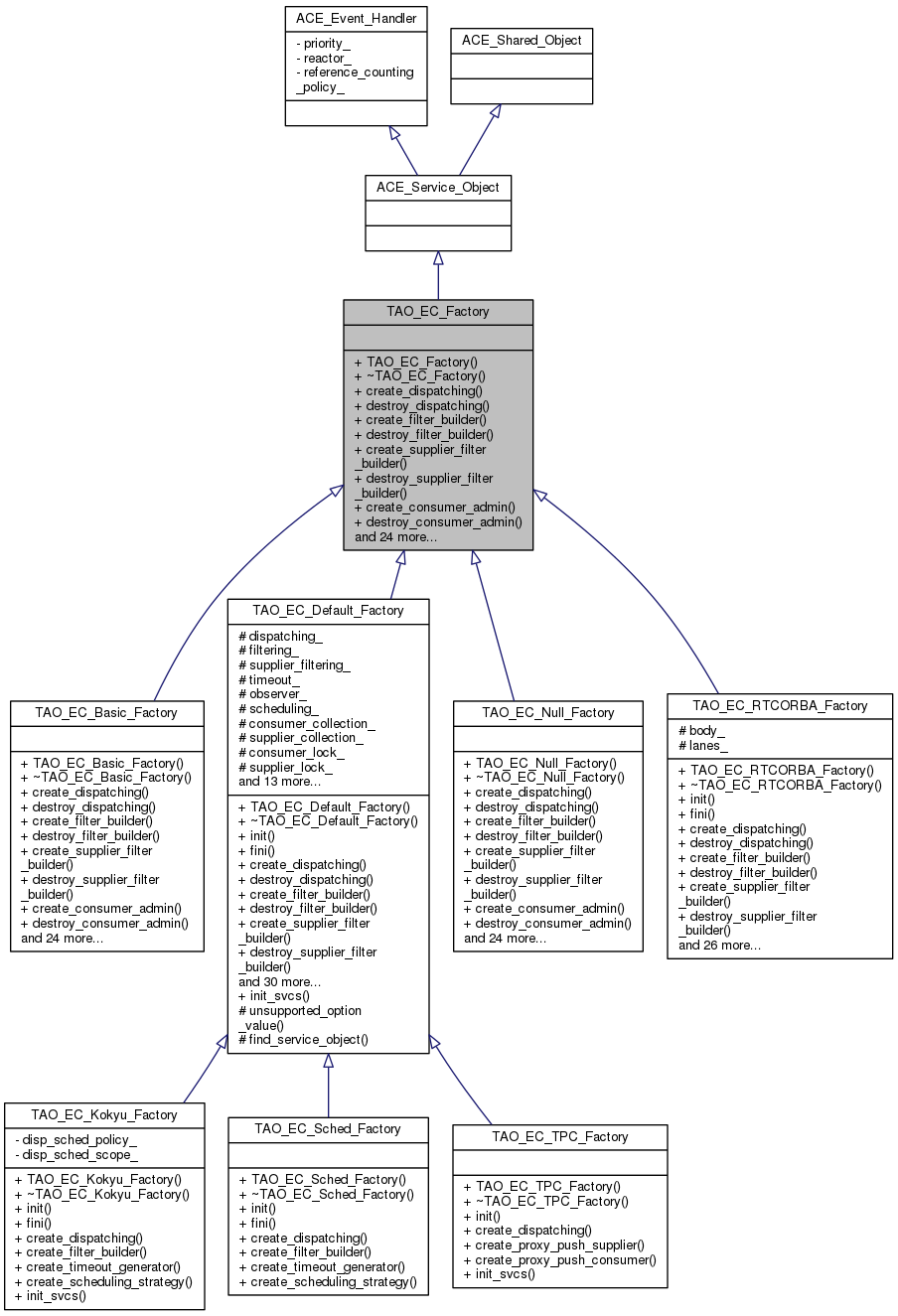

Inheritance diagram for TAO_EC_Factory:

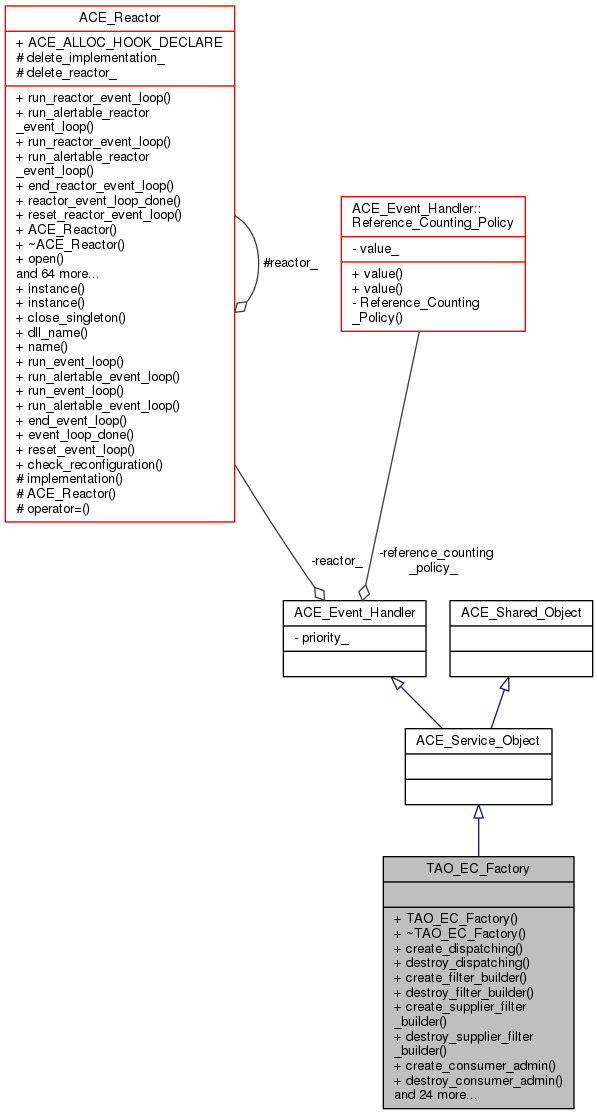

Collaboration diagram for TAO_EC_Factory:

Public Member Functions
	TAO_EC_Factory (void)
	destructor... More...
virtual	~TAO_EC_Factory (void)
virtual TAO_EC_Dispatching *	create_dispatching (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the dispatching module. More...
virtual void	destroy_dispatching (TAO_EC_Dispatching *)=0
virtual TAO_EC_Filter_Builder *	create_filter_builder (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the filter builder. More...
virtual void	destroy_filter_builder (TAO_EC_Filter_Builder *)=0
virtual TAO_EC_Supplier_Filter_Builder *	create_supplier_filter_builder (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the filter builder. More...
virtual void	destroy_supplier_filter_builder (TAO_EC_Supplier_Filter_Builder *)=0
virtual TAO_EC_ConsumerAdmin *	create_consumer_admin (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the consumer admin implementation. More...
virtual void	destroy_consumer_admin (TAO_EC_ConsumerAdmin *)=0
virtual TAO_EC_SupplierAdmin *	create_supplier_admin (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the supplier admin implementation. More...
virtual void	destroy_supplier_admin (TAO_EC_SupplierAdmin *)=0
virtual TAO_EC_ProxyPushSupplier *	create_proxy_push_supplier (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a ProxyPushSupplier. More...
virtual void	destroy_proxy_push_supplier (TAO_EC_ProxyPushSupplier *)=0
virtual TAO_EC_ProxyPushConsumer *	create_proxy_push_consumer (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a ProxyPushConsumer. More...
virtual void	destroy_proxy_push_consumer (TAO_EC_ProxyPushConsumer *)=0
virtual TAO_EC_Timeout_Generator *	create_timeout_generator (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the timer module. More...
virtual void	destroy_timeout_generator (TAO_EC_Timeout_Generator *)=0
virtual TAO_EC_ObserverStrategy *	create_observer_strategy (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the observer strategy. More...
virtual void	destroy_observer_strategy (TAO_EC_ObserverStrategy *)=0
virtual TAO_EC_Scheduling_Strategy *	create_scheduling_strategy (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the observer strategy. More...
virtual void	destroy_scheduling_strategy (TAO_EC_Scheduling_Strategy *)=0
virtual TAO_EC_ProxyPushConsumer_Collection *	create_proxy_push_consumer_collection (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a collection of TAO_EC_ProxyPushConsumers. More...
virtual void	destroy_proxy_push_consumer_collection (TAO_EC_ProxyPushConsumer_Collection *)=0
virtual TAO_EC_ProxyPushSupplier_Collection *	create_proxy_push_supplier_collection (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a collection of TAO_EC_ProxyPushSuppliers. More...
virtual void	destroy_proxy_push_supplier_collection (TAO_EC_ProxyPushSupplier_Collection *)=0
virtual ACE_Lock *	create_consumer_lock (void)=0
virtual void	destroy_consumer_lock (ACE_Lock *)=0
virtual ACE_Lock *	create_supplier_lock (void)=0
virtual void	destroy_supplier_lock (ACE_Lock *)=0
virtual TAO_EC_ConsumerControl *	create_consumer_control (TAO_EC_Event_Channel_Base *)=0
virtual void	destroy_consumer_control (TAO_EC_ConsumerControl *)=0
virtual TAO_EC_SupplierControl *	create_supplier_control (TAO_EC_Event_Channel_Base *)=0
virtual void	destroy_supplier_control (TAO_EC_SupplierControl *)=0

Detailed Description

Abstract base class for the Event Channel components.

Defines the EC_Factory interface.

Memory Management

The objects it creates are owned by this class, the client must invoke the corresponding destroy() method to release them. Some implementations may require a different instance for the EC_Factory for each instance of Event_Channel.

Constructor & Destructor Documentation

TAO_EC_Factory::TAO_EC_Factory

(

void

)

destructor...

TAO_EC_Factory::~TAO_EC_Factory ( void  )

virtual

Member Function Documentation

virtual TAO_EC_ConsumerAdmin* TAO_EC_Factory::create_consumer_admin ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the consumer admin implementation.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_ConsumerControl* TAO_EC_Factory::create_consumer_control ( TAO_EC_Event_Channel_Base *  )

pure virtual

The ConsumerControl and SupplierControl strategies are used to discard non-existent consumers and suppliers

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory.

virtual ACE_Lock* TAO_EC_Factory::create_consumer_lock ( void  )

pure virtual

Create and destroy the locking strategies for both ProxyPushConsumers and ProxyPushSuppliers

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_Dispatching* TAO_EC_Factory::create_dispatching ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the dispatching module.

Implemented in TAO_EC_Default_Factory, TAO_EC_Kokyu_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Null_Factory, TAO_EC_Sched_Factory, and TAO_EC_TPC_Factory.

virtual TAO_EC_Filter_Builder* TAO_EC_Factory::create_filter_builder ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the filter builder.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_Kokyu_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Null_Factory, and TAO_EC_Sched_Factory.

virtual TAO_EC_ObserverStrategy* TAO_EC_Factory::create_observer_strategy ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the observer strategy.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_ProxyPushConsumer* TAO_EC_Factory::create_proxy_push_consumer ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy a ProxyPushConsumer.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Null_Factory, and TAO_EC_TPC_Factory.

virtual TAO_EC_ProxyPushConsumer_Collection* TAO_EC_Factory::create_proxy_push_consumer_collection ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy a collection of TAO_EC_ProxyPushConsumers.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_ProxyPushSupplier* TAO_EC_Factory::create_proxy_push_supplier ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy a ProxyPushSupplier.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Null_Factory, and TAO_EC_TPC_Factory.

virtual TAO_EC_ProxyPushSupplier_Collection* TAO_EC_Factory::create_proxy_push_supplier_collection ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy a collection of TAO_EC_ProxyPushSuppliers.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_Scheduling_Strategy* TAO_EC_Factory::create_scheduling_strategy ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the observer strategy.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Null_Factory, TAO_EC_Kokyu_Factory, and TAO_EC_Sched_Factory.

virtual TAO_EC_SupplierAdmin* TAO_EC_Factory::create_supplier_admin ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the supplier admin implementation.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_SupplierControl* TAO_EC_Factory::create_supplier_control ( TAO_EC_Event_Channel_Base *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory.

virtual TAO_EC_Supplier_Filter_Builder* TAO_EC_Factory::create_supplier_filter_builder ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the filter builder.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual ACE_Lock* TAO_EC_Factory::create_supplier_lock ( void  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual TAO_EC_Timeout_Generator* TAO_EC_Factory::create_timeout_generator ( TAO_EC_Event_Channel_Base *  )

pure virtual

Create and destroy the timer module.

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Null_Factory, TAO_EC_Kokyu_Factory, and TAO_EC_Sched_Factory.

virtual void TAO_EC_Factory::destroy_consumer_admin ( TAO_EC_ConsumerAdmin *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_consumer_control ( TAO_EC_ConsumerControl *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory.

virtual void TAO_EC_Factory::destroy_consumer_lock ( ACE_Lock *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_dispatching ( TAO_EC_Dispatching *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_filter_builder ( TAO_EC_Filter_Builder *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_observer_strategy ( TAO_EC_ObserverStrategy *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_proxy_push_consumer ( TAO_EC_ProxyPushConsumer *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_proxy_push_consumer_collection ( TAO_EC_ProxyPushConsumer_Collection *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_proxy_push_supplier ( TAO_EC_ProxyPushSupplier *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_proxy_push_supplier_collection ( TAO_EC_ProxyPushSupplier_Collection *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_scheduling_strategy ( TAO_EC_Scheduling_Strategy *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_supplier_admin ( TAO_EC_SupplierAdmin *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_supplier_control ( TAO_EC_SupplierControl *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory.

virtual void TAO_EC_Factory::destroy_supplier_filter_builder ( TAO_EC_Supplier_Filter_Builder *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_supplier_lock ( ACE_Lock *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

virtual void TAO_EC_Factory::destroy_timeout_generator ( TAO_EC_Timeout_Generator *  )

pure virtual

Implemented in TAO_EC_Default_Factory, TAO_EC_Basic_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Null_Factory.

---

The documentation for this class was generated from the following files:

• EC_Factory.h
• EC_Factory.cpp
