TAO_GIOP_Message_Generator_Parser Class Reference

Base class for the GIOP Message generator and parser. More...

#include <GIOP_Message_Generator_Parser.h>

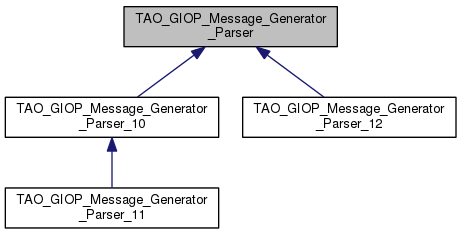

Inheritance diagram for TAO_GIOP_Message_Generator_Parser:

List of all members.

Public Member Functions
virtual	~TAO_GIOP_Message_Generator_Parser (void)
virtual bool	write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)=0
	Write the request header in to msg.
virtual bool	write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg)=0
	Write the LocateRequest header.
virtual bool	write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply)=0
	Write the reply header in to output.
virtual bool	write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status)=0
	Writes the locate _reply message in to the output.
virtual bool	write_fragment_header (TAO_OutputCDR &cdr, CORBA::ULong request_id)=0
virtual int	parse_request_header (TAO_ServerRequest &)=0
virtual int	parse_locate_header (TAO_GIOP_Locate_Request_Header &)=0
virtual int	parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
	Parse the reply message.
virtual int	parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
	Parse the locate reply message from the server.
virtual CORBA::Octet	major_version (void) const =0
	Our versions.
virtual CORBA::Octet	minor_version (void) const =0
virtual bool	is_ready_for_bidirectional (void) const
virtual size_t	fragment_header_length (void) const =0
	The header length of a fragment.

---

Detailed Description

Base class for the GIOP Message generator and parser.

Version specific classes would inherit from this class. Strategy to determine which version of the GIOP request have we received and which version do we need to use to send messages.

---

Constructor & Destructor Documentation

TAO_GIOP_Message_Generator_Parser::~TAO_GIOP_Message_Generator_Parser ( void  )

virtual

---

Member Function Documentation

virtual size_t TAO_GIOP_Message_Generator_Parser::fragment_header_length ( void  ) const

pure virtual

The header length of a fragment.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

bool TAO_GIOP_Message_Generator_Parser::is_ready_for_bidirectional ( void  ) const

virtual

Is the messaging object ready for processing BiDirectional request/response?

Reimplemented in TAO_GIOP_Message_Generator_Parser_12.

virtual CORBA::Octet TAO_GIOP_Message_Generator_Parser::major_version ( void  ) const

pure virtual

Our versions.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual CORBA::Octet TAO_GIOP_Message_Generator_Parser::minor_version ( void  ) const

pure virtual

Implemented in TAO_GIOP_Message_Generator_Parser_12, TAO_GIOP_Message_Generator_Parser_10, and TAO_GIOP_Message_Generator_Parser_11.

virtual int TAO_GIOP_Message_Generator_Parser::parse_locate_header ( TAO_GIOP_Locate_Request_Header &  )

pure virtual

Parse the Locate Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

int TAO_GIOP_Message_Generator_Parser::parse_locate_reply ( TAO_InputCDR &  input, TAO_Pluggable_Reply_Params &  params  )

virtual

Parse the locate reply message from the server.

Reimplemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

int TAO_GIOP_Message_Generator_Parser::parse_reply ( TAO_InputCDR &  input, TAO_Pluggable_Reply_Params &  params  )

virtual

Parse the reply message.

Reimplemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual int TAO_GIOP_Message_Generator_Parser::parse_request_header ( TAO_ServerRequest &  )

pure virtual

Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual bool TAO_GIOP_Message_Generator_Parser::write_fragment_header ( TAO_OutputCDR &  cdr, CORBA::ULong  request_id  )

pure virtual

Write the GIOP fragment message header to the output CDR stream cdr.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual bool TAO_GIOP_Message_Generator_Parser::write_locate_reply_mesg ( TAO_OutputCDR &  output, CORBA::ULong  request_id, TAO_GIOP_Locate_Status_Msg &  status  )

pure virtual

Writes the locate _reply message in to the output.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual bool TAO_GIOP_Message_Generator_Parser::write_locate_request_header ( CORBA::ULong  request_id, TAO_Target_Specification &  spec, TAO_OutputCDR &  msg  )

pure virtual

Write the LocateRequest header.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual bool TAO_GIOP_Message_Generator_Parser::write_reply_header ( TAO_OutputCDR &  output, TAO_Pluggable_Reply_Params_Base &  reply  )

pure virtual

Write the reply header in to output.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

virtual bool TAO_GIOP_Message_Generator_Parser::write_request_header ( const TAO_Operation_Details &  opdetails, TAO_Target_Specification &  spec, TAO_OutputCDR &  msg  )

pure virtual

Write the request header in to msg.

Implemented in TAO_GIOP_Message_Generator_Parser_12, and TAO_GIOP_Message_Generator_Parser_10.

---

The documentation for this class was generated from the following files:

• GIOP_Message_Generator_Parser.h
• GIOP_Message_Generator_Parser.cpp
