Class representing a ServerRequest object. More...

#include <TAO_Server_Request.h>

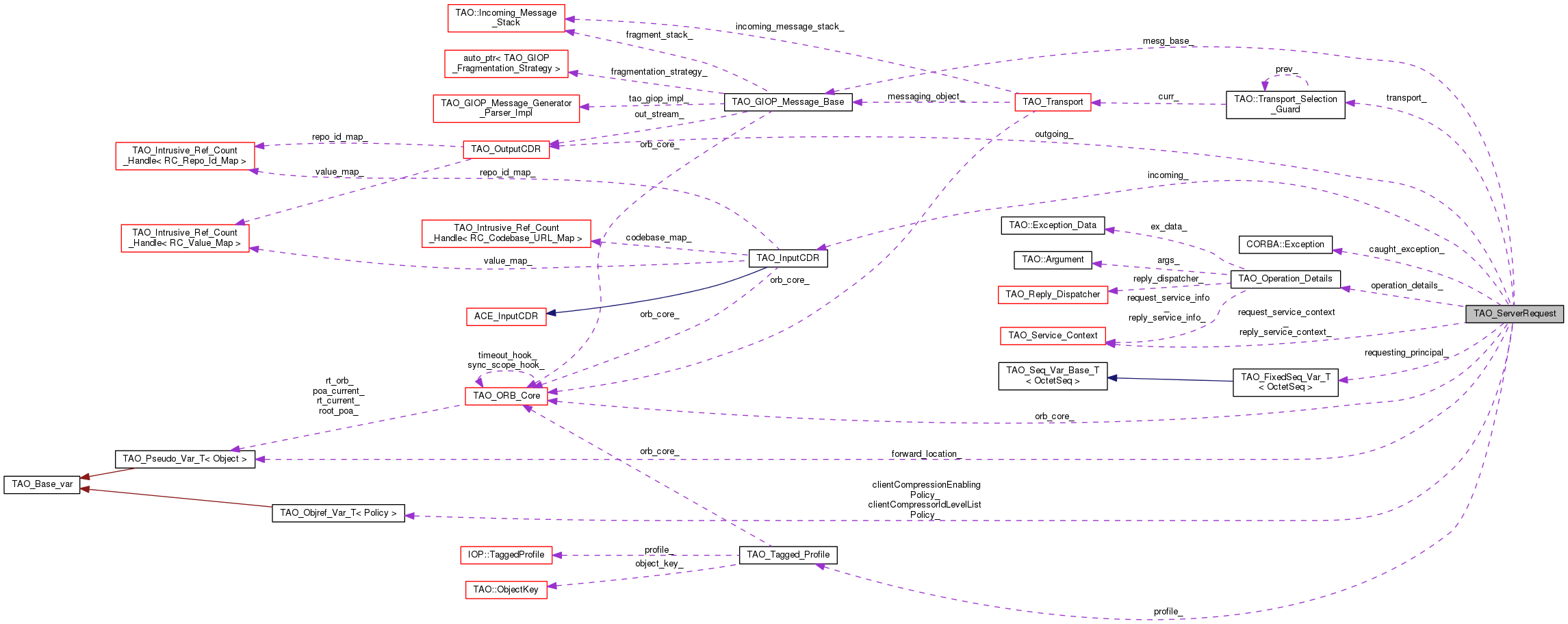

Collaboration diagram for TAO_ServerRequest:

Public Member Functions
	TAO_ServerRequest (TAO_GIOP_Message_Base mesg_base, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_Transport transport, TAO_ORB_Core *orb_core)
	TAO_ServerRequest (TAO_GIOP_Message_Base mesg_base, CORBA::ULong request_id, CORBA::Boolean response_expected, CORBA::Boolean deferred_flag, TAO::ObjectKey &object_key, const char operation, TAO_OutputCDR &output, TAO_Transport transport, TAO_ORB_Core orb_core, int &parse_error)
	TAO_ServerRequest (TAO_ORB_Core *orb_core, TAO_Operation_Details const &details, CORBA::Object_ptr target)
	Constructor used by thru-POA collocated invocation path.
	~TAO_ServerRequest (void)
	Destructor.
CORBA::ORB_ptr	orb (void)
	Return the underlying ORB.
TAO_ORB_Core *	orb_core (void) const
	Return the ORB core pointer member.
void	init_reply (void)
	Start a Reply message.
TAO_InputCDR *	incoming (void) const
	Retrieve the incoming stream.
TAO_OutputCDR *	outgoing (void) const
	Retrieve the outgoing stream.
CORBA::Boolean	response_expected (void) const
	Is the response expected?
CORBA::Boolean	deferred_reply (void) const
	Should the reply be deferred?
void	response_expected (CORBA::Boolean response)
	Set the response expected flag.
CORBA::Boolean	sync_with_server (void) const
	Should we return before dispatching the servant?
void	sync_with_server (CORBA::Boolean sync_flag)
	Set the sync_with_server flag.
void	send_no_exception_reply (void)
	Used with reliable oneway requests.
TAO::ObjectKey &	object_key (void)
TAO_Service_Context &	request_service_context (void)
	Return the request TAO_Service_Context.
TAO_Service_Context &	reply_service_context (void)
	Return the reply TAO_Service_Context.
IOP::ServiceContextList &	reply_service_info (void)
IOP::ServiceContextList &	request_service_info (void)
TAO_Transport *	transport ()
	Return the underlying transport.
void	forward_location (CORBA::Object_ptr forward_reference)
CORBA::Object_ptr	forward_location (void)
	Get the forward_location.
bool	is_forwarded (void) const
GIOP::ReplyStatusType	reply_status (void)
	Get the reply status.
void	reply_status (GIOP::ReplyStatusType except_type)
	Set the reply status.
void	requesting_principal (const CORBA::OctetSeq &principal)
	Set the requesting principal.
TAO_Tagged_Profile &	profile (void)
	Return the reference to the tagged profile.
void	tao_send_reply (void)
void	tao_send_reply_exception (const CORBA::Exception &ex)
void	is_dsi (void)
	Set the boolean member to true.
void	dsi_nvlist_align (ptrdiff_t alignment)
	Set the member.
TAO_Operation_Details const *	operation_details (void) const
	Get the operation details for the current request.
void	argument_flag (CORBA::Boolean flag)
	Set the argument_flag.
CORBA::Boolean	argument_flag (void)
	Get the argument_flag.
bool	collocated (void) const
	Returns `true` if the current request is collocated.
void	send_cached_reply (CORBA::OctetSeq &ocs)
size_t &	interceptor_count (void)
TAO::PICurrent_Impl *	rs_pi_current (void)
	Return a reference to the "request scope" PICurrent object.
CORBA::Exception *	caught_exception (void)
void	caught_exception (CORBA::Exception *exception)
void	pi_reply_status (PortableInterceptor::ReplyStatus s)
	Set the status of the received reply.
PortableInterceptor::ReplyStatus	pi_reply_status (void)
	Get the status of the received reply.
CORBA::Policy_ptr	clientCompressionEnablingPolicy ()
void	clientCompressionEnablingPolicy (CORBA::Policy_ptr)
CORBA::Policy_ptr	clientCompressorIdLevelListPolicy ()
void	clientCompressorIdLevelListPolicy (CORBA::Policy_ptr)
Request attributes.
const char *	operation (void) const
	Return the operation name.
void	operation (const char *operation, size_t length, int release)
	Set the operation name.
size_t	operation_length (void) const
	Return the length of the operation.

CORBA::ULong	request_id (void)
void	request_id (CORBA::ULong req)
Private Member Functions
	TAO_ServerRequest (void)
Private Attributes
TAO_GIOP_Message_Base *	mesg_base_
const char *	operation_
	Operation name.
size_t	operation_len_
	Operation length.
bool	release_operation_
	Do we own the memory associated with operation_?
CORBA::Object_var	forward_location_
bool	is_forwarded_
TAO_InputCDR *	incoming_
	Incoming stream.
TAO_OutputCDR *	outgoing_
	Outgoing stream.
CORBA::Boolean	response_expected_
CORBA::Boolean	deferred_reply_
CORBA::Boolean	sync_with_server_
CORBA::Boolean	is_dsi_
	Did we get passed to a CORBA::ServerRequest?
GIOP::ReplyStatusType	reply_status_
	Reply status (will be NO_EXCEPTION in the majority of the cases).
TAO_ORB_Core *	orb_core_
TAO_Service_Context	request_service_context_
	Service Context info.
TAO_Service_Context	reply_service_context_
CORBA::ULong	request_id_
	Unique identifier for a request.
TAO_Tagged_Profile	profile_
	The tagged profile that has the addressing information.
CORBA::OctetSeq_var	requesting_principal_
	Identifies the requester.
ptrdiff_t	dsi_nvlist_align_
	Used to pad CDR stream if we have used DSI.
TAO_Operation_Details const *	operation_details_
CORBA::Boolean	argument_flag_
size_t	interceptor_count_
TAO::PICurrent_Impl *	rs_pi_current_
CORBA::Exception *	caught_exception_
	Pointer to the caught exception.
PortableInterceptor::ReplyStatus	pi_reply_status_
	Reply status for the current request.
TAO::Transport_Selection_Guard	transport_
CORBA::Policy_var	clientCompressionEnablingPolicy_
CORBA::Policy_var	clientCompressorIdLevelListPolicy_
Friends
class	TAO::CSD::FW_Server_Request_Wrapper
class	TAO_AMH_Response_Handler
	Declare TAO_AMH_Response_Handler a friend.

Detailed Description

Class representing a ServerRequest object.

Encapsulates CDR, transport and pluggable messaging components on the server side.

Constructor & Destructor Documentation

TAO_ServerRequest::TAO_ServerRequest	(	TAO_GIOP_Message_Base *	mesg_base,
		TAO_InputCDR &	input,
		TAO_OutputCDR &	output,
		TAO_Transport *	transport,
		TAO_ORB_Core *	orb_core
	)

TAO_ServerRequest::TAO_ServerRequest	(	TAO_GIOP_Message_Base *	mesg_base,
		CORBA::ULong	request_id,
		CORBA::Boolean	response_expected,
		CORBA::Boolean	deferred_flag,
		TAO::ObjectKey &	object_key,
		const char *	operation,
		TAO_OutputCDR &	output,
		TAO_Transport *	transport,
		TAO_ORB_Core *	orb_core,
		int &	parse_error
	)

TAO_ServerRequest::TAO_ServerRequest	(	TAO_ORB_Core *	orb_core,
		TAO_Operation_Details const &	details,
		CORBA::Object_ptr	target
	)

Constructor used by thru-POA collocated invocation path.

TAO_ServerRequest::~TAO_ServerRequest ( void )

Destructor.

TAO_ServerRequest::TAO_ServerRequest ( void )

private

Default ctor only used to create a TAO_ServerRequest that is about to be the target of a clone operation.

Member Function Documentation

void TAO_ServerRequest::argument_flag ( CORBA::Boolean flag )

Set the argument_flag.

CORBA::Boolean TAO_ServerRequest::argument_flag ( void )

Get the argument_flag.

CORBA::Exception * TAO_ServerRequest::caught_exception ( void )

void TAO_ServerRequest::caught_exception ( CORBA::Exception * exception )

CORBA::Policy_ptr TAO_ServerRequest::clientCompressionEnablingPolicy ( )

void TAO_ServerRequest::clientCompressionEnablingPolicy ( CORBA::Policy_ptr policy )

CORBA::Policy_ptr TAO_ServerRequest::clientCompressorIdLevelListPolicy ( )

void TAO_ServerRequest::clientCompressorIdLevelListPolicy ( CORBA::Policy_ptr policy )

bool TAO_ServerRequest::collocated ( void ) const

Returns true if the current request is collocated.

CORBA::Boolean TAO_ServerRequest::deferred_reply ( void ) const

Should the reply be deferred?

void TAO_ServerRequest::dsi_nvlist_align ( ptrdiff_t alignment )

Set the member.

void TAO_ServerRequest::forward_location ( CORBA::Object_ptr forward_reference )

Set the reference to the object the request should be forwarded to. This reference will only be used if set prior to calling init_reply().

CORBA::Object_ptr TAO_ServerRequest::forward_location ( void )

Get the forward_location.

TAO_InputCDR * TAO_ServerRequest::incoming ( void ) const

Retrieve the incoming stream.

void TAO_ServerRequest::init_reply ( void )

Start a Reply message.

size_t & TAO_ServerRequest::interceptor_count ( void )

Return a reference to the number of interceptors pushed on to the current interceptor flow stack.

Note:: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

void TAO_ServerRequest::is_dsi ( void )

Set the boolean member to true.

bool TAO_ServerRequest::is_forwarded ( void ) const

Since forward location is allowed to be nil then this is a proper method to check if the request is being forwarded.

TAO::ObjectKey & TAO_ServerRequest::object_key ( void )

const char * TAO_ServerRequest::operation ( void ) const

Return the operation name.

void TAO_ServerRequest::operation	(	const char *	operation,
		size_t	length,
		int	release
	)

Set the operation name.

TAO_Operation_Details const * TAO_ServerRequest::operation_details ( void ) const

Get the operation details for the current request.

size_t TAO_ServerRequest::operation_length ( void ) const

Return the length of the operation.

CORBA::ORB_ptr TAO_ServerRequest::orb ( void )

Return the underlying ORB.

TAO_ORB_Core * TAO_ServerRequest::orb_core ( void ) const

Return the ORB core pointer member.

TAO_OutputCDR * TAO_ServerRequest::outgoing ( void ) const

Retrieve the outgoing stream.

void TAO_ServerRequest::pi_reply_status ( PortableInterceptor::ReplyStatus s )

Set the status of the received reply.

PortableInterceptor::ReplyStatus TAO_ServerRequest::pi_reply_status ( void )

Get the status of the received reply.

TAO_Tagged_Profile & TAO_ServerRequest::profile ( void )

Return the reference to the tagged profile.

TAO_Service_Context & TAO_ServerRequest::reply_service_context ( void )

Return the reply TAO_Service_Context.

IOP::ServiceContextList & TAO_ServerRequest::reply_service_info ( void )

GIOP::ReplyStatusType TAO_ServerRequest::reply_status ( void )

Get the reply status.

void TAO_ServerRequest::reply_status ( GIOP::ReplyStatusType except_type )

Set the reply status.

CORBA::ULong TAO_ServerRequest::request_id ( void )

To handle System Exceptions at the lowest level, a method returning the request_id_ is needed.

void TAO_ServerRequest::request_id ( CORBA::ULong req )

To handle System Exceptions at the lowest level, a method returning the request_id_ is needed.

TAO_Service_Context & TAO_ServerRequest::request_service_context ( void )

Return the request TAO_Service_Context.

IOP::ServiceContextList & TAO_ServerRequest::request_service_info ( void )

void TAO_ServerRequest::requesting_principal ( const CORBA::OctetSeq & principal )

Set the requesting principal.

CORBA::Boolean TAO_ServerRequest::response_expected ( void ) const

Is the response expected?

void TAO_ServerRequest::response_expected ( CORBA::Boolean response )

Set the response expected flag.

TAO::PICurrent_Impl * TAO_ServerRequest::rs_pi_current ( void )

Return a reference to the "request scope" PICurrent object.

void TAO_ServerRequest::send_cached_reply ( CORBA::OctetSeq & ocs )

Send cached reply. Used in scenarios where the FTORB thinks that this request is a duplicate

Append reply here....

void TAO_ServerRequest::send_no_exception_reply ( void )

Used with reliable oneway requests.

CORBA::Boolean TAO_ServerRequest::sync_with_server ( void ) const

Should we return before dispatching the servant?

void TAO_ServerRequest::sync_with_server ( CORBA::Boolean sync_flag )

Set the sync_with_server flag.

void TAO_ServerRequest::tao_send_reply ( void )

void TAO_ServerRequest::tao_send_reply_exception ( const CORBA::Exception & ex )

TAO_Transport * TAO_ServerRequest::transport ( void )

Return the underlying transport.

Friends And Related Function Documentation

friend class TAO::CSD::FW_Server_Request_Wrapper

friend

Declare FW_Server_Request_Wrapper a friend This friendship makes the FW_Server_Request_Wrapper be able to clone the TAO_ServerRequest.

friend class TAO_AMH_Response_Handler

friend

Declare TAO_AMH_Response_Handler a friend.

The TAO_AMH_Response_Handler class needs to copy part of the state in a TAO_ServerRequest, however, we do not want to expose that state as public members of this class, neither do we want to add modifiers to the TAO_AMH_Response_Handler class that would allow us (the TAO_ServerRequest class) to set the state.

Lucky for us, C++ is a language for adult developers, and allow us to use the evil "friend" declaration.

Member Data Documentation

CORBA::Boolean TAO_ServerRequest::argument_flag_

private

An argument flag to indicate whether there is any data that is going to get marshaled along as a reply. The default will be true which indicates that we have some data that needs to be sent back to the client.

CORBA::Exception* TAO_ServerRequest::caught_exception_

private

Pointer to the caught exception.

CORBA::Policy_var TAO_ServerRequest::clientCompressionEnablingPolicy_

private

CORBA::Policy_var TAO_ServerRequest::clientCompressorIdLevelListPolicy_

private

CORBA::Boolean TAO_ServerRequest::deferred_reply_

private

false: Reply would be sent by the object of this class which is the default. true: Reply would not be prepared by this class and it would be deferred for somebody.

ptrdiff_t TAO_ServerRequest::dsi_nvlist_align_

private

Used to pad CDR stream if we have used DSI.

CORBA::Object_var TAO_ServerRequest::forward_location_

private

TAO_InputCDR* TAO_ServerRequest::incoming_

private

Incoming stream.

size_t TAO_ServerRequest::interceptor_count_

private

The number of interceptors pushed on to the current interceptor flow stack.

CORBA::Boolean TAO_ServerRequest::is_dsi_
