TAO_Target_Specification Class Reference

A class to encapsulate all the ways of specifying targets. More...

#include <target_specification.h>

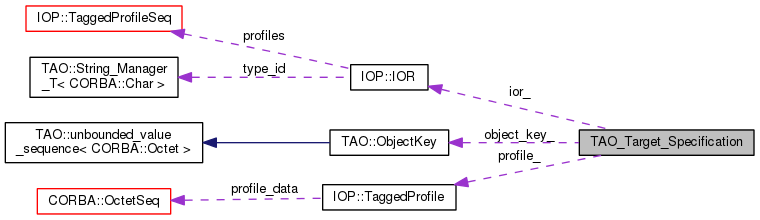

Collaboration diagram for TAO_Target_Specification:

List of all members.

Public Types
enum	TAO_Target_Address { Key_Addr = 0, Profile_Addr, Reference_Addr }
Public Member Functions
	TAO_Target_Specification (void)
	Ctor.
void	target_specifier (const TAO::ObjectKey &key)
void	target_specifier (IOP::TaggedProfile &profile)
	Set the target specification by passing in an IOP::TaggedProfile.
void	target_specifier (IOP::IOR &ior, CORBA::ULong prof_index)
const TAO::ObjectKey *	object_key (void)
const IOP::TaggedProfile *	profile (void)
CORBA::ULong	iop_ior (IOP::IOR *&ior)
TAO_Target_Address	specifier (void)
	Access the TArget_Address specifier.
Private Attributes
union {
TAO::ObjectKey *   object_key_
IOP::TaggedProfile *   profile_
IOP::IOR *   ior_
}	u_
	The union of all the possibilities.
TAO_Target_Address	specifier_
	The enum identifier.
CORBA::ULong	profile_index_
	The profile index.

---

Detailed Description

A class to encapsulate all the ways of specifying targets.

---

Member Enumeration Documentation

enum TAO_Target_Specification::TAO_Target_Address

Enumerator:

Key_Addr
Profile_Addr
Reference_Addr

---

Constructor & Destructor Documentation

TAO_Target_Specification::TAO_Target_Specification

(

void

)

Ctor.

---

Member Function Documentation

CORBA::ULong TAO_Target_Specification::iop_ior

(

IOP::IOR *&

ior

)

Returns a pointer to IOP::IOR through the parameters and the index of the selected profile as a return parameter after a check of the stored specifier. If the stored specifier is not of the right type then this would return a NULL.

const TAO::ObjectKey * TAO_Target_Specification::object_key

(

void

)

Returns the object key after a check of the stored specifier. If the stored specifier is not of the right type then this would return a NULL

const IOP::TaggedProfile * TAO_Target_Specification::profile

(

void

)

Returns the IOP::TaggedProfile after a check of the stored specifier. If the stored specifier is not of the right type then this would return a NULL

TAO_Target_Specification::TAO_Target_Address TAO_Target_Specification::specifier

(

void

)

Access the TArget_Address specifier.

void TAO_Target_Specification::target_specifier

(

const TAO::ObjectKey &

key

)

Set the target specification by giving the object key.

Note:

Please do not pass in a identifiers that is allocated on stack. These methods does not make a copy but holds the pointer passed in.

void TAO_Target_Specification::target_specifier

(

IOP::TaggedProfile &

profile

)

Set the target specification by passing in an IOP::TaggedProfile.

void TAO_Target_Specification::target_specifier	(	IOP::IOR &	ior,
		CORBA::ULong	prof_index
	)

Specify the target by passing in the IOP::IOR with a profile index. Please see the header file IOPC.h on why a profile index is required.

---

Member Data Documentation

IOP::IOR* TAO_Target_Specification::ior_

TAO::ObjectKey* TAO_Target_Specification::object_key_

IOP::TaggedProfile* TAO_Target_Specification::profile_

CORBA::ULong TAO_Target_Specification::profile_index_

private

The profile index.

TAO_Target_Address TAO_Target_Specification::specifier_

private

The enum identifier.

union { ... } TAO_Target_Specification::u_

The union of all the possibilities.

---

The documentation for this class was generated from the following files:

• target_specification.h
• target_specification.inl
