TAO_Notify::Topology_Object Class Reference

Base class for Persistent Topology Objects. More...

#include <Topology_Object.h>

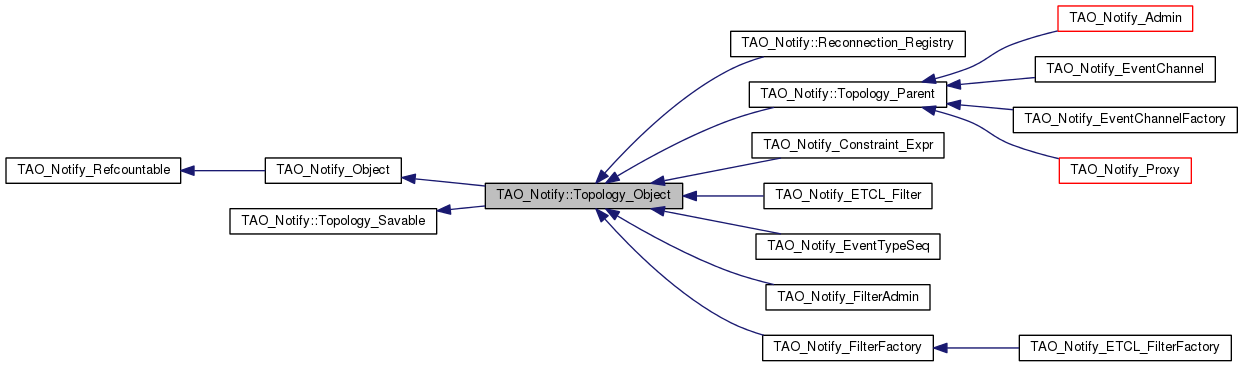

Inheritance diagram for TAO_Notify::Topology_Object:
Inheritance graph
[legend]

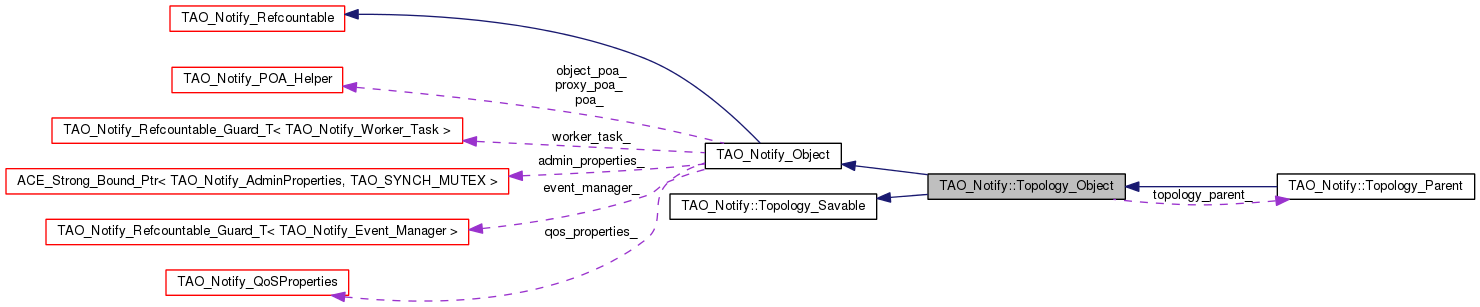

Collaboration diagram for TAO_Notify::Topology_Object:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Topology_Object ()
 The constructor.
virtual ~Topology_Object ()
 The destructor.
virtual void initialize (Topology_Parent *topology_parent)
 Init this object with data from <rhs>.
virtual Topology_Objectload_child (const ACE_CString &type, CORBA::Long id, const NVPList &attrs)
 Create a child of the appropriate type and return it.
virtual TAO_Notify_Object::ID get_id (void) const
 Find the id associated with topology object.
void get_id_path (IdVec &id_path) const
 Get the path of id's from the root to this object.
bool is_changed (void) const
 Is there an unsaved change for this object or its children?

Protected Member Functions

virtual bool is_persistent (void) const
 Should this object be saved?
bool self_change (void)
 Method to report change in this object.
Topology_Parenttopology_parent () const
 pointer to our topological parent
bool send_change (void)
 Handle details of propagating change.
bool send_deletion_change ()
 Handle details of propagating change for a deleted object.

Protected Attributes

bool self_changed_
 true if this object changed since last save_persistent
bool children_changed_
 true of any of this object's children changed since last save_persistent
Topology_Parenttopology_parent_
 A safely-typed copy of parent_;.

Private Member Functions

virtual bool change_to_parent (void)
 Send change to parent.

Detailed Description

Base class for Persistent Topology Objects.

Topology objects must be derived from this class to allow themselves to be persisted. Note: virtual inheritance from TopologySavable is unnecessary, but HP ACC compiler warns if it's not there.


Constructor & Destructor Documentation

TAO_Notify::Topology_Object::Topology_Object ( )

The constructor.

TAO_Notify::Topology_Object::~Topology_Object ( ) [virtual]

The destructor.


Member Function Documentation

bool TAO_Notify::Topology_Object::change_to_parent ( void  ) [private, virtual]

Send change to parent.

Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()

Returns:
false if save will never happen

Reimplemented in TAO_Notify_EventChannelFactory.

TAO_Notify_Object::ID TAO_Notify::Topology_Object::get_id ( void  ) const [virtual]

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.

Reimplemented in TAO_Notify_EventChannelFactory, and TAO_Notify_EventChannel.

void TAO_Notify::Topology_Object::get_id_path ( TAO_Notify::IdVec id_path) const

Get the path of id's from the root to this object.

void TAO_Notify::Topology_Object::initialize ( Topology_Parent topology_parent) [virtual]

Init this object with data from <rhs>.

bool TAO_Notify::Topology_Object::is_changed ( void  ) const

Is there an unsaved change for this object or its children?

bool TAO_Notify::Topology_Object::is_persistent ( void  ) const [protected, virtual]

Should this object be saved?

This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.

Returns:
true (default) if object should be saved.

Reimplemented in TAO_Notify_EventChannelFactory.

Topology_Object * TAO_Notify::Topology_Object::load_child ( const ACE_CString type,
CORBA::Long  id,
const NVPList attrs
) [virtual]

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented in TAO_Notify_EventChannelFactory, TAO_Notify_Proxy, TAO_Notify_ETCL_Filter, TAO_Notify_EventChannel, TAO_Notify_Admin, TAO_Notify::Reconnection_Registry, TAO_Notify_EventTypeSeq, TAO_Notify_ETCL_FilterFactory, TAO_Notify_FilterAdmin, TAO_Notify_ConsumerAdmin, TAO_Notify_SupplierAdmin, and TAO_Notify_Constraint_Expr.

bool TAO_Notify::Topology_Object::self_change ( void  ) [protected]

Method to report change in this object.

see also Topology_Parent::child_change ()

Returns:
false if save will never happen
bool TAO_Notify::Topology_Object::send_change ( void  ) [protected]

Handle details of propagating change.

Returns:
false if save will never happen
bool TAO_Notify::Topology_Object::send_deletion_change ( void  ) [protected]

Handle details of propagating change for a deleted object.

Returns:
false if save will never happen
Topology_Parent * TAO_Notify::Topology_Object::topology_parent ( ) const [protected]

pointer to our topological parent

Returns:
0 if none

Member Data Documentation

true of any of this object's children changed since last save_persistent

true if this object changed since last save_persistent

A safely-typed copy of parent_;.


The documentation for this class was generated from the following files:
