TAO_Notify_EventChannel Class Reference

Implementation of CosNotifyChannelAdmin::EventChannel. More...

#include <EventChannel.h>

Inheritance diagram for TAO_Notify_EventChannel:
Inheritance graph
[legend]

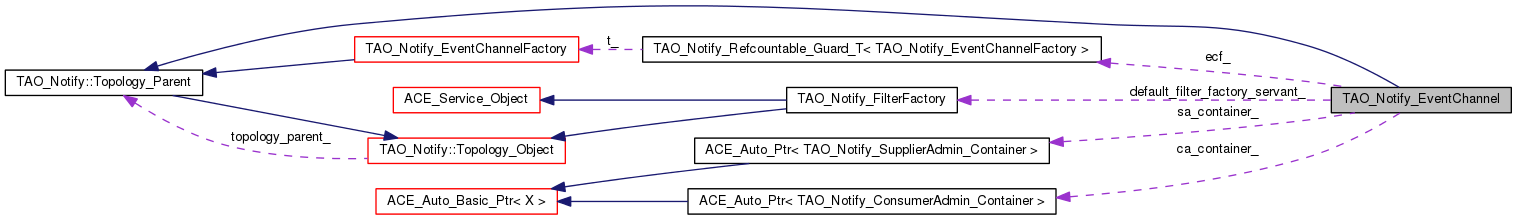

Collaboration diagram for TAO_Notify_EventChannel:
Collaboration graph
[legend]

List of all members.

Public Types

typedef
TAO_Notify_Refcountable_Guard_T
< TAO_Notify_EventChannel
Ptr
typedef
CosNotifyChannelAdmin::ChannelIDSeq
SEQ
typedef
CosNotifyChannelAdmin::ChannelIDSeq_var
SEQ_VAR

Public Member Functions

 TAO_Notify_EventChannel (void)
 Constructor.
virtual ~TAO_Notify_EventChannel ()
 Destructor.
void init (TAO_Notify_EventChannelFactory *ecf, const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin)
 Init.
void init (TAO_Notify::Topology_Parent *parent)
 Init (for reload)
void remove (TAO_Notify_ConsumerAdmin *consumer_admin)
 Remove ConsumerAdmin from its container.
void remove (TAO_Notify_SupplierAdmin *supplier_admin)
 Remove SupplierAdmin from its container.
virtual void _add_ref (void)
 ServantBase refcount methods.
virtual void _remove_ref (void)
virtual void save_persistent (TAO_Notify::Topology_Saver &saver)
virtual
TAO_Notify::Topology_Object
load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
 Create a child of the appropriate type and return it.
virtual void reconnect (void)
virtual void validate ()
virtual TAO_Notify_Object::ID get_id () const
 Find the id associated with topology object.
TAO_Notify_ProxyConsumerfind_proxy_consumer (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_ProxySupplierfind_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position)
virtual void cleanup_proxy (CosNotifyChannelAdmin::ProxyID id, bool is_supplier, bool experienced_timeout)
virtual int shutdown (void)
 Shutdown.
virtual void load_attrs (const TAO_Notify::NVPList &attrs)
virtual void destroy (void)
 TAO_Notify_Container_T requires a destroy method.
virtual
CosNotifyChannelAdmin::ConsumerAdmin_ptr
get_consumeradmin (CosNotifyChannelAdmin::AdminID id)
 This is public to allow TAO_MonitorConsumerAdmin access.
virtual
CosNotifyChannelAdmin::SupplierAdmin_ptr
get_supplieradmin (CosNotifyChannelAdmin::AdminID id)
 This is public to allow TAO_MonitorSupplierAdmin access.
TAO_Notify_FilterFactorydefault_filter_factory_servant () const

Protected Member Functions

virtual
::CosNotifyChannelAdmin::EventChannelFactory_ptr
MyFactory ()
 =CosNotifyChannelAdmin::EventChannel methods
virtual
::CosNotifyChannelAdmin::ConsumerAdmin_ptr
default_consumer_admin (void)
virtual
::CosNotifyChannelAdmin::SupplierAdmin_ptr
default_supplier_admin (void)
virtual
::CosNotifyFilter::FilterFactory_ptr
default_filter_factory (void)
virtual
::CosNotifyChannelAdmin::ConsumerAdmin_ptr
new_for_consumers (CosNotifyChannelAdmin::InterFilterGroupOperator op, CosNotifyChannelAdmin::AdminID_out id)
virtual
::CosNotifyChannelAdmin::SupplierAdmin_ptr
new_for_suppliers (CosNotifyChannelAdmin::InterFilterGroupOperator op, CosNotifyChannelAdmin::AdminID_out id)
virtual
::CosNotifyChannelAdmin::AdminIDSeq
get_all_consumeradmins (void)
virtual
::CosNotifyChannelAdmin::AdminIDSeq
get_all_supplieradmins (void)
virtual
::CosNotification::QoSProperties
get_qos (void)
 Get the QoS Properties.
virtual void set_qos (const CosNotification::QoSProperties &qos)
 Set the QoS Properties.
virtual void validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos)
virtual
::CosNotification::AdminProperties
get_admin (void)
virtual void set_admin (const CosNotification::AdminProperties &admin)
virtual
::CosEventChannelAdmin::ConsumerAdmin_ptr
for_consumers (void)
virtual
::CosEventChannelAdmin::SupplierAdmin_ptr
for_suppliers (void)

Private Types

typedef TAO_Notify_Container_T
< TAO_Notify_ConsumerAdmin
TAO_Notify_ConsumerAdmin_Container
typedef TAO_Notify_Container_T
< TAO_Notify_SupplierAdmin
TAO_Notify_SupplierAdmin_Container

Private Member Functions

virtual void save_attrs (TAO_Notify::NVPList &attrs)
TAO_Notify_ConsumerAdmin_Containerca_container ()
TAO_Notify_SupplierAdmin_Containersa_container ()
virtual void release (void)
 The release method is called when the refcount reaches 0.

Private Attributes

TAO_Notify_EventChannelFactory::Ptr ecf_
TAO_SYNCH_MUTEX default_admin_mutex_
CosNotifyChannelAdmin::ConsumerAdmin_var default_consumer_admin_
 Default Consumer Admin.
CosNotifyChannelAdmin::SupplierAdmin_var default_supplier_admin_
 Default Supplier Admin.
ACE_Auto_Ptr
< TAO_Notify_ConsumerAdmin_Container
ca_container_
 ConsumerAdmin Container.
ACE_Auto_Ptr
< TAO_Notify_SupplierAdmin_Container
sa_container_
 SupplierAdmin Container.
CosNotifyFilter::FilterFactory_var default_filter_factory_
 The default filter factory.
TAO_Notify_FilterFactorydefault_filter_factory_servant_

Friends

class TAO_Notify_Builder

Detailed Description

Implementation of CosNotifyChannelAdmin::EventChannel.


Member Typedef Documentation

Reimplemented from TAO_Notify_Refcountable.

typedef CosNotifyChannelAdmin::ChannelIDSeq_var TAO_Notify_EventChannel::SEQ_VAR

Constructor & Destructor Documentation

TAO_Notify_EventChannel::TAO_Notify_EventChannel ( void  )

Constructor.

TAO_Notify_EventChannel::~TAO_Notify_EventChannel ( ) [virtual]

Destructor.


Member Function Documentation

void TAO_Notify_EventChannel::_add_ref ( void  ) [virtual]

ServantBase refcount methods.

void TAO_Notify_EventChannel::_remove_ref ( void  ) [virtual]
TAO_Notify_EventChannel::TAO_Notify_ConsumerAdmin_Container & TAO_Notify_EventChannel::ca_container ( ) [private]
void TAO_Notify_EventChannel::cleanup_proxy ( CosNotifyChannelAdmin::ProxyID  id,
bool  is_supplier,
bool  experienced_timeout
) [virtual]
CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::default_consumer_admin ( void  ) [protected]
CosNotifyFilter::FilterFactory_ptr TAO_Notify_EventChannel::default_filter_factory ( void  ) [protected]
TAO_Notify_FilterFactory * TAO_Notify_EventChannel::default_filter_factory_servant ( ) const
CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::default_supplier_admin ( void  ) [protected]
void TAO_Notify_EventChannel::destroy ( void  ) [virtual]

TAO_Notify_Container_T requires a destroy method.

TAO_Notify_ProxyConsumer * TAO_Notify_EventChannel::find_proxy_consumer ( TAO_Notify::IdVec id_path,
size_t  position
)
TAO_Notify_ProxySupplier * TAO_Notify_EventChannel::find_proxy_supplier ( TAO_Notify::IdVec id_path,
size_t  position
)
CosEventChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::for_consumers ( void  ) [protected]
CosEventChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::for_suppliers ( void  ) [protected]
CosNotification::AdminProperties * TAO_Notify_EventChannel::get_admin ( void  ) [protected]
CosNotifyChannelAdmin::AdminIDSeq * TAO_Notify_EventChannel::get_all_consumeradmins ( void  ) [protected]
CosNotifyChannelAdmin::AdminIDSeq * TAO_Notify_EventChannel::get_all_supplieradmins ( void  ) [protected]
CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::get_consumeradmin ( CosNotifyChannelAdmin::AdminID  id) [virtual]

This is public to allow TAO_MonitorConsumerAdmin access.

virtual TAO_Notify_Object::ID TAO_Notify_EventChannel::get_id ( void  ) const [inline, virtual]

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.

Reimplemented from TAO_Notify::Topology_Object.

CosNotification::QoSProperties * TAO_Notify_EventChannel::get_qos ( void  ) [protected]

Get the QoS Properties.

Reimplemented from TAO_Notify_Object.

CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::get_supplieradmin ( CosNotifyChannelAdmin::AdminID  id) [virtual]

This is public to allow TAO_MonitorSupplierAdmin access.

void TAO_Notify_EventChannel::init ( TAO_Notify_EventChannelFactory ecf,
const CosNotification::QoSProperties initial_qos,
const CosNotification::AdminProperties initial_admin
)

Init.

void TAO_Notify_EventChannel::init ( TAO_Notify::Topology_Parent parent)

Init (for reload)

void TAO_Notify_EventChannel::load_attrs ( const TAO_Notify::NVPList attrs) [virtual]

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented from TAO_Notify_Object.

TAO_Notify::Topology_Object * TAO_Notify_EventChannel::load_child ( const ACE_CString type,
CORBA::Long  id,
const TAO_Notify::NVPList attrs
) [virtual]

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

CosNotifyChannelAdmin::EventChannelFactory_ptr TAO_Notify_EventChannel::MyFactory ( void  ) [protected]
CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::new_for_consumers ( CosNotifyChannelAdmin::InterFilterGroupOperator  op,
CosNotifyChannelAdmin::AdminID_out  id
) [protected]
CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::new_for_suppliers ( CosNotifyChannelAdmin::InterFilterGroupOperator  op,
CosNotifyChannelAdmin::AdminID_out  id
) [protected]
void TAO_Notify_EventChannel::reconnect ( void  ) [virtual]

Re-establish connections that we had before a shutdown.

After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.

Reimplemented from TAO_Notify::Topology_Savable.

void TAO_Notify_EventChannel::release ( void  ) [private, virtual]

The release method is called when the refcount reaches 0.

Implements TAO_Notify_Refcountable.

void TAO_Notify_EventChannel::remove ( TAO_Notify_ConsumerAdmin consumer_admin)

Remove ConsumerAdmin from its container.

void TAO_Notify_EventChannel::remove ( TAO_Notify_SupplierAdmin supplier_admin)

Remove SupplierAdmin from its container.

TAO_Notify_EventChannel::TAO_Notify_SupplierAdmin_Container & TAO_Notify_EventChannel::sa_container ( ) [private]
void TAO_Notify_EventChannel::save_attrs ( TAO_Notify::NVPList attrs) [private, virtual]

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented from TAO_Notify_Object.

void TAO_Notify_EventChannel::save_persistent ( TAO_Notify::Topology_Saver saver) [virtual]

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

void TAO_Notify_EventChannel::set_admin ( const CosNotification::AdminProperties admin) [protected, virtual]
void TAO_Notify_EventChannel::set_qos ( const CosNotification::QoSProperties qos) [protected, virtual]

Set the QoS Properties.

Reimplemented from TAO_Notify_Object.

int TAO_Notify_EventChannel::shutdown ( void  ) [virtual]

Shutdown.

Reimplemented from TAO_Notify_Object.

void TAO_Notify_EventChannel::validate ( ) [virtual]
void TAO_Notify_EventChannel::validate_qos ( const CosNotification::QoSProperties required_qos,
CosNotification::NamedPropertyRangeSeq_out  available_qos
) [protected, virtual]

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Reimplemented from TAO_Notify_Object.


Member Data Documentation

ConsumerAdmin Container.

CosNotifyChannelAdmin::ConsumerAdmin_var TAO_Notify_EventChannel::default_consumer_admin_ [private]

Default Consumer Admin.

CosNotifyFilter::FilterFactory_var TAO_Notify_EventChannel::default_filter_factory_ [private]

The default filter factory.

CosNotifyChannelAdmin::SupplierAdmin_var TAO_Notify_EventChannel::default_supplier_admin_ [private]

Default Supplier Admin.

= Data Members The parent object.

SupplierAdmin Container.


The documentation for this class was generated from the following files:
