TAO_CosNotification  2.0.8
Public Types | Public Member Functions | Protected Member Functions | Protected Attributes | Private Member Functions | Private Attributes | Friends
TAO_Notify_Object Class Reference

Base Object for RT_Notify's CORBA Objects. More...

#include <Object.h>

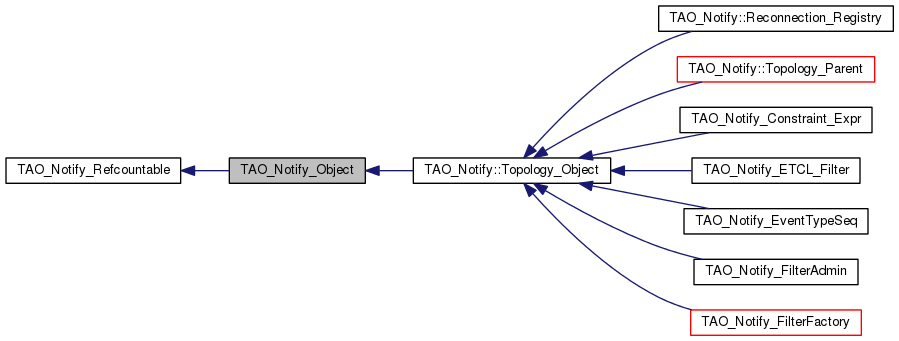

Inheritance diagram for TAO_Notify_Object:
Inheritance graph
[legend]

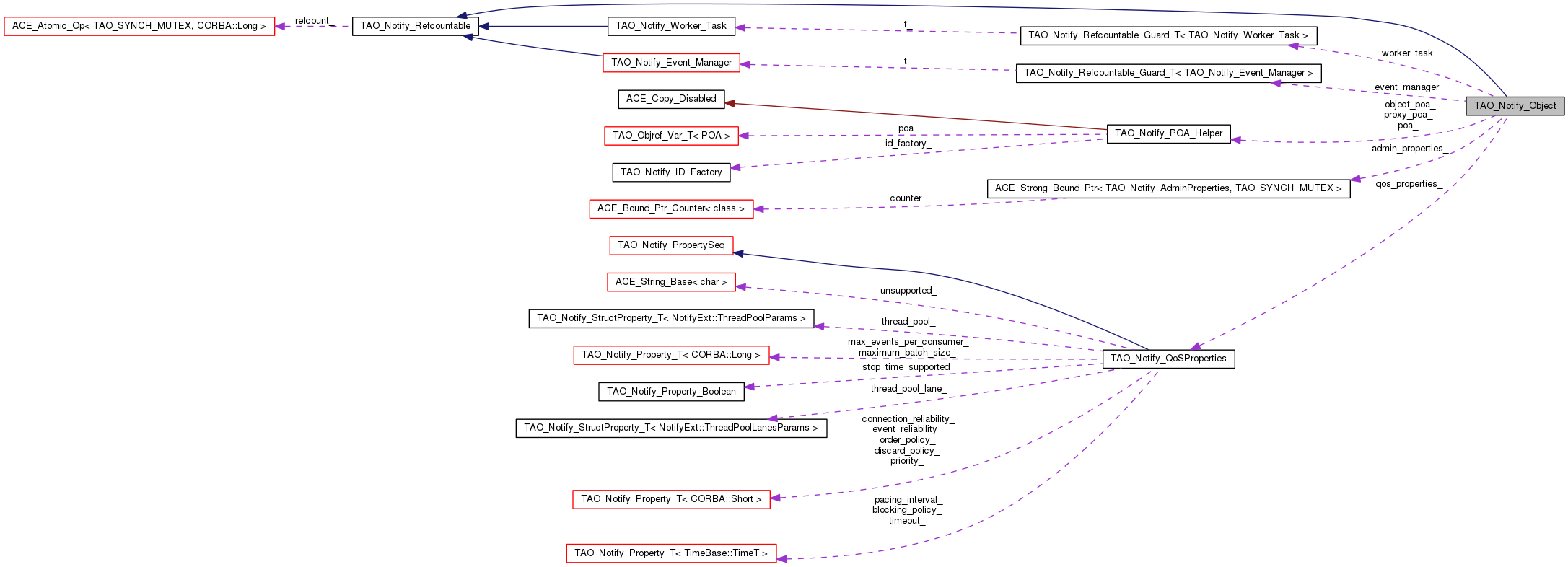

Collaboration diagram for TAO_Notify_Object:
Collaboration graph
[legend]

List of all members.

Public Types

typedef CORBA::Long ID
 Id for Objects.

Public Member Functions

virtual ~TAO_Notify_Object (void)
 Destructor.
ID id (void) const
 This Object's ID.
virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate.
virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with existing id.
void deactivate (void)
 Deactivate.
bool has_shutdown (void)
 Have we been shutdown. returns true if shutdown.
void execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr ref (void)
 Get CORBA Ref.
virtual void set_qos (const CosNotification::QoSProperties &qos)
 Set the QoS Properties.
CosNotification::QoSPropertiesget_qos (void)
 Get the QoS Properties.
bool find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timertimer (void)
 Obtain the Timer manager associated with this object.
TAO_Notify_Event_Managerevent_manager (void)
 Accessor for the Event Manager.
virtual int shutdown (void)
 Shutdown. Returns 1 if the shutdown was already run once before.
virtual void load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Taskget_worker_task (void)
 Allow access to the underlying worker task.

Protected Member Functions

 TAO_Notify_Object (void)
 Constructor.
void initialize (TAO_Notify_Object *parent)
 Init this object with data from <rhs>.
void inherit_poas (TAO_Notify_Object &parent)
 Uses the poas from the supplied object.
void adopt_poa (TAO_Notify_POA_Helper *single)
 Adopts the supplied poa as all are poas.
void set_primary_as_proxy_poa ()
 Changes the primary poa to the current proxy poa.
TAO_Notify_POA_Helperproxy_poa (void)
 Accessor for the proxy_poa_.
TAO_Notify_POA_Helperobject_poa (void)
 Accessor for the object_poa_.
TAO_Notify_POA_Helperpoa (void)
 Get the POA assigned to us.
void set_event_manager (TAO_Notify_Event_Manager *event_manager)
void set_admin_properties (TAO_Notify_AdminProperties *admin_properties)
TAO_Notify_AdminPropertiesadmin_properties (void)
 Accessor for the Admin Properties.
virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)
virtual void save_attrs (TAO_Notify::NVPList &attrs)

Protected Attributes

TAO_Notify_QoSProperties qos_properties_
 = Protected data members.
TAO_SYNCH_MUTEX lock_
 The mutex to serialize access to state variables.

Private Member Functions

void set_worker_task (TAO_Notify_Worker_Task *worker_task)
 Set Worker Task. This object assume ownership of the set object.
void set_proxy_poa (TAO_Notify_POA_Helper *proxy_poa)
 Setting the proxy_poa_ gives ownership to this class.
void set_object_poa (TAO_Notify_POA_Helper *object_poa)
 Setting the object_poa_ gives ownership to this class.
void set_poa (TAO_Notify_POA_Helper *object_poa)
 Setting the object_poa_ gives ownership to this class.
void shutdown_worker_task (void)
 Shutdown the current worker task and delete it if we own it.
void destroy_proxy_poa (void)
 Shutdown the current proxy poa.
void destroy_object_poa (void)
 Shutdown the current object poa.
void destroy_poa (void)
 Shutdown the current poa.

Private Attributes

TAO_Notify_POA_Helperpoa_
 The POA in which the object is activated.
TAO_Notify_POA_Helperproxy_poa_
 The POA in which the proxys are activated.
bool own_proxy_poa_
TAO_Notify_POA_Helperobject_poa_
 The POA in which the object's children are activated.
bool own_object_poa_
ID id_
 Id assigned to this object.
TAO_Notify_Refcountable_Guard_T
< TAO_Notify_Event_Manager
event_manager_
TAO_Notify_AdminProperties::Ptr admin_properties_
 Admin Properties.
TAO_Notify_Worker_Task::Ptr worker_task_
 Worker Task.
bool own_worker_task_
bool shutdown_
 Are we shutdown (i,e. scheduled for destroy).

Friends

class TAO_Notify_Builder
class TAO_Notify_RT_Builder

Detailed Description

Base Object for RT_Notify's CORBA Objects.


Member Typedef Documentation

Id for Objects.


Constructor & Destructor Documentation

TAO_Notify_Object::~TAO_Notify_Object ( void  ) [virtual]

Destructor.

TAO_Notify_Object::TAO_Notify_Object ( void  ) [protected]

Constructor.


Member Function Documentation

CORBA::Object_ptr TAO_Notify_Object::activate ( PortableServer::Servant  servant) [virtual]
CORBA::Object_ptr TAO_Notify_Object::activate ( PortableServer::Servant  servant,
CORBA::Long  id
) [virtual]

Activate with existing id.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_RT_StructuredProxyPushSupplier.

TAO_Notify_AdminProperties & TAO_Notify_Object::admin_properties ( void  ) [protected]

Accessor for the Admin Properties.

void TAO_Notify_Object::adopt_poa ( TAO_Notify_POA_Helper single) [protected]

Adopts the supplied poa as all are poas.

void TAO_Notify_Object::deactivate ( void  )

Deactivate.

Reimplemented in TAO_Notify_Proxy.

void TAO_Notify_Object::destroy_object_poa ( void  ) [private]

Shutdown the current object poa.

void TAO_Notify_Object::destroy_poa ( void  ) [private]

Shutdown the current poa.

void TAO_Notify_Object::destroy_proxy_poa ( void  ) [private]

Shutdown the current proxy poa.

TAO_Notify_Event_Manager & TAO_Notify_Object::event_manager ( void  )

Accessor for the Event Manager.

void TAO_Notify_Object::execute_task ( TAO_Notify_Method_Request method_request)
bool TAO_Notify_Object::find_qos_property_value ( const char *  name,
CosNotification::PropertyValue value
) const
CosNotification::QoSProperties * TAO_Notify_Object::get_qos ( void  )
TAO_Notify_Worker_Task * TAO_Notify_Object::get_worker_task ( void  )

Allow access to the underlying worker task.

bool TAO_Notify_Object::has_shutdown ( void  )

Have we been shutdown. returns true if shutdown.

CORBA::Long TAO_Notify_Object::id ( void  ) const

This Object's ID.

void TAO_Notify_Object::inherit_poas ( TAO_Notify_Object parent) [protected]

Uses the poas from the supplied object.

void TAO_Notify_Object::initialize ( TAO_Notify_Object parent) [protected]

Init this object with data from <rhs>.

void TAO_Notify_Object::load_attrs ( const TAO_Notify::NVPList attrs) [virtual]
TAO_Notify_POA_Helper * TAO_Notify_Object::object_poa ( void  ) [protected]

Accessor for the object_poa_.

TAO_Notify_POA_Helper * TAO_Notify_Object::poa ( void  ) [protected]

Get the POA assigned to us.

TAO_Notify_POA_Helper * TAO_Notify_Object::proxy_poa ( void  ) [protected]

Accessor for the proxy_poa_.

void TAO_Notify_Object::qos_changed ( const TAO_Notify_QoSProperties qos_properties) [protected, virtual]

Notification that can be overridden by subclasses to be informed that <qos_properties_> have been modified.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_ProxySupplier.

CORBA::Object_ptr TAO_Notify_Object::ref ( void  )

Get CORBA Ref.

void TAO_Notify_Object::save_attrs ( TAO_Notify::NVPList attrs) [protected, virtual]

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented in TAO_Notify_EventChannel, TAO_Notify_Proxy, and TAO_Notify_Admin.

void TAO_Notify_Object::set_admin_properties ( TAO_Notify_AdminProperties admin_properties) [protected]
void TAO_Notify_Object::set_event_manager ( TAO_Notify_Event_Manager event_manager) [protected]
void TAO_Notify_Object::set_object_poa ( TAO_Notify_POA_Helper object_poa) [private]

Setting the object_poa_ gives ownership to this class.

void TAO_Notify_Object::set_poa ( TAO_Notify_POA_Helper object_poa) [private]

Setting the object_poa_ gives ownership to this class.

void TAO_Notify_Object::set_primary_as_proxy_poa ( ) [protected]

Changes the primary poa to the current proxy poa.

void TAO_Notify_Object::set_proxy_poa ( TAO_Notify_POA_Helper proxy_poa) [private]

Setting the proxy_poa_ gives ownership to this class.

void TAO_Notify_Object::set_qos ( const CosNotification::QoSProperties qos) [virtual]
void TAO_Notify_Object::set_worker_task ( TAO_Notify_Worker_Task worker_task) [private]

Set Worker Task. This object assume ownership of the set object.

int TAO_Notify_Object::shutdown ( void  ) [virtual]

Shutdown. Returns 1 if the shutdown was already run once before.

Reimplemented in TAO_Notify_EventChannelFactory, TAO_Notify_EventChannel, TAO_Notify_Admin, TAO_Notify_ProxySupplier, and TAO_Notify_ProxyConsumer.

void TAO_Notify_Object::shutdown_worker_task ( void  ) [private]

Shutdown the current worker task and delete it if we own it.

TAO_Notify_Timer * TAO_Notify_Object::timer ( void  ) [virtual]

Obtain the Timer manager associated with this object.


Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]
friend class TAO_Notify_RT_Builder [friend]

Member Data Documentation

Admin Properties.

The event manager. TAO_Notify_Event_Manager inl includes Object.h

Id assigned to this object.

Reimplemented in TAO_Notify_ETCL_Filter.

The mutex to serialize access to state variables.

Reimplemented in TAO_Notify_ETCL_Filter, and TAO_Notify_FilterAdmin.

The POA in which the object's children are activated.

The POA in which the object is activated.

Reimplemented in TAO_Notify_EventChannelFactory, and TAO_Notify_ETCL_Filter.

The POA in which the proxys are activated.

= Protected data members.

QoS Properties.

Are we shutdown (i,e. scheduled for destroy).

Worker Task.


The documentation for this class was generated from the following files:
