ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > Class Template Reference

Provides a hash table of BUCKETs as an implementation for a timer queue. More...

#include <Timer_Hash_T.h>

Inheritance diagram for ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >:

[legend]

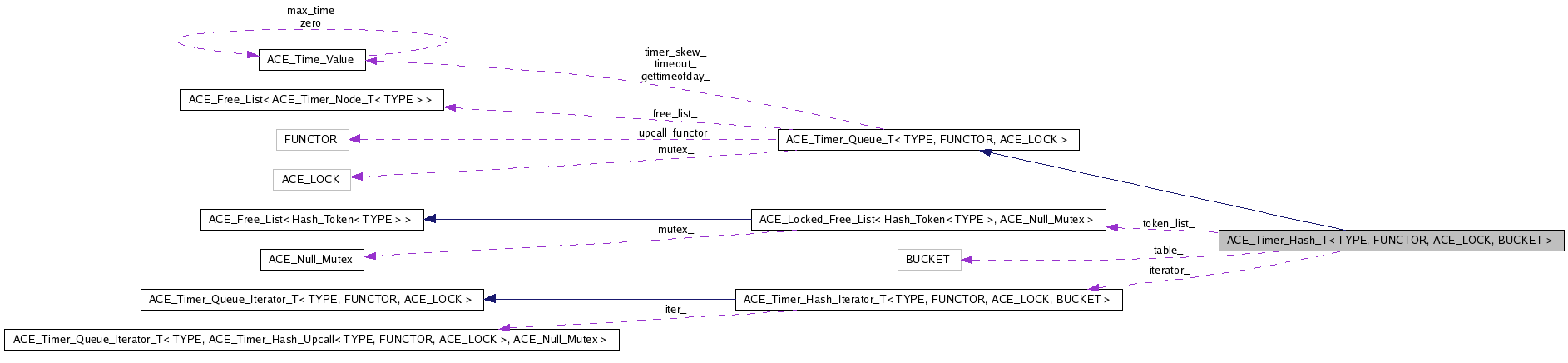

Collaboration diagram for ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >:

[legend]

List of all members.

Public Types
typedef ACE_Timer_Hash_Iterator_T < TYPE, FUNCTOR, ACE_LOCK, BUCKET >	HASH_ITERATOR
	Type of iterator.
typedef ACE_Timer_Queue_T < TYPE, FUNCTOR, ACE_LOCK >	INHERITED
	Type inherited from.
Public Member Functions
	ACE_Timer_Hash_T (size_t table_size, FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0)
	ACE_Timer_Hash_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0)
virtual	~ACE_Timer_Hash_T (void)
	Destructor.
virtual bool	is_empty (void) const
	True if queue is empty, else false.
virtual const ACE_Time_Value &	earliest_time (void) const
virtual int	reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int	cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int	expire (void)
virtual int	expire (const ACE_Time_Value &current_time)
virtual ACE_Timer_Queue_Iterator_T < TYPE, FUNCTOR, ACE_LOCK > &	iter (void)
	Returns a pointer to this ACE_Timer_Queue's iterator.
virtual ACE_Timer_Node_T< TYPE > *	remove_first (void)
	Removes the earliest node from the queue and returns it.
virtual void	dump (void) const
	Dump the state of an object.
virtual ACE_Timer_Node_T< TYPE > *	get_first (void)
	Reads the earliest node from the queue and returns it.
Protected Member Functions
virtual void	free_node (ACE_Timer_Node_T< TYPE > *)
	Factory method that frees a previously allocated node.
Private Member Functions
virtual long	schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
virtual int	dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
	Non-locking version of dispatch_info ().
virtual void	reschedule (ACE_Timer_Node_T< TYPE > *)
	Reschedule an "interval" ACE_Timer_Node.
void	find_new_earliest (void)
	Finds the earliest node.
	ACE_Timer_Hash_T (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
void	operator= (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
Private Attributes
size_t	size_
	Keeps track of the size of the queue.
BUCKET **	table_
	Table of BUCKETS.
size_t	table_size_
	Keeps track of the size of table_.
ACE_Timer_Hash_Upcall< TYPE, FUNCTOR, ACE_LOCK >	table_functor_
	Functor used for the table's timer queues.
size_t	earliest_position_
	Index to the position with the earliest entry.
HASH_ITERATOR *	iterator_
	Iterator used to expire timers.
ACE_Locked_Free_List < Hash_Token< TYPE > , ACE_Null_Mutex >	token_list_
Friends
class	ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >
	Iterator is a friend.

---

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>
class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >

Provides a hash table of BUCKETs as an implementation for a timer queue.

This implementation uses a hash table of BUCKETs. The hash is based on the time_value of the event. Unlike other Timer Queues, ACE_Timer_Hash does not expire events in order.

---

Member Typedef Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

typedef ACE_Timer_Hash_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, BUCKET> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::HASH_ITERATOR

Type of iterator.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::INHERITED

Type inherited from.

---

Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T	(	size_t	table_size,
		FUNCTOR *	upcall_functor = 0,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = 0
	)			[inline]

Default constructor. table_size determines the size of the hash table. upcall_functor is the instance of the FUNCTOR to be used by the buckets. If upcall_functor is 0, a default FUNCTOR will be created.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T	(	FUNCTOR *	upcall_functor = 0,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = 0
	)			[inline]

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the queue. If upcall_functor is 0, Timer Hash will create a default FUNCTOR. freelist the freelist of timer nodes. If 0, then a default freelist will be created. The default size will be ACE_DEFAULT_TIMERS and there will be no preallocation.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::~ACE_Timer_Hash_T

(

void

)

[inline, virtual]

Destructor.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T

(

const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &

)

[private]

---

Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

bool ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::is_empty

(

void

)

const [inline, virtual]

True if queue is empty, else false.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

const ACE_Time_Value & ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::earliest_time

(

void

)

const [inline, virtual]

Returns the time of the earlier node in the <ACE_Timer_Hash>. Must be called on a non-empty queue.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::reset_interval	(	long	timer_id,
		const ACE_Time_Value &	interval
	)			[inline, virtual]

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::cancel	(	const TYPE &	type,
		int	dont_call_handle_close = 1
	)			[inline, virtual]

Cancel all timer associated with type. If <dont_call> is 0 then the <functor> will be invoked. Returns number of timers cancelled. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::cancel	(	long	timer_id,
		const void **	act = 0,
		int	dont_call_handle_close = 1
	)			[inline, virtual]

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire

(

void

)

[inline, virtual]

Run the <functor> for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire

(

const ACE_Time_Value &

current_time

)

[inline, virtual]

Run the <functor> for all timers whose values are <= current_time. This does not account for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > & ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::iter

(

void

)

[inline, virtual]

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Node_T< TYPE > * ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::remove_first

(

void

)

[inline, virtual]

Removes the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::dump

(

void

)

const [inline, virtual]

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Node_T< TYPE > * ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::get_first

(

void

)

[inline, virtual]

Reads the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::free_node

(

ACE_Timer_Node_T< TYPE > *

node

)

[inline, protected, virtual]

Factory method that frees a previously allocated node.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

long ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::schedule_i	(	const TYPE &	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval
	)			[inline, private, virtual]

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that is a pointer to a token which stores information about the event. This <timer_id> can be used to cancel the timer before it expires. Returns -1 on failure.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::dispatch_info_i	(	const ACE_Time_Value &	current_time,
		ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info
	)			[inline, private, virtual]

Non-locking version of dispatch_info ().

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::reschedule

(

ACE_Timer_Node_T< TYPE > *

expired

)

[inline, private, virtual]

Reschedule an "interval" ACE_Timer_Node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::find_new_earliest

(

void

)

[inline, private]

Finds the earliest node.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::operator=

(

const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &

)

[private]

---

Friends And Related Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

friend class ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > [friend]

Iterator is a friend.

---

Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::size_ [private]

Keeps track of the size of the queue.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

BUCKET** ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::table_ [private]

Table of BUCKETS.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::table_size_ [private]

Keeps track of the size of table_.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_Upcall<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::table_functor_ [private]

Functor used for the table's timer queues.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::earliest_position_ [private]

Index to the position with the earliest entry.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

HASH_ITERATOR* ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::iterator_ [private]

Iterator used to expire timers.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Locked_Free_List<Hash_Token<TYPE>, ACE_Null_Mutex> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::token_list_ [private]

Hash_Token is usually allocated in schedule but its deallocation is problematic and token_list_ helps with this.

---

The documentation for this class was generated from the following files:

• Timer_Hash_T.h
• Timer_Hash_T.cpp
