ACE_SOCK Class Reference

An abstract class that forms the basis for more specific classes, such as ACE_SOCK_Acceptor and ACE_SOCK_Stream. Do not instantiate this class. More...

#include <SOCK.h>

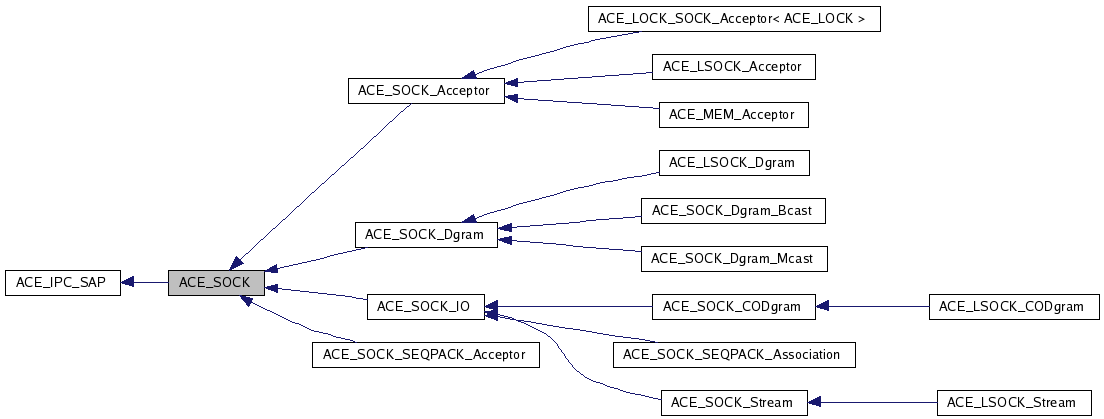

Inheritance diagram for ACE_SOCK:

Inheritance graph
[legend]
Collaboration diagram for ACE_SOCK:

Collaboration graph
[legend]

List of all members.

Public Member Functions

int set_option (int level, int option, void *optval, int optlen) const
 Wrapper around the setsockopt system call.
int get_option (int level, int option, void *optval, int *optlen) const
 Wrapper around the getsockopt system call.
int close (void)
int get_local_addr (ACE_Addr &) const
int get_remote_addr (ACE_Addr &) const
void dump (void) const
 Dump the state of an object.
int open (int type, int protocol_family, int protocol, int reuse_addr)
 Wrapper around the BSD-style socket system call (no QoS).
int open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
 Wrapper around the QoS-enabled WSASocket function.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

 ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)
 ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
 ACE_SOCK (void)
 ~ACE_SOCK (void)
 Protected destructor.


Detailed Description

An abstract class that forms the basis for more specific classes, such as ACE_SOCK_Acceptor and ACE_SOCK_Stream. Do not instantiate this class.

This class provides functions that are common to all of the <ACE_SOCK_*> classes. ACE_SOCK provides the ability to get and set socket options, get the local and remote addresses, and open and close a socket handle.


Constructor & Destructor Documentation

ACE_SOCK::ACE_SOCK ( int  type,
int  protocol_family,
int  protocol = 0,
int  reuse_addr = 0
) [protected]

Constructor with arguments to call the BSD-style socket system call (no QoS).

ACE_SOCK::ACE_SOCK ( int  type,
int  protocol_family,
int  protocol,
ACE_Protocol_Info protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr
) [protected]

Constructor with arguments to call the QoS-enabled WSASocket function.

ACE_SOCK::ACE_SOCK ( void   )  [protected]

Default constructor is protected to prevent instances of this class from being defined.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SOCK::~ACE_SOCK ( void   )  [protected]

Protected destructor.

Not a virtual destructor. Protected destructor to prevent operator delete() from being called through a base class ACE_SOCK pointer/reference.


Member Function Documentation

ACE_INLINE int ACE_SOCK::set_option ( int  level,
int  option,
void *  optval,
int  optlen
) const

Wrapper around the setsockopt system call.

ACE_INLINE int ACE_SOCK::get_option ( int  level,
int  option,
void *  optval,
int *  optlen
) const

Wrapper around the getsockopt system call.

int ACE_SOCK::close ( void   )

Close the socket. This method also sets the object's handle value to ACE_INVALID_HANDLE.

Returns:
The result of closing the socket; 0 if the handle value was already ACE_INVALID_HANDLE.

Reimplemented in ACE_SOCK_Acceptor, ACE_SOCK_Dgram_Bcast, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

int ACE_SOCK::get_local_addr ( ACE_Addr sa  )  const

Return the local endpoint address in the referenced <ACE_Addr>. Returns 0 if successful, else -1.

Reimplemented in ACE_LSOCK_Acceptor, and ACE_LSOCK_Stream.

int ACE_SOCK::get_remote_addr ( ACE_Addr sa  )  const

Return the address of the remotely connected peer (if there is one), in the referenced ACE_Addr. Returns 0 if successful, else -1.

Reimplemented in ACE_LSOCK_Stream, ACE_SOCK_Acceptor, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, and ACE_SOCK_SEQPACK_Acceptor.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_SOCK::dump ( void   )  const

int ACE_SOCK::open ( int  type,
int  protocol_family,
int  protocol,
int  reuse_addr
)

Wrapper around the BSD-style socket system call (no QoS).

int ACE_SOCK::open ( int  type,
int  protocol_family,
int  protocol,
ACE_Protocol_Info protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr
)

Wrapper around the QoS-enabled WSASocket function.


Member Data Documentation


The documentation for this class was generated from the following files:
