ACE_SOCK_Dgram_Mcast Class Reference

Defines the ACE socket wrapper for UDP/IP multicast. More...

#include <SOCK_Dgram_Mcast.h>

Inheritance diagram for ACE_SOCK_Dgram_Mcast:

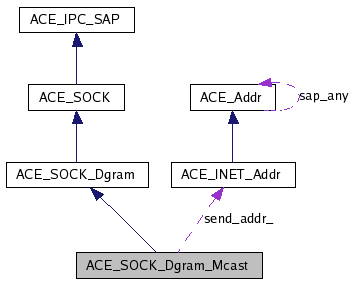

Collaboration diagram for ACE_SOCK_Dgram_Mcast:

List of all members.

Public Types

enum options {
OPT_BINDADDR_NO = 0, OPT_BINDADDR_YES = 1, DEFOPT_BINDADDR = OPT_BINDADDR_NO, OPT_NULLIFACE_ONE = 0,
OPT_NULLIFACE_ALL = 2, DEFOPT_NULLIFACE = OPT_NULLIFACE_ALL, DEFOPTS = DEFOPT_BINDADDR | DEFOPT_NULLIFACE
}

Option parameters. More...

Public Member Functions

ACE_SOCK_Dgram_Mcast (options opts=DEFOPTS)

~ACE_SOCK_Dgram_Mcast (void)

int open (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)

int join (const ACE_INET_Addr &mcast_addr, int reuse_addr=1, const ACE_TCHAR *net_if=0)

int leave (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0)

ssize_t send (const void *buf, size_t n, int flags=0) const

ssize_t send (const iovec iov[], int n, int flags=0) const

int set_option (int option, char optval)

Set a socket option.

void dump (void) const

Dump the state of an object.

Public Attributes

ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Protected Member Functions

int open_i (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)

int clear_subs_list (void)

Empty the dynamic subscription list.

Private Member Functions

int subscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if, int reuse_addr)

int subscribe_i (const ACE_INET_Addr &mcast_addr, int reuse_addr=1, const ACE_TCHAR *net_if=0)

Do subscription processing w/out updating the subscription list.

int unsubscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0)

Unsubscribe from a multicast address on one or more network interface(s).

int unsubscribe_i (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0)

Do unsubscription processing w/out udpating subscription list.

Private Attributes

int opts_

Per-instance options..

ACE_INET_Addr send_addr_

Multicast address to which local <send> methods send datagrams.

ACE_TCHAR * send_net_if_

Network interface to which all <send> methods send multicast datagrams.

Detailed Description

Defines the ACE socket wrapper for UDP/IP multicast.

Supports multiple simultaneous subscriptions, unsubscription from one or all subscriptions, and independent send/recv address and interface specifications. Template parameters and/or ctor arguments determine per-instance optional functionality.

Note that multicast semantics and implementation details are _very_ environment-specific; this class is just a wrapper around the underlying implementation and does not try to normalize the concept of multicast communications.

Usage Notes:

Send and Recv addresses and network interfaces, but not port#, are independent. While this instance is open, 1 send interface (and a default send address) is in effect and 0, 1, or multiple recv addresses/interfaces are in effect.
The first <open>/<subscribe> invocation defines the network interface and default address used for all sends by this instance, defines the port# and optionally the multicast address bound to the underlying socket, and defines the (one) port# that is used for all subscribes (subsequent subscribes must pass the same port# or '0').
The default loopback state is not explicitly set; the environment will determine the default state. Note that some environments (e.g. some Win32) do not allow the default to be changed, and that the semantics of loopback control are environment dependent (e.g. sender vs receiver control).
In general, due to multicast design and implementation quirks/bugs, it is difficult to tell which address a received message was sent to or which interface it was received on (even if only one subscription is active). However; there are filtering options that can be applied, to narrow it down considerably.

Interface specification notes (for <subscribe> and <unsubscribe>):

If net_if == 0, the null_iface_opt option determines whether only the system "default" interface or all interfaces is affected. Specifying "all" interfaces is supported only for environments for which <ACE_Sock_Connect::get_ip_interfaces> is properly implemented.
Multiple subscriptions for the same address but different interfaces is normally supported, but re-subscription to an address/interface that is already subscribed is normally not allowed.
The <net_if> interface specification syntax is environment-specific. UNIX systems will normally use device specifications such as "le0" or "elxl1", while other systems will use the IP address of the interface. Some platforms, such as pSoS, support only cardinal numbers as network interface specifications; for these platforms, just give these numbers in alphanumeric form and <subscribe> will convert them into numbers via <ACE_OS::atoi>.

Member Enumeration Documentation

enum ACE_SOCK_Dgram_Mcast::options

Option parameters.

These control per-instance optional functionality. They are set via optional constructor arguments.

Note:: Certain option values are not valid for all environments (see comments in source file for environment-specific restrictions). Default values are always valid values for the compilation environment.

Enumerator:

OPT_BINDADDR_NO	Disable address bind. (Bind only port.).
OPT_BINDADDR_YES	Enable address bind. (Bind port and address.).
DEFOPT_BINDADDR	Default value for BINDADDR option. (Environment-dependent.).
OPT_NULLIFACE_ONE	Define the interpretation of 'NULL' as a recv interface specification. If (net_if==NULL), use default interface.
OPT_NULLIFACE_ALL	If (net_if==NULL), use all mcast interfaces.
DEFOPT_NULLIFACE	Default value for NULLIFACE option. (Environment-dependent.).
DEFOPTS	All default options.

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Mcast::ACE_SOCK_Dgram_Mcast ( ACE_SOCK_Dgram_Mcast::options opts = DEFOPTS )

Ctor - Create an unitialized instance and define per-instance optional functionality. You must invoke <open> or <subscribe>, to create/bind a socket and define operational parameters, before performing any I/O with this instance.

ACE_SOCK_Dgram_Mcast::~ACE_SOCK_Dgram_Mcast ( void )

Dtor - Release all resources and implicitly or explicitly unsubscribe from all currently subscribed groups. The OPT_DTORUNSUB_YES_ option defines whether an explicit <unsusbcribe> is done by the destructor. If not, most systems will automatically unsubscribe upon the close of the socket.

Member Function Documentation

int ACE_SOCK_Dgram_Mcast::open	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if = `0`,
		int	reuse_addr = `1`
	)

Explicitly open/bind the socket and define the network interface and default multicast address used for sending messages. This method is optional; if not explicitly invoked, it is invoked by the first <subscribe>, using the subscribed address/port# and network interface paramters. The <mcast_addr> parameter defines the default send address/port# and also the port# and, if the OPT_BINDADDR_YES option is used, the multicast address that is bound to this socket. If the <send_net_if> parameter != 0, it defines the network interface used for all sends by this instance, otherwise the system "default" interface is used. (The <send_net_if> parameter is ignored if this feature is not supported by the envriornment.) The port# in <mcast_addr> may be 0, in which case a system-assigned (ephemeral) port# is used for sending and receiving. If reuse_addr != 0, the SO_REUSEADDR option and, if it is supported, the SO_REUSEPORT option are enabled.

Returns: -1 if the call fails. Failure can occur due to problems with the address, port#, and/or interface parameters or during system open() or socket option processing.

int ACE_SOCK_Dgram_Mcast::join	(	const ACE_INET_Addr &	mcast_addr,
		int	reuse_addr = `1`,
		const ACE_TCHAR *	net_if = `0`
	)

Join a multicast group on a given interface (or all interfaces, if supported). The given group is joined on the specified interface. If option OPT_NULLIFACE_ALL is used and <net_if> is = 0, the group is joined on all multicast capable interfaces (IFF supported). Multiple subscriptions to various address and interface combinations are supported and tracked. If this is the first invocation of <subscribe>, and <open> was not previously invoked, <open> will be invoked using <mcast_addr> for binding the socket and <net_if> as the interface for <send>.

Returns: -1 if the call fails. Failure can occur due to problems with the address, port#, and/or interface parameters or during the subscription attempt. Once bind() has been invoked (by the first <open> or <subscribe>), returns errno of ENXIO if the port# is not 0 and does not match the bound port#, or if OPT_BINDADDR_YES option is used and the address does not match the bound address. Returns errno of ENODEV if the addr/port#/interface parameters appeared valid, but no subscription(s) succeeded. An error is unconditionally returned if option OPT_NULLIFACE_ALL is used, <net_if> is NULL, and <ACE_Sock_Connect::get_ip_interfaces> is not implemented in this environment.

Note that the optional reuse_addr parameter does not apply to subscriptions; it is only used if <open> is implicitly invoked (see above).

Uses the mcast_addr to determine protocol_family, and protocol which we always pass as 0 anyway.

int ACE_SOCK_Dgram_Mcast::leave	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if = `0`
	)

Leave a multicast group on a given interface (or all interfaces, if supported). The specified group/interface combination is unsubscribed. If option OPT_NULLIFACE_ALL is used and <net_if> is = 0, the group is unsubscribed from all interfaces (IFF supported).

Returns: -1 if the unsubscribe failed. Most environments will return -1 if there was no active subscription for this address/interface combination. An error is unconditionally returned if option OPT_NULLIFACE_ALL is used, <net_if> is = 0, and <ACE_Sock_Connect::get_ip_interfaces> is not implemented in this environment (_even if_ the <subscribe> specifies a non- NULL <net_if>).

leave() replaces unsubscribe() and uses mcast_addr to determine protocol_family, and protocol which we always pass as 0 anyway.

ACE_INLINE ssize_t ACE_SOCK_Dgram_Mcast::send	(	const void *	buf,
		size_t	n,
		int	flags = `0`
	)			const

Send n bytes in buf, using the multicast address and network interface defined by the first <open> or <subscribe>.

ACE_INLINE ssize_t ACE_SOCK_Dgram_Mcast::send	(	const iovec	iov[],
		int	n,
		int	flags = `0`
	)			const

Send n <iovecs>, using the multicast address and network interface defined by the first <open> or <subscribe>.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_SOCK_Dgram_Mcast::set_option	(	int	option,
		char	optval
	)

Set a socket option.

Set an IP option that takes a char as input, such as IP_MULTICAST_LOOP or IP_MULTICAST_TTL. This is just a more concise, nice interface to a subset of possible ACE_SOCK::set_option calls, but only works for IPPROTO_IP or IPPROTO_IPV6 level options.

Returns 0 on success, -1 on failure.

Deprecated:: This method has been deprecated since it cannot be used easily with with IPv6 options. Use ACE_SOCK::set_option instead.

void ACE_SOCK_Dgram_Mcast::dump ( void ) const

Dump the state of an object.

Logs the setting of all options, the bound address, the send address and interface, and the list of current subscriptions.

Reimplemented from ACE_SOCK_Dgram.

int ACE_SOCK_Dgram_Mcast::subscribe_ifs	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if,
		int	reuse_addr
	)			`[private]`

Subscribe to a multicast address on one or more network interface(s). (No QoS support.)

int ACE_SOCK_Dgram_Mcast::subscribe_i	(	const ACE_INET_Addr &	mcast_addr,
		int	reuse_addr = `1`,
		const ACE_TCHAR *	net_if = `0`
	)			`[private]`

Do subscription processing w/out updating the subscription list.

int ACE_SOCK_Dgram_Mcast::unsubscribe_ifs	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if = `0`
	)			`[private]`

Unsubscribe from a multicast address on one or more network interface(s).

int ACE_SOCK_Dgram_Mcast::unsubscribe_i	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if = `0`
	)			`[private]`

Do unsubscription processing w/out udpating subscription list.

int ACE_SOCK_Dgram_Mcast::open_i	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if = `0`,
		int	reuse_addr = `1`
	)			`[protected]`

Contains common open functionality so that inheriting classes can reuse it.

int ACE_SOCK_Dgram_Mcast::clear_subs_list ( void ) [protected]

Empty the dynamic subscription list.

Member Data Documentation

ACE_SOCK_Dgram_Mcast::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Dgram.

int ACE_SOCK_Dgram_Mcast::opts_ [private]

Per-instance options..

ACE_INET_Addr ACE_SOCK_Dgram_Mcast::send_addr_ [private]

Multicast address to which local <send> methods send datagrams.

ACE_TCHAR* ACE_SOCK_Dgram_Mcast::send_net_if_ [private]

Network interface to which all <send> methods send multicast datagrams.

The documentation for this class was generated from the following files:
