ACE_Oneshot_Acceptor< SVC_HANDLER, > Class Template Reference

Generic factory for passively connecting clients and creating exactly one service handler (SVC_HANDLER). More...

#include <Acceptor.h>

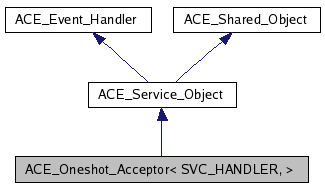

Inheritance diagram for ACE_Oneshot_Acceptor< SVC_HANDLER, >:

Inheritance graph
[legend]

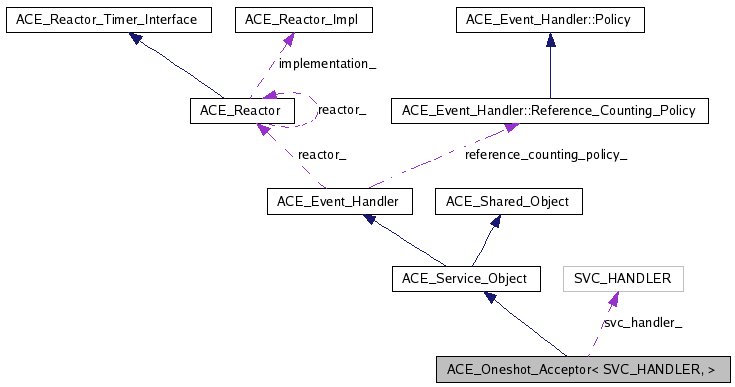

Collaboration diagram for ACE_Oneshot_Acceptor< SVC_HANDLER, >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_PEER_ACCEPTOR_ADDR addr_type
typedef ACE_PEER_ACCEPTOR acceptor_type
typedef SVC_HANDLER handler_type
typedef SVC_HANDLER::stream_type stream_type

Public Member Functions

 ACE_Oneshot_Acceptor (void)
 Constructor.
 ACE_Oneshot_Acceptor (const ACE_PEER_ACCEPTOR_ADDR &local_addr, ACE_Reactor *reactor=ACE_Reactor::instance(), ACE_Concurrency_Strategy< SVC_HANDLER > *=0)
int open (const ACE_PEER_ACCEPTOR_ADDR &, ACE_Reactor *reactor=ACE_Reactor::instance(), ACE_Concurrency_Strategy< SVC_HANDLER > *=0)
virtual ~ACE_Oneshot_Acceptor (void)
 Close down the {Oneshot_Acceptor}.
virtual int accept (SVC_HANDLER *=0, ACE_PEER_ACCEPTOR_ADDR *remote_addr=0, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, int restart=1, int reset_new_handle=0)
virtual int cancel (void)
 Cancel a oneshot acceptor that was started asynchronously.
virtual operator ACE_PEER_ACCEPTOR & () const
 Return the underlying {PEER_ACCEPTOR} object.
virtual ACE_PEER_ACCEPTOR & acceptor (void) const
 Return the underlying {PEER_ACCEPTOR} object.
virtual int close (void)
 Close down the {Oneshot_Acceptor}.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

virtual int activate_svc_handler (SVC_HANDLER *svc_handler)
int shared_accept (SVC_HANDLER *svc_handler, ACE_PEER_ACCEPTOR_ADDR *remote_addr, ACE_Time_Value *timeout, int restart, int reset_new_handle)
virtual ACE_HANDLE get_handle (void) const
 Returns the listening acceptor's {ACE_HANDLE}.
virtual int handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual int handle_input (ACE_HANDLE)
virtual int handle_timeout (const ACE_Time_Value &tv, const void *arg)
 Called when an acceptor times out...
virtual int init (int argc, ACE_TCHAR *argv[])
virtual int fini (void)
virtual int info (ACE_TCHAR **, size_t) const
 Default version returns address info in {buf}.
virtual int suspend (void)
virtual int resume (void)

Private Member Functions

int register_handler (SVC_HANDLER *svc_handler, const ACE_Synch_Options &options, int restart)

Private Attributes

SVC_HANDLER * svc_handler_
 Hold the svc_handler_ across asynchrony boundaries.
int restart_
 Hold the restart flag across asynchrony boundaries.
ACE_PEER_ACCEPTOR peer_acceptor_
 Factory that establishes connections passively.
ACE_Concurrency_Strategy
< SVC_HANDLER > *
concurrency_strategy_
 Concurrency strategy for an Acceptor.
bool delete_concurrency_strategy_


Detailed Description

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1>
class ACE_Oneshot_Acceptor< SVC_HANDLER, >

Generic factory for passively connecting clients and creating exactly one service handler (SVC_HANDLER).

This class works similarly to the regular {ACE_Acceptor}, with the following differences: 1. This class doesn't automagically register {this} with the {ACE_Reactor} since it expects to have its {accept} method called directly. However, it stashes the {ACE_Reactor} pointer away in case it's needed later to finish accepting a connection asynchronously. 2. The class doesn't need an {ACE_Creation_Strategy} (since the user supplies the SVC_HANDLER) or an {ACE_Accept_Strategy} (since this class only accepts one connection and then removes all traces of itself from the {ACE_Reactor} if it was registered for asynchronous accepts).


Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR_ADDR ACE_Oneshot_Acceptor< SVC_HANDLER, >::addr_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR ACE_Oneshot_Acceptor< SVC_HANDLER, >::acceptor_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER ACE_Oneshot_Acceptor< SVC_HANDLER, >::handler_type

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER::stream_type ACE_Oneshot_Acceptor< SVC_HANDLER, >::stream_type


Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Oneshot_Acceptor< SVC_HANDLER, >::ACE_Oneshot_Acceptor ( void   )  [inline]

Constructor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Oneshot_Acceptor< SVC_HANDLER, >::ACE_Oneshot_Acceptor ( const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
ACE_Reactor reactor = ACE_Reactor::instance (),
ACE_Concurrency_Strategy< SVC_HANDLER > *  cs = 0
) [inline]

Initialize the appropriate strategies for concurrency and then open the {peer_acceptor} at the designated {local_addr}. Note that unlike the {ACE_Acceptor} and {ACE_Strategy_Acceptor}, this method does NOT register {this} acceptor with the {reactor} at this point -- it just stashes the {reactor} away in case it's needed later.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Oneshot_Acceptor< SVC_HANDLER, >::~ACE_Oneshot_Acceptor ( void   )  [inline, virtual]

Close down the {Oneshot_Acceptor}.


Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::open ( const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
ACE_Reactor reactor = ACE_Reactor::instance (),
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0
) [inline]

Initialize the appropriate strategies for concurrency and then open the {peer_acceptor} at the designated {local_addr}. Note that unlike the {ACE_Acceptor} and {ACE_Strategy_Acceptor}, this method does NOT register {this} acceptor with the {reactor} at this point -- it just stashes the {reactor} away in case it's needed later.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::accept ( SVC_HANDLER *  svc_handler = 0,
ACE_PEER_ACCEPTOR_ADDR *  remote_addr = 0,
const ACE_Synch_Options synch_options = ACE_Synch_Options::defaults,
int  restart = 1,
int  reset_new_handle = 0
) [inline, virtual]

Create a {SVC_HANDLER}, accept the connection into the {SVC_HANDLER}, and activate the {SVC_HANDLER}.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::cancel ( void   )  [inline, virtual]

Cancel a oneshot acceptor that was started asynchronously.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Oneshot_Acceptor< SVC_HANDLER, >::operator ACE_PEER_ACCEPTOR & (  )  const [inline, virtual]

Return the underlying {PEER_ACCEPTOR} object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR & ACE_Oneshot_Acceptor< SVC_HANDLER, >::acceptor ( void   )  const [inline, virtual]

Return the underlying {PEER_ACCEPTOR} object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::close ( void   )  [inline, virtual]

Close down the {Oneshot_Acceptor}.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
void ACE_Oneshot_Acceptor< SVC_HANDLER, >::dump ( void   )  const [inline]

Dump the state of an object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::activate_svc_handler ( SVC_HANDLER *  svc_handler  )  [inline, protected, virtual]

Bridge method for activating a {svc_handler} with the appropriate concurrency strategy. Default behavior is to activate the {SVC_HANDLER} as a "passive object." However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the {SVC_HANDLER} as an "active object" via multi-threading or multi-processing).

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::shared_accept ( SVC_HANDLER *  svc_handler,
ACE_PEER_ACCEPTOR_ADDR *  remote_addr,
ACE_Time_Value timeout,
int  restart,
int  reset_new_handle
) [inline, protected]

Factors out the code shared between the {accept} and {handle_input} methods.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_HANDLE ACE_Oneshot_Acceptor< SVC_HANDLER, >::get_handle ( void   )  const [inline, protected, virtual]

Returns the listening acceptor's {ACE_HANDLE}.

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::handle_close ( ACE_HANDLE  = ACE_INVALID_HANDLE,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
) [inline, protected, virtual]

Perform termination activities when {this} is removed from the {reactor}.

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::handle_input ( ACE_HANDLE   )  [inline, protected, virtual]

Accept one connection from a client and activates the SVC_HANDLER.

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::handle_timeout ( const ACE_Time_Value tv,
const void *  arg
) [inline, protected, virtual]

Called when an acceptor times out...

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::init ( int  argc,
ACE_TCHAR argv[]
) [inline, protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Shared_Object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::fini ( void   )  [inline, protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Shared_Object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::info ( ACE_TCHAR **  strp,
size_t  length
) const [inline, protected, virtual]

Default version returns address info in {buf}.

Reimplemented from ACE_Shared_Object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::suspend ( void   )  [inline, protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::resume ( void   )  [inline, protected, virtual]

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::register_handler ( SVC_HANDLER *  svc_handler,
const ACE_Synch_Options options,
int  restart
) [inline, private]

Insert ourselves into the {ACE_Reactor} so that we can continue accepting this connection asynchronously. This method should NOT be called by developers directly.


Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Oneshot_Acceptor< SVC_HANDLER, >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
SVC_HANDLER* ACE_Oneshot_Acceptor< SVC_HANDLER, >::svc_handler_ [private]

Hold the svc_handler_ across asynchrony boundaries.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Oneshot_Acceptor< SVC_HANDLER, >::restart_ [private]

Hold the restart flag across asynchrony boundaries.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR ACE_Oneshot_Acceptor< SVC_HANDLER, >::peer_acceptor_ [private]

Factory that establishes connections passively.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Concurrency_Strategy<SVC_HANDLER>* ACE_Oneshot_Acceptor< SVC_HANDLER, >::concurrency_strategy_ [private]

Concurrency strategy for an Acceptor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
bool ACE_Oneshot_Acceptor< SVC_HANDLER, >::delete_concurrency_strategy_ [private]

true if Acceptor created the concurrency strategy and thus should delete it, else false.


The documentation for this class was generated from the following files:
