ACE_WFMO_Reactor_Notify Class Reference

Unblock the <ACE_WFMO_Reactor> from its event loop, passing it an optional <ACE_Event_Handler> to dispatch. More...

#include <WFMO_Reactor.h>

Inheritance diagram for ACE_WFMO_Reactor_Notify:

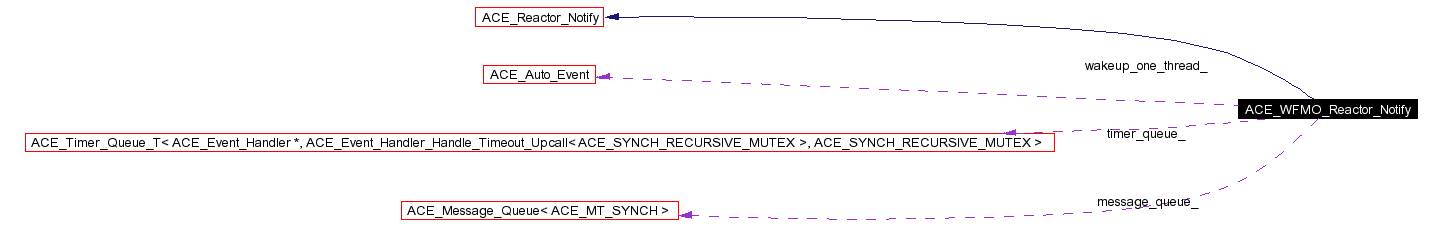

[legend]Collaboration diagram for ACE_WFMO_Reactor_Notify:

[legend]List of all members.

Public Methods
	ACE_WFMO_Reactor_Notify (size_t max_notifies=1024)
	Constructor.
virtual int	open (ACE_Reactor_Impl *wfmo_reactor, ACE_Timer_Queue *timer_queue, int disable_notify=0)
	Initialization. <timer_queue> is stored to call <gettimeofday>.
virtual int	close (void)
	No-op.
virtual int	notify (ACE_Event_Handler *event_handler=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)
	No-op.
virtual ACE_HANDLE	get_handle (void) const
	Returns a handle to the <ACE_Auto_Event>.
virtual ACE_HANDLE	notify_handle (void)
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)
	Verify whether the buffer has dispatchable info or not.
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)
void	max_notify_iterations (int)
int	max_notify_iterations (void)
virtual int	purge_pending_notifications (ACE_Event_Handler *, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual void	dump (void) const
	Dump the state of an object.
Private Methods
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
Private Attributes
ACE_Timer_Queue *	timer_queue_
	Pointer to the wfmo_reactor's timer queue.
ACE_Auto_Event	wakeup_one_thread_
ACE_Message_Queue< ACE_MT_SYNCH >	message_queue_
int	max_notify_iterations_

---

Detailed Description

Unblock the <ACE_WFMO_Reactor> from its event loop, passing it an optional <ACE_Event_Handler> to dispatch.

This implementation is necessary for cases where the <ACE_WFMO_Reactor> is run in a multi-threaded program. In this case, we need to be able to unblock <WaitForMultipleObjects> when updates occur other than in the main <ACE_WFMO_Reactor> thread. To do this, we signal an auto-reset event the <ACE_WFMO_Reactor> is listening on. If an <ACE_Event_Handler> and <ACE_Reactor_Mask> is passed to <notify>, the appropriate <handle_*> method is dispatched.

---

Constructor & Destructor Documentation

ACE_WFMO_Reactor_Notify::ACE_WFMO_Reactor_Notify (  size_t    max_notifies = 1024 )

Constructor.

---

Member Function Documentation

int ACE_WFMO_Reactor_Notify::close (  void    )  [virtual]

No-op. Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::dispatch_notifications (  int &    number_of_active_handles, ACE_Handle_Set &    rd_mask )  [virtual]

No-op. Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::dispatch_notify (  ACE_Notification_Buffer &    buffer )  [virtual]

Handle one of the notify call on the <handle>. This could be because of a thread trying to unblock the <Reactor_Impl> Implements ACE_Reactor_Notify.

void ACE_WFMO_Reactor_Notify::dump (  void    )  const [virtual]

Dump the state of an object. Implements ACE_Reactor_Notify.

ACE_HANDLE ACE_WFMO_Reactor_Notify::get_handle (  void    )  const [virtual]

Returns a handle to the <ACE_Auto_Event>. Reimplemented from ACE_Event_Handler.

int ACE_WFMO_Reactor_Notify::handle_signal (  int    signum, siginfo_t *    = 0, ucontext_t *    = 0 )  [private, virtual]

Called when the notification event waited on by <ACE_WFMO_Reactor> is signaled. This dequeues all pending <ACE_Event_Handlers> and dispatches them. Reimplemented from ACE_Event_Handler.

int ACE_WFMO_Reactor_Notify::is_dispatchable (  ACE_Notification_Buffer &    buffer )  [virtual]

Verify whether the buffer has dispatchable info or not. Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::max_notify_iterations (  void    )  [virtual]

Get the maximum number of times that the <ACE_WFMO_Reactor_Notify::handle_input> method will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. Implements ACE_Reactor_Notify.

void ACE_WFMO_Reactor_Notify::max_notify_iterations (  int    )  [virtual]

Set the maximum number of times that the <ACE_WFMO_Reactor_Notify::handle_input> method will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead. Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::notify (  ACE_Event_Handler *    event_handler = 0, ACE_Reactor_Mask    mask = ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *    timeout = 0 )  [virtual]

Special trick to unblock <WaitForMultipleObjects> when updates occur. All we do is enqueue <event_handler> and <mask> onto the <ACE_Message_Queue> and wakeup the <WFMO_Reactor> by signaling its <ACE_Event> handle. The <ACE_Time_Value> indicates how long to blocking trying to notify the <WFMO_Reactor>. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in <timeout> elapses). Implements ACE_Reactor_Notify.

ACE_HANDLE ACE_WFMO_Reactor_Notify::notify_handle (  void    )  [virtual]

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the <Reactor_Impl> Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::open (  ACE_Reactor_Impl *    wfmo_reactor, ACE_Timer_Queue *    timer_queue, int    disable_notify = 0 )  [virtual]

Initialization. <timer_queue> is stored to call <gettimeofday>. Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::purge_pending_notifications (  ACE_Event_Handler *   , ACE_Reactor_Mask    = ACE_Event_Handler::ALL_EVENTS_MASK )  [virtual]

Purge any notifications pending in this reactor for the specified <ACE_Event_Handler> object. If <eh> == 0, all notifications for all handlers are removed (but not any notifications posted just to wake up the reactor itself). Returns the number of notifications purged. Returns -1 on error. Implements ACE_Reactor_Notify.

int ACE_WFMO_Reactor_Notify::read_notify_pipe (  ACE_HANDLE    handle, ACE_Notification_Buffer &    buffer )  [virtual]

Read one of the notify call on the <handle> into the <buffer>. This could be because of a thread trying to unblock the <Reactor_Impl> Implements ACE_Reactor_Notify.

---

Member Data Documentation

int ACE_WFMO_Reactor_Notify::max_notify_iterations_ [private]

Keeps track of the maximum number of times that the <ACE_WFMO_Reactor_Notify::handle_input> method will iterate and dispatch the <ACE_Event_Handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty."

ACE_Message_Queue<ACE_MT_SYNCH> ACE_WFMO_Reactor_Notify::message_queue_ [private]

Message queue that keeps track of pending <ACE_Event_Handlers>. This queue must be thread-safe because it can be called by multiple threads of control.

ACE_Timer_Queue* ACE_WFMO_Reactor_Notify::timer_queue_ [private]

Pointer to the wfmo_reactor's timer queue.

ACE_Auto_Event ACE_WFMO_Reactor_Notify::wakeup_one_thread_ [private]

An auto event is used so that we can <signal> it to wakeup one thread up (e.g., when the <notify> method is called).

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/WFMO_Reactor.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/WFMO_Reactor.cpp

---
